RF tube sealer, radiofrequency tube sealer for blood

Product Overview

Description

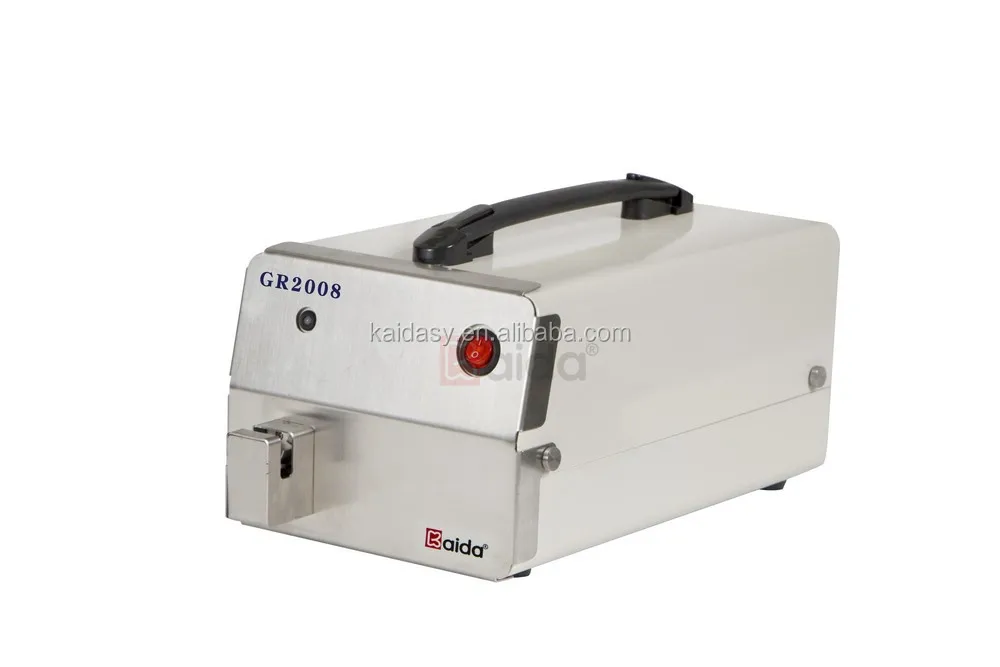

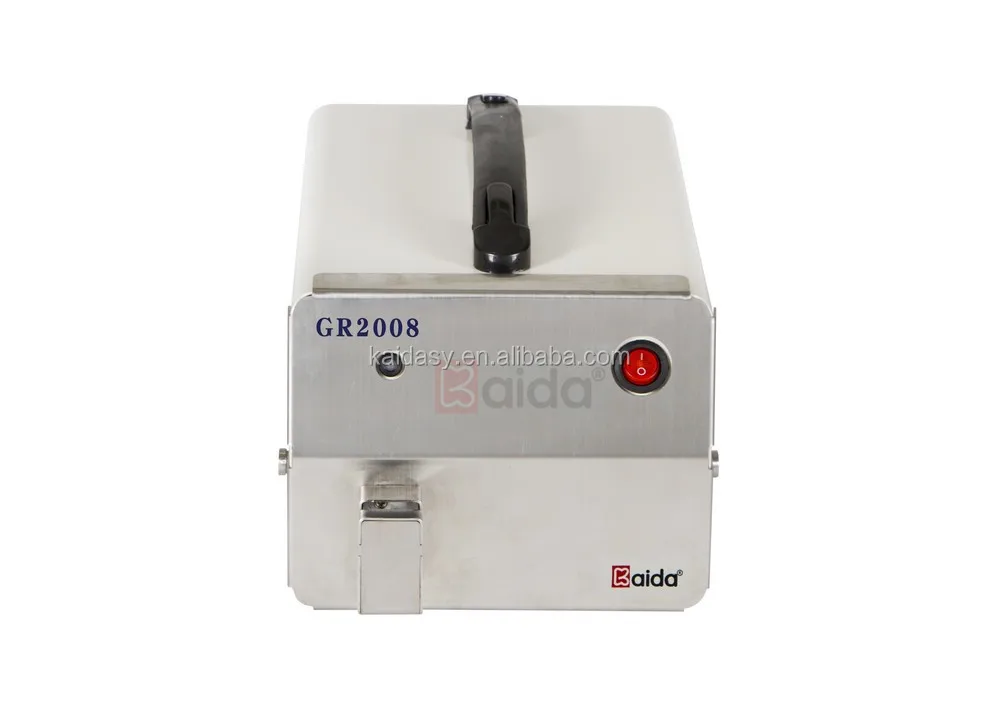

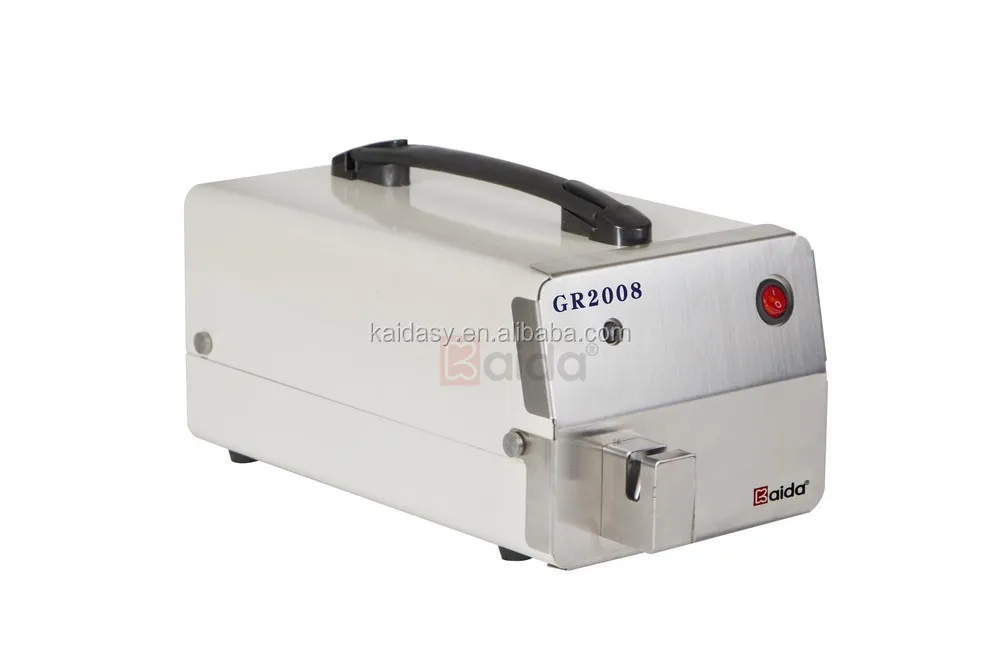

GR2008 RF tube sealer, radiofrequency tube sealer for blood



This  radiofrequency tube sealer  is a compact equipment to seal the Blood Bags by radio frequency sealing system. Sealing can be achieved in less than 2 seconds per tube by simple operation. Sealed tube can be easily separated by pulling the sealing section by both side. The bench top sealer, has been designed to meet high standards in blood components processing: consistent high quality sealing, excellent performance after repeated use, safety features and easy use. We are pleased to introduce the latest Radio Frequency Sealing System.



FEATURES:

1. Controlled by MCU, voltage can be adjusted automatically
2. No Haemolysis, adopt imported key components to ensure the equipment high quality.
3. The tube sealer foot has suckers, suitable for use in blood collecting cehicle
4. Automatic heat sealing tightly. Sealed tube can be easily separated by pulling the sealing section by both side.
5. Seals blood bag tubing of up to 6mm dia.
6. Automatic start-up after insertion of tubing
7. Seals within 2 seconds.



TECHNICAL PARAMETER:

Model No.	GR2008
Sealing time	0.5~2 sec. depends on the tubing
Power Voltage	190V~250V adjust automatically
Power Frequency	50 Hz
Size of sealing tube	Diameter 3~6mm
Dimension(W x D x H)	165 x 280 x 220mm
Net Weight	9 kg.

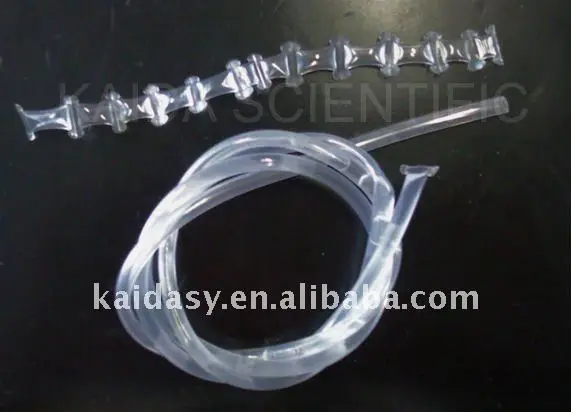

Picture of Tube after sealing:
