Product Overview

Description

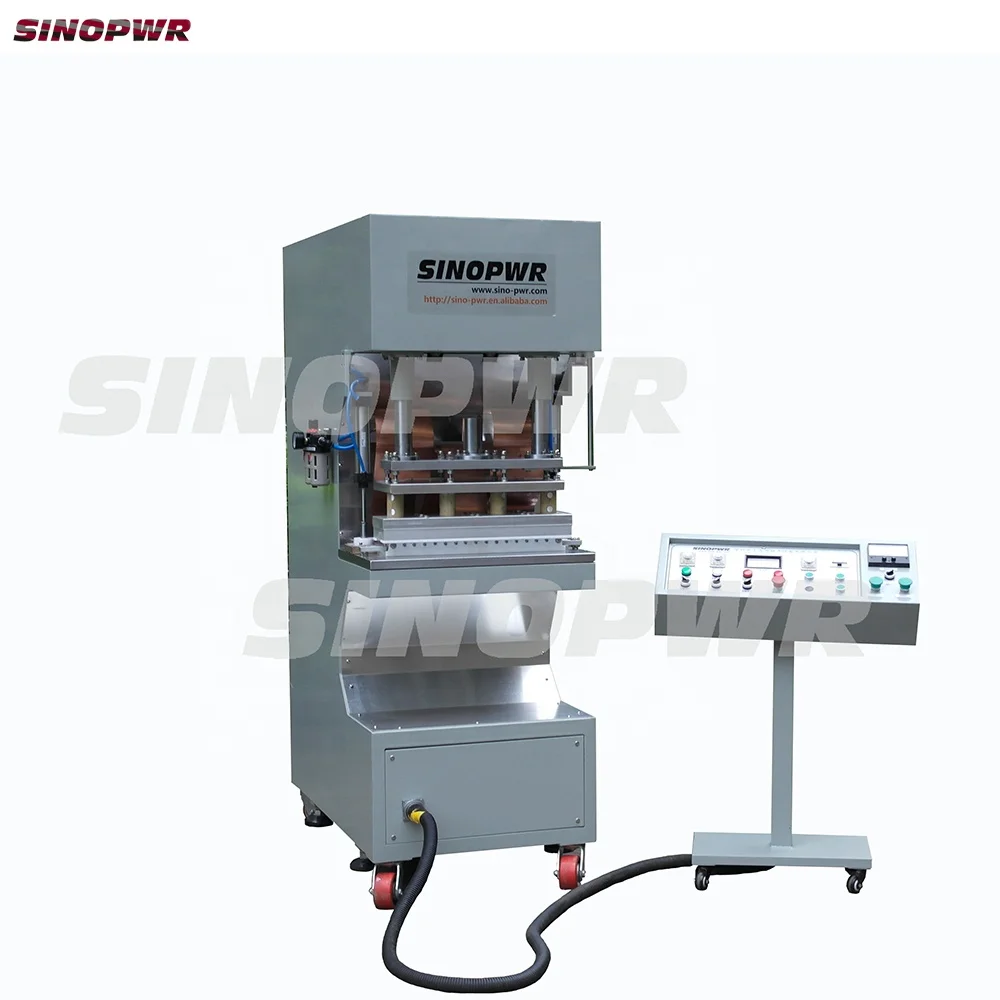

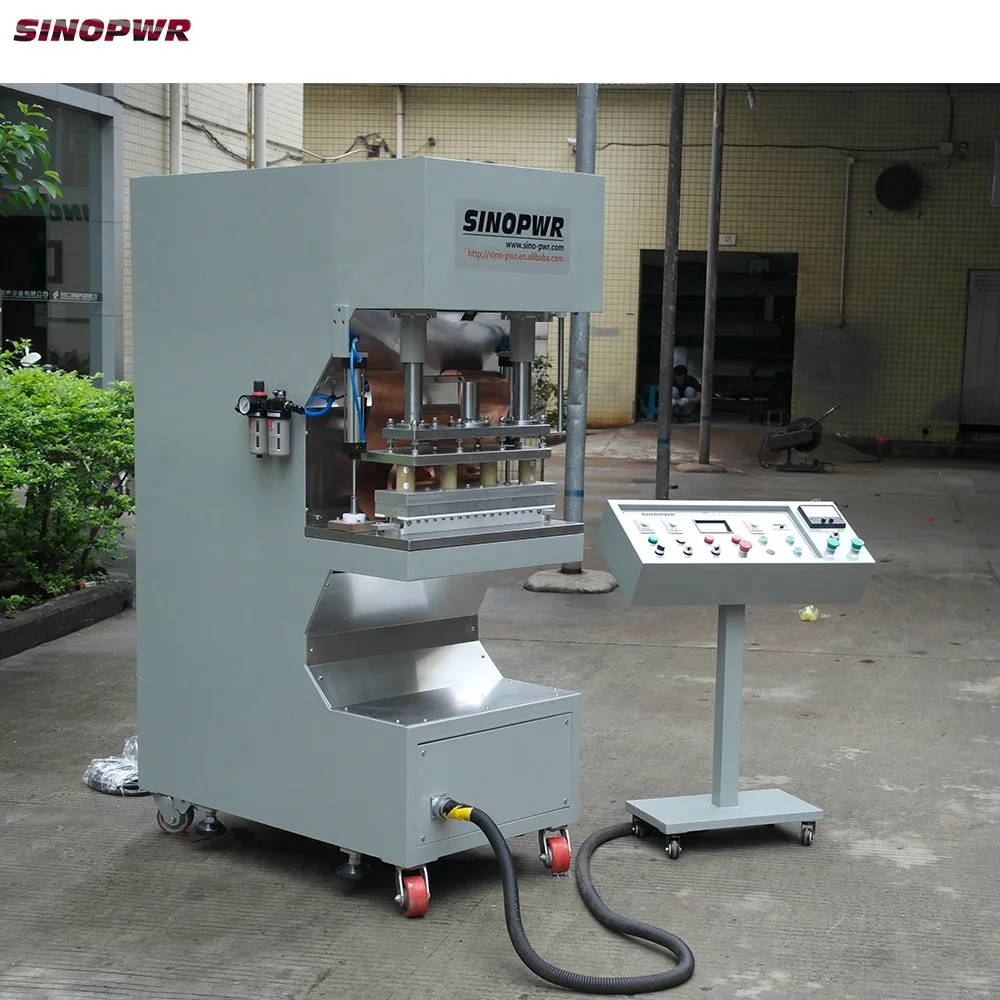

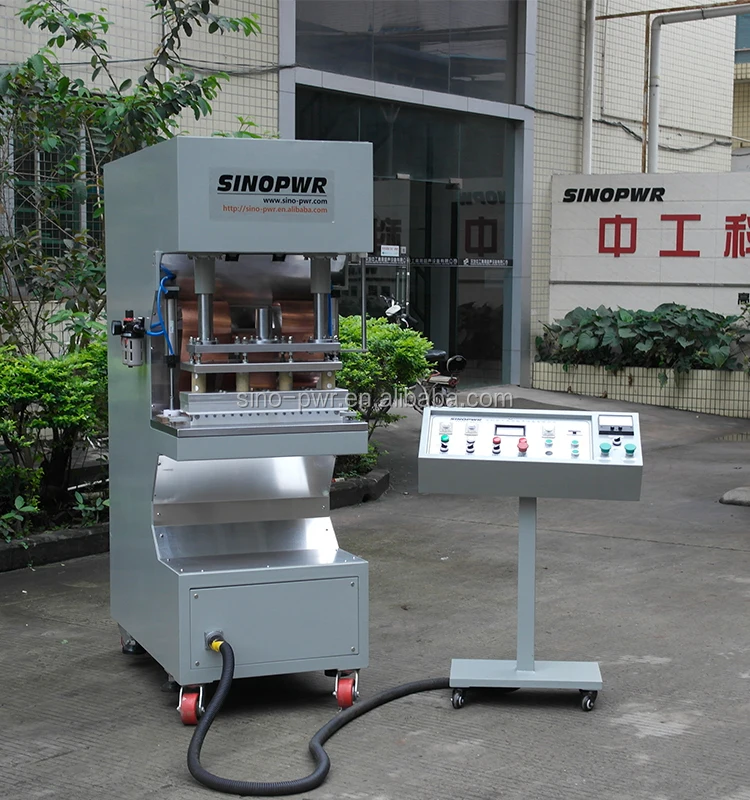

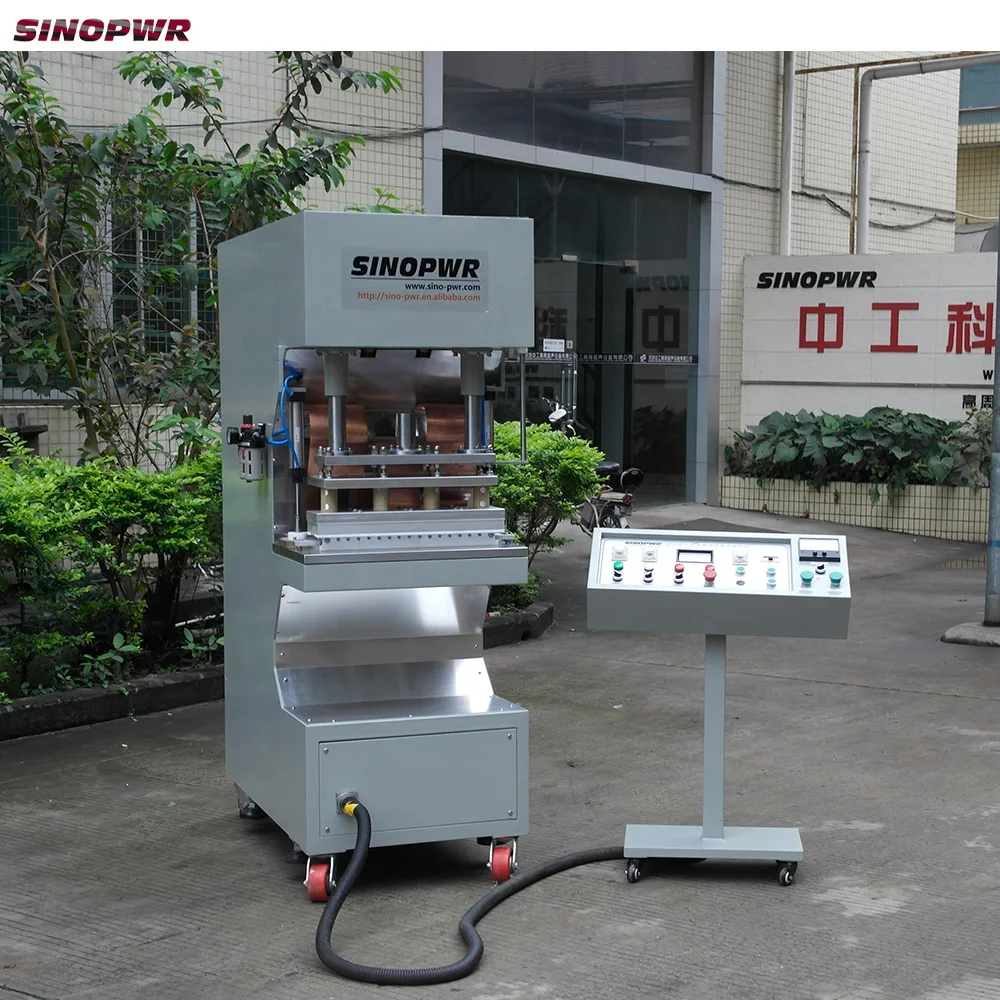

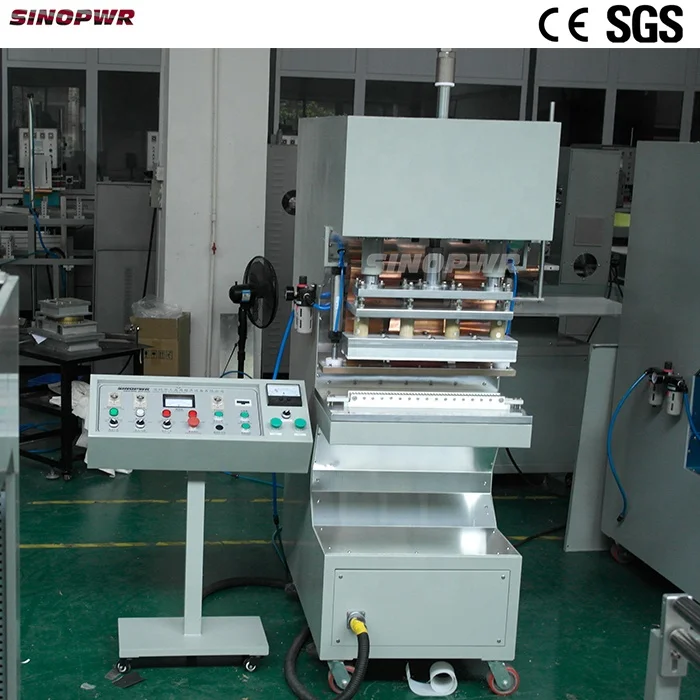

Military tent 8KW  membrance high frequency canvas welding machine

1.With laser position system for precision positioning.

2.Firmly welding ,be well meeting with materials of thick or thin.

3.the deep and wide throat ,conveninent in continuous welding with large area.

4.Adopting high sensitive anti-sparkle device NL5557 .avoid damaging the mould.

5.Adopted squarness high frequency vibration bos,more realible and Stable in output.

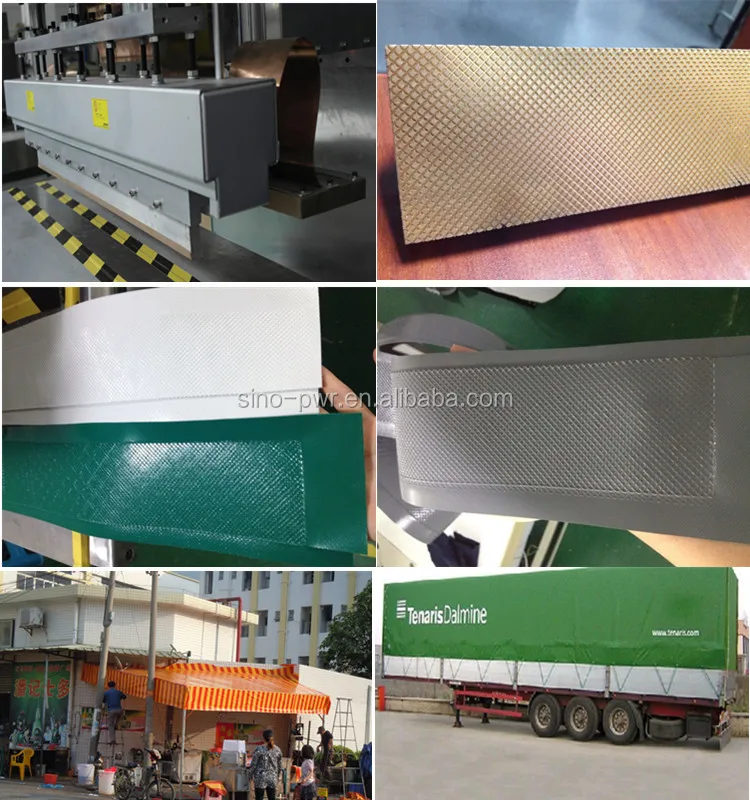

specailized for welding biogas bag,water container,oil containing bag. and also applied for sealing tarpaulin, sunshading canvas, painting canvas, film curtain and relatives products

Specifications:

Model	ZG-8KWF	ZG-10KWF	ZG-12KWF	ZG-15KWF	ZG-25KWF
Power	8000W	10KW	12KW	15KW	25KW
Input power	15KVA	18KVA	20KVA	25KVA	35KVA
Voltage	3Phase 380V 50HZ
Frequency	27.12MHz
Rectifier	silicon diode
Oscillation tube	7T69RB	E3069	3130RB	8T85RB	8T25RB
Max pressure	400kg	600kg	750kg	1000kg	1200kg
Operation mode	pneumatic
Max distance of electrodes	150mm
The press stroke	150mm
The size of upper electrode	100*700mm	100*800mm	100*900mm	100*1000mm	100*1200mm
The size of lower electrode	450*900mm	450*950mm	450*1050mm	450*1150mm	450*1350mm
deep of throat	600mm
The range of temperature	30~200 °C adjustable
Welding time	0---10s Adjustable





FAQ:

1,How to install the machine?

2,How do I use the machine ?

3,How to set operating Mold and machine maintance?

4,Machine configuration

5,Troublesolving

,
