PS EPS Foam Plate Food Container Making Machine

Product Overview

Description

PS EPS Foam Plate Food Container Making Machine



The production line include three machines:

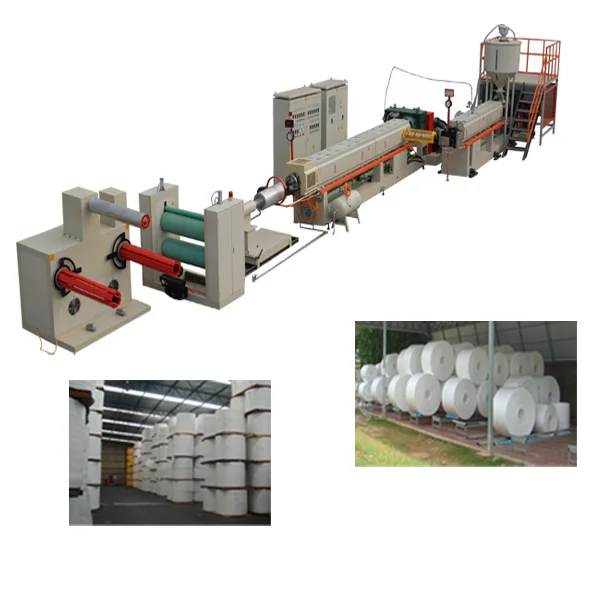

A. PS foam sheet extruder

B. Fully automatic forming and cutting machine

C. PS recycle machine

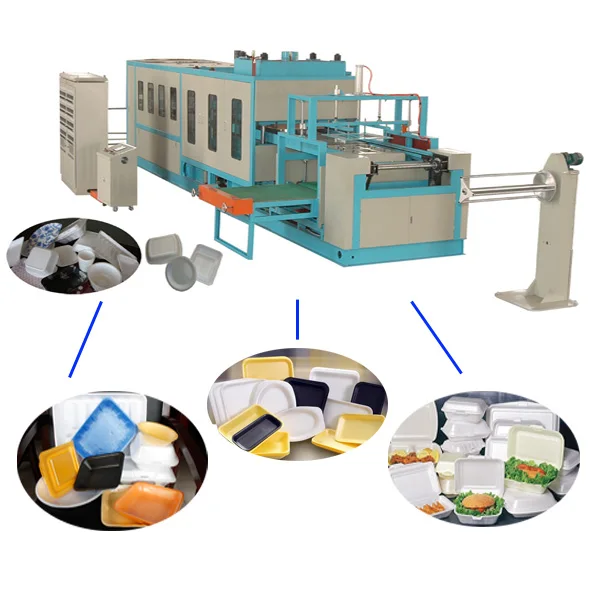

B. Fully Automatic Forming And Cutting Machine

Fully automatic forming and cutting machine integrates forming, cutting and stacking (trimming) at the same time. It has the features of saving labor, improving efficient, lowing labor intensity and reducing production cost. It adopts PLC controller and touch screen to control the working program. Two workers are enough for whole production line.

The machine is plastic sheet forming equipment in one step with following process: transporting sheet, heating, forming, cutting, stacking and winding waste edge.



Model	Unit	HX-1040
Max. forming area	mm2	1000×1100
Max. forming depth	mm	80
Production efficiency	s/die	3 - 8
Forming pressure	T	15
Mounted power	kw	168
Total weight	T	16
Installation size	m	13×2×3.2

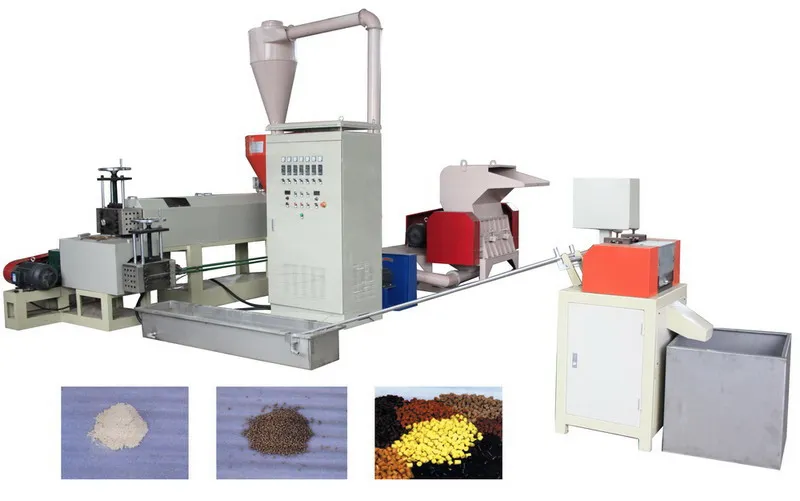

C. PS Recycle Machine

Plastic recycle and pelletizing machine is designed to reclaim the foamed polystyrene materials almost identically to new ones with its own superior filtering performance.

Model	Unit	HX-180+120/100
Screw diameter	mm	180+120/100
Motor	kw	30
Heater	kw	25
Extruder capacity	kg/h	80-130
Cooling water tank	mm	1810×410×225
Granule cutting motor	kw	2.2
