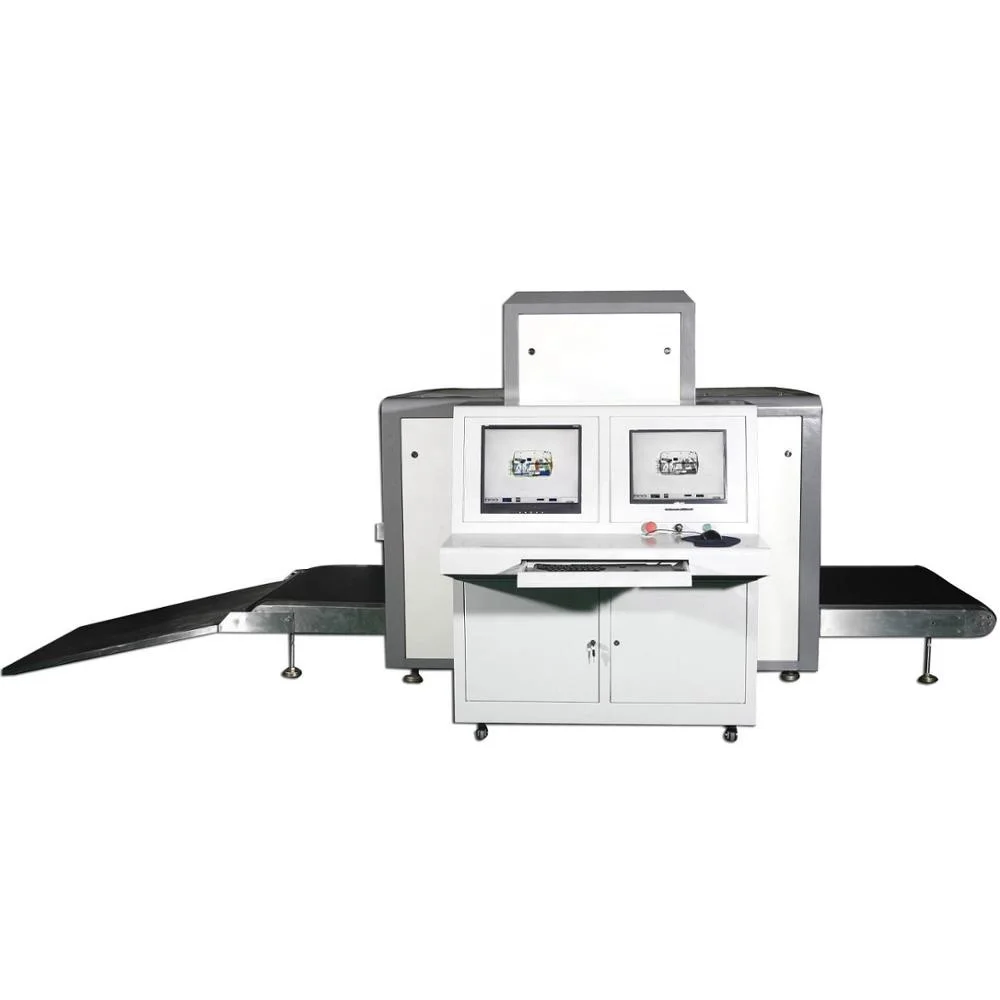

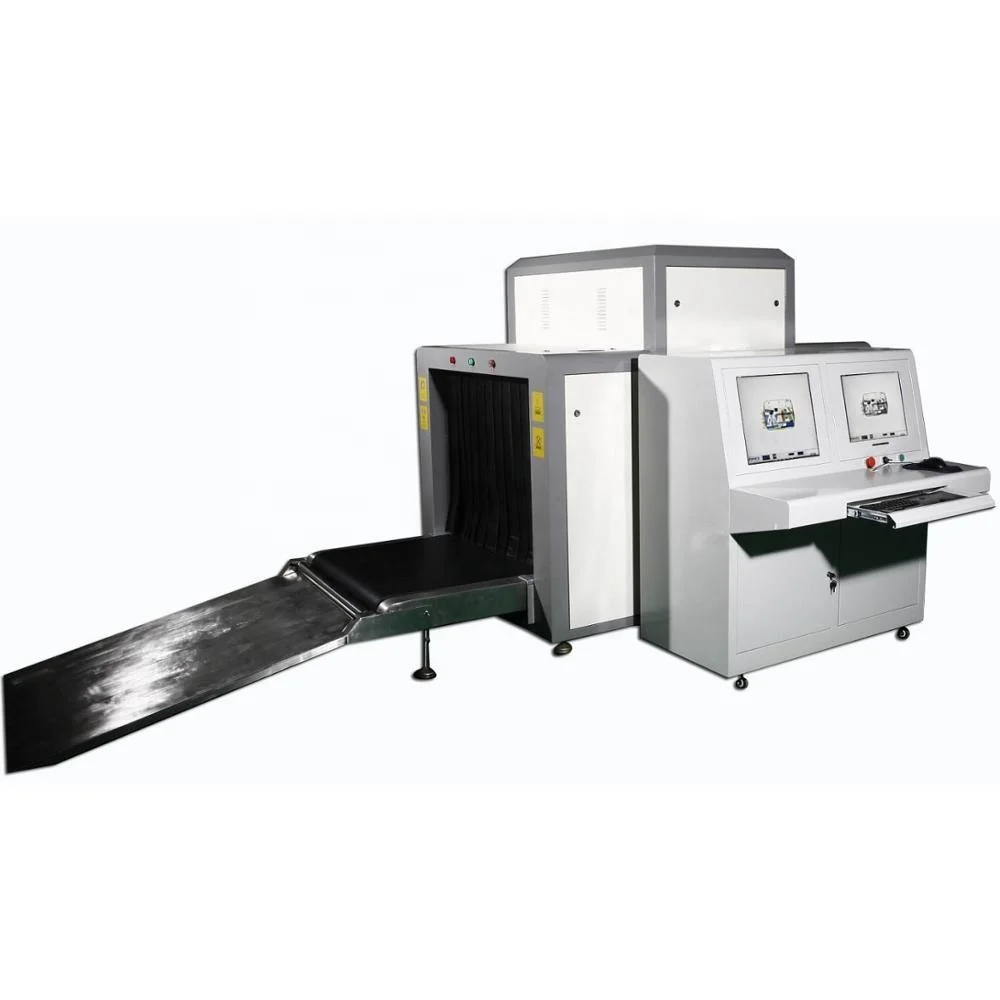

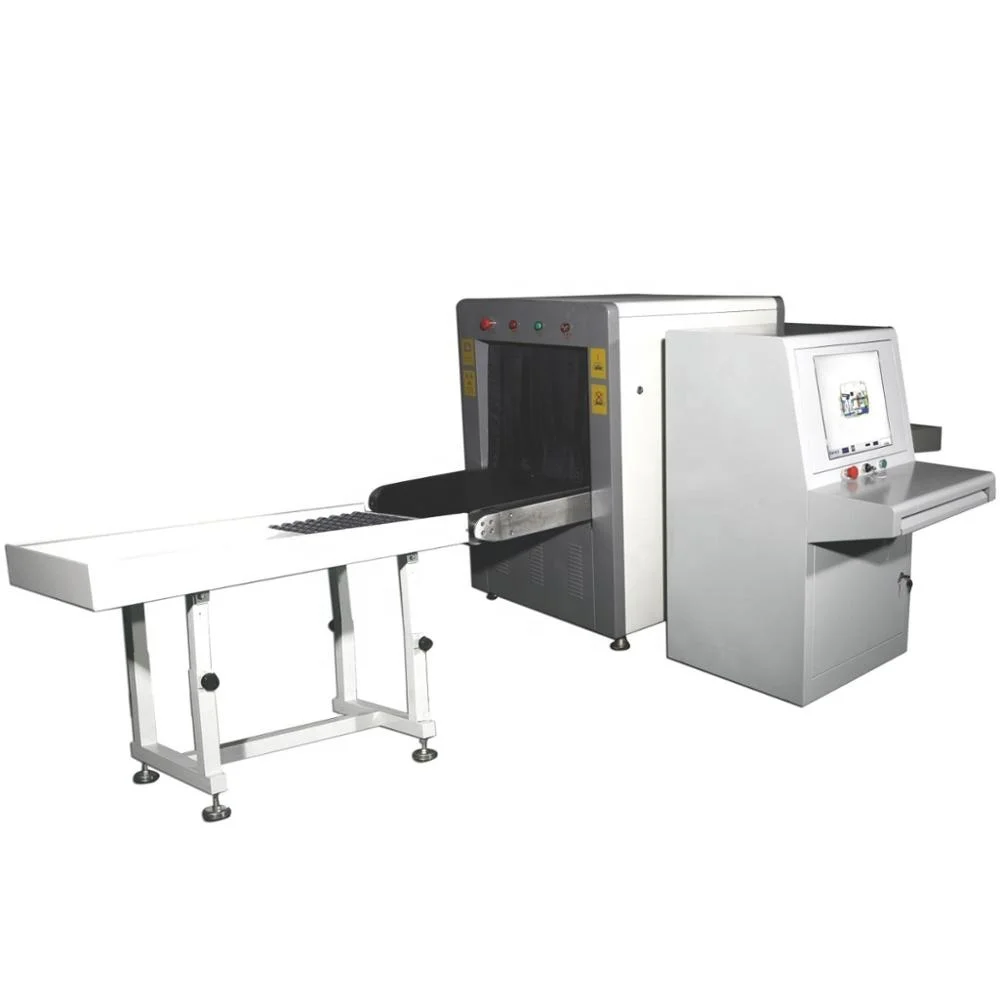

Security baggage X ray scanner/parcel X ray scanner JUZHUO5030A

Product Overview

Description

Security baggage X-ray scanner/parcel X-ray scanner JUZHUO5030A



Feature

1. larm by sounds & light::Alarm by sounds and light when conform to condition.
2.  Network interface:Could be connect local area network and support multi-terminal check baggage at same times
3.  Safety ray:Transmit ray under automatic control, avoids the miss
4.  Image monitoring for user-friendly:The monitor use fold, rotary system, operators adjusts the monitor position willfully according to own need, reduces wearily.
5.  Simple operation by mouse:Without keyboard and work table, control by mouse, save space.
6.  Turn off by a key control:Turn off the machine only need one step:revolves the key. The equipment automatic security close-down, does not need complex many steps, is simpler.
7.    Eagle-eye:Could be expediently observing enlargement area.
8.   Estimate malfunction by self:Automatic estimate malfunction and prompt

Technical Data

1. 1.    Tunnel Size:                    500(W)×300(H)mm
2. 2.    Conveyor Speed:                 0.22 m/s
3. 3.    Conveyor Max Load:              20 kg
4. 4.    Single inspection dosage           < 1.5µGy
5. 5.    Wire Resolution:                 0.1mm metal line
6. 6.    Steel Penetration:                 8MM armor plate
7. 7.    Film Safety:                     For ISO 1600
8. 8.    Maximum leakage radiation        <0.3µGY/H

X-ray generator

1.  Orientation:      Vertically Upward

2.  Tube Current:   0.4~0.5MA(adjustable)

3.  Anode Voltage:  80 KV(adjustable)

4.  Angle: 60°

5.  Generator cooling/working periods       Sealed oil bath with forced air/100%

1. X-RAY SENSOR: L TYPE PHOTO-DIODE ARRAY DETECTOR, 12BIT
2.   MONITOR:HIGH RESOLUTION 17INCH COLOR LCD DISPLAY
3.  COLOR QUALITY: 24 BIT REAL COLORS
4. EDGE ENHANCEMENT: OBJECT CONTOUR EDGE IS MORE DISTINCT
5. SUPER IMAGE ENHANCEMENT:   IMAGE DETAIL IS MORE DISTINCT
6. HIGH PENETRATE STRENGTH DISPLAY:   INCREASE BRIGHTNESS OF DARK AREA IN IMAGE TO DISPLAY OBJECT WHICH IS BEHIND HIGH ABSORPTIVITY MASS DISTINCTLY
7. LOW PENETRATE STRENGTH DISPLAY:INCREASE CONTRAST OF LOW ABSORPTIVITY MASS (EASY TO PENETRATE) TO DISPLAY IT DISTINCTLY
8.  MAGNIFIER: FUNCTION OF PARTIAL ENLARGEMENT
9. BRIGHTENING/DIMMING:  INCREASE BRIGHTNESS OF IMAGE/DECREASE BRICHTNESS OF IMAGE
10.  IMAGE RECURRENCE:  DISPLAY PREVIOUS TWENTY IMAGES AND PROCESS ANY ONE OF THEM
11. IMAGE RESTORATION:   RESTORE IMAGE TO INITIAL STATUS AT THE TIME OF STOPPING CONVEYOR
12. IMAGE STORING: REAL TIME STORE ANY IMAGE AND PROCESS IT IN OPERATION STATUS

Multi-Energy function

1.  MULTI-ENERGY COLOR:

DISPLAY ORGANIC MATERIAL FOR ORANGE, DISPLAY INORGANIC MATERIAL FOR BLUE, AND DISPLAY MIXTURE FOR GREEN



2,HIGH ENERGY/LOW ENERCY:

SWITCH TO DISPLAY TWO ENERGY TYPE, HIGH ENERGY STANDS FOR METAL ETC., LOW ENERGE STANDS FOR NONMETALLIC



3,AUXILIAY FUNCTION FOR DRUGS & EXPLOSIVES:

HELP TO DETECT SUCH DANGEROUS MATERIAL AS DRUGS & EXPLOSIVES ETC.



4,AUDIBLE & VISIBLE ALARM:

GIVE SOUND AND VISIBLE SIGNAL WHEN CONFORMING TO CONDITION

Operating environment:

1.  Storage Temperature:      -20ºC to 60ºC

2.  Operating Temperature:   0ºC to 45ºC

3.  Relative Humidity:            20 to 95% non-condensing

4.  System Power:                 220 VAC (±10%) 50±3HZ

5.  Power wastage:               1.0 KW (Max)

6.  Noise:                               <65DB
