V-shape/U-shape/herringbone Patterned Conveyor Belt/Chevron Conveyor Belt
Product Description

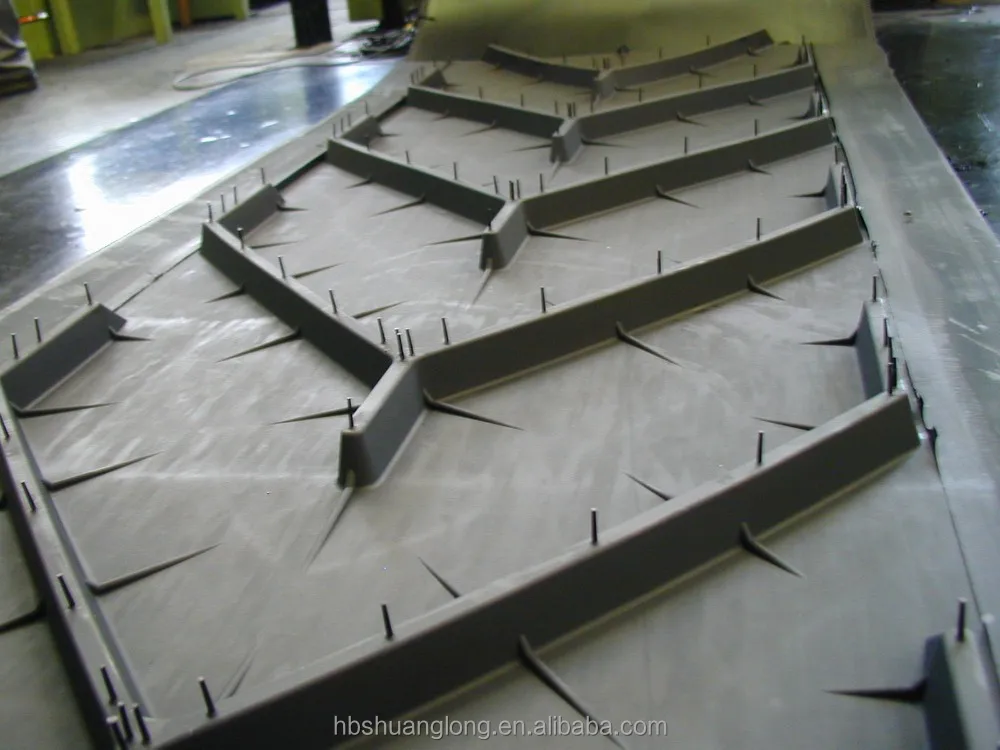

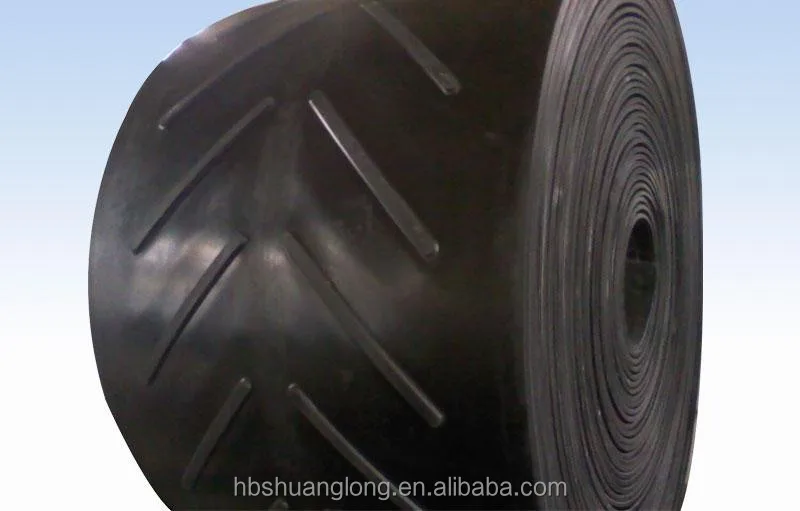

Chevron conveyor belt is composed of base belt and chevrons.
The shape and height are different due to material and inclination.
Shallow & deep shallow pattern can be offered.
Herringbone pattern & strip-type pattern can be offered.
Can produce special pattern according to buyer's requirements.
Herring-bone pattern:
There is herring-bone pattern higher than belt on the surface of belt.The profile may be either open- end or closed.Each kind of pattern includes three types:high,medium and low.
It can conveyor powered,granulated and small lump materials at the inclination not more than 40degree as well as packaged material.
Granulated pattern:
There is granular pattern concave or convex on the surface.
The pro-traded pattern conveyor belt is suitable for conveying soft packed materials or others.The belt can be operated at a inclination less than 45degree to convey the granular materials.
The width of chevron conveyor belt that we can provide is from 500mm to 1600mm.
Pattern:we can make different patterns conveyor belt,it is all up to your deamnd
Application of Patterned Conveyor Belt:
Chevron conveyor belt is suitable for conveying loose, bulky or bagged materials on inclined surface at angles of less than 40 degrees.
Selections:
Selection of a type and height of cleats depends on the material to be conveyed and the angle of inclination:
Type of material | Material example | Max. angle of inclination | |||
Height of cleats | |||||
H(mm): | H(mm): | H(mm): | H(mm): | ||
Powdery | Flour, etc. | 25° | 25° | 28° | 30° |
Loose flowing | Corn, barley, wheat, rye, etc. | 20/25° | 20/25° | 25/30° | 25/30° |
Loose rolling | Gravel, ground stone, etc. | 25° | 25° | 28° | 30° |
Sticky | Wet sand, ash, wet loam, etc. | 30° | 30/35° | 35/40° | 40/45° |
Packed | Sacks, paper sacks, etc. | 30/35° | 30/35° | 35/40° | 35/40° |
Conver properties of the belts
Type | Mpa ≥ | Mpa ≥ | mm2 ≤ | Change Rate of tensile strengh and elong after aging |
% | ||||
H | 24 | 450 | 120 | -25~+25 |
D | 18 | 400 | 100 | -25~+25 |
L | 15 | 350 | 200 | -25~+25 |
Technical Data of Chevron conveyor belt:
Different patterns for you to choose,pls confirm your pattern in the inquiry list.
Application of Chevron conveyor belt:
Packaging & Shipping
Packaging detail:
(1) PP waterproof cloth+Steel core+Side plastic sheet
(2) Can be packed as per customer requirement
(3) Usually can load 10-20 rolls into one 40HC container
Delivery time: within 15-30 working days
Company Information
Why you choose us?
1.We have our own factory and team.we can assure the quality of the products,we are the profesional manufacturer,following is our workshop:
2.Different Conveyor Belts
We can produce lots of types belts,such as EP/NN/CC conveyor belt,sidewall conveyor belt,fire retardant conveyor belt,heat resistant conveyor belt,chemical conveyor belt etc.
3.Advanced Producton andTest Equipments-We guarantee high quality of our patterned conveyor belt/chevron conveyor belts.
