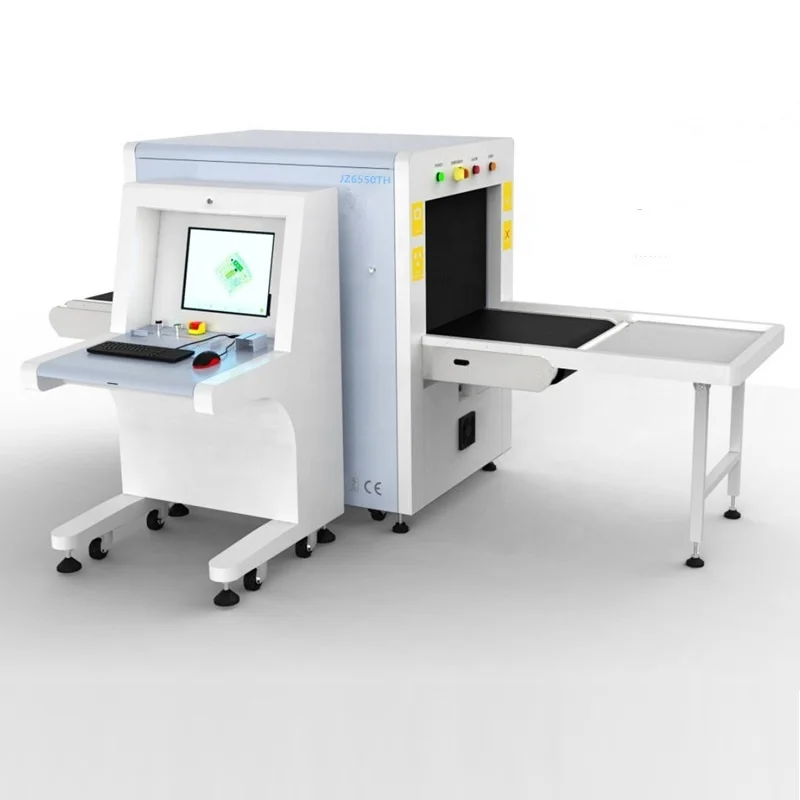

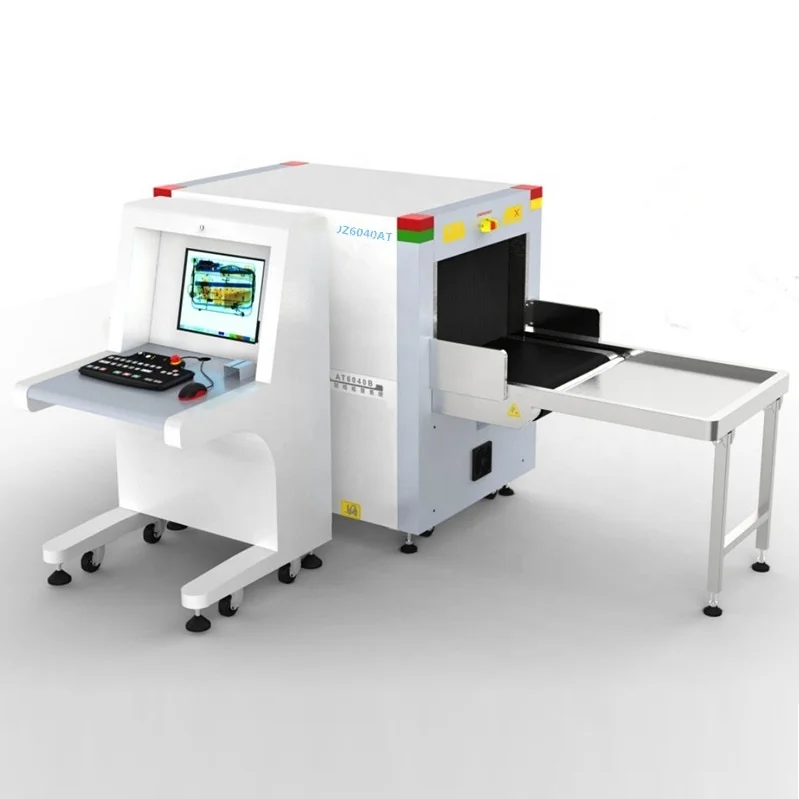

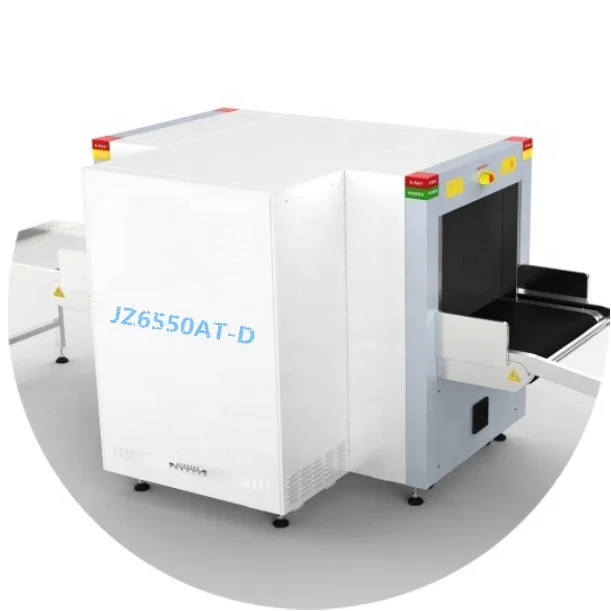

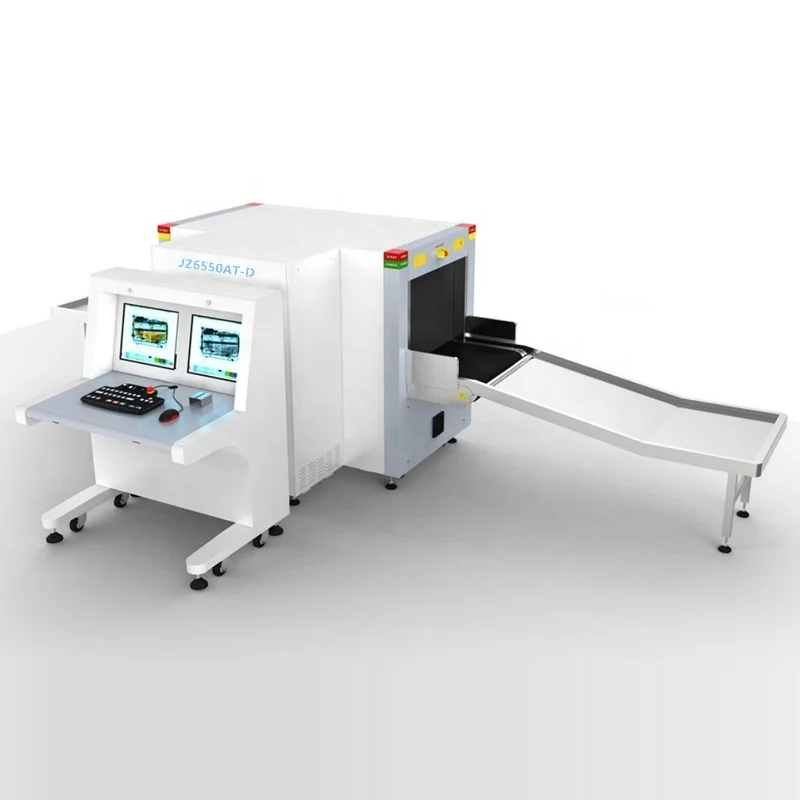

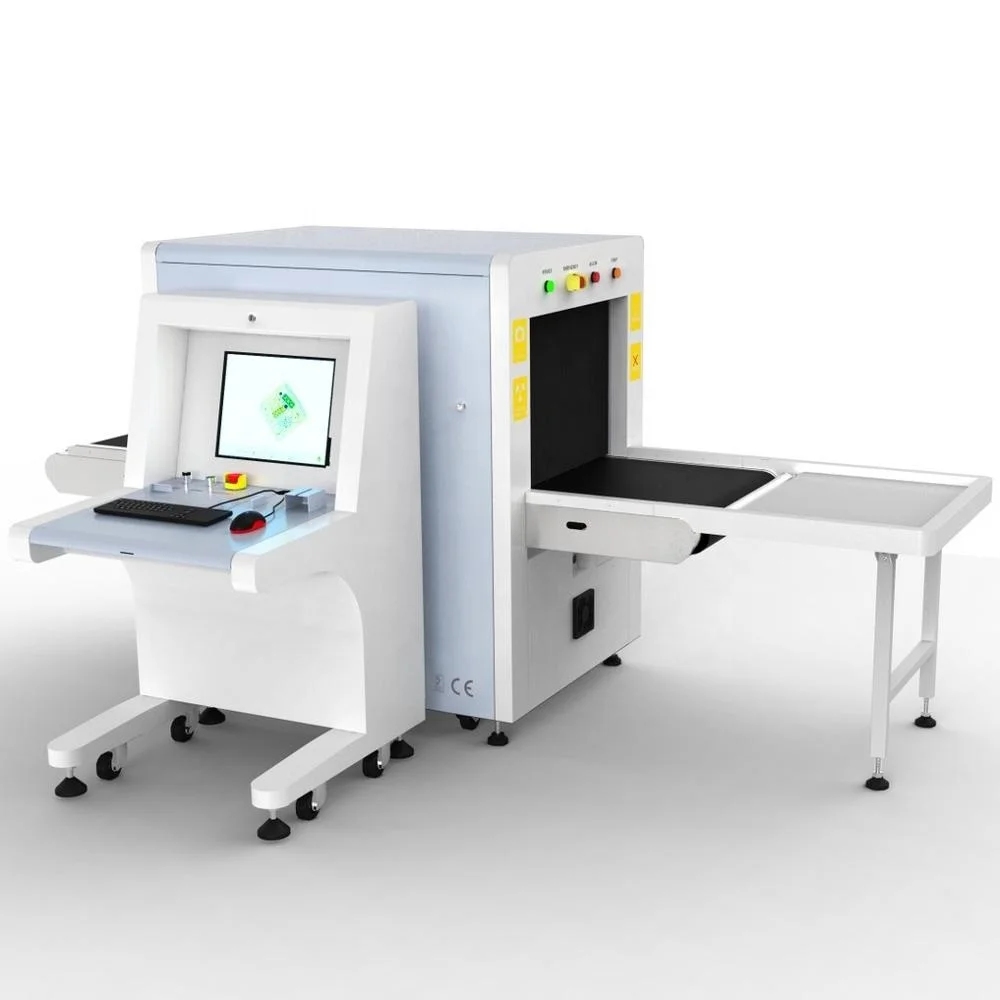

Airport baggage scanner/parcel x ray scanner/used x ray scanner JUZHUO8065

Product Overview

Description

Airport baggage scanner/parcel x-ray scanner/used x-ray scanner JUZHUO8065



Feature:

1,Alarm by sounds & light::Alarm by sounds and light when conform to condition

2,Network interface:Could be connect local area network and support multi-terminal check baggage at same times

3,Safety ray:Transmit ray under automatic control, avoids the miss

4,Turn off by a key control:Turn off the machine only need one step:revolves the key. The equipment 5,automatic security close-down, does not need complex many steps, is simpler.

6,Eagle-eye:Could be expediently observing enlargement area.

7,Estimate malfunction by self:Automatic estimate malfunction and prompt message, helpful for the maintenance.

Technical Data :

Tunnel Size:                     800(W)×650(H)mm

Conveyor Speed:               0.22 m/s

Conveyor Max Load:            150 kg

Single inspection dosage      < 1.5µGy

Wire Resolution:                0.1mm metal line

Steel Penetration:              30MM armor plate

Film Safety:                      For ISO 1600

Maximum leakage radiation     <0.3µGY/H

X-ray Generator :

Orientation:                      Vertically Upward

Tube Current:                     0.4~1.2MA(adjustable)

Anode Voltage:                    100~160 KV(adjustable)

Angle:                              80°

Generator cooling/working periods: Sealed oil bath with forced air/100%

Image Performance System :

1,X-RAY SENSOR: L TYPE PHOTO-DIODE ARRAY DETECTOR, 12BIT

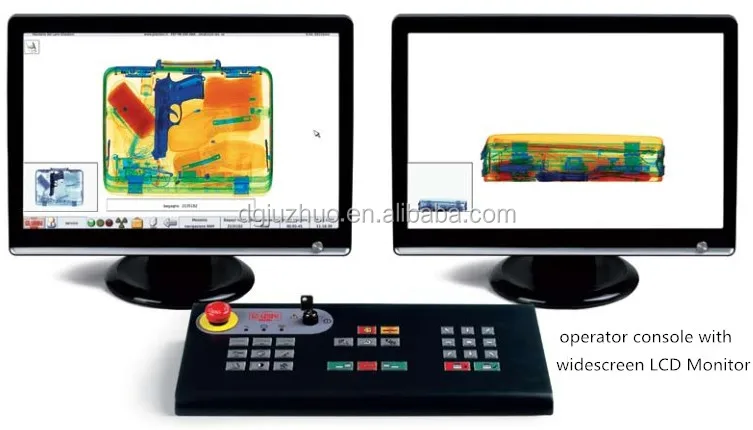

2,MONITOR:  HIGH RESOLUTION 17INCH COLOR LCD DISPLAY

3,COLOR QUALITY:  24 BIT REAL COLORS

4,EDGE ENHANCEMENT:OBJECT CONTOUR EDGE IS MORE DISTINCT

5,SUPER IMAGE ENHANCEMENT:   IMAGE DETAIL IS MORE DISTINCT

6,HIGH PENETRATE STRENGTH DISPLAY:  INCREASE BRIGHTNESS OF DARK AREA IN IMAGE TO DISPLAY OBJECT WHICH IS BEHIND HIGH 8,ABSORPTIVITY MASS DISTINCTLY

7,LOW PENETRATE STRENGTH DISPLAY:

8,INCREASE CONTRAST OF LOW ABSORPTIVITY MASS (EASY TO PENETRATE) TO DISPLAY IT DISTINCTLY

9,MAGNIFIER:  FUNCTION OF PARTIAL ENLARGEMENT

10,BRIGHTENING/DIMMING:  INCREASE BRIGHTNESS OF IMAGE/DECREASE BRICHTNESS OF IMAGE

11,IMAGE RECURRENCE:    DISPLAY PREVIOUS TWENTY IMAGES AND PROCESS ANY ONE OF THEM

12,IMAGE RESTORATION: RESTORE IMAGE TO INITIAL STATUS AT THE TIME OF STOPPING CONVEYOR

13,IMAGE STORING:  REAL TIME STORE ANY IMAGE AND PROCESS IT IN OPERATION STATUS

Multi-energy Function :

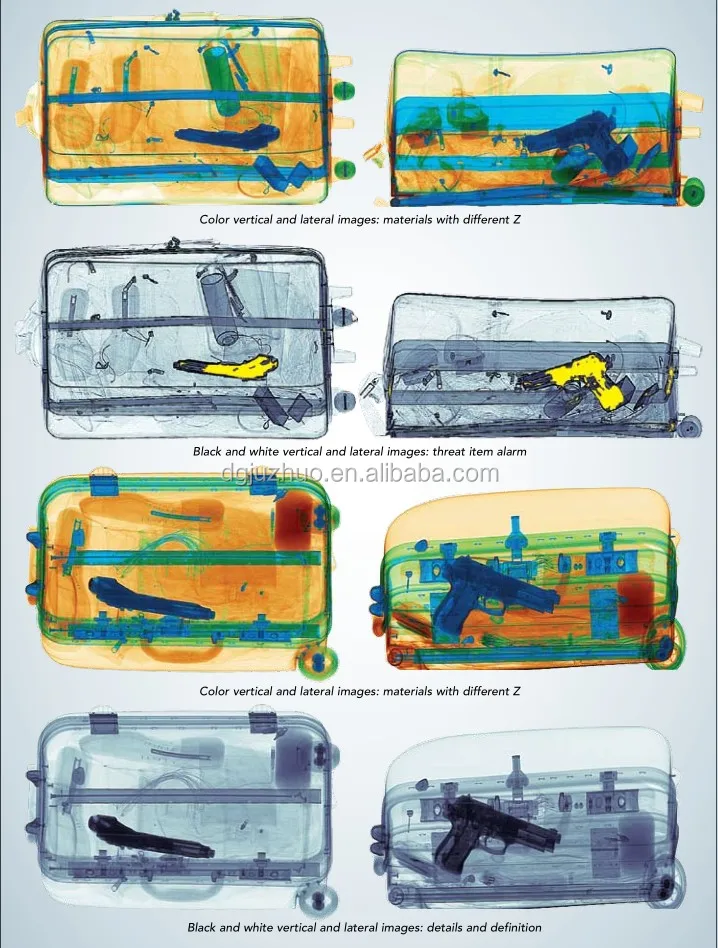

MULTI-ENERGY COLOR:

DISPLAY ORGANIC MATERIAL FOR ORANGE, DISPLAY INORGANIC MATERIAL FOR BLUE, AND DISPLAY MIXTURE FOR GREEN



HIGH ENERGY/LOW ENERCY:

SWITCH TO DISPLAY TWO ENERGY TYPE, HIGH ENERGY STANDS FOR METAL ETC., LOW ENERGE STANDS FOR NONMETALLIC



AUXILIAY FUNCTION FOR DRUGS & EXPLOSIVES:

HELP TO DETECT SUCH DANGEROUS MATERIAL AS DRUGS & EXPLOSIVES ETC.



AUDIBLE & VISIBLE ALARM:

GIVE SOUND AND VISIBLE SIGNAL WHEN CONFORMING TO CONDITION

Operating Environment :

Storage Temperature:          -20ºC to 60ºC

Operating Temperature:        0ºC to 45ºC

Relative Humidity:               20 to 95% non-condensing

System Power:                  220 VAC (±10%) 50±3HZ

Power wastage:                1.2 KW (Max)

Noise:                            <65DB
