Product Overview
Description
INTRODUCTION
ZH-800-2A-2 steel grating welding machine line is comprised of gantry type welding machine, double-layer flat steel feeding device, cross bar auto falling device, steel grating hauling device, hydraulic & pneumatic system, cooling system, electric control system, etc. And the auxiliary equipments contains Steel grating crosscut sawing machine (cutting machine) ; The cross bars'(twisted steel) drawing, straightening and cutting machine; The closed loop cooling tower.
MACHINE DESCRIPTION
1. STEEL GRATING WELDING MACHINE
1.1 Raw materials:
1.1.1 Suitable material: hot-roll steel or cold-roll steel.
1.1.2 Bearing flat bar:
width 25-60mm(adjustable), thickness 2-5mm，
Length≤6000mm
1.1.3 Cross bar: （5×5~6×6）×1050mm
1.2 Finished steel gratings
1.2.1 Size of finished gratings: 1000 x 6000mm (W x L) (adjustable)
1.2.2 Space between flat bars: 30, 40mm (adjustable)
1.2.3 Space between cross bars: 50，100mm (adjustable)
1.2.4 The working beat: ≤ 2pcs/ 12second
1.3 Technical data of the welding machine
1.3.1 Electric supply: 3 phase, 380V, 50Hz
1.3.2Transformer needed: 800KVA
1.3.3 Max. pressure: 75T(adjustable)
1.3.4 cross bars (twisted steel) manually aligned, automatic feed.
1.3.5 The flat bar, manual position, automatic feed.
1.3.6 Automatic weld two pieces crossbars each time
1.3.7 Adjust manually welding distortion, and automatic correct.
1.3.8 The console has manual and automatic mode selection.
1.3.9 Electric cabinet has primary current, voltage display device.
1.3.10 The welding parameters can be multi-set various parameters set, using intelligent digital display.
1.1.1 Suitable material: hot-roll steel or cold-roll steel.
1.1.2 Bearing flat bar:
width 25-60mm(adjustable), thickness 2-5mm，
Length≤6000mm
1.1.3 Cross bar: （5×5~6×6）×1050mm
1.2 Finished steel gratings
1.2.1 Size of finished gratings: 1000 x 6000mm (W x L) (adjustable)
1.2.2 Space between flat bars: 30, 40mm (adjustable)
1.2.3 Space between cross bars: 50，100mm (adjustable)
1.2.4 The working beat: ≤ 2pcs/ 12second
1.3 Technical data of the welding machine
1.3.1 Electric supply: 3 phase, 380V, 50Hz
1.3.2Transformer needed: 800KVA
1.3.3 Max. pressure: 75T(adjustable)
1.3.4 cross bars (twisted steel) manually aligned, automatic feed.
1.3.5 The flat bar, manual position, automatic feed.
1.3.6 Automatic weld two pieces crossbars each time
1.3.7 Adjust manually welding distortion, and automatic correct.
1.3.8 The console has manual and automatic mode selection.
1.3.9 Electric cabinet has primary current, voltage display device.
1.3.10 The welding parameters can be multi-set various parameters set, using intelligent digital display.
2. GHJ-1050 Steel grating crosscut sawing machine (cutting machine)
GHJ-1050 steel grating crosscut sawing machine is the special equipment to cut all kinds of steel grating to the length according to customers’ requirement.
1 | Dimension of the steel grating | Width: 1200mm, Height: 95mm |
2 | The length | Max. 6000mm |
3 | Accuracy of the length | 0～5mm |
4 | Diameter of blade | Φ500～800mm (metallurgical blade) |
5 | Speed of the sawing machine | 0～2.9m/min (frequency) |
6 | Working mode of the sawing machine | Inverter motor +Sprocket chain drive |
7 | pneumatic system | 0.4～0.7Mpa |
8 | Motor of steel grating sawing | 1470rpm Y180L-4 37kw |
9 | Motor of steel grating moving | 1500rpm Y90S-4 1.1kw |
Function:
1. The equipment can be able to cut all kinds of steel grating in a variety of materials, steel grating’s dimension: 6000mm (L) × 1050mm (W)
2. The equipment has it’s necessary sawing table, also has the extension table, the length from the feed end of the table extension is 6000mm, the length of discharging extend end table is 2000mm.
3. The equipment has the compression capabilities when sawing the steel grating.
1. The equipment can be able to cut all kinds of steel grating in a variety of materials, steel grating’s dimension: 6000mm (L) × 1050mm (W)
2. The equipment has it’s necessary sawing table, also has the extension table, the length from the feed end of the table extension is 6000mm, the length of discharging extend end table is 2000mm.
3. The equipment has the compression capabilities when sawing the steel grating.

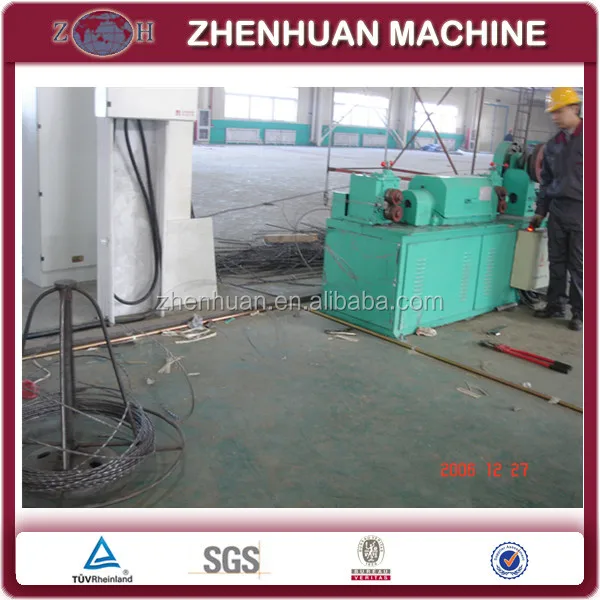

3. The cross bars'(twisted steel) drawing, straightening and cutting machine
The equipment is to point the round bar, and draw to be the twisted steel, straightening, and cut.
Pointing machine | Qty. of rollers | 2 pcs |
Diameter of the round bar | 4－12mm | |
Motor | 3Kw | |
The Qty. of the hole | 10 pcs | |
Horizontal drawing machine | Size of the steel bar | ≦¢12mm |
Size of the reel | ¢600mm | |
Speed of drawing | 0－35m/min ( stepless) | |
Motor | 22Kw | |
Reducer | 650 type reducer | |
Straightening & cutting machine | Diameter of straightening | 5－12mm |
Length of cutting | 300－4500mm(≦±2mm) | |
Speed of straightening | 30m/min | |
Speed of straightening roller | 2300r.p.m | |
Accuracy of straightening | ≦2mm in 1meter | |
Motor | Y160M-4-11Kw | |
Cutting motor | 2.2Kw |
Function.
1. It can point the end of the round bar to cone, the diameter is adjustable.
2. It can draw the round bar to twisted steel, and it has pay-off, to the scales, traction, take-up function, the speed of take-up is adjustable, and it’s easy to unload.
3. It can straight the Disc-shaped twisted steel and cut to the length according to customers’ requirement. The length is adjustable.
1. It can point the end of the round bar to cone, the diameter is adjustable.
2. It can draw the round bar to twisted steel, and it has pay-off, to the scales, traction, take-up function, the speed of take-up is adjustable, and it’s easy to unload.
3. It can straight the Disc-shaped twisted steel and cut to the length according to customers’ requirement. The length is adjustable.

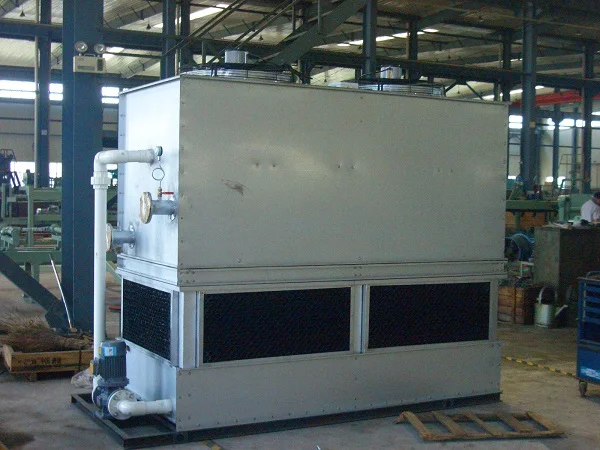

4. The closed loop cooling tower
A. Description:
Closed loop cooling tower, the working fluid (water or other liquid) circulate in the coil of the closed cooling tower, the heat of fluid absorbed by the wall of the coil, discharge outside of the machine through the fan at the top of the wall of the heat. When the fluid’s temperature is very high (exceed the set temperature), automatically start spray system, the spray water in the heat pipe wall will form a water film evaporates into steam, and will be taken away by the flow of air. And the water droplets could not be evaporated falls to the sump to recycle, the fluid inside the coil closed loop. And it’s minimal consumption, and shower water’s consumption is only 0.1 to 0.2% per unit flow rate.
B. Function:
1. There is no debris coming into the cooling circuit system, which occurred in the pipeline clogging.
2. It can adopt the soft water cooling, and it not generates the scale at high temperatures, and cause pipes’ damage.
3. Small footprint, no need to dig pool, save water and reduce energy consumption.
4. Using the air-cooled + evaporation endothermic double cooling, with high cooling efficiency.
Closed loop cooling tower, the working fluid (water or other liquid) circulate in the coil of the closed cooling tower, the heat of fluid absorbed by the wall of the coil, discharge outside of the machine through the fan at the top of the wall of the heat. When the fluid’s temperature is very high (exceed the set temperature), automatically start spray system, the spray water in the heat pipe wall will form a water film evaporates into steam, and will be taken away by the flow of air. And the water droplets could not be evaporated falls to the sump to recycle, the fluid inside the coil closed loop. And it’s minimal consumption, and shower water’s consumption is only 0.1 to 0.2% per unit flow rate.
B. Function:
1. There is no debris coming into the cooling circuit system, which occurred in the pipeline clogging.
2. It can adopt the soft water cooling, and it not generates the scale at high temperatures, and cause pipes’ damage.
3. Small footprint, no need to dig pool, save water and reduce energy consumption.
4. Using the air-cooled + evaporation endothermic double cooling, with high cooling efficiency.
