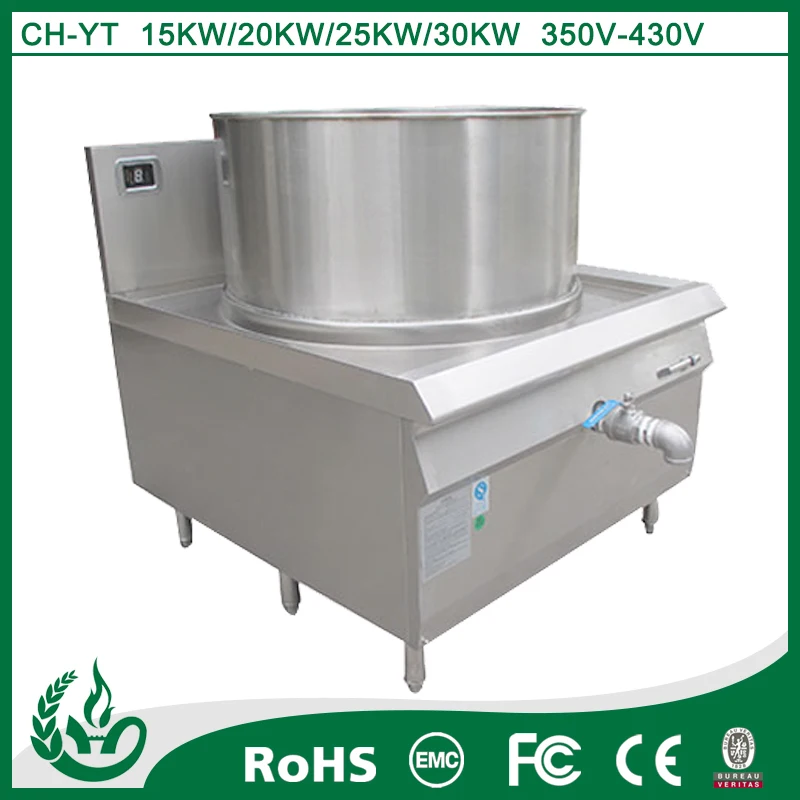

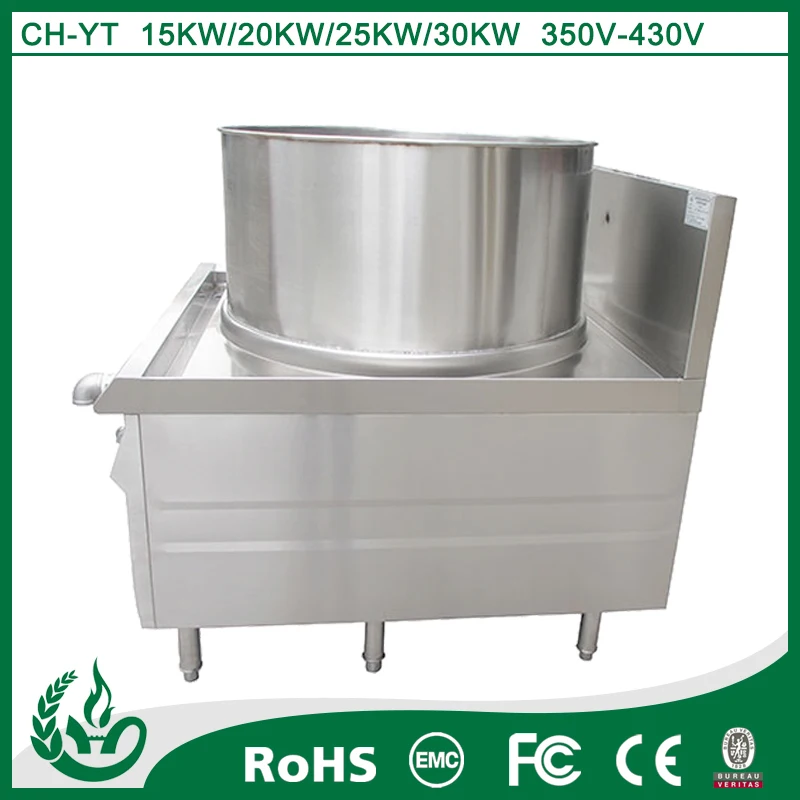

Beautiful commercial induction soup heater

Product Overview

Description

restaurant soup pot  Commercial use & Application:

Can be used to cook soup, stew meat, boil noodles, water, etc.



More specification for your options:

Name	Model No.	Voltage(v)	Power	Dimension(mm)	Material
Induction soup cooker	CH-15BT	380v/50HZ	15kw	1100*800*1100mm	304# Stainless steeel
Induction soup cooker	CH-20BT	380v/50HZ	20kw	1200*900*1200MM	304# Stainless steeel
Induction soup cooker	CH-25BT	380v/50HZ	25kw	1300*1100*1200MM	304# Stainless steeel
Induction soup cooker	CH-30BT	380v/50HZ	30kw	1400*1200*1200MM	304# Stainless steeel



 Working principle:

An induction plate cooker applies the principle of electromagnetic induction.When there is a supply of electricity,

the induction coil generates a magnetic field,causing eddy currents to be rapidly created in the bottom of the

ferromagnetic cookware thatultimately result in heat. The heat is directly transferred to the food being cooked.

It is different from that of traditional electric cooker.







Advantages (Induction electric stove VS gas stove):

	Energy utilization	Enviromental protection	Whether need exhaust system
Induction electric stove	around 90%	Produce no exhaust	No
Gas Stove	around 55%	Produce a lot of exhaust	Yes
Conclusion	Induction electric stove can be around 50% cost saving than gas stove.



Installation conditions:

Working voltage:3 phase 4 line/380v

Maximum wave voltage:360-400v

Working frequency:50-60HZ

Safeguard Class:IPXO

Working temperature of the environment:-5 degrees - +40 degrees.

Working humudity of the environement:30%-90%



Feature:



1.High effiiciency: The principle of electromagnetic induction heating iron cooker,the temperature rise fast, thermal efficiency is up to 90% .



2.Safety: security protection such as waterproof, prevent lampblack, prevent

 leakage, prevent dry heating ,more safe , electricity -saving



3.Intelligent design: Numerous grade firepower circulation adjustment, balance the power output, circulating cooling structure.



4.Energy-saving: Nonexistence heat conduction and thermal radiation, energy-saving over 50% than the ordinary gas/oil cookers.



5.Environmental protection:  No flame, no dust, exhaust, will not pollute the air,

 ultra low noise design (below 45 db), optimized kitchen environment



6.Attractive appearance: stainless steel seiko meticulous humanized design,high-end durable, easy to clean



7.Microcomputer control,function of overheating protect,automatic fault detection, too high or low power voltage protection,leakage of phase protect.Safety to use.



8.It can be tailored the cooking tools and heating machines to different size,power.



9.Convenient:The barrel on the cooker can not take off, with a tap above the barrel and a tube under the barrel.It's more convenient when doing washing.
