Высокоэффективная автоматическая винтовая машина для стальной установки винтовой муфты

Product Overview

Description

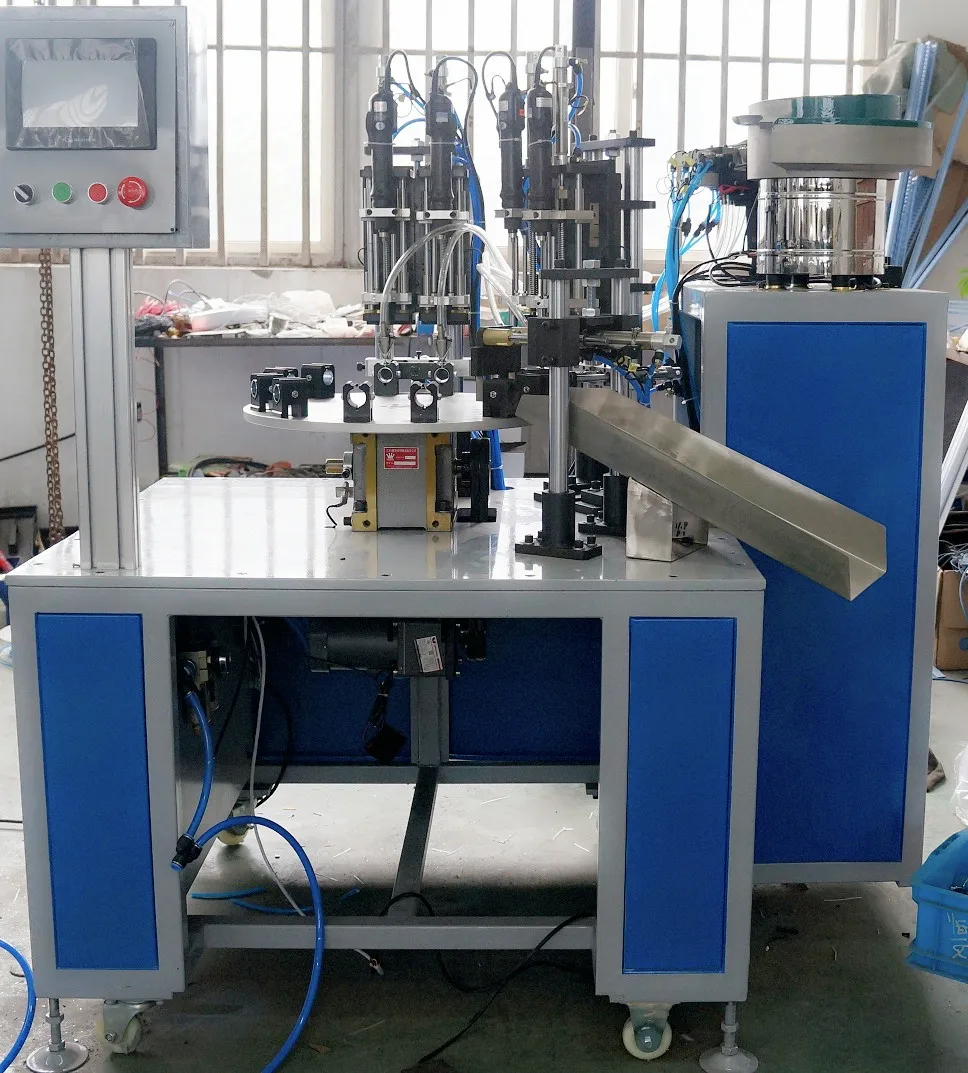

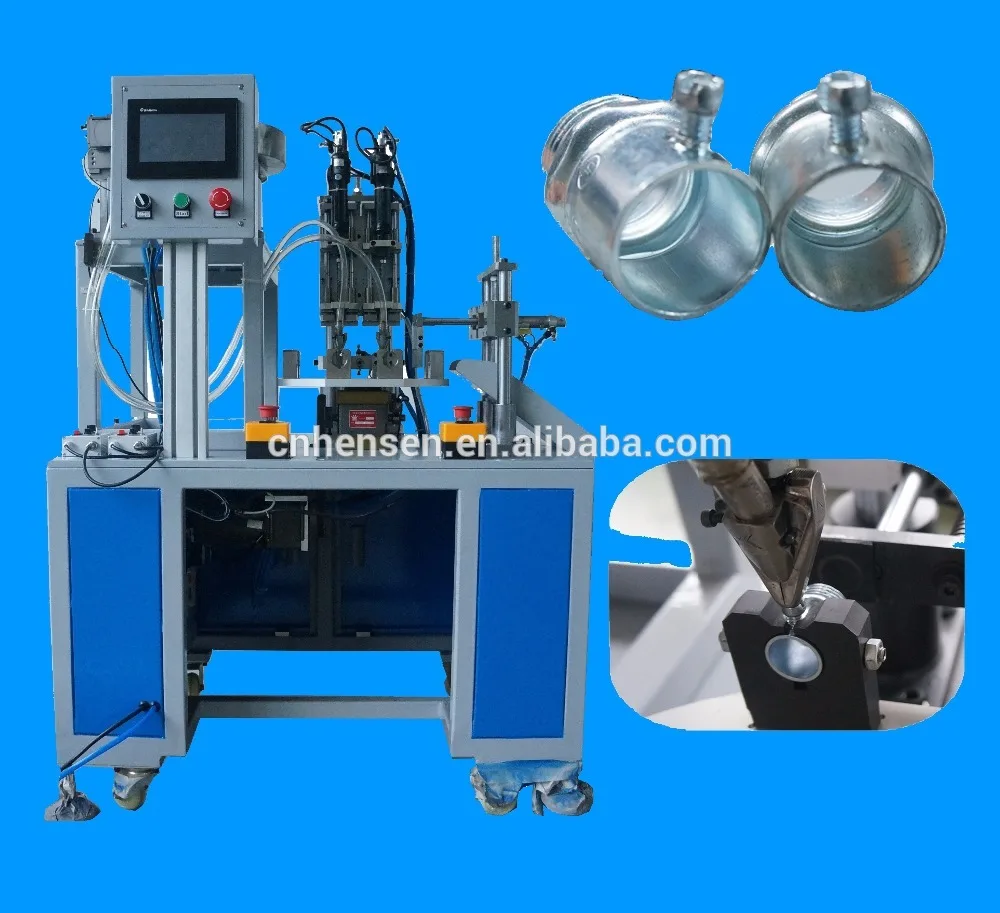

Automatic screw driving machine for steel set screw coupling assembly



1. Introduction

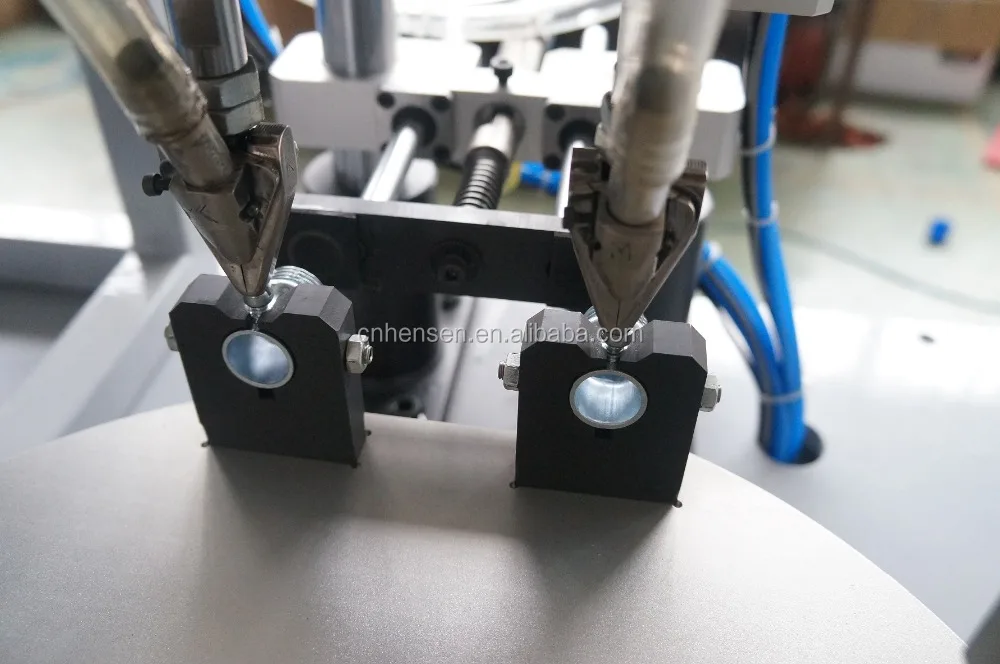

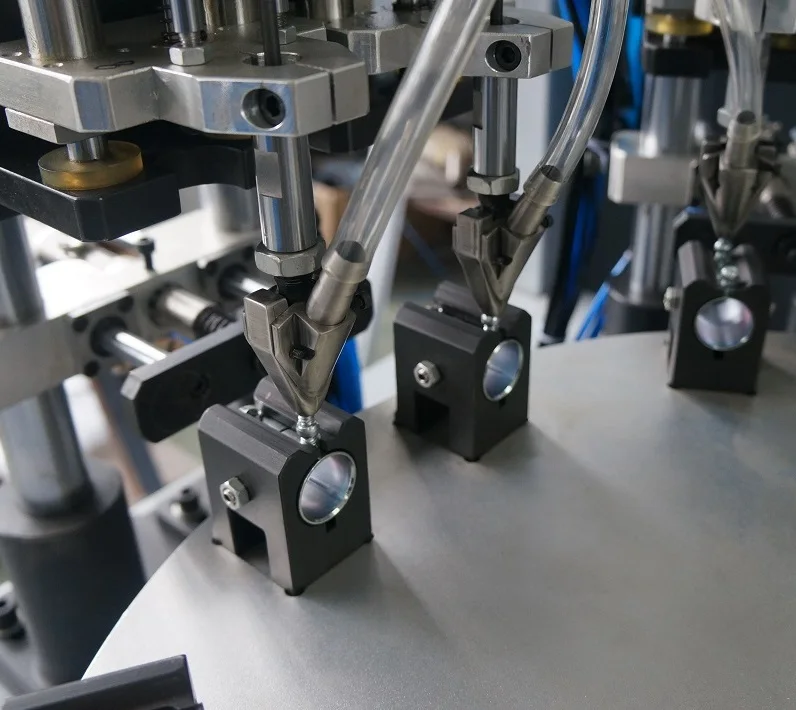

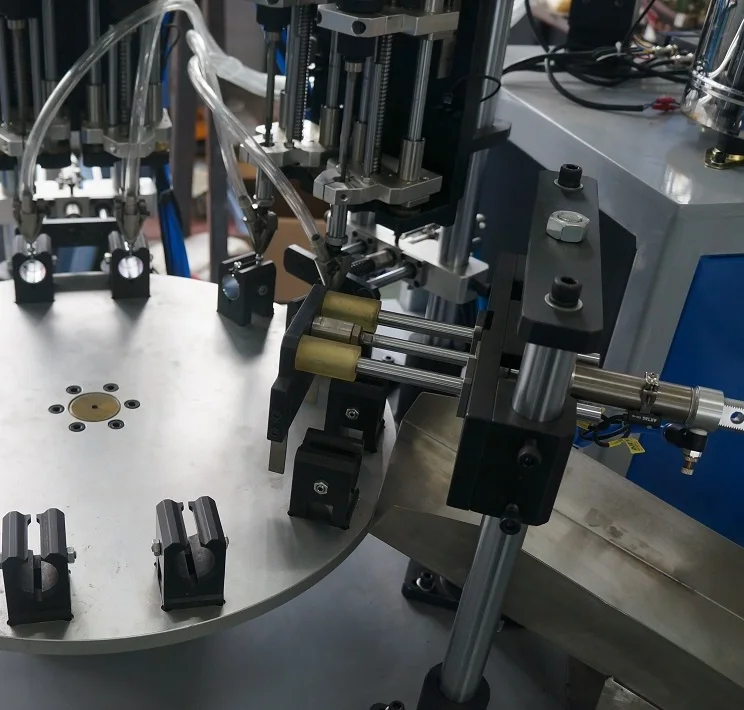

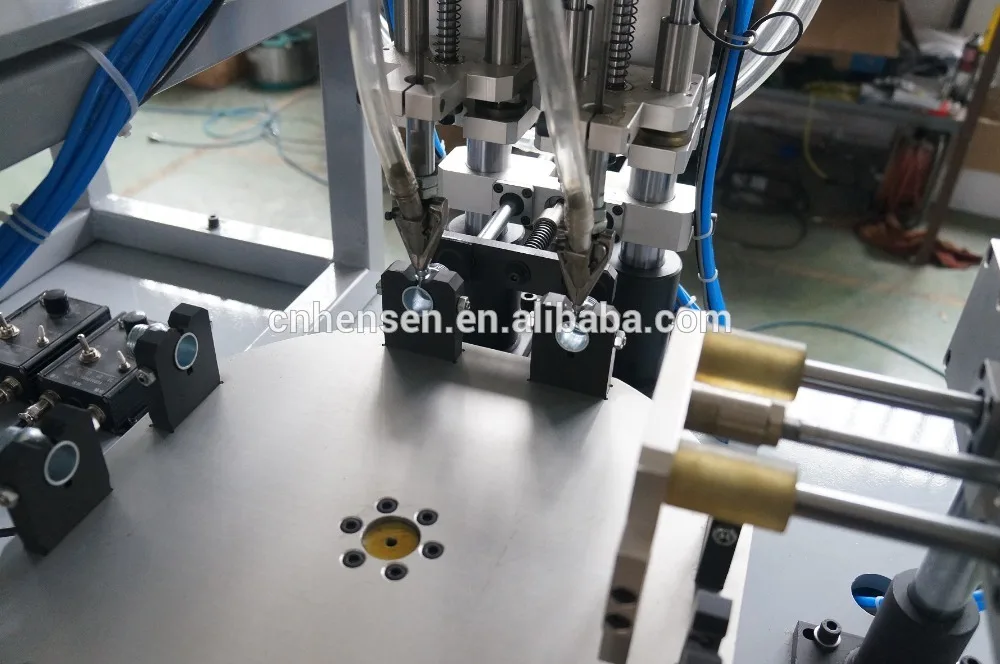

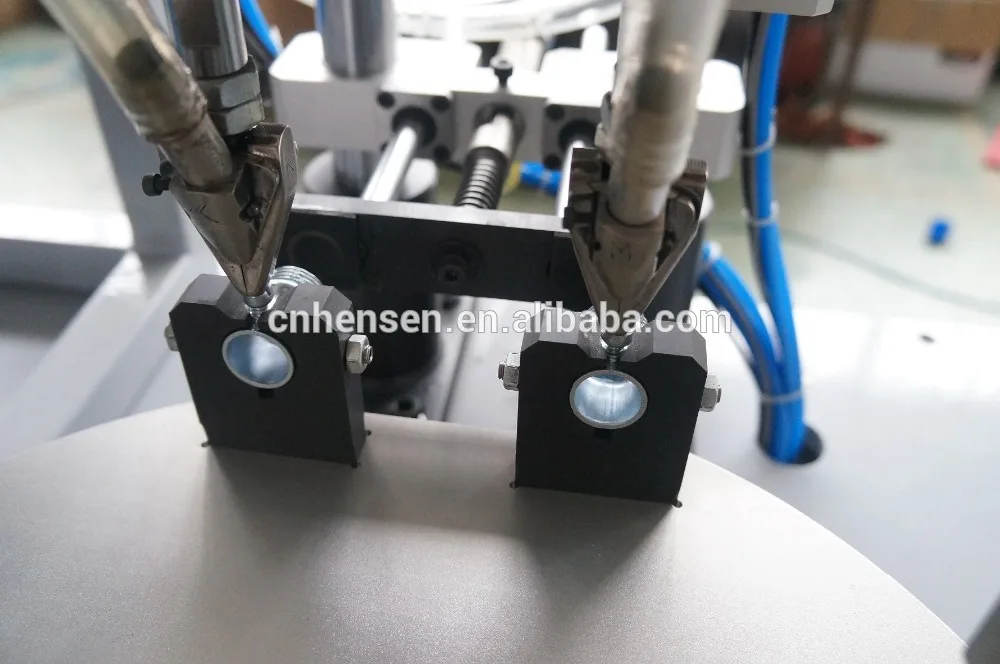

This is the customized machine special for fitting the screw in metal pipe couple. The machine with  Rotary type disk with 4 working position, each position with 2 loading parts.. Screw driver arrive after automatic electric clutch torque will automatically ensure that each lock screws Vice torque control ± 10%.  main parts are die steel production, wear-resistant, anti-plastic deformation, equipment, body spray paint, oil and scratch resistant.  humane touch-screen operation and ease of operation, external technical parameters and manual test function can be directly adjusted by technicians.



2. Technical Parameters

Efficiency	30-40pcs / min
Power supply	220V±10%  Power: 300W
air supply	4.5-0.5 Mpa
Screw	M2-M5 (according to sample)
screwdriver torque	ccording to customer requirements (the machine is 0.3-1.9 Nm)
Electric screwdriver	Taiwan Kilews
PLC	Siemens
Touch screen	Weinview
Pneumatic components	SMC or AirTAC
Dimension	L * W * H 850 * 850 * 1600mm



machine running video

https://youtu.be/pk3v9ln2Bxk
