High quality flexible pvc hose making machine
- Category: >>>
- Supplier: Nantong Zhenhuan Trade Co. Ltd.
Share on (1885276957):
Product Overview
Description
MACHINE DESCRIPTION

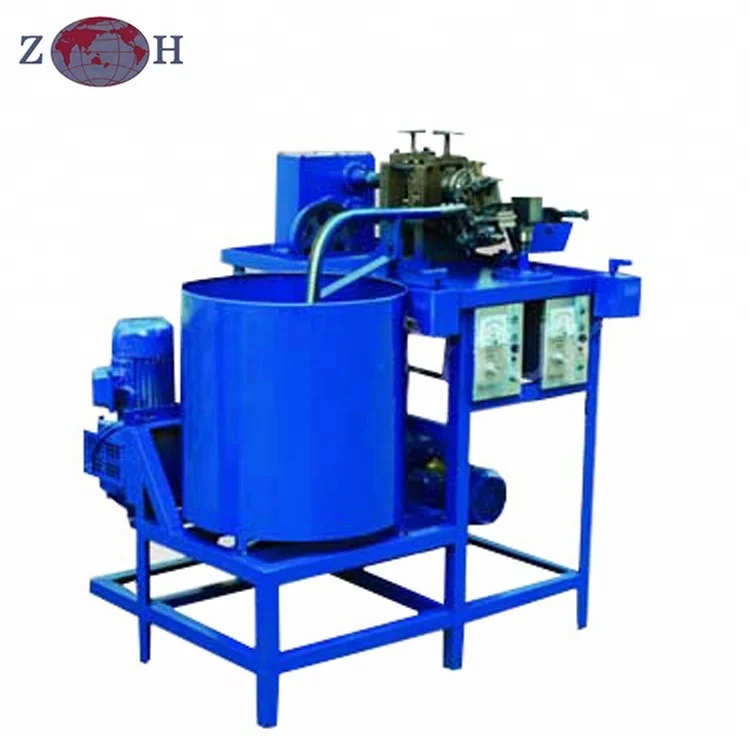

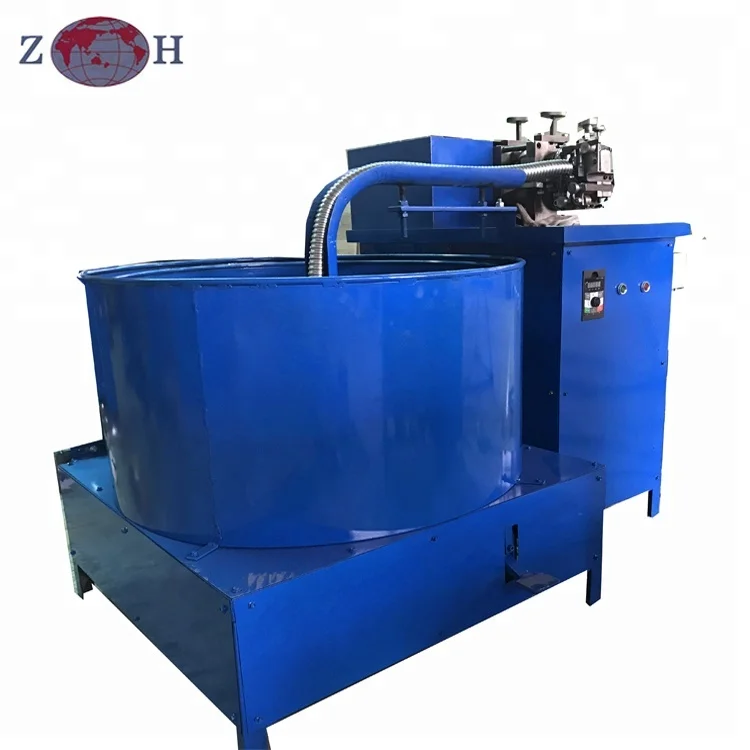

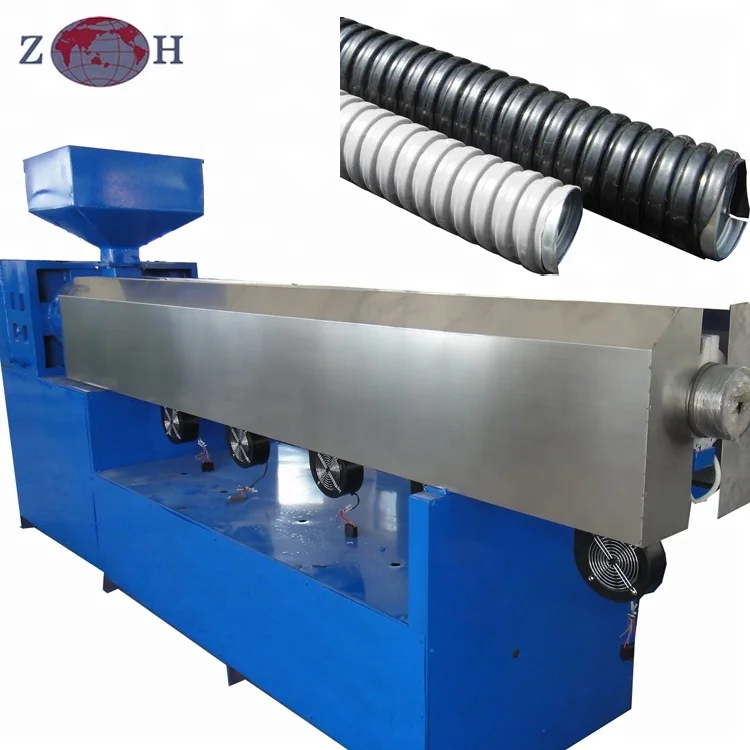

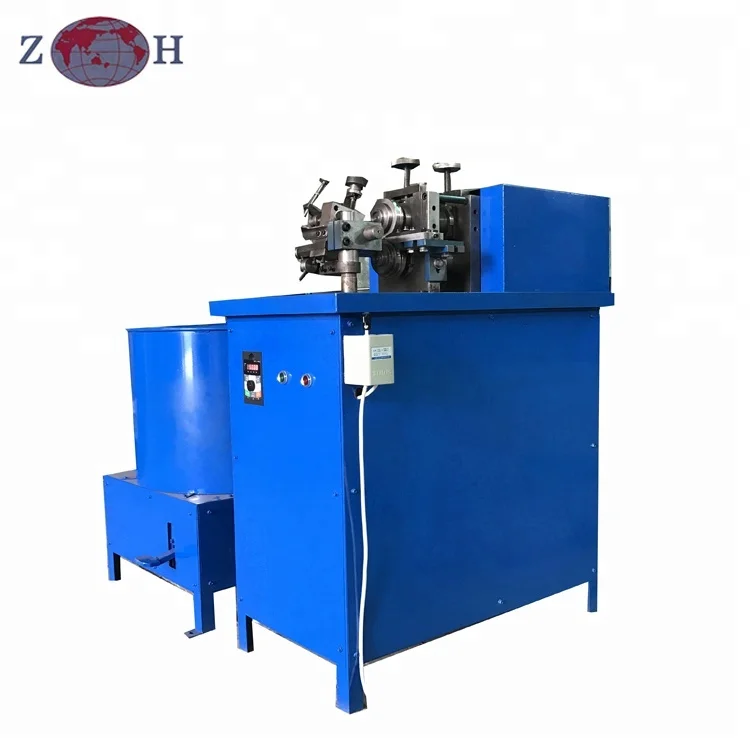

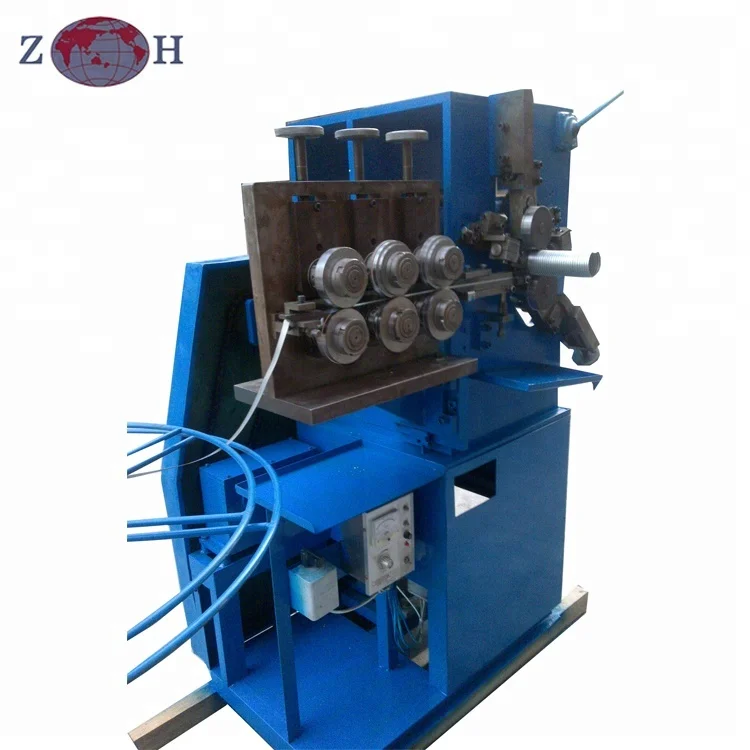

This flexible pvc hose making machine is specially designed for producing PVC coated flexible hose, not only single lock PVC coated machine, but also double lock PVC coated machine. It includes two machines, flexible hose making machine and PVC coated making machine.
MAIN FEATURES
1.1 Continuously producing double-swage steel flexible hose by using stainless steel or copper, iron, aluminum, etc.
1.2 Advanced imported transducer speed adjusting system and perfect processing technics make the machine low electric consumption, no noise, easy operation and stable work.
1.3 Finished products have good tensile strength and yield strength.
1.4 One worker can operate several machines at same time.

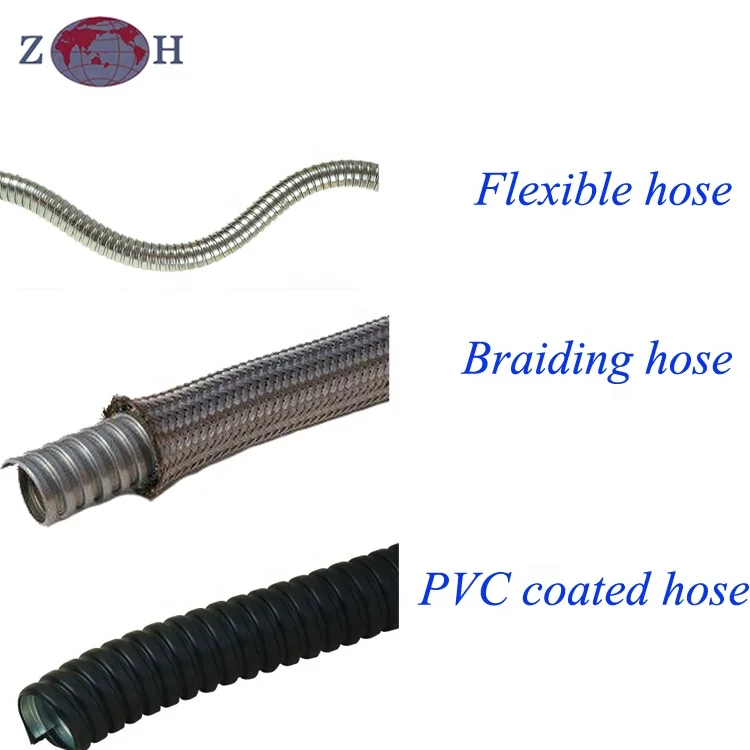

1.5 Finished hose may be used for sanitary, electric bushing (sleeve), etc.
1.2 Advanced imported transducer speed adjusting system and perfect processing technics make the machine low electric consumption, no noise, easy operation and stable work.
1.3 Finished products have good tensile strength and yield strength.
1.4 One worker can operate several machines at same time.
1.5 Finished hose may be used for sanitary, electric bushing (sleeve), etc.
MACHINE SPECIFICATION
No. | Item | Data |
1 | Suitable flexible hose ID range | 10mm-100mm (by several machines) |
2 | Width of raw material | 7.1mm-9.5mm |
3 | Thickness of raw material | 0.17mm-0.5mm |
4 | Production speed | 0-2m/min (based on hose diameter) |
5 | Motor power | 2.2kW x 2 (380V, 50Hz, 3P) |
6 | Dimension of machine | About 950mm x 850mm x 1400mm |
7 | Weight | About 800kgs |
RELATED MACHINES
COMPANY PROFILE
