Equipment for the production of adhesive tape,bopp tape slitter rewinder,bopp auto slitter scorer
- Category: >>>
- Supplier: Kunshan Xinmanyuan Hardware Machinery Co. Ltd.
Share on (1885914017):
Product Overview
Description

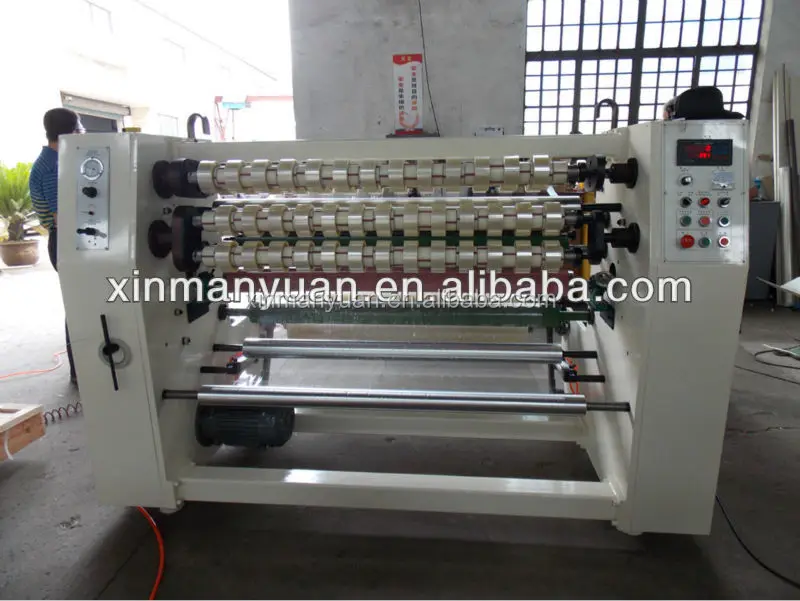

XMY008 Equipment for the production of adhesive tape,bopp tape slitter rewinder,bopp auto slitter scorer
This slitting machine is also suitable for bopp, stationary tape, glass paper tape. cellophone tape etc.
Features:
1,The machine ministries control,centralizd panel operation, easy control. |
2,2-phase length setting: the advanced 2-phase length technology, to ensure accurate length of coiling. |
| 3,1-phase length setting: 1.5M , the length labeling after the of tapes through. |
4,Automatic shaft change: once the rewinding operation is accomplished. The machine will automatically perfrom shaft changes for convenient and efficient operations. |
5,Crowned stretch roll: the stretch roll is specially designed to eliminates tape wrinkling during extension and feed. |
6,Materials use double pinch roller design which can reduce unwinding noise to improue the working environment. |
7,Automatic labeling: employ Germany PESTO rodless cylinder, labeling standard, high efficiency. |
8,Pneumatic beake: brings the machine to an immediate halt for accurate positioning and labeling. |
Main technical parameters:
| 1.valid width:1.3M |
| 2.max diameter of rewinding: (4 shaft rewind) 76.2-150mm |
| (2 shaft rewind)76.2-300mm |
| 3. max diameter of unwinding:600mm |
| 4. 4.slitting width: 12-1280mm |
| 5. paper core inside diameter:76.2mm |
| 6.blade size:0.2mm*22mm*60mm |
| 7.main motor:5HP 4P |
| 8.weigth:1300kg |
| 9.machine size:2500*1250*1500mm |
Certification:
After Service:
1. Warranty for machines is 12 months and lifetime maintence.
2. A promptly reply within 24 hours.
3. Free usage training before delivering machines in factory.
