Online Metal Detector for dry and wet products,metal detector for packed and upacked products JZD 330
- Category: >>>
- Supplier: Dongguan Juzhuo Precision Machinery Co. Ltd.
Share on (1885994085):
Product Overview
Description

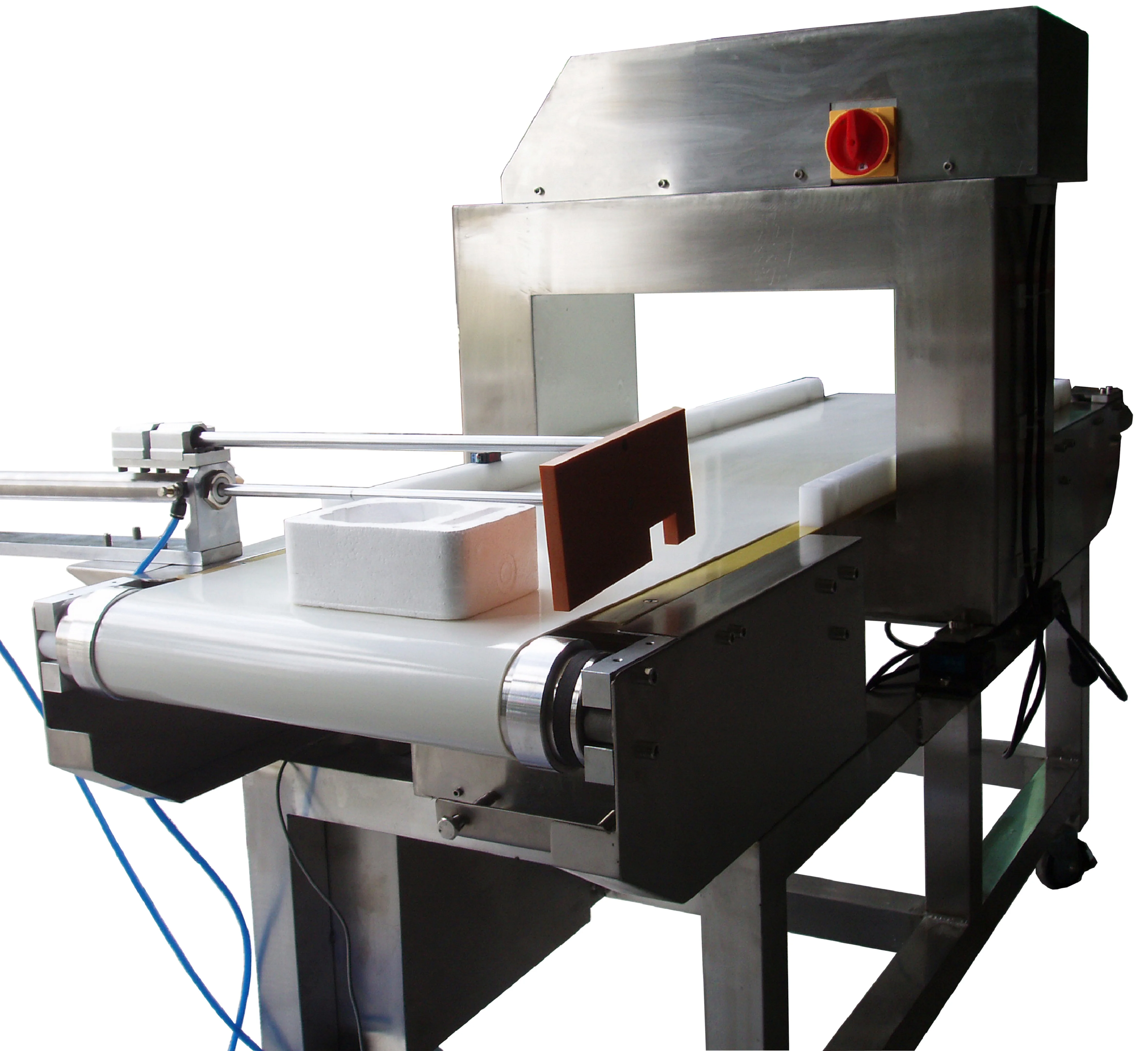

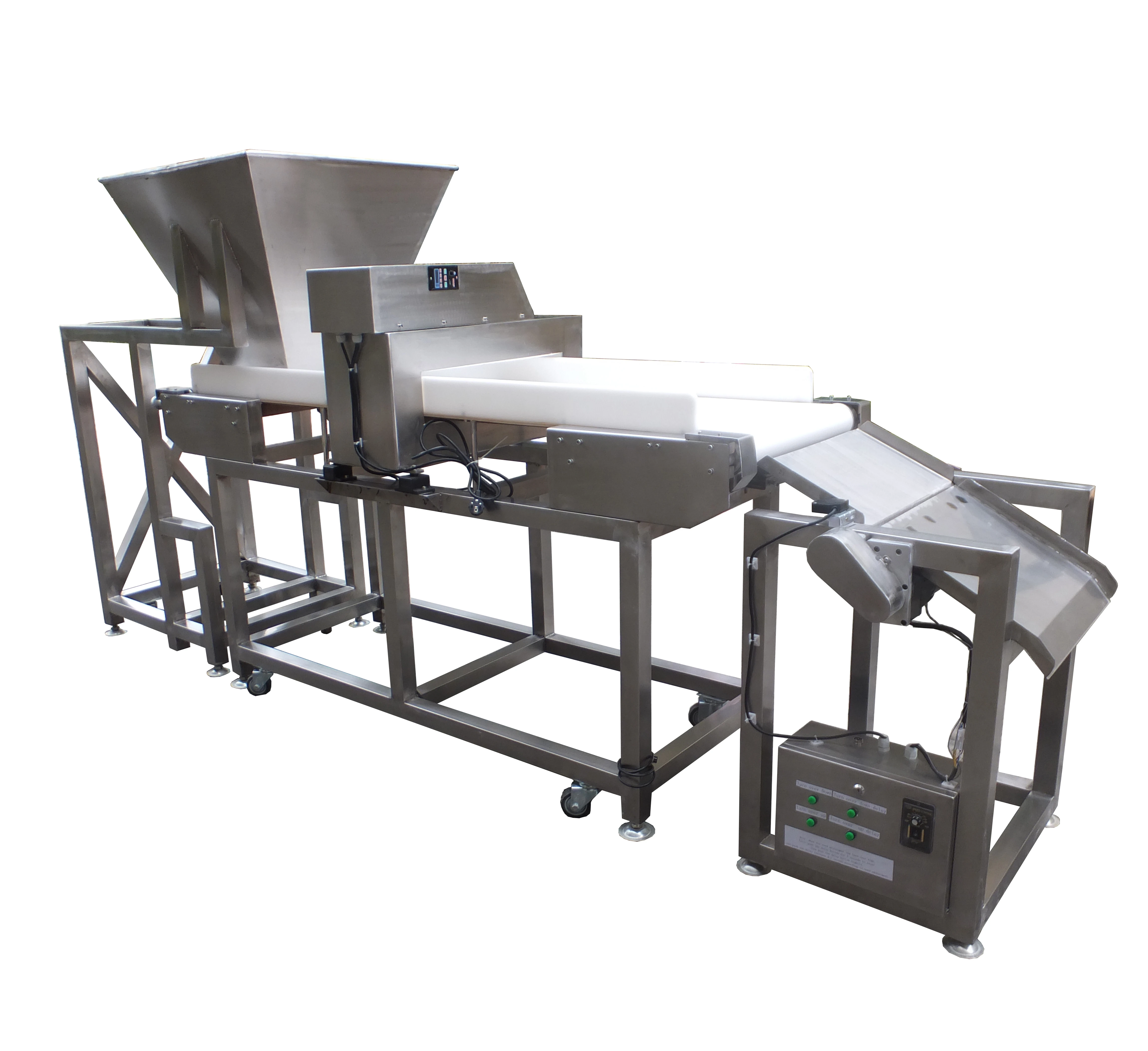

Metal Detector for dry and wet products,metal detector for packed and upacked products JZD-330
Application

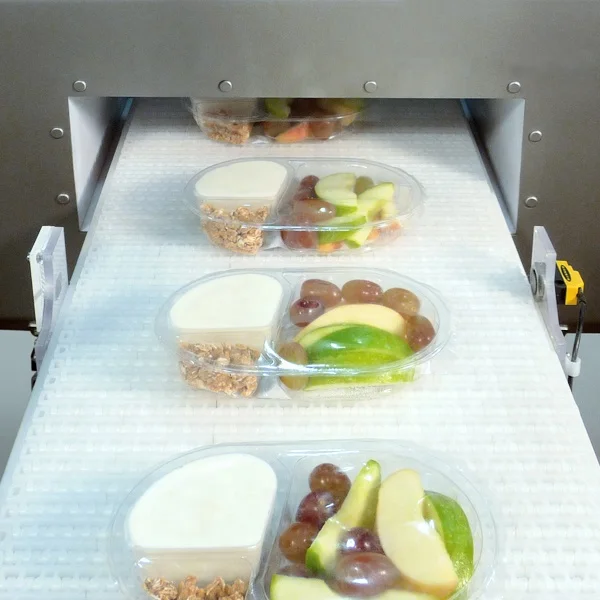

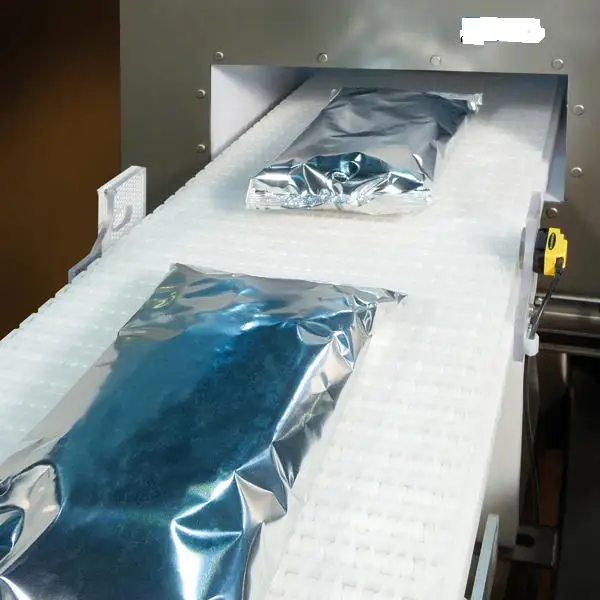

Metal Detector for dry and wet products,metal detector for packed and upacked products JZD-330 is mainly used for detecting metal chips which mixed in chocolate ,coffee ,moon cakes ,yolk pie ,food additive ,condiment etc products industry ,it also can be used for checking metal impurities inside aluminum/foil packing material products
Main Features:
- All made of stainless steel ,anti-erosion and long life span,

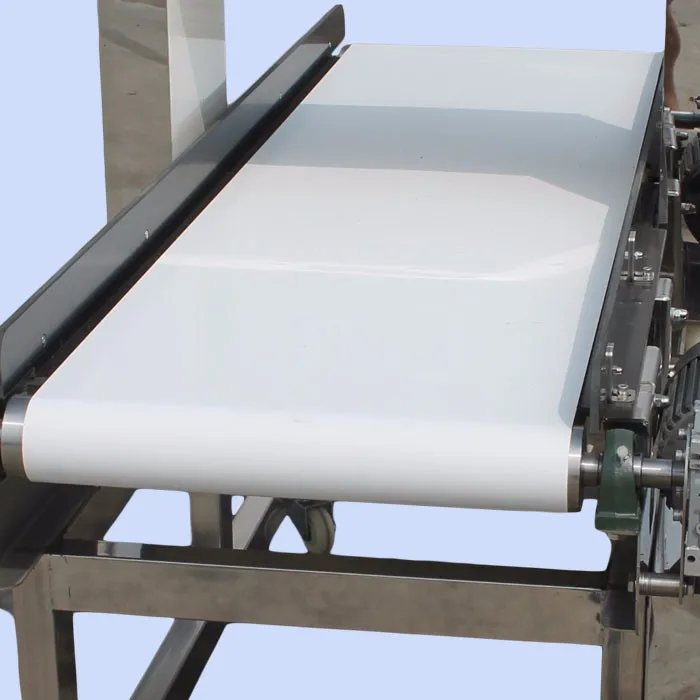

- The conveyor belt made of nonpoisonous material,
- Strong transport drive ,all the products below 25KG can be conveyed to be checked
- Waterproof.IP66 compliant
- Good anti-interference function :reduce products effect signal from the frozen food and pickled food,
- the Performance of the belt conveyor is complied with the American food sanitation standard(FDA),It can be used for transporting the unpacked food directly
- can match the pipeline operation or automatic control device.
Technical Parameters
Model | JZD-330 | ||||||||
The Width of inspection window (mm) | 500 | 500(customization) | |||||||
The Height of inspection(mm) | 50 | 100 | 120 | 150 | 200 | 250 | 300 | 400 | |
Detection Sensitivity | Fe(Φmm) | ≥0.8 | ≥0.8 | ≥1.0 | ≥1.2 | ≥1.5 | ≥2.0 | ≥2.5 | ≥3.0 |
Non-Fe(Φmm)/SUS | ≥2.5 | ≥3.0 | ≥3.0 | ≥3.5 | ≥4.0 | ≥4.5 | ≥5.0 | ≥5.5 | |
Alarm | audible and visual alarm ,automatic stop | ||||||||
Raw material | SUS304 | ||||||||
Normal machine size (mm) | 1700(L)mm×910(W)mm×1000(H)mm(Based of normal size50*20cm) | ||||||||
Net Gross | 330kg (based of normal size) | ||||||||
Electrical source (Power) | 110V/220V/380V 50Hz/60Hz (Power)90W | ||||||||
Conveyor speed | 25-30m/min(customized) | ||||||||
Conveyor height | 650mm±50mm (customized) | ||||||||
Noted: the above sensitivity judged by the machine without bearing any parts,the actual sensitivity have relation with nature and the temperature of the products etc,can install auto -rejection equipments according custom's requirements | |||||||||
