NDRP series Marine Deck Combined Azimuth Thruster

Product Overview

Description

 NDRP series Marine Deck Combined Azimuth Thruster



CHARACTERISTICS

 ♦  All components are installed on the deck foundation and are protected with a solid box.

 ♦  The prime mover is diesel engine, and the torque is transmitted via clutch and cardan shaft.

 ♦  The electric control system and emergency alarming system are integrated into one control cabinet.

 ♦  The lifting and tilting of the system is realized via the hydraulic system.

 ♦  Easy to mount.

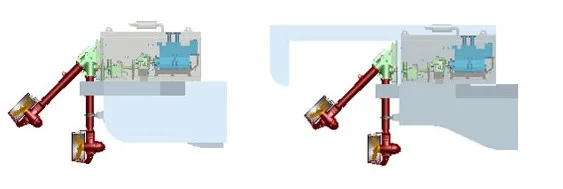

INSTALLATION TYPES



          deck upper installation                                    deck bottom installation

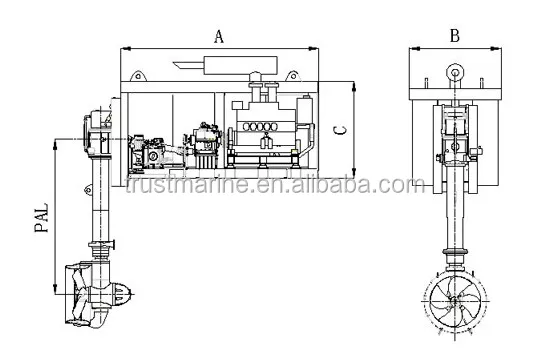

DIAGRAM



PARAMETER



Model	NDRP60	NDRP100	NDRP180	NDRP200	NDRP330	NDRP560
Max. Input Power (kW)	130	260	350	410	620	735
Max. Input HP	180	360	480	560	850	1000
Rated Input Speed (r/min)	2500	2100	1800/2000	1800/2100	1800	1800
Blade Dia. (mm)	700	850	1050	1100	1400	1600



Model	Size	Weight
	L×W×H (cm)	kg
NDRP60	3250×1400×1700	2500
NDRP100	4100×1800×2000	5000
NDRP180	4500×1800×2300	7000
NDRP200	4300×1800×2300	8000
NDRP330	5500×2000×2700	11500
NDRP560	6400×2500×3300	14500





Model	Max. PAL Value (mm)
NDRP060	3300
NDRP100	3500
NDRP180	4900
NDRP200	5000
NDRP330	4800
NDRP560	7100
