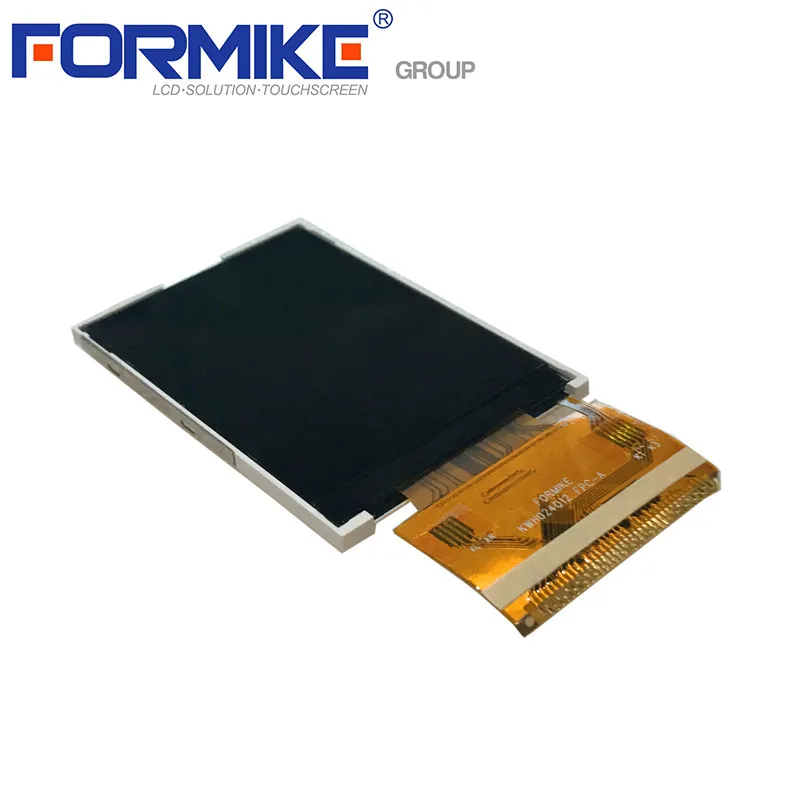

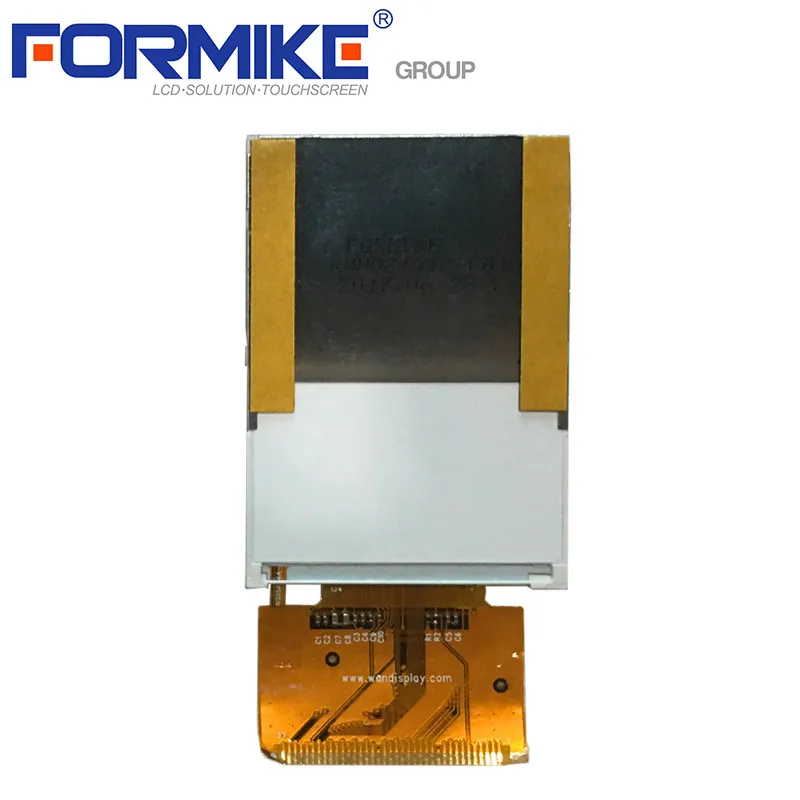

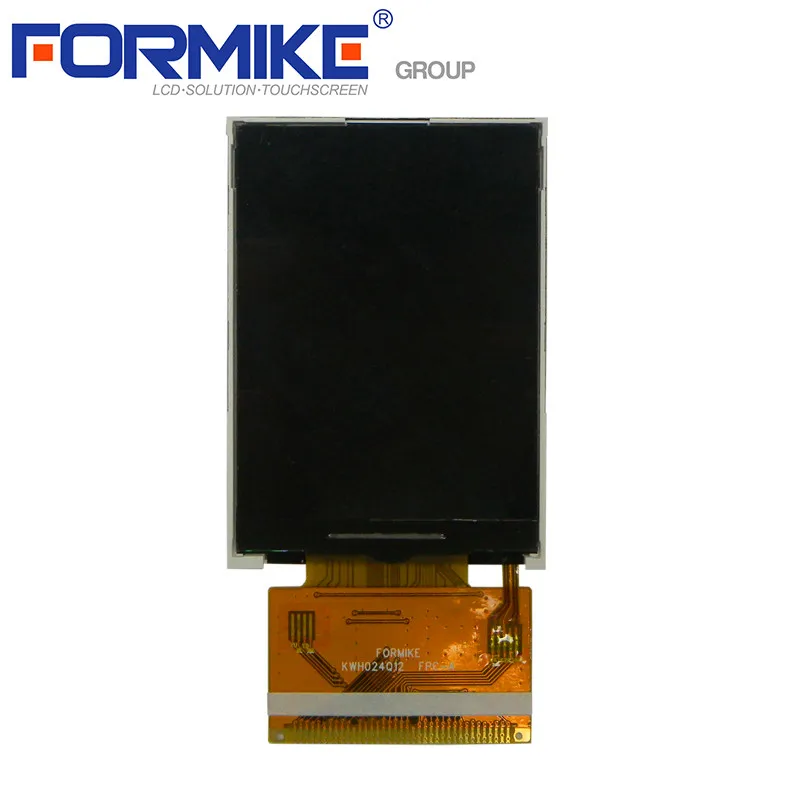

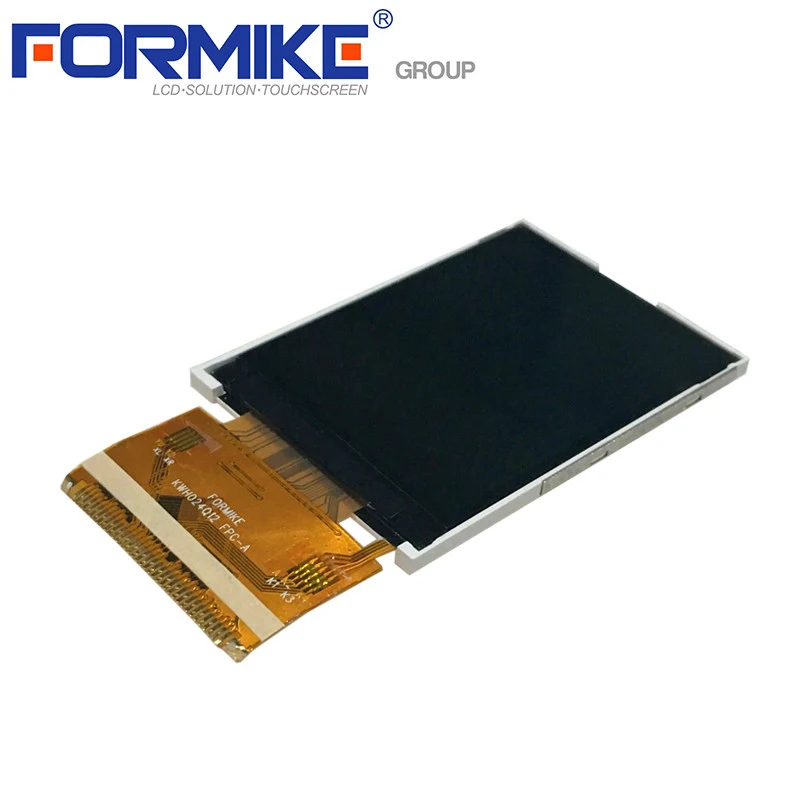

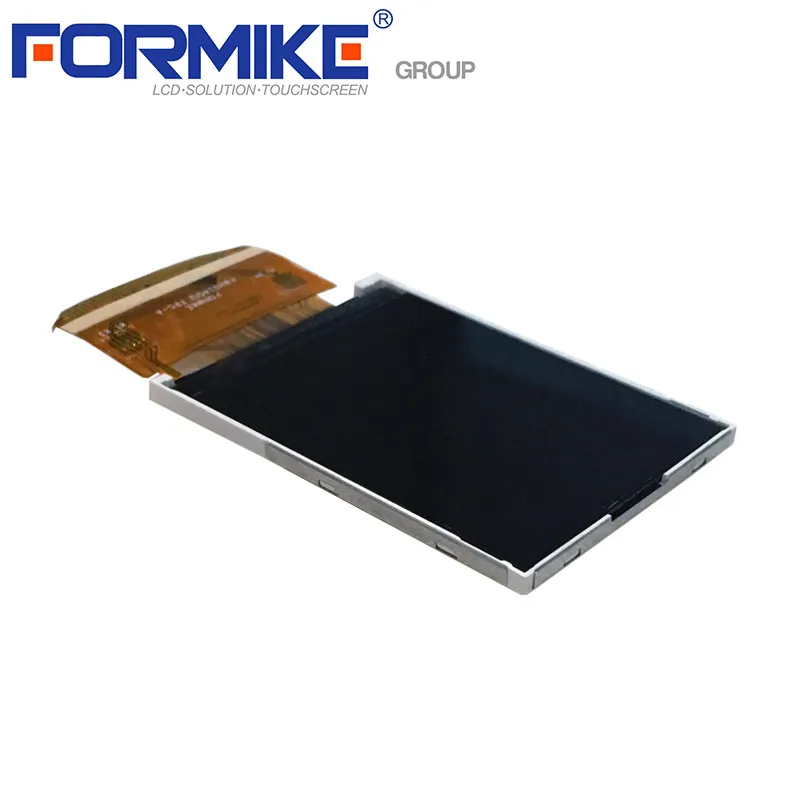

Formike small tft display 2.4 inch LCD module for consumer product KWH024Q12 F01
- Category: >>>
- Supplier: Formike Electronic Co. Ltd.
Share on (1887023071):
Product Overview
Description
Specification
Formike small LCD 240x320 2.4 inch TFT LCD module | ||
TFT Type | 2.4 inch | |
Resolution | 240 (RGB) x 320 | |
Driver IC | ILI9341 | |
Color Depth | 65K/262K | |
Interface | MCU 16bits | |
Outline Size | 42.72x60.26x2.5mm | |
Active Area | 36.72x48.96mm | |
Touch Panel | Option | |
Related TFT products
2.8 inch TFT display
1) Part Number: KWH028Q27-F02
2) Resolution: 240(RGB)x320
3) Module Size: 50.0x69.2x3.65mm
4) Active Area: 43.2x57.6mm
5) Interface: CPU 8/16bits
6) Driver IC: ILI9341
7) Touch Panel: Resistive touch panel

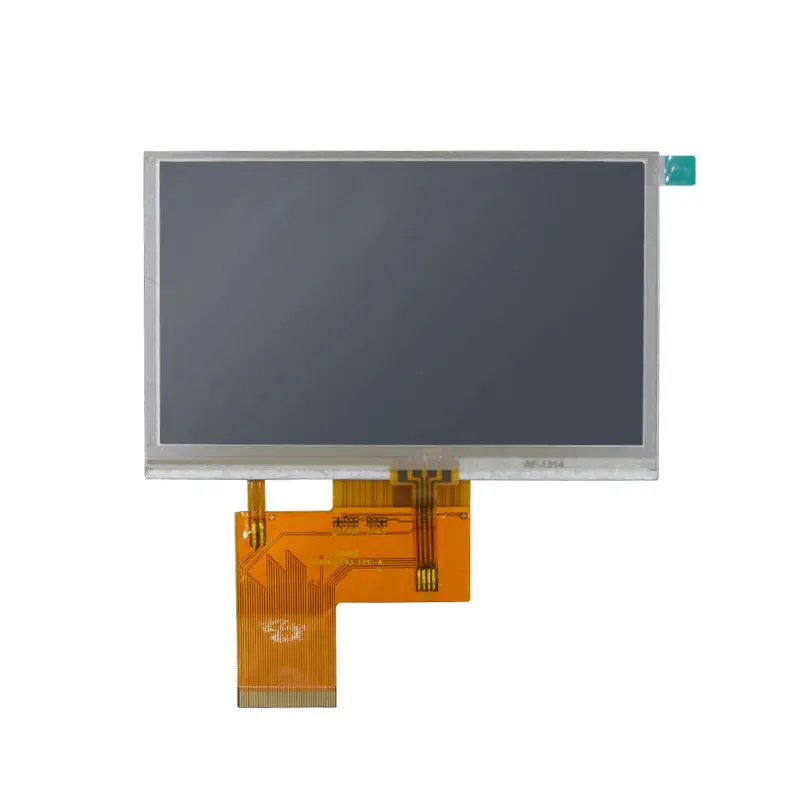

4.3 inch TFT LCD Display
1) Part Number: KWH043ST43-F02
2) TFT Type: 4.3 inch
3) Resolution: 480(RGB)x272
4) Module Size: 105.5x67.2x4.2mm
5) Active Area: 95.04x53.856mm
6) Interface: RGB 24bits
7) With resistive touch panel

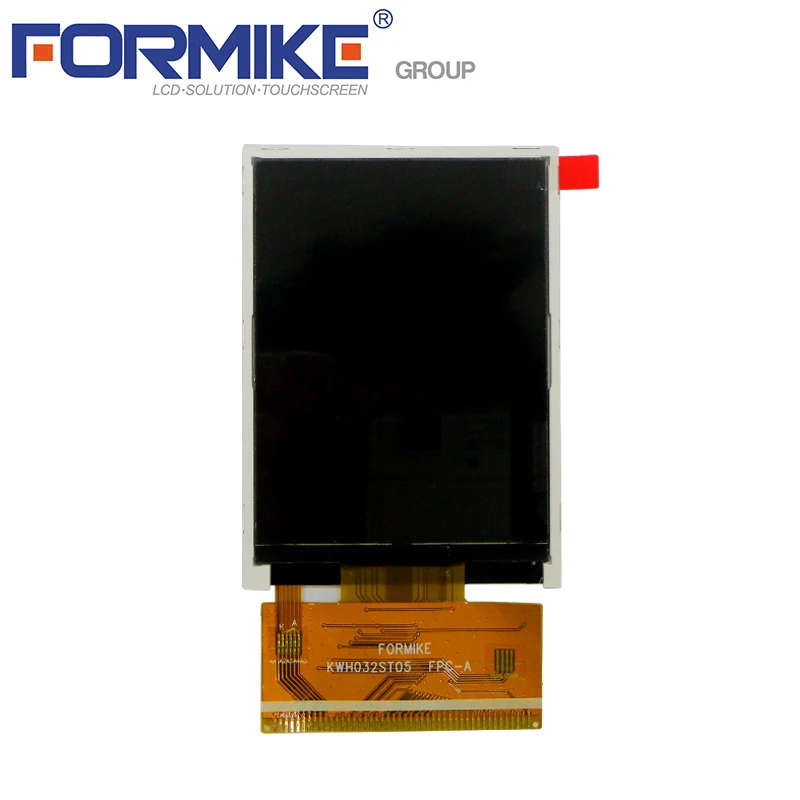

3.2 inch TFT LCD Display
1) Part Number: KWH032ST05-F01
2) Resolution: 240 (RGB) x 320
3) Outline Size: 55.94x77.6x2.4mm
4) Active Area: 48.6x64.8mm
5) Driver IC: ILI9341
6) Interface: RGB, serial and MCU
7) Touch Panel: Option
3.5 inch TFT LCD Display
1) Part Number: KWH035ST48-F01
2) Resolution: 320(RGB)x240
3) Outline Size: 76.9x63.9x3.3mm
4) Active Area: 70.08x52.56mm
5) Interface: RGB 24bits
6) Brightness: 250cd/m2
7) Touch panel: Option
Packing Details
1) Packing details: 200PCS per carton, 11.2kgs per carton, carton size: 53x35.5x25.5cm
2) Lead time: 5-25 working days depends on the order qty.
Applications
Company Information
FAQ
1.Q: Order process
A:PO is placed by clients → PI is issued by Formike → Payment by clients → Lead time is confirmed by Formike → Shipping instrction by Clients → Delivery → Cargo tracking → Receipt of cargo
2.Q: Lead time ( after payment is confirmed)
A: Sample: 1-10 working days Volume: 3-60 working days
3.Q: Payment
A: T/T , Western union, L/C, Credit card, and Cash
4.Q: Warranty
A: 12 months warranty ( Please find more details via our datasheet by item of Limited Warranty)
5.Q:RMA Process
A:Claimed by cliens with photos or videos → Sales rep of Formike confirm if have questions → Sales rep issue RMA No to clients if confirmed by QA → Return to Formike → Formal report after goods received by Formike → Clients confim the analysis report →Proceeding as per the Report both agreed
6.Q:Notes
A:Please check both appearance and function of products prior to installation.
Any damage caused by improper use or unprofessional installation is not covered under warranty.
A:PO is placed by clients → PI is issued by Formike → Payment by clients → Lead time is confirmed by Formike → Shipping instrction by Clients → Delivery → Cargo tracking → Receipt of cargo
2.Q: Lead time ( after payment is confirmed)
A: Sample: 1-10 working days Volume: 3-60 working days
3.Q: Payment
A: T/T , Western union, L/C, Credit card, and Cash
4.Q: Warranty
A: 12 months warranty ( Please find more details via our datasheet by item of Limited Warranty)
5.Q:RMA Process
A:Claimed by cliens with photos or videos → Sales rep of Formike confirm if have questions → Sales rep issue RMA No to clients if confirmed by QA → Return to Formike → Formal report after goods received by Formike → Clients confim the analysis report →Proceeding as per the Report both agreed
6.Q:Notes
A:Please check both appearance and function of products prior to installation.
Any damage caused by improper use or unprofessional installation is not covered under warranty.
