Taiwan CNC Lathe 20" Series For Sale
- Category: Metal Take-up Machines >>>
- Supplier: PROMPT INTEGRATED TECHNOLOGY LTD.
Share on (1887164324):
Product Overview
Description
| SPECIFICATIONS | 20"/22" series | |
| MODEL | unit | 2040/2060/2080/20120ENC |
| Swing over bed | mm(inch) | 510 (20) |
| Distance between center | mm(inch) | 1000/1500/2000/3000 (40/60/80/118) |
| Max. cross slide travel | mm(inch) | 380 (15) |
| Max longitudinal travel | mm(inch) | 1000/1500/2000/3000 (40/60/80/118) |
| Swing over cross slide | mm(inch) | 290 (11) |
| Swing over gap | mm(inch) | 710 (28) |
| Spindle bore | mm(inch) | 85 (3-1/3) |
| Spindle nose | D1-8 | |
| Spindle nose bush | MT#7 | |
| Spindle speed number | steps | 3 |
| Spindle speed range | rpm | 30-2000 |
| Tailstock travel | mm(inch) | 160 (6) |
| Tailstock diameter | mm(inch) | 75 (3) |
| Tailstock taper | MT#5 | |
| Width of bed | mm(inch) | 350 (14) |
| Cross slide (x) ball screw | Ø25 x P5 | |
| Cross slide (x) servo motor | Nm | 6.3 |
| Longitudinal (z) ball screw | Ø40 x P10 | |
| Longitudinal (z) servo motor | Nm | 6.3 |
| Cross slide rapid | m/min | 6 |
| Longitudinal rapid | m/min | 8 |
| Main inverter motor | HP | 11KW (15HP) |
| Interver (Yaskawa) | HP | 11KW (15HP) |
| Cutting fluid coolant pump | HP | 1/8 |
| Overall length | mm(inch) | 2600/3100/3600/4600 (102/122/142/181) |
| Overall width | mm(inch) | 1800 (71) |
| Overall height | mm(inch) | 2200 (87) |
| Net weight | kgs | 1900/2250/2600/3100 |
| Gross weight | kgs | 2100/2550/2900/3600 |
| Standard Accessories: |
| Fagor 8055i/A CNC compact |
| X & Z axes equipped with AC servo motors |
| Spindle encoder |
| Automatic lubrication pump for slideways and ballscrews |
| Cutting fluid coolant system |
| Full length rear splash guard |
| Front chuck & chip safety grard |
| Working lamp |
| RS-232 port |
| Centers and center sleeve |
| Leveling blocks |
| Service tools and toolbox |
| Transformer |
| Operation manuals |
| Optional Accessories: |
| Manual 3-jaw scroll chuck |
| Manual 4-jaw independent chuck |
| Steady rest |
| Follow rest |
| ISO quick change toolpost with 4 toolpost |
| Electrical automatic indexing 4-way toolpost |
| Rear type hydraulic turret 8 station |
| Hydraulic hollow chuck |
| Chip conveyor w/cart |
| Automatic spindle speed change |
| Full enclosed rear guard |
| Face plate |
| Live center |
| Drill chuck with arbor |
If you have any further discussion or information, please feel free to contact us directly, and thank you.
Company Information
Our Services
|
|
Pre-Sales Service Inquiry and consulting support View on factory |

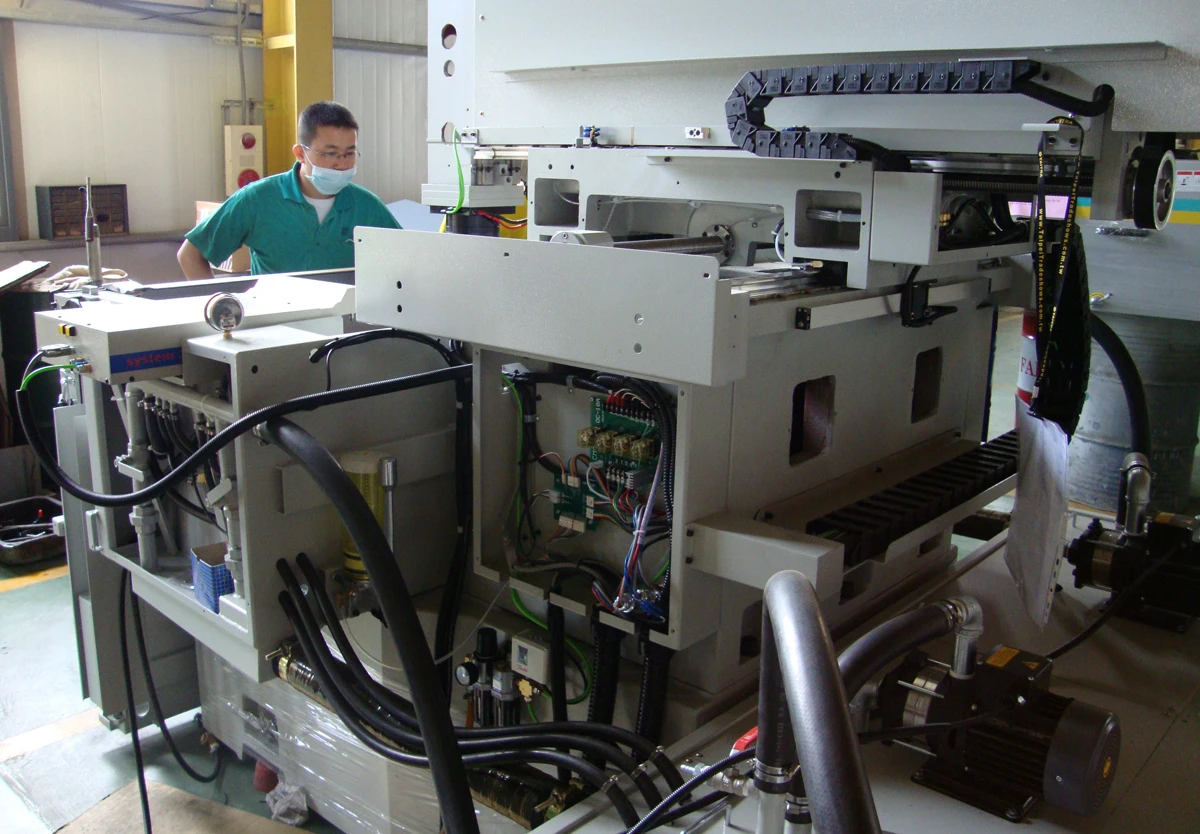

After-Sales Service Field installation, maintenance and repair Training on machine operation Engineers available to serve overseas |
Certificate

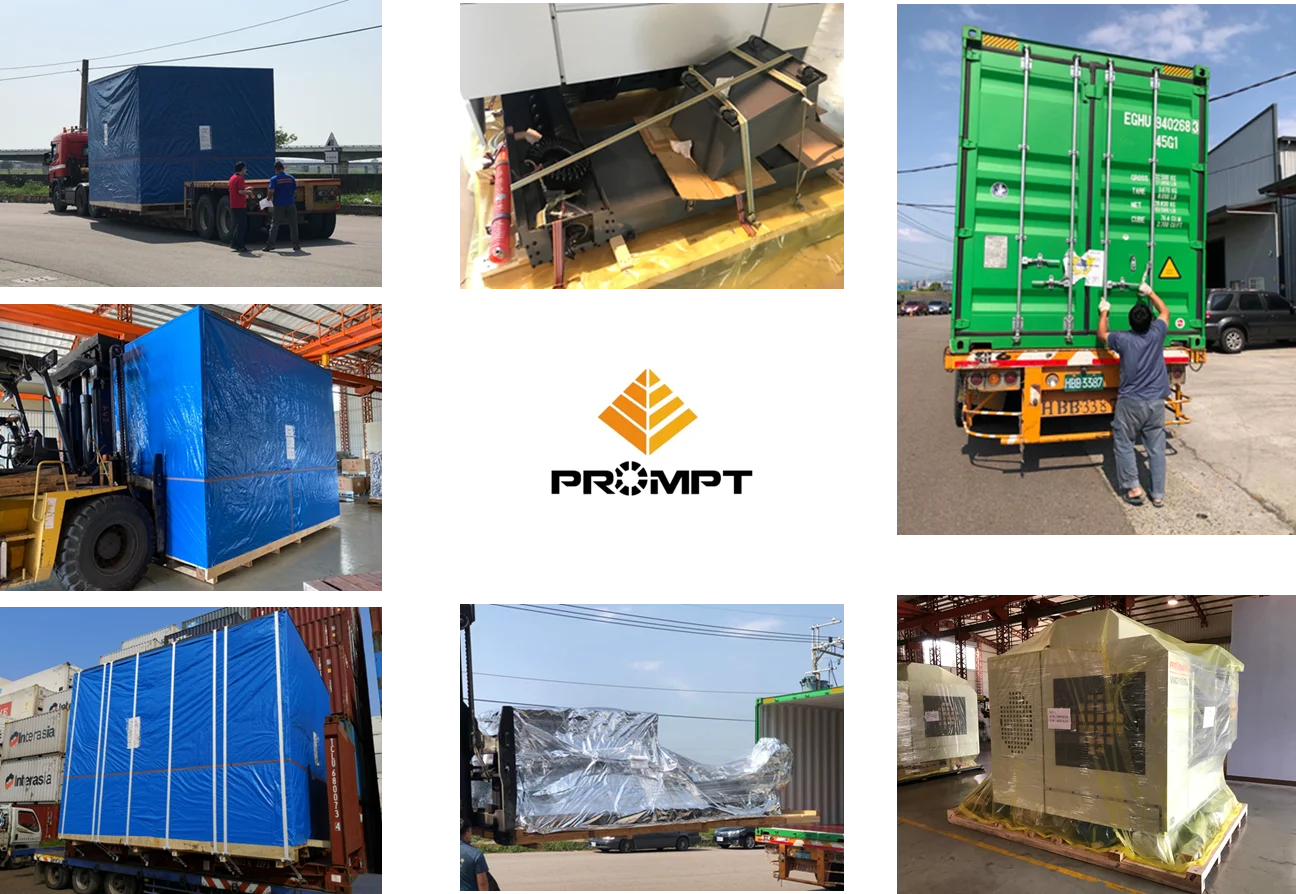

Packaging & Shipping
Our delivery service is good patient, courteous and try our best to meet customer requirement.

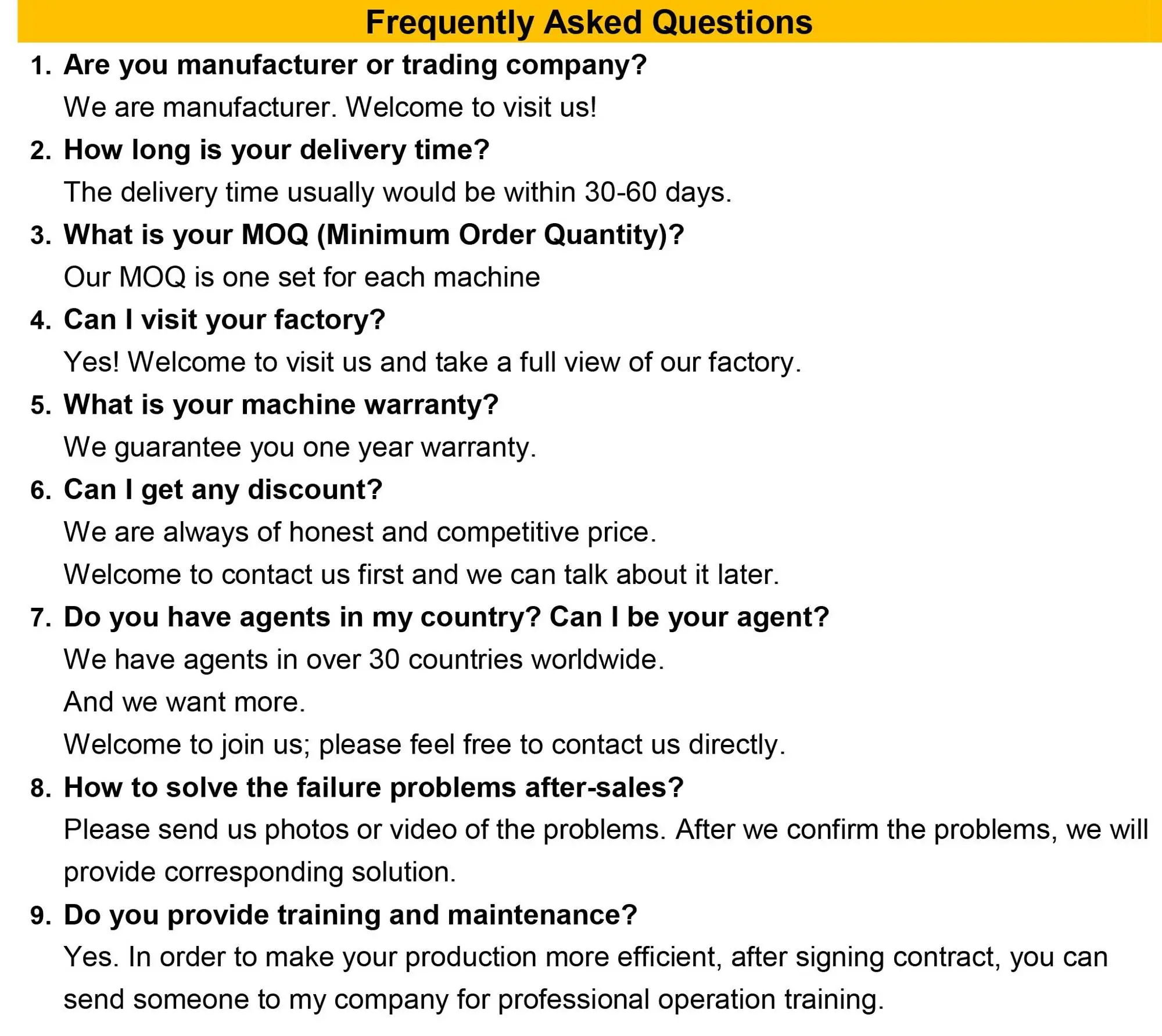

FAQ
