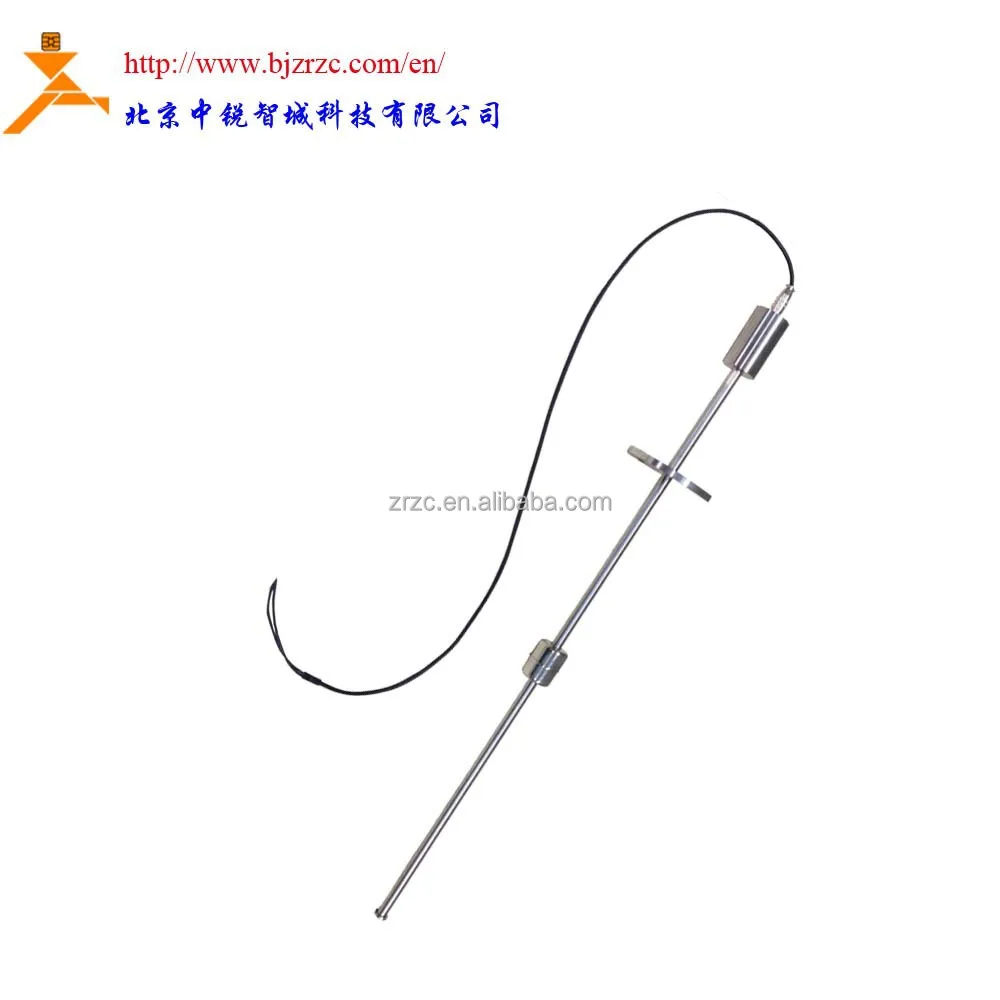

HART Magnetostrictive Level Meter H771 level transmitter

Product Overview

Description

APPLICATION

• Used for magnetostrictive level meter

             Resolution: 0.3 mm

             Accuracy: 1 mm

             Operating temperature:

                      -40°C ~ +85°C

• Dimension: diameter Φ= 62 mm

                 Mounting hole pitch D=55 mm





FEATURES

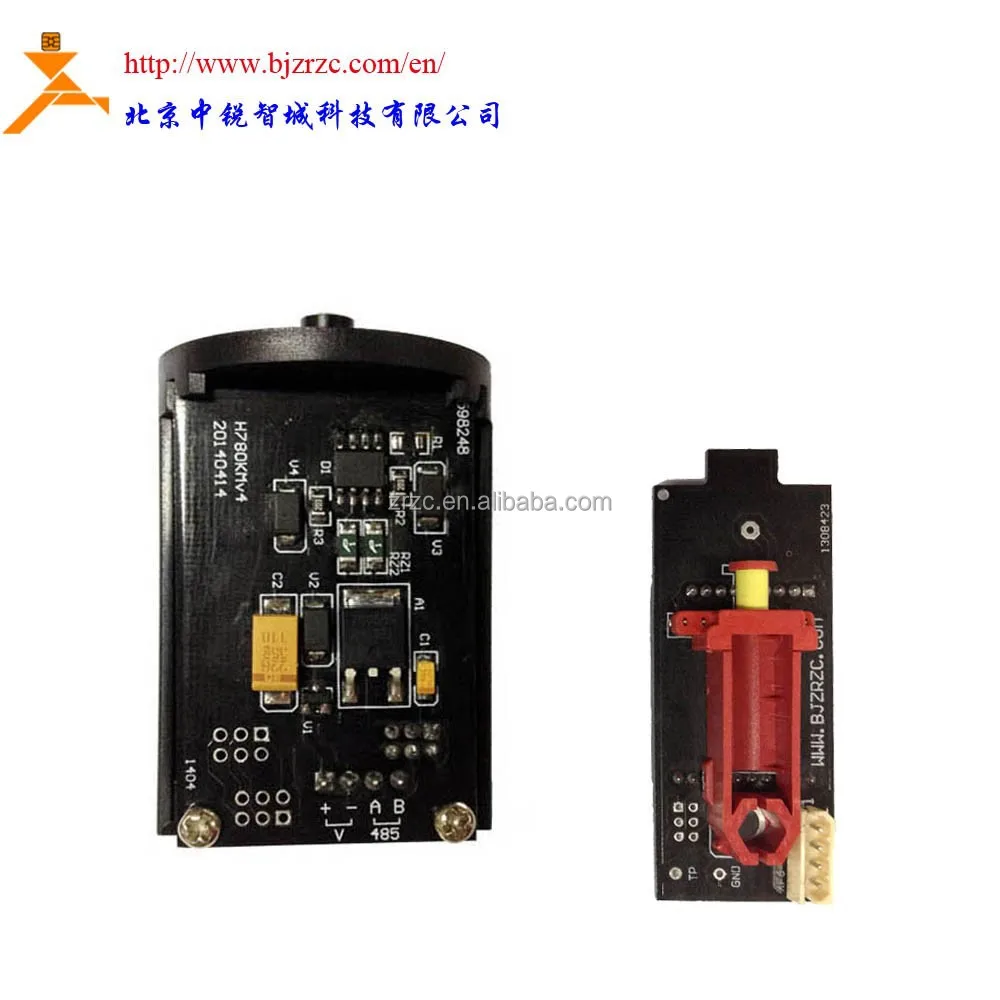

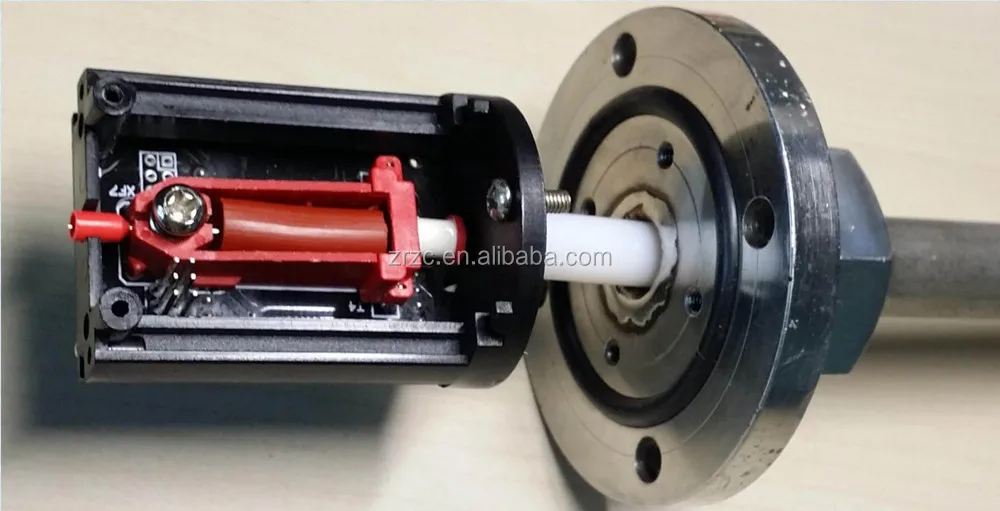

• Easy Assembly: Easier to install and to recognize coaxial sensor signal.
• Powerful self-test function: Through software, users can detect the magnet polarity, signal amplitude and evaluate without using an oscilloscope.

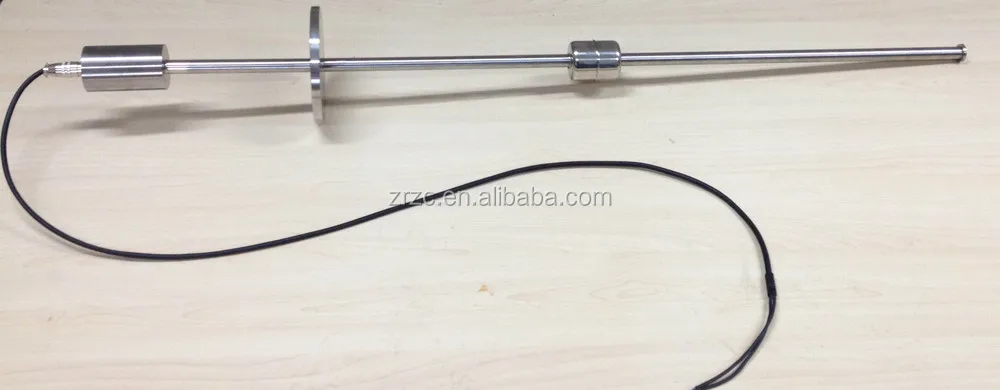

• Support dual float: Two-channel isolated 4 ~ 20mA signal outputs. The first channel is for the first float level or level difference and the second channel is for the second float level.
• Strong capability for anti-disturbance:  Leading military-grade hardware and software anti-disturbance technology, over-voltage protection, surge current, electrostatic shock and lightning protection.
• Multiple local operation functions: Range Values, PV Unit, Damp, High Alarm Value,  Low Alarm Value, Zero Trim, Lower Sensor Trim and Upper Sensor Trim , Magnet Polarity, Signal amplitude, Dead zone and Data Restore.
• LCD display: 360^o rotation LCD display. More than one variable displayed on the LCD with backlight for dark environment.
• Data backup and restore.
