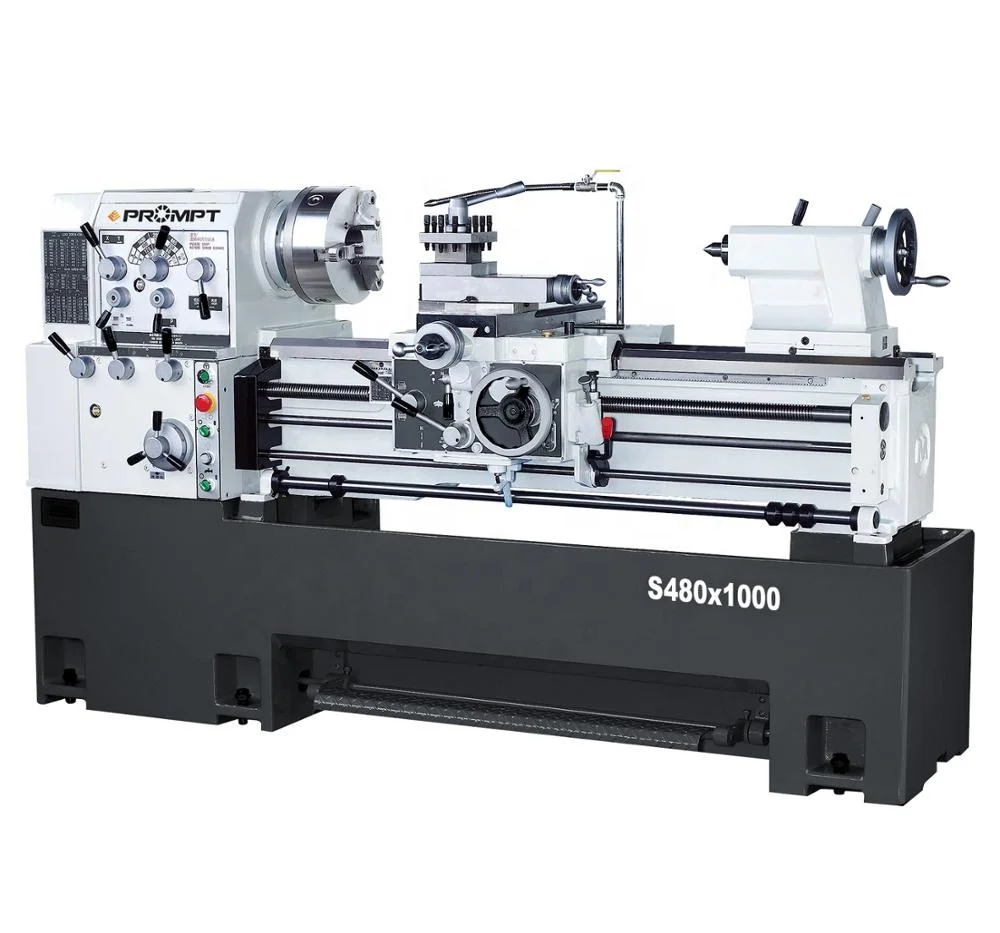

Taiwan Mini Torno Metal Lathe Machine For Sale
- Category: >>>
- Supplier: PROMPT INTEGRATED TECHNOLOGY LTD.
Share on (1887459089):
Product Overview
Description
Product Description
Conventional Lathe
Features:
1. Selective bed width: S series: 300mm / M series: 350mm / L series: 400mm
2. Varied spindle bore diameters: S series: Ø58mm / Ø80mm (Option) & M series: Ø85mm / Ø105mm (Option) & L series: Ø85mm / Ø120mm (Option)
3. With FAG or SKF precision bearings installed on spindle, maximum cutting depth can be 8mm on 50mm diameter and best roundness 0.003mm (200mm long)
4. Equipped with plastic rear gears, shafts and gears inside headstock are well protected if crash should occur (PML430 & PML470S)
5. Thermal treated and precision ground alloy gears
6. Universal gearbox for both imperial and metric thread-conversion table also attached
7. Tracks of cross slide and bed are well lubricated with lubrication pump (manual)
8. Overload device to ensure safety when operating
9. Wear-resistant phosphor bronze lead screw nuts
10. Durable reservoir oil bath type cross slide (for S series)
11. Thermal treated Meehanite bed casting
12. One piece base for high rigidity and low vibration
13. High-capacity coolant tank offers sufficient coolant output
14. All series certified for CE
Specifications:
Item | PML 430S |
Specifications | 1722.1730.1740.1760.1790 |
Swing Over Bed | 430 mm (17”) |
Swing Over Cross Slide | 240 mm (9-1/2”) |
Center Height | 215 mm (8-1/2”) |
Center Distance | 560.760.1000.1500.2200 mm (22”.30”.40”.60”.90”) |
Swing Over Gap | 650 mm (25-1/2”) |
Bed Width | 300 mm (11-4/5”) |
Spindle Nose | ASA D1-6 / D1-8 (Opt.) |
Spindle Bore | 58 mm (2-1/4”) / 80 mm (3”) (Opt.) |
Taper of Spindle Bore | MT #6 / MT #7 (Opt.) |
Spindle Speed | 20~2000 rpm (12 steps)-spindle bore: 58 mm 40~2000 rpm (12 steps)-spindle bore: 80 mm |
Inch Threads Range | 4~56 TPI |
Metric Threads Range | P0.5-P7 |
Longitudinal Feeds Range | 0.05~0.82 mm (0.002~0.032”) |
Cross Feeds Range | 0.02~0.4 mm (0.001~0.0094”) |
Leadscrew Diameter | 35 mm (1-1/3”) |
Leadscrew Pitch | 4 TPI or 6 mm |
Taper of Tail Center | MT #4 |
Tail Spindle Travel | 150 mm (5-7/8”) |
Tail Spindle Diameter | 58 mm (2-1/4”) |
Main Drive Motor | 5 HP (3.75 KW) / 7.5 HP (5.625 KW. Opt.) |
Coolant Pump | 1/8 HP (0.1 KW) |
Compound Rest Travel | 125 mm (4-7/8”) |
Cross Slide Travel | 250 mm (9-2/3”) |
Machine Dimension | L: 165.189.215.265.342 cm W: 81 H: 119 cm |
Packing Dimension | L: 182.200.228.279.355 cm W: 95 H: 168 cm |
Net Weight | 1500.1680.1760.2050.2405 kg |
Gross Weight | 1600.1780.1860.2200.2555 kg |
Standard Accessories:
Tool box 1pc |
Centers 2pc |
Safety pin 1pc |
Screw wrench for cutter setting 1pc |
Back plate 1pc |
Coolant system 1set |
4-way tool post 1set |
Auto-feed stopper ring 1set |
Center sleeve 1pc |
Leveling pads 1set |
Optional Accessories:
3-jaw scroll chuck |
4-jaw independent chuck |
Face plate |
Steady rest |
Follow rest |
Work light |
4-position carriage stop |
Micro carriage stop |
Live centers |
Rear cutter rest |
Taper turning attachment |
Rear splash guard |
Rapid traverse (L series) |
Chuck guard |
American tool post (S series) |
Change gear for D.P and module thread |
5C lever collet closer |
Driving plate |
Quick change tool post |
Digital readout |
Hydraulic copying machine |
Chip guard |
ID/OD grinder |
*If you have any further discussion or information, please feel free to contact us directly. Thank you.
