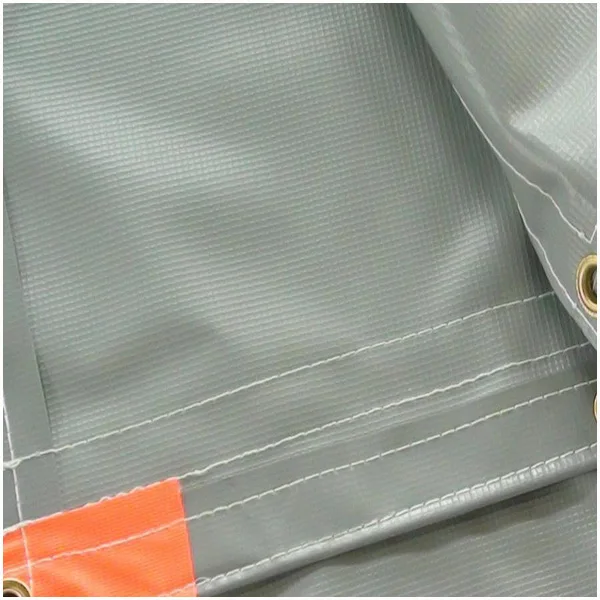

1000 gsm waterproof PVC Tarpaulin truck cover

Product Overview

Description

550gsm to 700gsm HEAVY-DUTY WATERPROOF PVC COATED TARPAULIN

NTRODUCTION

PVC tarpaulin material has been widely used as awnings, truck cover, boat coverage, swimming pool enclosures, tents, banners, inflatable products, agriculture, car parking shade, adumbral materials for building facility and house. The width is from 1.5 m up to 3.50m . The color can be customized according to customers' requirement. We can produce laminated and coated PVC tarpaulin, for its good flexibility, excellent tensile strength and tear strength, PVC tarpaulin are easily to sustain long time for good performance.

 PVC Coated Tarpaulin is also named as PVC Cavas Tarps produced by coating machine which composited PVC paste on polyester fiber substrate by roller coating, then it is heated by temperature regulating device and pressed on the tarpaulin accurately, cooling to be finished product afterward.

Specifications
Material: 100% Polyester yarn with PVC Coating

Weight: 500gsm ~ 700gsm

Width: 1200 ~ 2000 mm

Length: 10~50m

Thickness: 0.45mm~0.62mm

Size: As per request

Inspection item(Unit)			Normal Value and Allowance	Experimental value	Reference standard
Mass per unit(g/m²)			≥400	443	GB/T4669-2008
Hydrostatic pressing(kPa)			≥50	≥50	FZ/T01004-2008
Resistance to blocking			Tolerance to mild adhesion	Non-adhesion	FZ/T01063-2008
Resistance to temp.(-25°C×3min)			Non-delamination, non-break	non-break	FZ/T01007-2008
Breaking strength (N/5×20cm)		Longitude	≥1000	1980	GB/T3923.1-1997
		Latitude	≥1000	1480
Tear strength (N)		Longitude	≥40	163	GB/T3917.3-1997
		Latitude	≥35	77
Flame resistance	longitude	Longitude	≤15	0.2	GB/T5455-1997
		Latitude		0.2
	Afterglow time(S)	Longitude	≤15	0.0
		Latitude		0.0
	Damaged length(mm)	Longitude	≤150	102
		Latitude		118
	Meltdown cast		Non-tolerance to burn of absorbent cotton or flame resistance	Not give rise to burn of absorbent cotton or smoldering

*Above test report is based on 650gsm PVC coated Tarps.

Features:
1. Laminated technology & Hot-melt Coating technology

2. Outstanding tearing strength for welding

3. Flame retardant character (optional)

4. Temperature resistance: -20--70

5. Cold Crack Resistance, Anti-Mildew, Anti-Static treatment, Waterproof

6. Anti ultraviolet treatment(UV).(optional)

7. Acrylic treatment (optional).



Application:
1. Rain and sunshine shelter, playground,

2. Tent, carriage tent and house building

3. Amusement device

4. Construction structure

5. Truck cover, Top roof and side curtain

6. Our door event tent(blockout)

Color Available:
We can make any color according to RAL, Pantone, or Sample.



We are professional PE/PVC Tarpauline and Netting Fabrics Factory from China and we produe all kind of covering and shadeing solution , our produce range include Green, Blue, White, Silver and bi-color PE tarpaulin fabric, Ready-made PE/Poly Tarps Roll, PVC vinyl lamiated tarpaulin and PVC coated canvas tarpaulin, fireproof tarp.

With several years corporation with Korea companies, we are able to offer high quality tarps with factory price now. We are now also the supplier for many Korean tarps companies.



Different Colors Are Available

Welding Joined For Extend Width

Both  Pitting  and Glossy Surface are Available

Ready-Made PVC Tarpaulin Roll

Folding and Packing Process

PVC Tarps Roll

--------------------------------------------------------------------------------------------------------------------------------

Beside the PVC Tarpaulin, we also manufacture PE Tarpaulins. By corporate with World-Wide Companies for many years, we can provide very goods quality Tarps for different usage.



We are also manufacturing a wide selection of Light-Duty and Heavy duty Poly / PE ( Polyethylene )  Tarps Fabrics/Canvas/Sheet/Roll in different colors. Please visite our "POLY TARPS" catalogy







Professional OEM Manufacturer of Industrial Textile for 15 years.

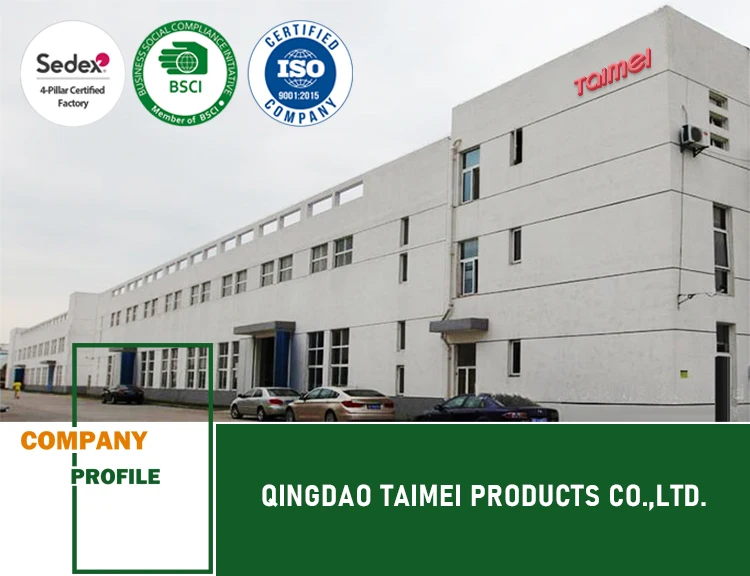

TAIMEI Group is a ISO9001 certificated supplier of woven fabric and coating fabric, extruded films and sun shade covers. We headquartered in Qingdao, is responsible for marketing and R&D, while manufacturers in Weihai, Qingdao, Binzhou and Tai'An cities, handling production. With 15+ years of group experience in manufacturing, our production teams have 20+ years of experience in the production of a different kind of fabric, 380+ customers in 60+ countries worldwide, and for a variety of markets, applications and end-users. In order to provide more professional fabric and finished products to our clients, we split our business to 4 divisions: Woven Division, Geosynthesis Division, Shade Fabric Division, and Tarpaulin Division. To provide many different fabric for different application.
