Product Overview
Description
Product Description

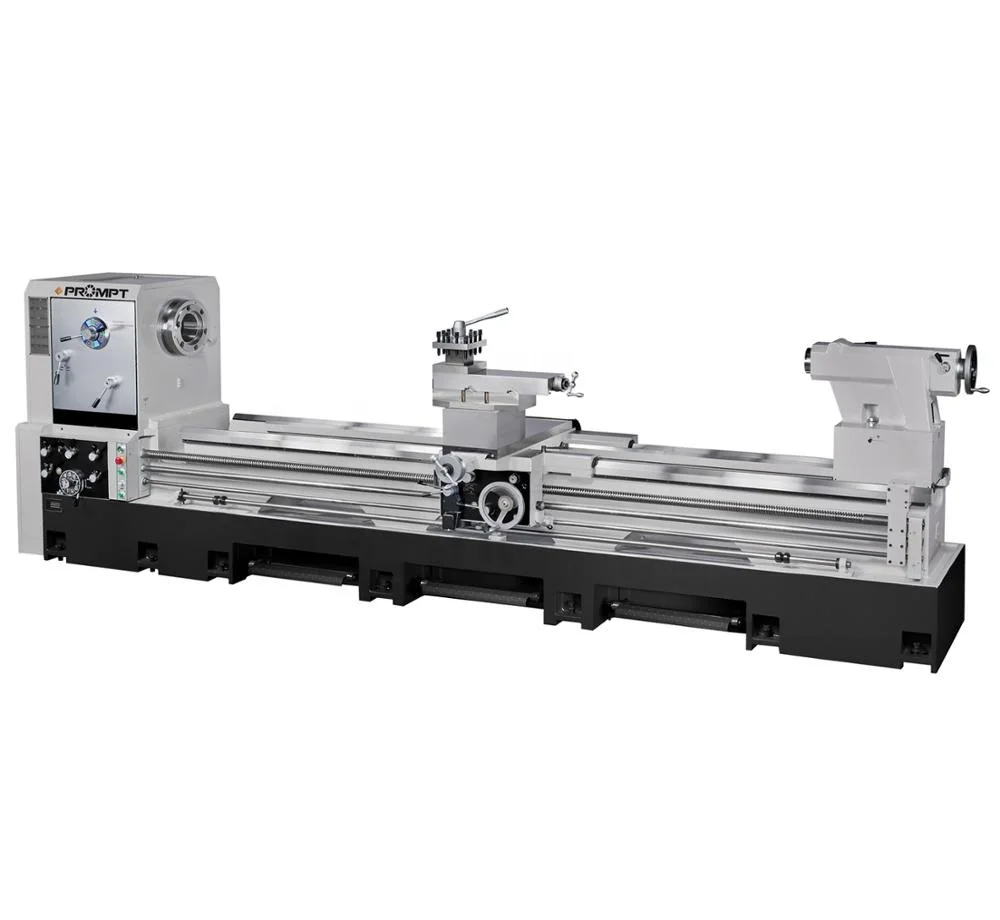

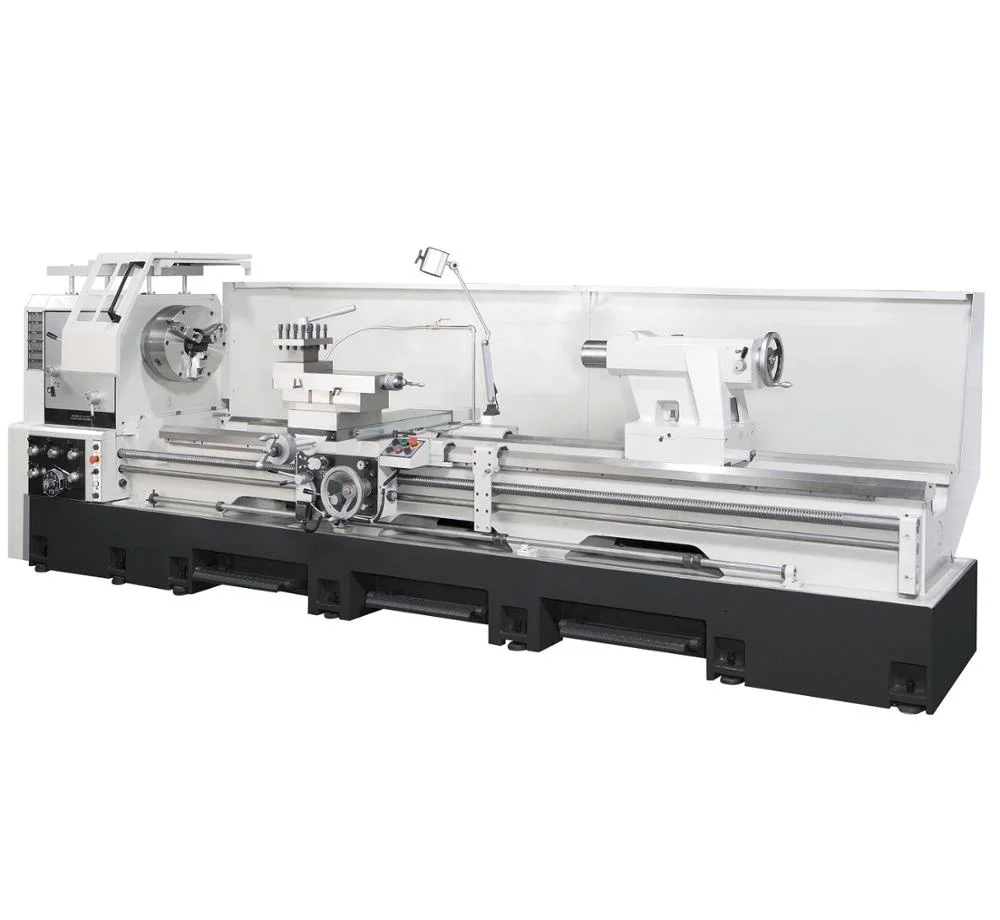

Conventional Lathe
Features:
1. All gears and mandrel are made of alloy steel with heat treatment and precision ground
2. Rotating type speed changing system is easy to operate
3. Universal gear box design, is able to cut metric tread
4. Imperial thread, module thread without changing gears
5. Large bore spindle 153mm. 230mm(OPT), supported by 3-point precision bearings
6. Longer, wider slide and carriage for stronger heavy cutting
7. Central lubrication system can be operated manually or automatically
8. Bearing on the bottom of tailstock can be moved easily
9. Center distance 300mm longer, could cut exact longer workpiece
10. High tensile ribs structure, high precision and wide bed surface
Specifications:
|
Item |
PML 1060X |
|
Specifications |
4170.4190.41130.41170.41210.41250.41290.41330 |
|
Swing Over Bed |
1060 mm (42”) |
|
Swing Over Cross Slide |
825 mm (32-1/2”) |
|
Swing Over Gap |
1370 mm (54”) |
|
Width of Gap |
475 mm (19”) |
|
Center Distance |
1810.2310.3310.4310.5310.6310.7310.8310 mm (72”.92”.132”.172”.212”.252”.292”.332”) |
|
Max. Length for Workpiece |
1650.2150.3150.4150.5150.6150.7150.8150 |
|
Spindle Bore |
153 mm (6”) / 230 mm (9”) (Opt.) |
|
Spindle Nose |
A2-11 / A2-15 (Opt.) |
|
Taper of Spindle Bore |
MT 7# / 1/20 (Opt.) |
|
Spindle Speed |
8-680 rpm / 6-500 rpm |
|
Spindle Step |
12 steps |
|
Spindle Center to Ground |
1278 |
|
Longitudinal Feeds Range |
0.05~0.7 mm/rev |
|
Cross Feeds Range |
0.025~0.35 mm/rev |
|
Rapid Traverse Z/X Axis |
Z axis: 3.7 M/min X axis: 1.8 M/min |
|
Inch Threads Range |
2~28 in(D.P.4-56) |
|
Metric Threads Range |
0.8~14 mm (M.P. 0.5-7) |
|
Leadscrew Pitch |
Ø 45 x 2 TPI / P12 mm (Opt.) |
|
Cross Slide Travel |
520 mm |
|
Compound Rest Travel |
330 mm (13”) |
|
Tool Shank |
40 x 40 |
|
Tail Spindle Diameter |
Ø120 mm (4”) |
|
Tail Spindle Travel |
Ø250 mm (10”) |
|
Taper of Tail Center |
MT #6 |
|
Bed Width |
510 mm (20”) |
|
Spindle Motor |
20 HP / 30 HP (Opt.) |
|
Bed |
One Piece |
|
Machine Dimension |
L: 375.425.525.625.725.825.925.1025 cm W: 174 |
|
Packing Dimension |
L: 373.425.531.625.728.850.950.1050 cm W: 185 H: 211 cm |
|
Net Weight |
5700.6100.6800.7600.8400.9200.10000.10800 kg |
|
Gross Weight |
5900.6300.7000.7800.8600.9400.10200.11000 kg |
Standard Accessories:
|
Back plate 1pc |
|
Center sleeve 1pc |
|
Centers 2pcs |
|
Tool post wrench 1pc |
|
Anchor bolt 1set |
|
Tool box & tool 1set |
|
Coolant pump 1set |
|
Work light 1pc |
|
4-jaw independent chuck 1set |
|
4-way rapid traverse device 1set |
|
Steady rest 1pc |
Optional Accessories:
|
3-jaw scroll chuck |
|
4-jaw face plate |
|
Face plate |
|
Taper turning attachment |
|
Follow rest |
|
Rear splash guard |
|
4-position carriage stop |
|
Micro carriage stop |
|
CE certificate |
|
Quick change tool post |
|
Live centers |
|
Digital readout |
*If you have any further discussion or information, please feel free to contact us directly. Thank you.
