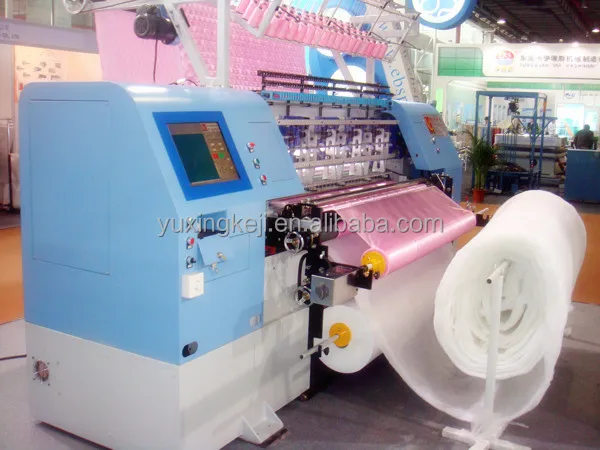

Компьютеризированная High end челнок многоигольные стегальные машины

Product Overview

Description

 * Saddke frane and roller are driven by servo system.

 * Quilting width : 1.6 M.

 * Endurable Bearing introduced from Japan,needle from USA.

 * Sliding guide ensures smooth running,finer patterns and lower chance of breaking thread.



 * Auto-stop when broken thread is tested by infrared sensor.

 * Needle bar will stay at the highest position after stopping machine.

 * Micro-ajustment of pattern design by computer for better quilting appearance.

 * Both continuous and jump patterns are capable.



















SPECIFICATION



Product  Name	High-end Shuttle  Multi-needle  Quilting  Machine
Model	YXG-64-2C/3C(3" /3" +3" )
Size(L*W*H)	3900*1200*1700mm
Weight	3100kg
Quilting  width	1600mm
Needle  bar  spacing	2C  76.2(3" );   3C  152.4(3" +3" )
Quilting  thickness	50mm
Rolling  speed	500-800r/min
Throughput	0-195m/hour
Needle  type	#16, #19
X-axis  movement	254mm
Needle  spacing	25.4mm
Stitch length	2-6mm
Rated  voltage(AC)	380V/50HZ, /220V/60HZ
Power	3KW





Yuxing Machinery Equipment Technology Co.,Ltd  was found in 2000, a specialized manufacturer of quilting machine in Dongguan China, main products:

-- Computerized Lock stitch/Chain stitch Quilting machine

-- Quilting and Embroidery machine

-- Cutting panel, Fabric roller,Bobbin winder etc



We run a full flow from R&D, produce and finishing machine parts, marketing to after-sales, one package service



Machine is for producing mattress,sleeping bag, garments,bedspread,duvet,cushion and other home textile goods.





Quality first/ Customer paramount/ Honest business/ Credit-founded
