Product Overview
Description

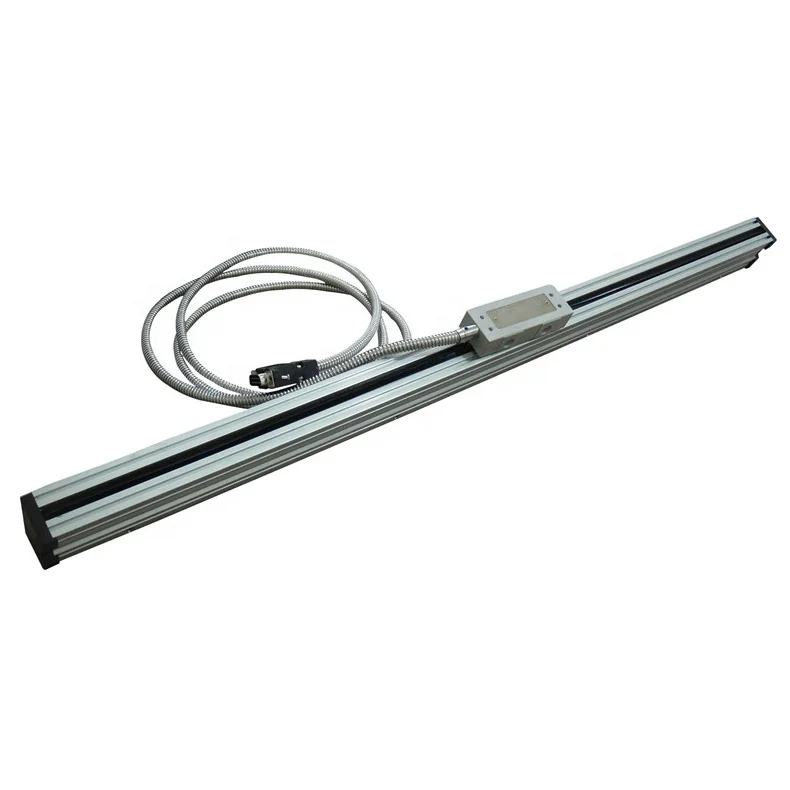

Linear Scale For Lathe
Product Description
 |  |
Features
Resolution: 0.1/0.5/1/5/10μm
Accuracy: ±3/±5/±10μm (20°C/68°F)
Bench marks: the grating period: 20μm optical linear scale
Grating system: the transmissive and infrared optical measuring system, the infrared wave length is 880nm
Reading head sliding system: vertical or 45° five precidion bearing system
Specification
| Model | DC10 |
| Measure Length (mm) | 50-1000 |

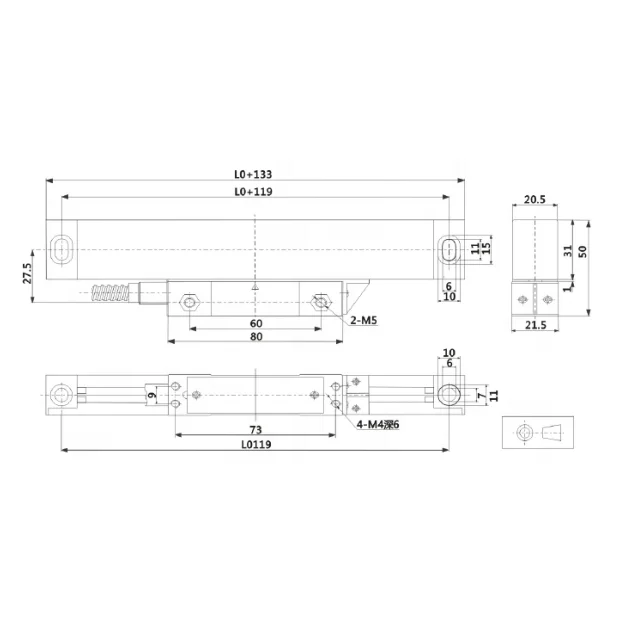

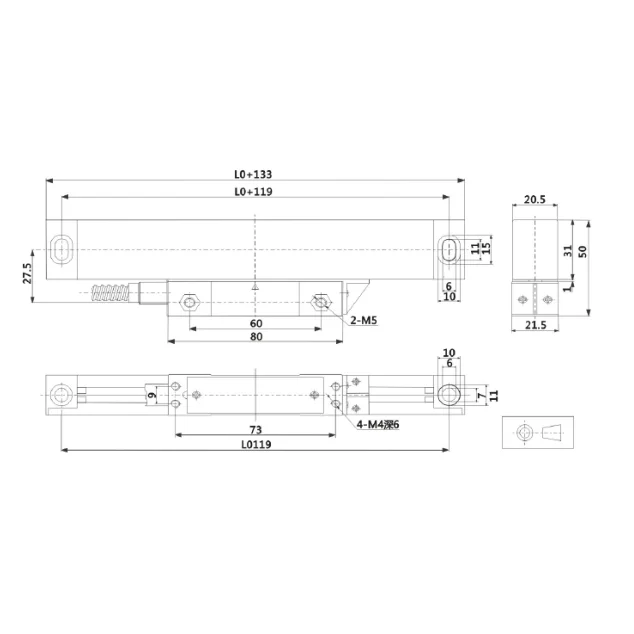

| Sectional Dimensions (mm) | 20.5 X 31 |
| Accuracy | ±3/±5/±10μm(20°C/68F°) |
| Biggest Working Speed | 60m/min |
| Zero Reference Point | 50mm/Piece |
| Sealing Protection | IP55 |
| Resolution (μm) | 0.1/0.5/1/5/10 |
| Output Signal | TTL/EIA-422-A/1Vpp |
| Voltage | 5V/12V/24V/36V |
| Output Signal | TTL/EIA-422-A/1Vpp |
Linear Scale Wiring Diagram
Linear Scale: Nine-Pin TTL Signal Output Map
| Pin | 1 | 2 | 3 | 4 | 5 | 6 | 7 | 8 | 9 |
| Signal | Empty | 0V | Empty | Shield | Empty | A | +5V | B | z |
| Color | Black | Shielding | Yellow | Red | Green | Brown |
Linear Scale: Nine-Pin EIA-422-A Signal Output Map
| Pin | 1 | 2 | 3 | 4 | 5 | 6 | 7 | 8 | 9 |
| Signal | A- | 0V | B- | Shield | Z- | A | +5V | B | z |
| Color | Orange | Black | Blue | Shielding | White | Yellow | Red | Green | Brown |
Linear Scale: Seven-Pin TTL Signal Output Map
| Pin | 1 | 2 | 3 | 4 | 5 | 6 | 7 | 8 |
| Signal | 0V | Empty | A | Green | +5V | A | Z | Shield |
| Color | Black | Yellow | Green | Red | Yellow | Brown | Sheilding |
