Control Cable Outer Casing Cutting Machine

Product Overview

Description

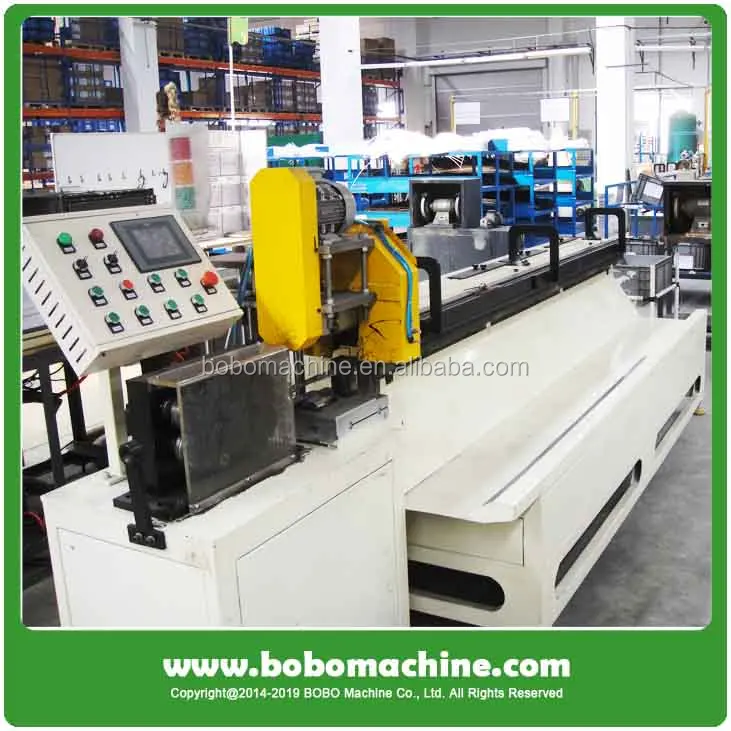

control cable outer casing cutting machine

The control cable outer casing cutting machine is used to cut the flexible hose into right size continuously, which is widely used for control cable production, such as brake cable, clutch cable, throttle wire, etc. Compare to traditional machine, the new generation one works automatically with higher accuracy and lower noise.





Features of control cable outer casing cutting machine

• Fast speed pre-feeding at beginning


• Slow speed feeding when length is close to limit


• Fixed the feeding length by limit switch


• Quick adjustment and locking system (Adjustment tolerance±5MM )



Main technical data of control cable outer casing cutting machine

S.N	Description	QG-I	QG-II
1	Work diameter	Up to 8mm	Above 8mm
2	Cutting speed	>650pcs/hour when length <2000mm
3	Max. Cutting length	3500mm
4	Grinding wheel rotate speed	>7000rpm
5	Motor power	0.75kw+1.5kw	1.5kw+2.2kw
6	Dimension	4200x1120x1450mm
