low cost metal pipe fence for livestock paddock used rails fence panel

Product Overview

Description





 Description of paddock pipe used fence panel of livestock

Materials: Carbon steel

Corrosion Form: hot-dipped galvanized or paint

Features: It can quickly and easily be installed, without the need to disturb the surface area by digging holes or laying foundations.

Main markets: Australia, European countries, Canada, America and Asia countries.

Description:

-1.8m high with 6 bars/rails or 1.6m high with 5 bars/rails.

-Complete with Caps & Foot plates.

-Holes for ground pin on one leg of each panel.

-Elongated lug holes in brackets, for ease when connecting.



Paddock fence panel Finish / Surface Treatment:

1). Wipe antirust paint on welding seams

2). Wipe antirust paint on welding seams + silver spray painted on the welding seams

3). Silver spray painted on the whole panel



The popular specification of paddock fence panel:

Specification	Normal size
Height x Length	1.8m x 2.1m, 1.6 x 2.1m, 1.8m x 2.4m and so on
pole style	Round pipe or square tube or oval tube
Pole specification	32mmO. D, 42mmO. D, RHS40mm, RHS50mm and so on
Package details	In steel pallet or in bulk

Different type of tube show:

 Paddock fence panel accessories:

1 set = 2 rain caps + 2 "U" lugs + 2 "L" lugs + 2 pins + 2 footplates





Producing Process:



1). Pre hot dipped galvanized steel pipe -- welding -- polishing -- wipe antirust paint on welding seams

2). Pre hot dipped galvanzied steel pipe -- welding -- polishing -- wipe antirust paint on welding seams -- silver spray painted on the welding seams

3). Pre hot dipped galvanzied steel pipe -- welding -- polishing -- silver spray painted on the whole panel.

Welding Characters:

-- 360 degree firmly fully welded

-- Welding spots neat and smooth, prevent sheep and goat get hurt, very safe

-- Welding spots anti-rust finish, very durable

Unique Design:

-- Square vertical pipe/post, welding easy and firm, much durable, and it's more beatiful

-- Oval horizontal rails, no sharp edge, can protect sheep and goat from getting hurt, high safety

-- Lamb-proof rail spacing

-- Middle braces for high strength and heavy duty

-- With welded top caps and foot plates, water and dust proof

-- Welded "U" and "L" lugs for easy connection. The lugs are welded to bracket all four sides, very durable.

-- 2xjoining pins are supplied for each panel

-- Footplate on the panel,can cement the panels on the ground by nails.

-- Easily assembled & disassembled.





Paddock fence panel Features:



The panels and gate are joined together with galvanised drop pins for a simple and easy set up.

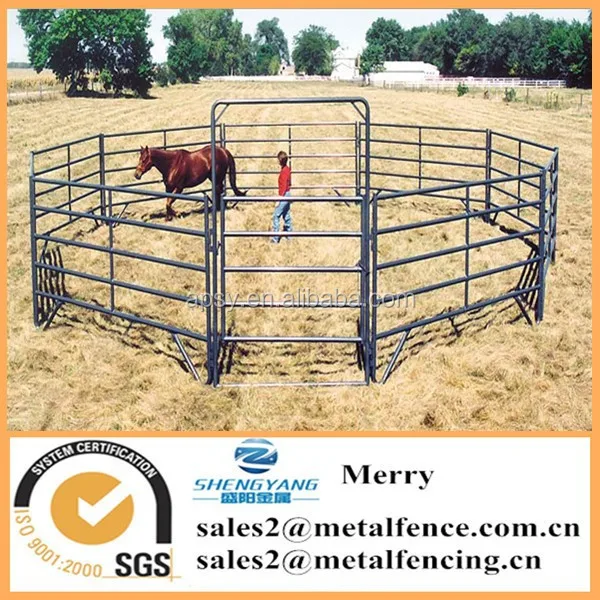

The round yard is totally portable & can be easily assembled & disassembled to move or transport.

Although we have standard sizes the yard diameter can be made smaller or larger to your requirements using less or more panels.



The material used to manufacture the panels and gates is new galvanised 42mm round pipe. We use this particular material as horse experts don't recommend the use of square shaped steel with corners such as SHS & RHS as this shape can lead to easy bruising, damage and injury to horse and rider. This size steel is also very visible to the horse.

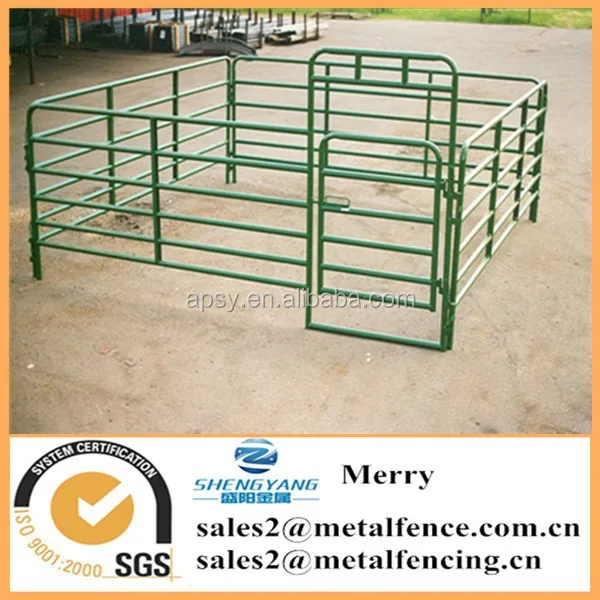

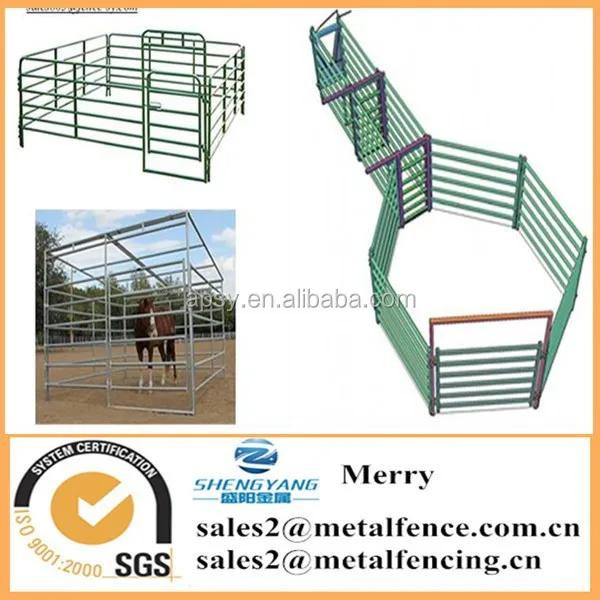

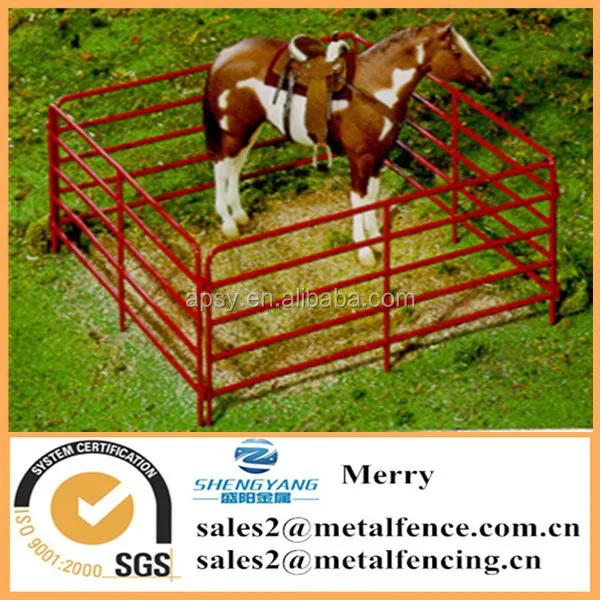

Paddock pipe used fence panel of livestock show:

Paddock fence  Panel Gates -- Heavy Duty Swing Gates:

Height x Length	2200mm x 2000mm
Frame	Horizontal & Vertical pipe: 50 mm x 50 mm RHS x 1.6 mm with fully welded caps
Cattle Gate Horizontal Rail	40 mm x 80 mm x 1.6mm thick x 6 oval anti-bruise rails "Bull bars" rails
Zinc Coating	HDG - 15 microns
Finishing / Surface Treatment	1). Wipe antirust paint on welding seams 2). Wipe antirust paint on welding seams + silver spray painted on the welding seams 3). Silver spray painted on the whole panel
Welding	Fully welded oval pipes, post & brackets , heavy duty hinges
Accessories	Supplied with two HDG Bolt Pins with Nuts



b. Heavy duty Man-way Swing Gates :



Height x Inner Width	2200mm x 750mm / 800mm
Frame	Horizontal & Vertical pipe: 50mm x 50mm RHS with fully welded caps
Cattle Gate Horizontal Rail	40mmx 80mm x 6 oval anti-bruise rails "Bull bars"
Finish	HDG 15-microns
Welding	Fully welded oval pipes, post &brackets, heavy duty hinges
Accessories	Supplied with two HDG bolt pins with nuts





c. Heavy duty Sliding Gates:

Height x Inner Width	2200mm x 750mm / 800mm
Frame	Horizontal & Vertical pipe: 50mm x 50mm RHS with fully welded caps
Horizontal Rail	40mmx 80mm x 6 oval anti-bruise rails "Bull bars"
Finish	HDG 15-microns
Welding	Fully welded oval pipes, post &brackets, heavy duty hinges
Accessories	Supplied with two HDG bolt pins with nuts

Heavy duty race bow:

Height x Width	1800mm x 750mm / 800mm
Frame	40 x 40 x 1.6mm/2.0mm; 50 x 50 x 1.6mm/2.0mm
Finish	HDG 15 - microns
Welding	Fully welded brackets
Accessories	Supplied with two HDG bolt pins with nuts



Sheep Yard Panel Joinning / Pinning System:

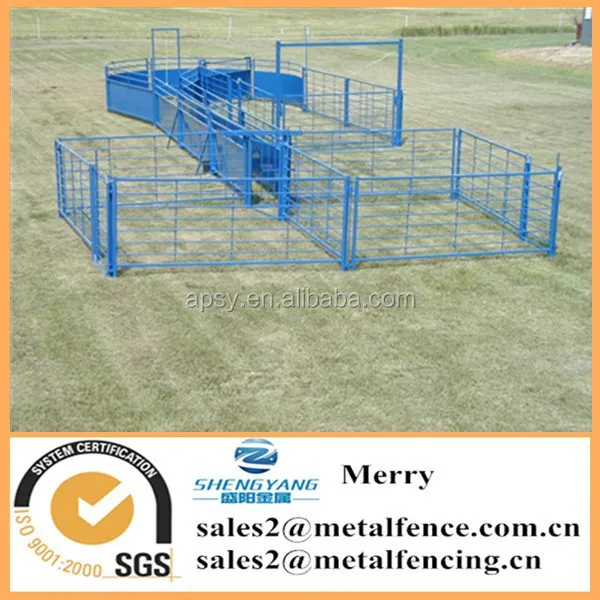

a. Sheep yard panels:

Materials	HDG tubes, more than 15 microns Zinc coating on both inside and outside of the tubes
Material Sizes	30 x 30 x 1.6mm; 40 x 40 x 1.6mm gal square rails (SHS) 30 x 60 x 1.6mm; 40 x 80 x 1.6mm gal oval rails (Heavy duty)
Hight x Length	1.05m (H) x 2.16m / 2.8m (L)
Accessories	1). Unique "U" shaped zinc plated cleat: a. The heavier panels have a 19mm round hole to fit a tapered 16mm zinc plated pin; b. The lighter panels have a 14mm oval hole with a 12mm solid pin. 2) 1 set = 2 foot plates + 2 pins + (2 "U" lugs + 2 "L" lugs)/ 4 "U" lugs
Features	-- Low noise joinning system; -- No sharp edges / protruding parts to hurt the Sheep; -- 2 foot plates + 2 pins to allow the components to be pinned to the ground; -- The pinning system at the top of the panels has been positioned so that sheep's legs cannot get caught between the posts.



b. Sheep yard gates:

Hight x Length: 1.05m (H) x 2.16m / 2.82m (L)

c. Sheep yard race gates:

Hight x Inner Length: 1.05m (H) x 550mm (L)





Standard export packing,or as your require.

Shipping:

sample is by air Express, and large order is by sea.

Payment terms:

30% TT in advance, 70% balance TT before loading.

Samples:

samples are available but you need pay for the sample price and freight fee.

the sample fee is returned after you place an order.

The delivert time is about 30days.

1> fence panel:plastic flim+wood/metal pallet

2> fence post:every post pack with a plastic bag(the cap is covered well on the post)+metal pallet

3> accessory:small plastic bag+carton box

4> we can also do as your details.







We are factory specializing in the manufacture and export of fence panels for more than 15 years.We have profuse designs with series quality grade and our products have acquired the CE certification. Our price is very competitive, because we are  manufactory, we are the source.  chain link fence, razor mesh fence and temporary fence for industrial and commercial application globally for over a period of more than 15 years.As a very active manufactures, we develop new designs nearly every month, if you have interest in it, It is my pleasure to offer nws to you regular.



.Payment Term: 30% by T/T in advance, the balance by T/T against the fax copy of B/L.

.Production Capacity: 9000 sets per Month.

.Professional strict Inspector track each steps of production.

.Professional designers make drawings based on customer requirement.

.To help customer arrange the shipment and customs clearance.
