Проектор высокой яркости WUXGA 10000 люмен 4K для сцены наружного лазерного 3D проектора

Product Overview

Description

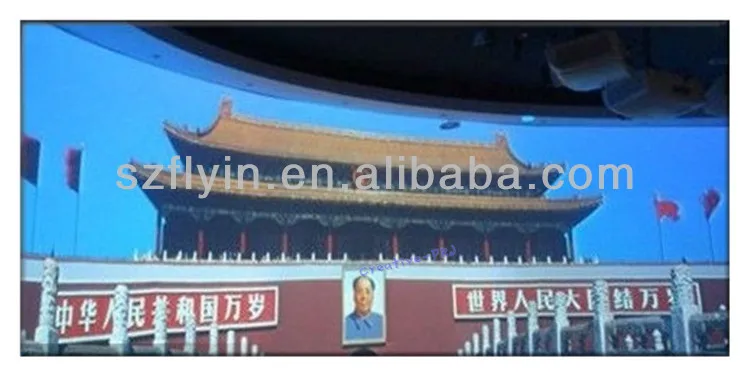

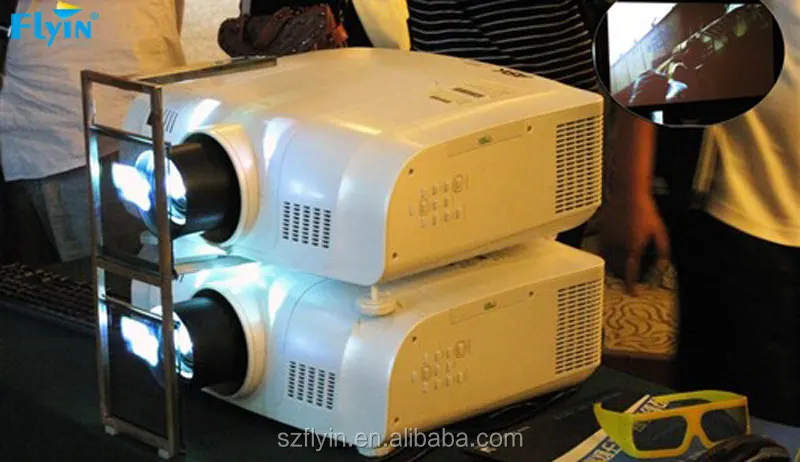

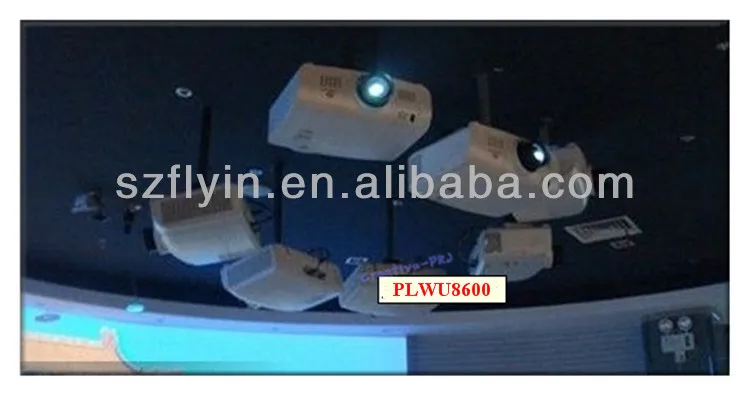

Full HD Native 1920x1200 pixels 10000 Lumens Large Venue Projector Support  edge blending PLWU8600F With BNC*5 HDMI RJ45/RS232 VGA for Digital Cinema ,conference hall or Dirve-In Cinema Support Superposition and Joing Togeter!

High Lumens  WUXGA 100000 Lumens Projector Stage outdoor laser 3D  Mapping Projector

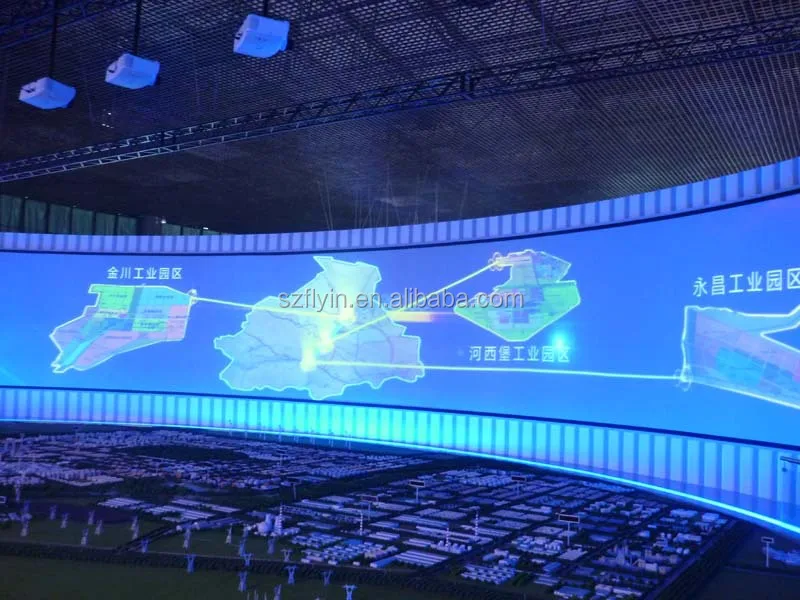

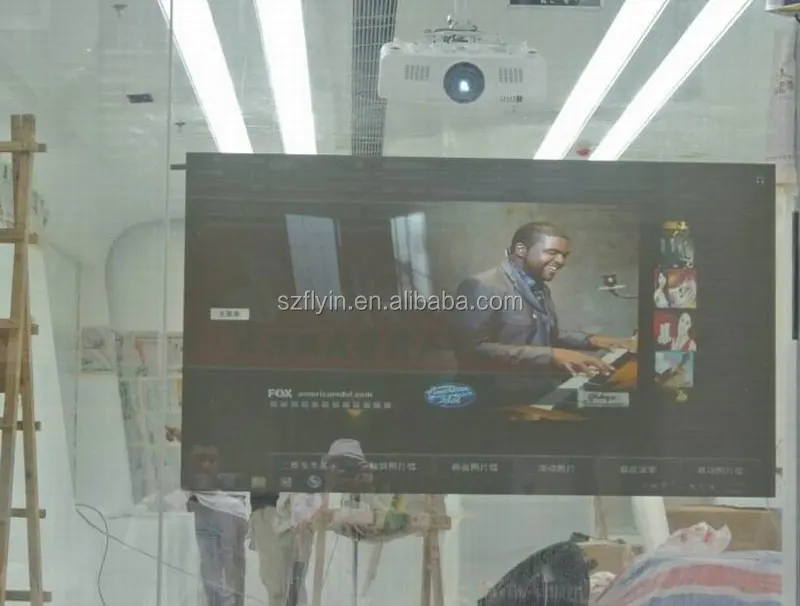

The FLYIN PLWU8600F  professional 3LCD video projector has a 0.76" 3LCD panel, with a brightness of 10000 ANSI lumens and WUXGA native resolution, dynamic contrast of 3500:1, digital keystone correction of ±30 degrees and motorized lens adjustment (H-10% /V-50%). The PLWU8600F 3LCD video projector is primarily designed for professional users, such as theaters, cinemas, museums, concert halls, residential buildings, control and surveillance centers, corporate users, conference and congress halls, rental companies, etc.



The PLWU8600F features high reliability in the 24/7 operating mode, extremely high brightness, contrast and native resolution of LCD panels, vertical and horizontal shift, easy lens change and with a various I/O terminals support multi-format peripherals. The projector uses a highly reliable air filter. When the projector is frequently used for long hours, this is a maintenance time saver.



PLWU8600F Features:



• High brightness interchangeable lens models up to 10000 lumens
• Extended lamp life up to 6000 hrs. in the eco mode.
• Available as WUXGA, 1920 x 1200 HD Resolution.
• 3 LCD, technology for true clear crisp saturated color.
• 5 optional lenses to choose from, Standard lens included.
• Great 3500: 1 contrast ratio for crisp black and whiteimages.
• Full complement of inputs including, HDMI,

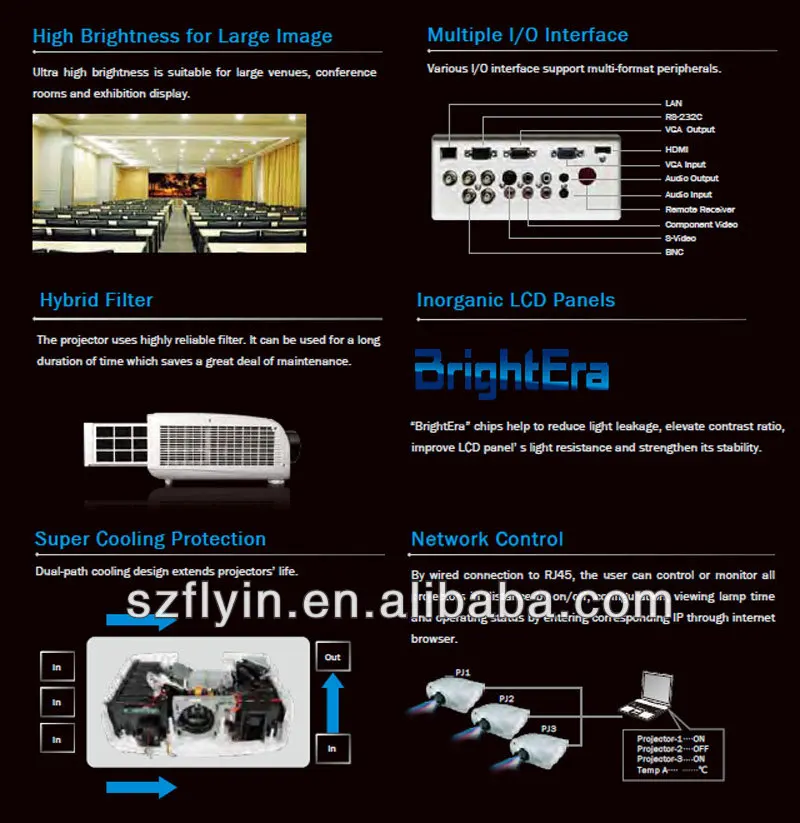

• Easy to change Hyprid filter protects the projectorfrom fog, dust and smoke.

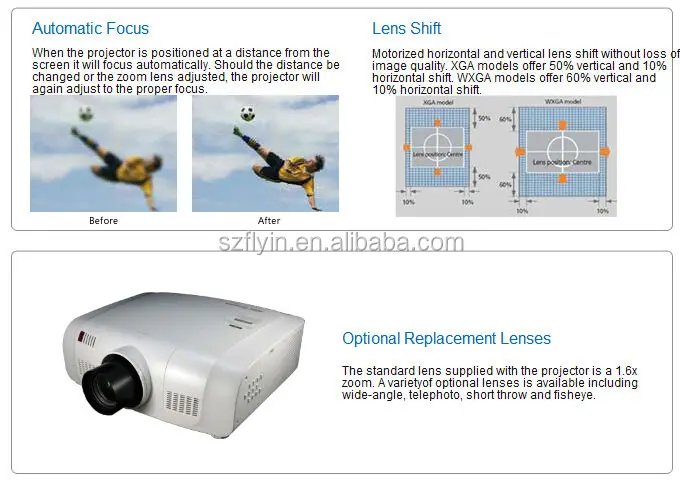

• Built in motorized lens shift.
• Manual vertical and corner keystone adjustments.
• RS232 and Network control and monitoring capability.
• Customized Logo as a start up setting.“Closed Caption” capability

PLWU8600F Specifications:



• Aspect Ratio: 16:10 (standard) / 4:3 (compatible)
• Brightness: 10000 ANSI lumens
• Contrast Ratio: 3500:1
• Control: RS232/RJ45
• Dimension: 21" x 15.4" x 7.5"
• Display Panel: 3×0.76"
• Display Panel Type: LCX119ACP/ADP-6/7/8
• Display Technology: Liquid Crystal Display
• Distance/Screen Size (Diagonal): 31.9"~537" /(30"~300")
• H~Synch Range: 15-100 KHz

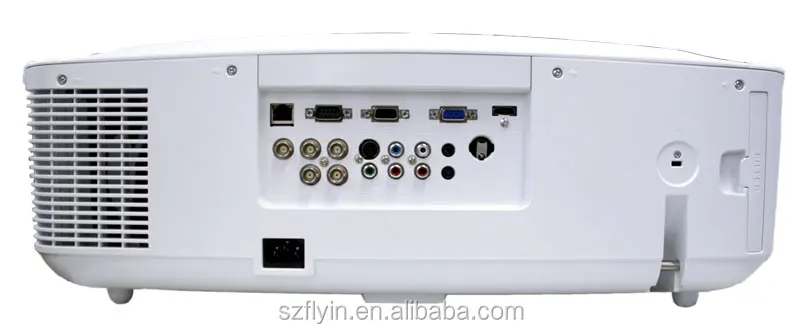

• Input: HDMI*1; DVI-D; VGA*2; Scart; BNC*5; YCbCr; S-video; Video; Audio: 3.5 Mini Jack, RCA*2
• Keystone: Manual Keystone, ±30°
• Lamp: 450W
• Lamp Life: [Standard] 5,000 hours, [Eco] 6,000 hours
• Lens Shift H: ±10% (Powered)
• Lens Shift V: ±50% (Powered)
• Native Resolution: WUXGA (1920 x 1200)
• Operating Temp.: 41°F ~ 95°F

Other Features:

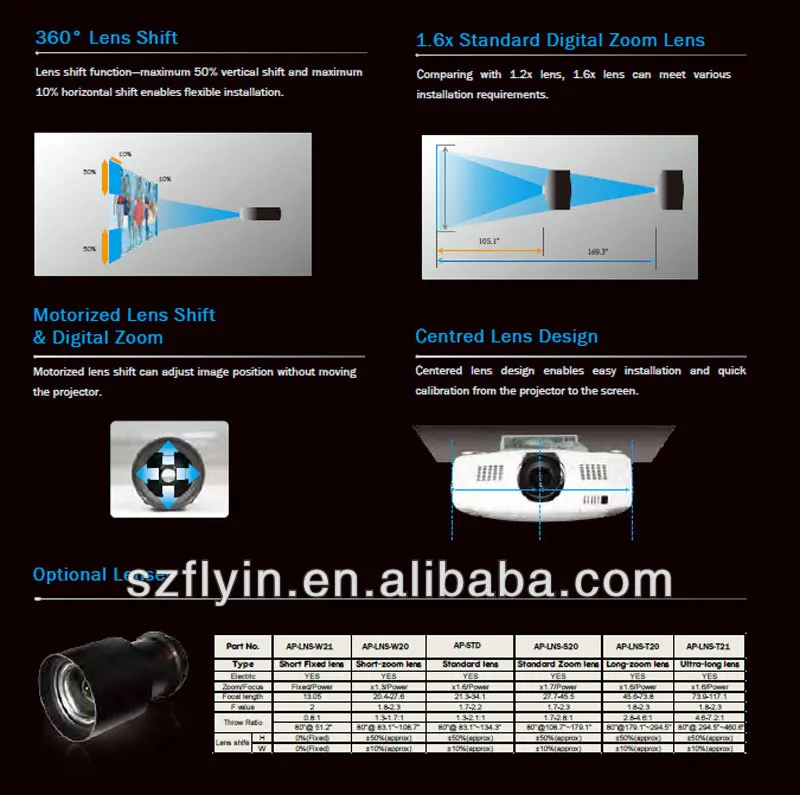

1. 360°Lens Shift
2. One Touch Lens Replacement
3. Quick Power off
4. Customized Startup Logo
5. Auto Image Reverse
6. Build in Test Images
7. One Touch Blank Screen
8. Closed Caption
9. Image Zoom in/out
10. Image Freezing, Zomm and Panning
11. Top Cover Lamp Replacement
12. Anti-theft Bar & Lock

• Output: VGA(INPUT2); Audio out
• PC Compatibility: VGA, SVGA, XGA, SXGA, WXGA, UXGA, WUXGA
• Power Consumption: 480W
• Power Supply: 100-240V AC @ 50-60 Hz
• Projection Lens: 1:1.6X, F=1.7~2.2,f• •21.3~34.16mm, 1/2x1/2~4x4 Digital Focus
• Remote Control: Yes
• Speaker: Mono 7W
• Stand by Power: <1W
• Standard Accessories: User Manual (CD), Power Cord, Remote Control, VGA Cable, Lens Cover With String, Warranty Card
• Storage Temp.: 14°F ~ 140°F
• Uniformity: 90%
• Video Compatibility: PAL/SECAM/NTSC/NTSC4.43/PAL-M/PAL-N 1080i/1035i/720p/576p/480p/576i/480i
• V~Synch Range: 48-85 Hz
• Weight: 23.8 Lbs

 Detail Specification ,

Display Technology	Liquid Crystal Display
Display Panel Type	LCX119ACP/ADP-6/7/8
Display Panel	3×0.76"
Brightness( Ansi Lumens)	10,000 ANSI Lumens
Native Resolution	WUXGA (1920×1200)
Contrast Ratio	3500:1 Dynamic Video contrast ratio up to 10000:1 by HDMI
Projection Lens	1:1.6X, F=1.7~2.2, f=21.3~34.16mm,  1/2x1/2~4x4 Digital Focus
Uniformity	95%
Throw Ratio	60"@1.66M
Throw Distance	0.809M~13.639M(30"~300")
Aspect Ratio	16:10 (Standard) / 4:3 (Compatible)
Keystone	Auto Keystone:±30°
Noise Level	Normal, 36dB@2m
Input	HDMI*1; DVI-D; VGA*2; Scart; BNC*5; YCbCr; S-Video; Video; Audio: 3.5mini jack, RCA*2
Output	VGA(INPUT2);Audio out
Control	RS232/RJ45
PC Compatibility	VGA, SVGA, XGA, SXGA,WXGA,UXGA, WUXGA
Video Compatibility	PAL/SECAM/NTSC/NTSC4.43/PAL-M/PAL-N 1080p/1080i/1035i/720p/576p/480p/576i /480i
Lens Shift H	±10% (Powered)
Lens Shift V	±50% (Powered)
Lamp	450W USHIO
Lamp Life (Marketing)	(Normal)4000H/(Eco)6000H
Remote Control	Yes
H~Synch Range	15~100 KHz
V~Synch Range	48~85Hz
Standby Power	<1W
Power Consumption	480W
Power Supply	100V – 240V @ 50~60 HZ
Operating Temp.	5°C~35°C
Store Temp.	-10°C~60°C
OSD Languages	19 languages:Chinese,English,French,Spanish, Portuguese,German,Italian,Janpanese, Korean,Russian,Finnish,Dutch,Thai,Vietnam,Turkish,Africaans,Indonesian,Farsi,Arabian
Speaker	Mono 7W
Dimension	535X390X190mm
Weight	10.8kg
Standard Accessaries	User Manual (CD), Power Cord, Remote Control & battery, VGA Cable, Warranty Card,Qualified card,Drying agent,
Other Features	1. 360° Projector 2. OneTouch change Lens 3. High-speed Power off 4. Customised startup logo 5. Auto image reversal 6.Colorboards(greenboard,Redboard,blueboard,yellowboard ) 7. Blackboard (Green) 8. Blankscreen Hotkey 9. Close Caption 10. Image zoom out/in. 11. Image pan 12. Top Cover Lamp Replacement 13. Anti~theft Bar/lock

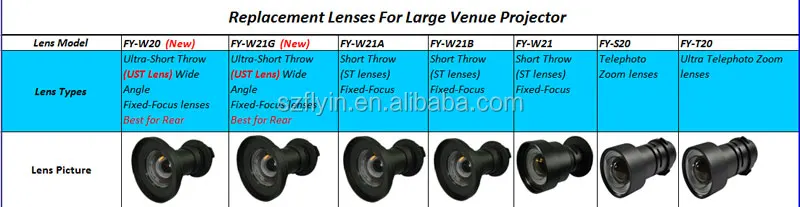

Notice : PLWU8600F features a range of optional lenses, including short-throw, long-throw zoom and fixed-throw lenses for rear projection use. The additional lenses make it easy to adapt your projector to the installation site. Lenses for FLYIN PLWU8600F/PLX8600F/PLX4100Fseries projectors attach and detach with one-touch ease. In addition, many optional lenses are compatible from old to new models. Example of Optional Lenses, refer to the FLYIN lens chart Short-throw and zoom lenses with lens shift capability enables installation in tight spaces.







1x Projector PLW8600F
