Product Overview
Description

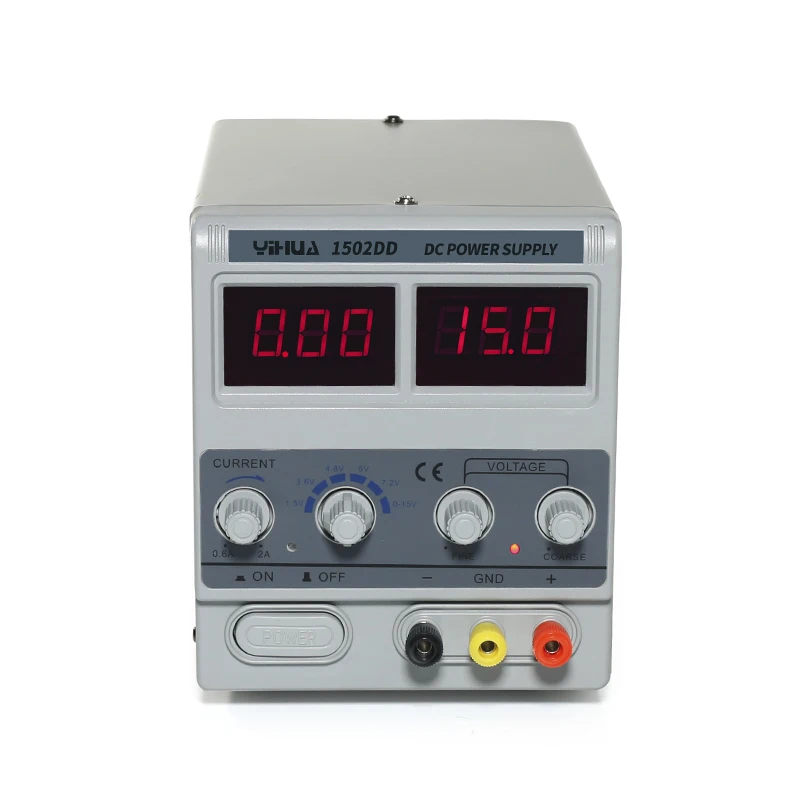

YIHUA 1502DD 0-15V 0-2A DC power supply
1.This power supply is for cellphone/computer maintenance work and is a specifically designed,
all-function, power supply appliance.2.Dual LED displays to show current and voltage.High performance mobile phone repair equipment that is both affordable and easy to operate.
3.a.Comes with a 0-15V DC output function (the voltage output can be adjusted both by gears or a slide
controller).
4.A two power settings: adjustable throughout 0.6A-2A range.
5.5. Short circuit protection and automatic recovery function
6. Current: 0-2A with direct output levels of 1.5V, 3.6V, 4.8V, 6.0V or 7.2V.
Parameters
Parameters | |
Rated voltage | AC220V±10% 50Hz |
Power of complete machine | 15W |
Operating environment |
0~40℃ relative humidity<80%
|
Storage temperature |
-20~80℃ relative humidity<80%
|
Dimensions of the machine body | 17*21*16.5cm |
Weight | 1.06KG |
Performance parameters | |
Output voltage | Adjustable continuously within 0~15V |
Output current | Adjustable continuously within 0~1A (current limitation adjustment when above 0.2A) |
Output power | 15W |
Source effect | ≤1mV |
Load effect | ≤0.33% |
Ripple noise |
≤3mVrms(5Hz ~ 1MHz)/≤3mArms
|
Display accuracy | 0.1V/0.1A/1mA |
Protection mode | Over-current, short circuit, over-temperature protection |
Packaging & Shipping
Model NO. | Inner box Dimension(cm) | Outer box Dimension(cm) | QTY | Product weight |
YIHUA 1502DD | 17*21*16.5 | 50*43*35 | 12PCS | 1.52kg |
These are 220V units you may need a transformer to use the machine in your country. we also do accept special orders for 110V / 230V / 240V units
Our warranty
*Credit Safeguard
GuangZhou YiHua Electronic Equipments Co,. Ltd was signed a contract with Alibaba and paid a large deposit, make buyers fee l comfortable buying
*Factory advantage
Factory D&R / production/ sales/ and sales service together.
Manufactory sell directly,the goods are in plenty supply,delivery date fast,good compete price You could arrange to ship the goods by your self , or ask we help you arrange to ship. If we help you arrange to ship. Before quote the shipping freight, we need to know which model and quantity you are asking. We will according your detail address, order model and quantity to advise you ship by sea or, by air ,or by Express. As usual, we are using HongKong DHL to ship the small order..
*Delivery date
Over 100~over500pcs are 20days will ship out. Over 1000pcs are 30days .
If the material not enough or we have some customer queue up our products before you,
we will discuss with you the shipping date. If you want the delivery date faster than that day, please inquiry us, we will try to do it as your request.
*Warranty policy
One Years warranty
As usual, the shipping fee are high. if return China to repair are not worth the money. So we could support technology and give you the spare parts along with the product .
Note: warranty does not cover wearing parts:, for example :iron heater, gun heater ,iron tips.
*Products discount
as usual we quote three price for each model :sample price, over 60pcs price, over 500pcs price.
Those price are calculate our produce cost, as you know big order are less margin to sell. we hope take win-win business with both.
*Warm-heart note
1.If products upgrade or quality improve to change the technique parameter, the factory will not further notice.
2.If the customer haven't special request, the product in accordance with factory's setting quality standards to produce.
