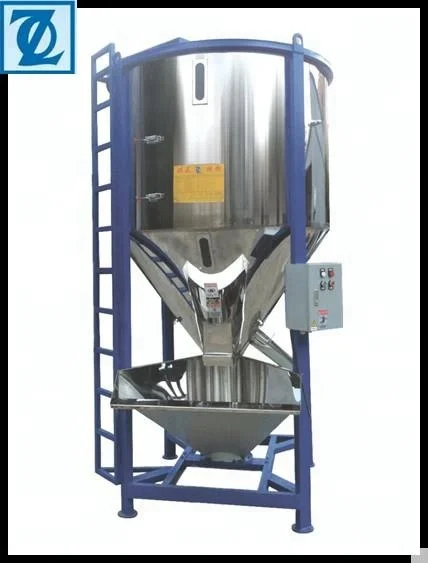

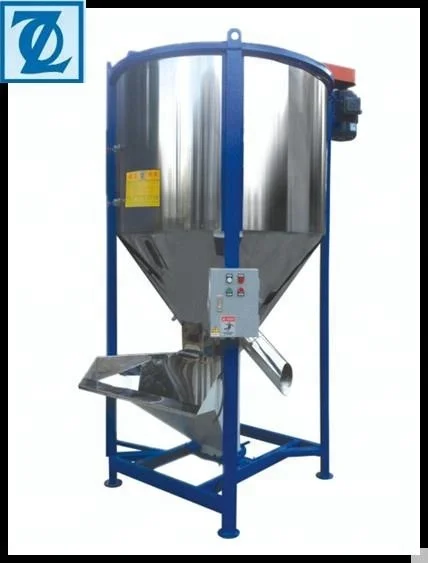

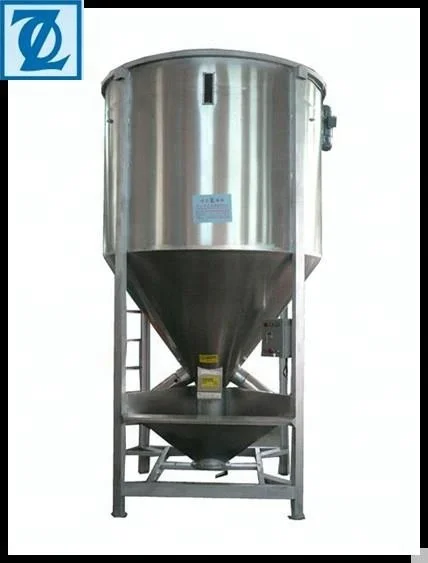

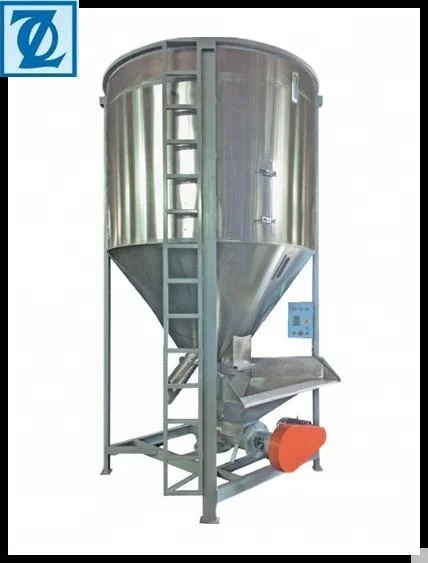

500 15000kg Low Power Consumption Vertical Plastic Powder Mixer

Product Overview

Description



Product Profile:



Vertical Plastic Powder Mixer:

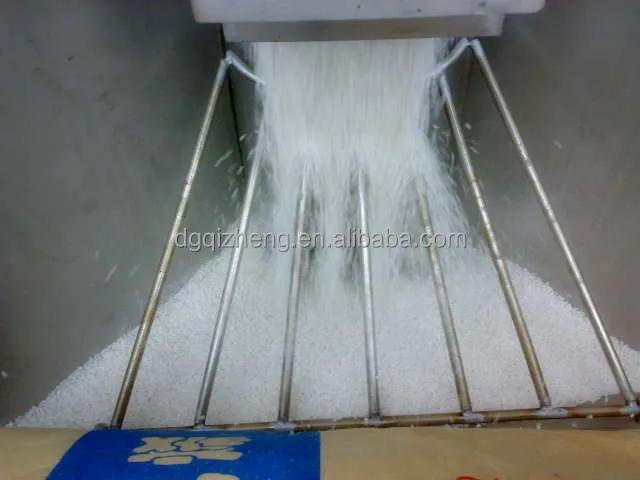

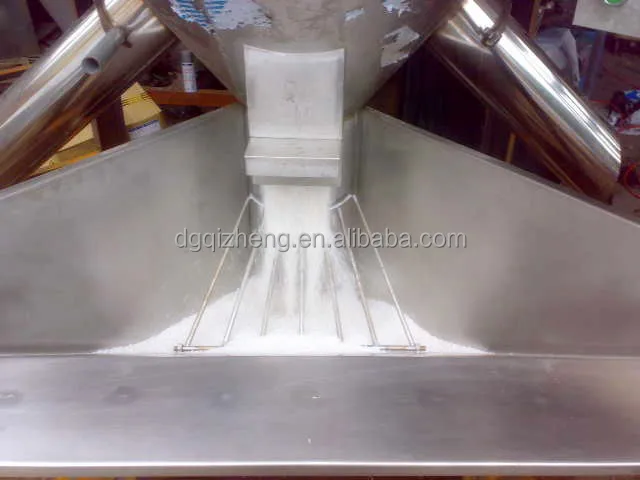

1)  By the principle of spiral mixing working, conveying the materiel in the hopper to the top of the barrel by the screw spindle, and then it will drop as umbrella-shape and keep mixing circularly all the way in order to mix equably.

2) With the function of automatic operation, overload protection, feeding limit alarm, etc.

3) Less land occupation, large capacity, low power consumption, labor saving, convenient operation, fast and uniform mixing. Vertical plastic powder mixer can be widely used in plastic granule, powder, plastic sheet and so on.

4)  Application of industry: pipe material, plastic materials, plastic granulator, color master batch, plastic modification, reclaimed materials, recovering and processing reclaimed materials, large injection molding, mixing of food, rice, beans and so on.





Features:



Vertical Plastic Powder Mixer:

1.Material tank and propeller blades are made of stainless steel, eliminating rust corrosion and    easy to wash;



2.The frame is of framework design, solid and durable;



3.Propeller is wholly processed after welding, with high concentricity and steady operation;



4.The standing operation allows little space;



5.Mixing in a sealed manner, uniform mixing and no leakage definitely;



6. Small horse-power, large mixing capacity and fast speed to realize a uniform mixing in 3~5 minutes;

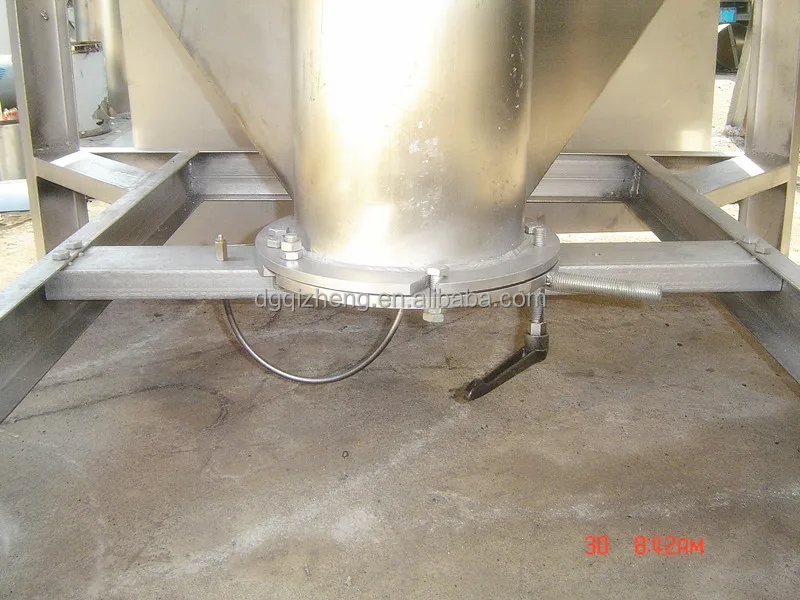

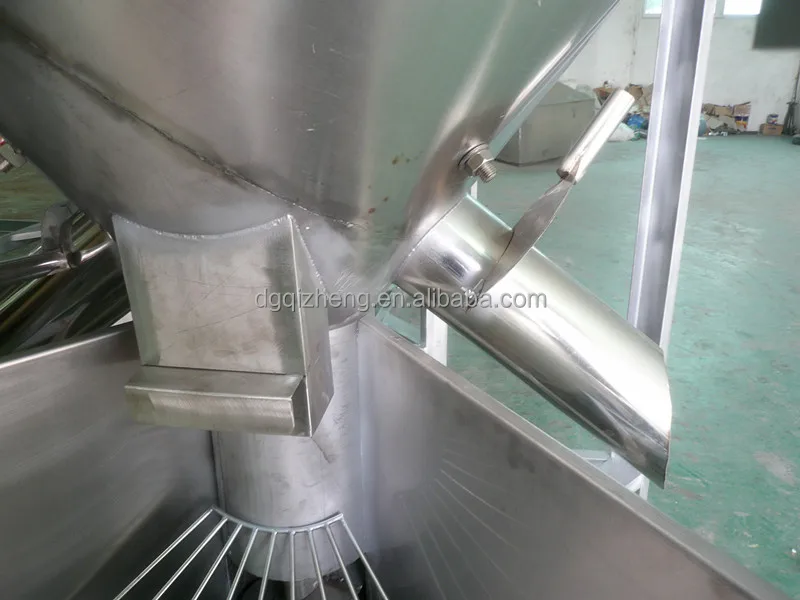

7.Oil filler and material discharging device are designed at frame bottom, with durab.







Specification:





Model	Name	Power	Voltage	Capacity	Dimensions(mm)
QZ-500	Vertical Plastic Powder Mixer	4KW-4	380V	0.5T	¢1200*2650
QZ-1000		4KW-4	380V	1T	¢ 1500*2800
QZ-2000		5.5KW-4	380V	2T	¢ 1800*3250
QZ-3000		7.5KW-4	380V	3T	¢ 2000*3750
QZ-5000		7.5KW-6	380V	5T	¢ 2400*4200
QZ-6000		11KW-6	380V	6T	¢ 2500*4500
QZ-7500		11KW-6	380V	7.5T	¢ 2600*5100
QZ-8000		11KW-6	380V	8T	¢ 2750*5100
QZ-10000		11KW-6	380V	10T	¢ 3000*5350
QZ-12000		15KW-6	380V	12T	¢ 3100*5500
QZ-15000		18.5KW-6	380V	15T	¢ 3200*6500
It can be made by different material quality according to clients such as A3 iron plate, 201stainless steel or 304stainless steel.









  Vertical Plastic Powder Mixer:





















































Dongguan Qi Zheng Plastic Machinery Manufacturing Co., Ltd. is located in the important industrial area of Dongguan in Guangdong Province and was established in 2005. We specialize in plastic machinery research, design, manufacture and distribution.



Our products include raw material regeneration large plastic granule vertical agitating machine  (500kg-15t), Vertical Plastic Powder Mixer,large horizontal mixing material machines (200kg-5t), plastic crushers, vertical plastic powder mixer ,horizontal mixers, vibrating screeners, vertical mixers, dehydraters, automatic feeding machines, sinks, high-precision mold temperature controllers, industrial chillers, plastic dryers and series of press peripherals and other varieties. There are more than 10 kinds and almost 100 models of products. We have an experienced and professional team.



We are a main production enterprise, engaged in the design, manufacture and maintenance of molding equipment. Reasonable structure, energy-saving performance and high productivity are our main advantages. Technical level and all indexes have all reached the international standards. We strictly comply with ISO9001:2000 International Quality Management System. Our products sell well in all cities and provinces around China, such as Guangdong, Liaoning, Jiangsu and Zhejiang Provinces and are praised by general customers. We also welcome OEM and ODM orders.



Our products are widely recognized and trusted by users and can meet continuously changing economic and social needs. Our products sell well all over the world. We welcome new and old customers from all walks of life to contact us for future business relationships and mutual success!
