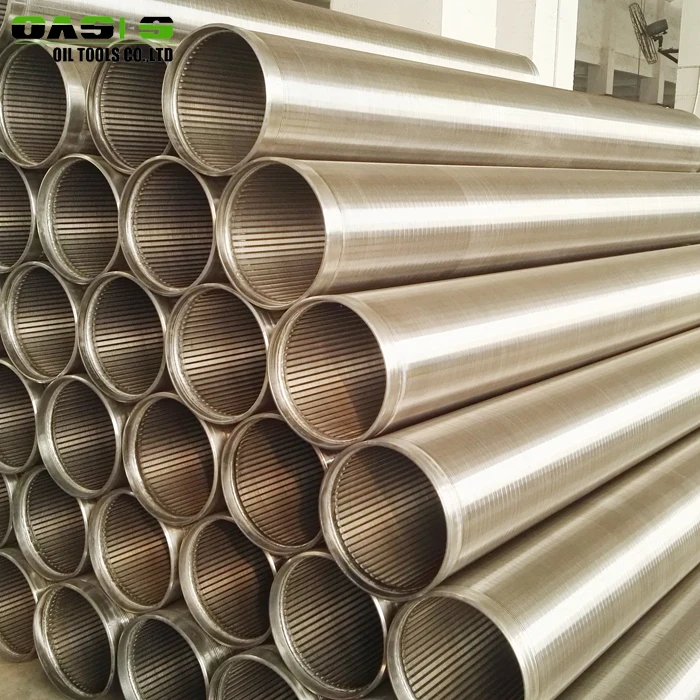

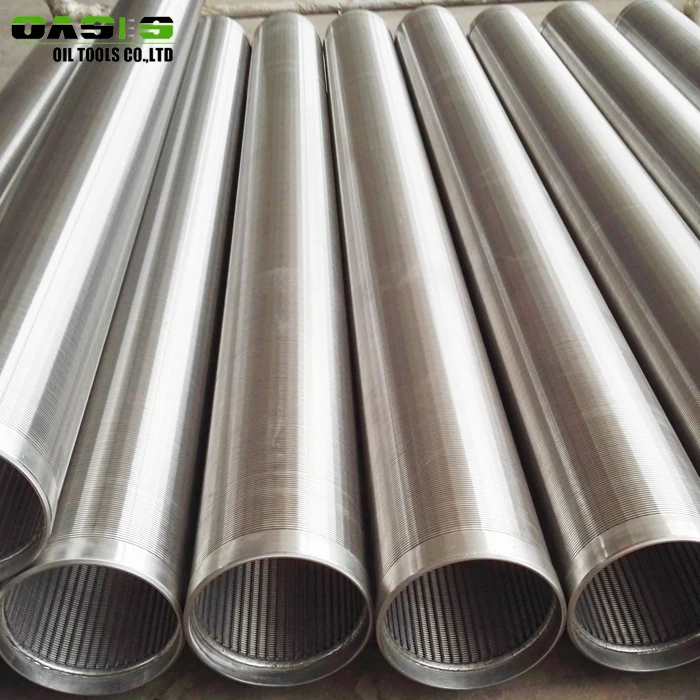

stainless steel wire wrapped water well casing and screens/thread coupling/welded ring/ bare end

Product Overview

Description

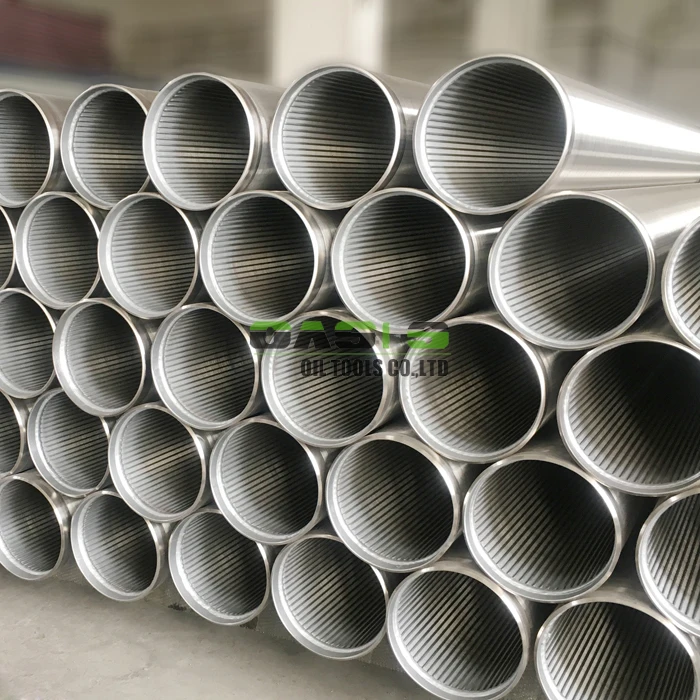

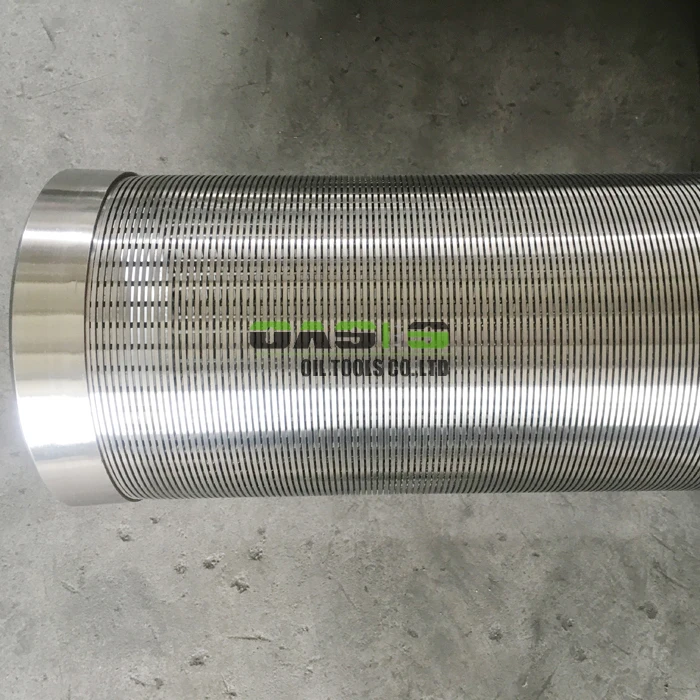

stainless steel water well casing and screen/thread coupling/welded ring/ bare end



water well casing and screen is also known as Johnson screens, wedge wire screens,

wire wrapped well screens,rod based well screens, continuous slot water well screens, vee shaped wire well screens, screen pipe, stainless steel strainer.

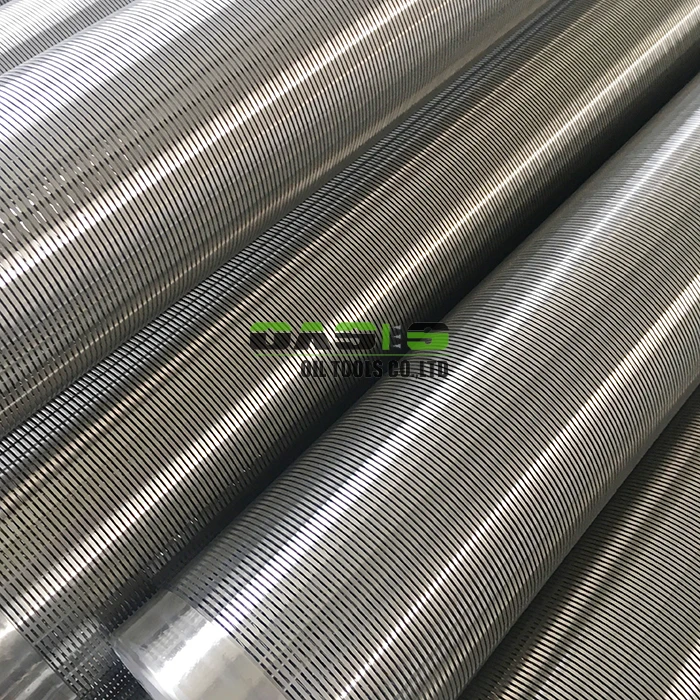

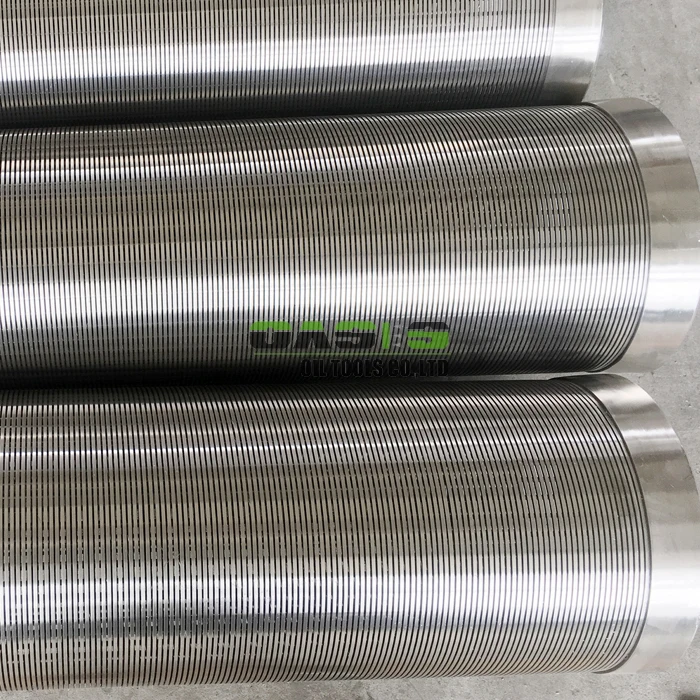

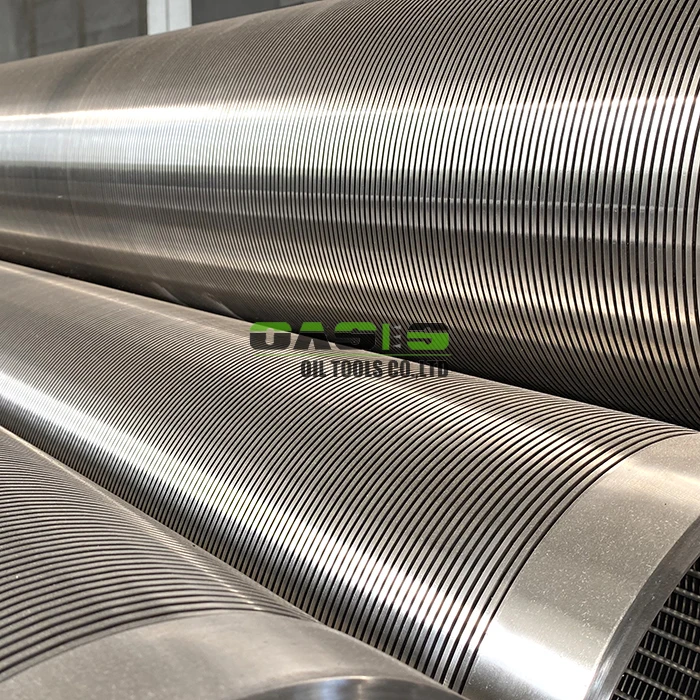

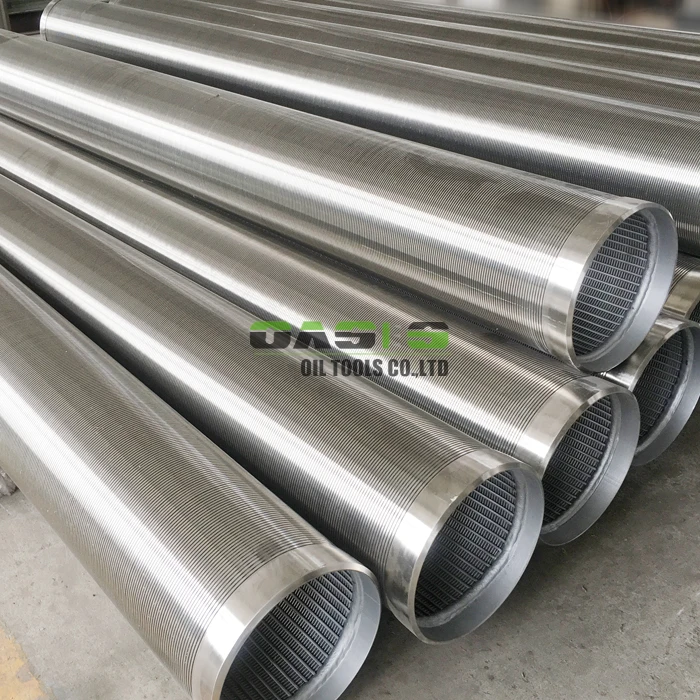

water well casing and screen is manufactured by a v or wedge shaped wire around an internal

array of longitudinal support rods.Each intersecting point of these wires is fusion welded.

The v or wedge shaped profile wire wraps around the support rods over the full length of the screen creating a

continuous slot opening,hence the screen allows water (oil) to enter your well freely in ample quantities,

while at the same time keeps the majority of sand and gravel out of the well.

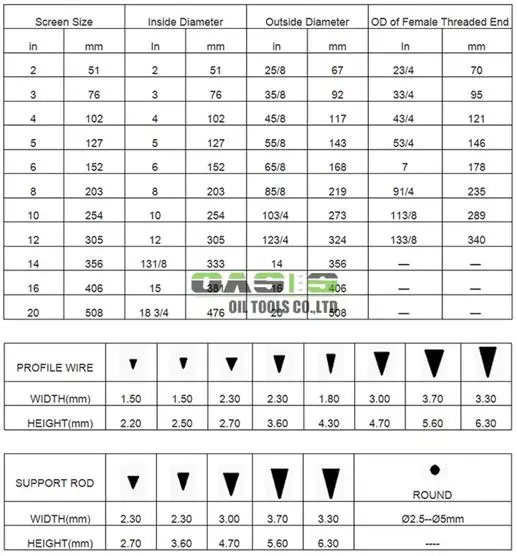

Techinical Information of stainless steel water well casing and screens



Specification (wedge wire):	Width(mm): 1.50 1.80 2.30 3.00 3.30 3.70  Height(mm): 2.20 2.50 2.70 3.60 4.30 4.70 5.60 6.30 7.00
Specification (support rod):	Width(mm): 2.30 3.00 3.30 3.70  Height(mm): 2.70 3.60 4.70 5.60 6.30 Round: From 2.50mm to 6.0mm
Note: other specifications available as per request
Slot size	0.10, 0.15, 0.20, 0.25, 0.30…… 6.00mm also achieved upon request.
Material:	galvanized low carton (LCG), stainless steel (304,316 etc.)
Length	up to 6 meters.
Diameter	from 25mm to 1200mm.

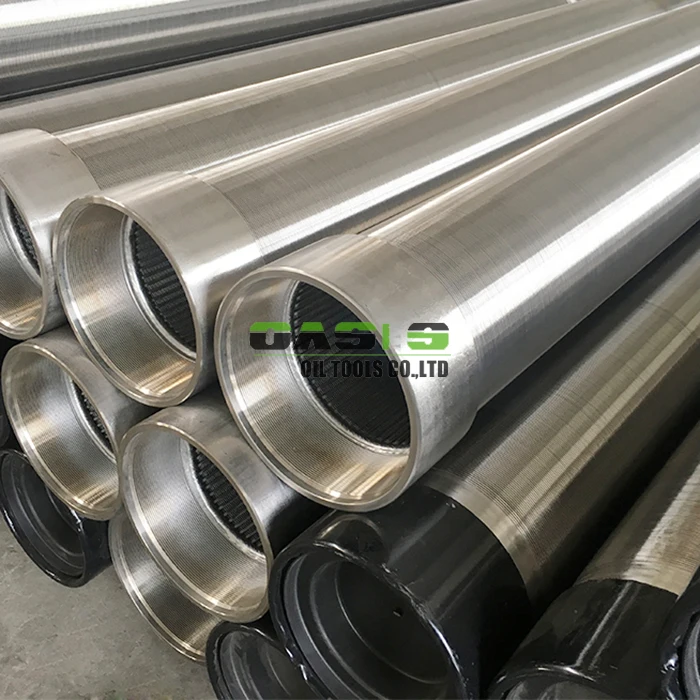

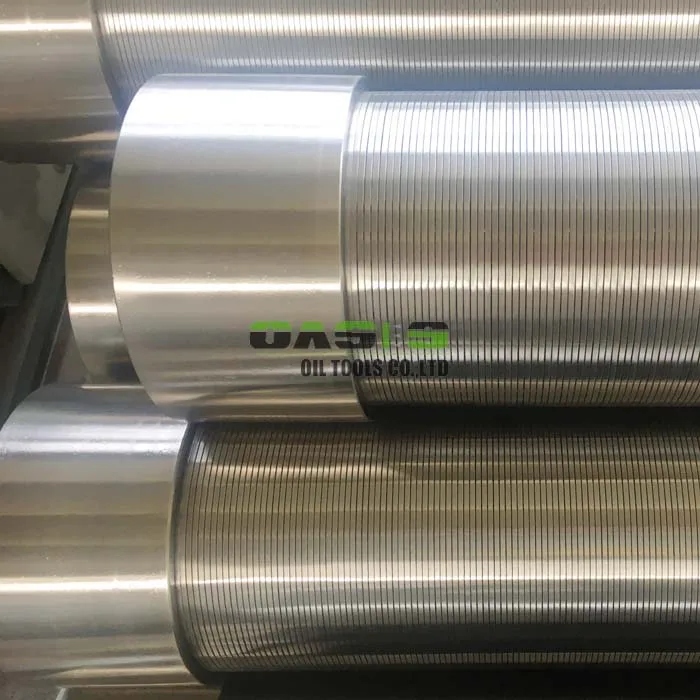

End connection	Plain beveled ends, flanged or threaded couplings

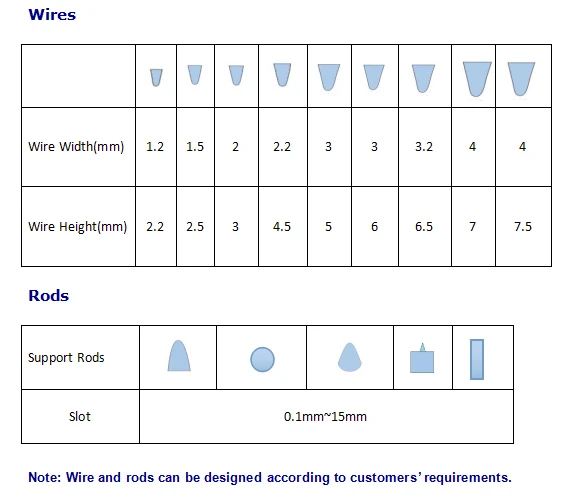

Wire and Rod of stainless steel water well casing and screens



stainless steel water well casing and screen Production Process

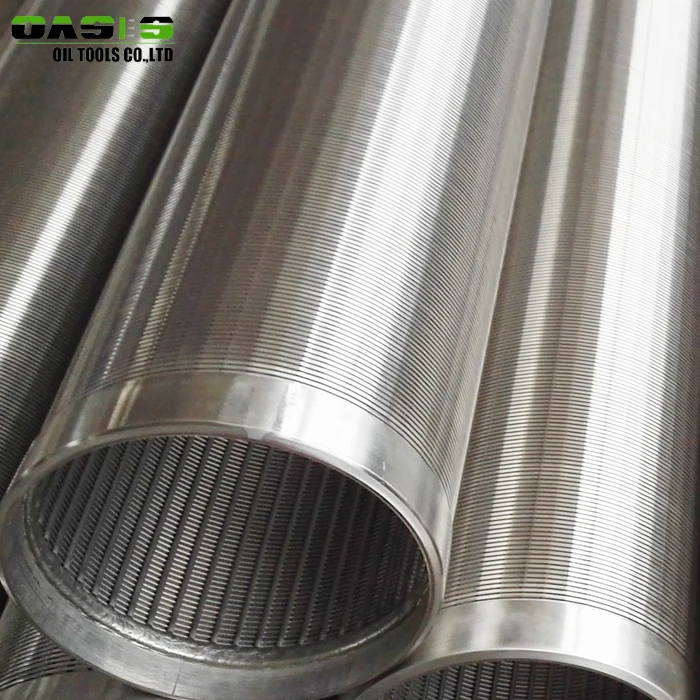

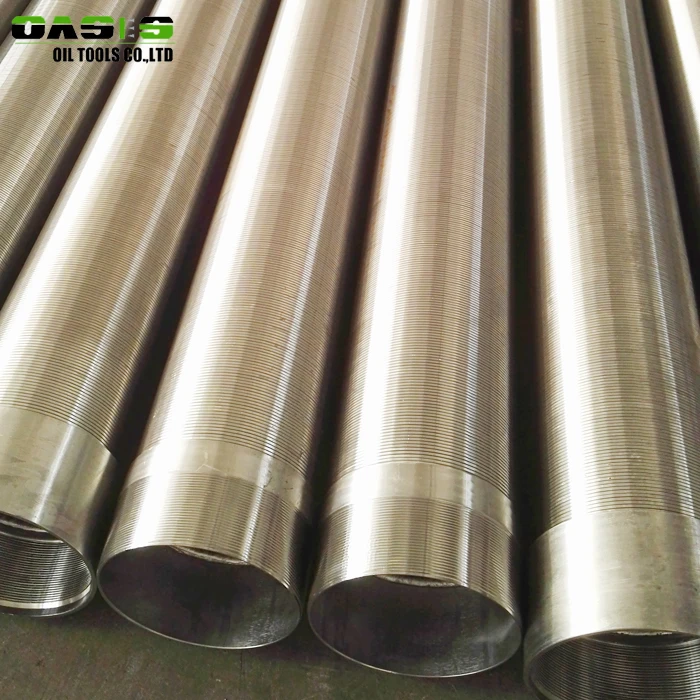

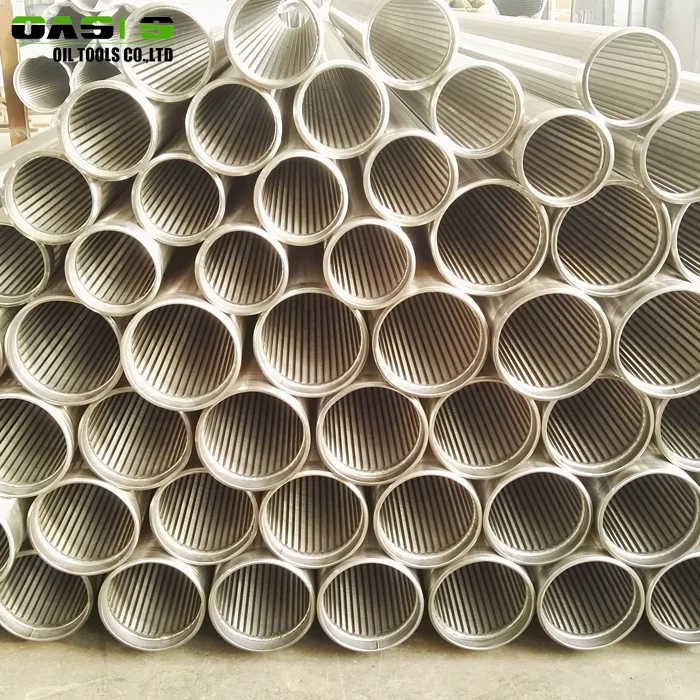

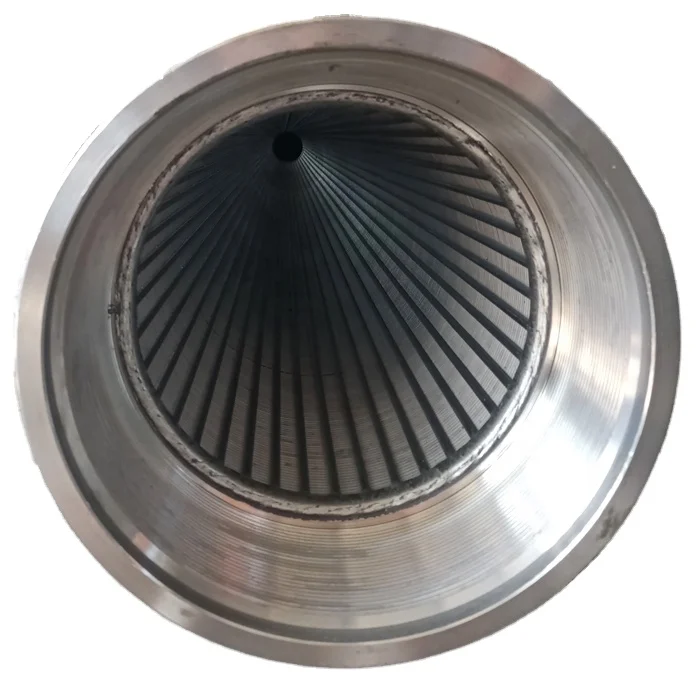

  stainless steel water well casing and screen details



Why choose OASIS stainless steel water well casing and screen?



Quality Control of OASIS stainless steel water well casing and screen



Payment Terms:

Usually our customers take following ways to pay the money for the goods:

1. 30% down payment By T/T before production and balance payable after inspection and before delivery.

2. 30% down payment By T/T before production and balance payable By T/T against copy of Bill of Lading.

3. 30% down payment By T/T before production and balance payable By L/C at sight.

Note: we can negotiate with our customers' about other ways to pay the balance payment upon the real conditions.



Any interest in our stainless steel water well casing and screen, please do not hesitate to contact us for further discussion.
