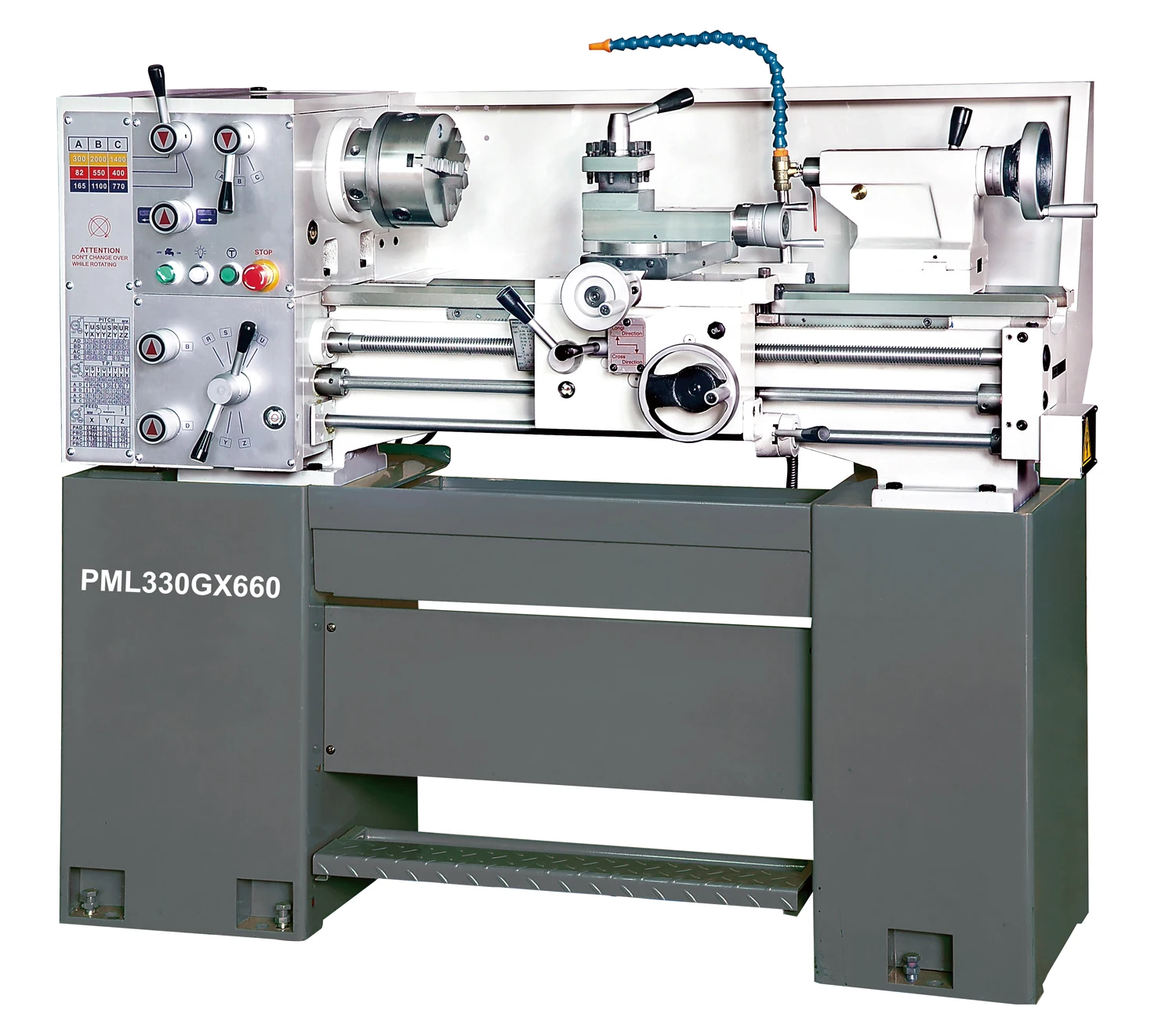

Taiwan Metal Mini Turning Lathe Machine For Sale

Item

PML 330G

Swing Over Bed

330 mm (13”)

Swing Over Cross Slide

195 mm (7-5/8”)

Center Distance

660 mm (24”)

Bed Width

190 mm (7-9/16”)

Number of Spindle Speed

9

Range of Spindle Speed

82-2000 rpm

Bore Through Spindle

40 mm (1-1/2”)

Spindle Nose

D1-4 Camlock

Taper of Spindle Nose

MT #5

Tailstock Quill Taper

MT #3

Tailstock Quill Travel

100 mm (4”)

Cross Slide Travel

165 mm (6-1/2”)

Compound Rest Travel

100 mm (4”)

Metric Threads

(30 Number) 0.4-0.7 mm PITCH

Inch Threads

(32 Number) 4-56 TPI

Longitudinal Feeds

12 Nos.(0.068-0.936 mm/rev)

16 Nos.(0.0026-0.0638”/rev)

Cross Feeds

12 Nos.(0.034-0.468 mm/rev)

16 Nos.(0.0013-0.0319”/rev)

Packing Dimension

147*76.2*147.3 cm

Net Weight

580 kgs

Gross Weight

660 kgs

Gap bed (PML340G/360G only)

2HP 1 PH or 3HP 3PH mail driver motor

6” & 8” back plate (D1-4)

Center sleeve, MT5xMT3 & Centers

4-way tool post

Complete electric control unit

Change gears

Floor stand

1/8HP coolant pump equipment

Rear splash guard

Rapid foot brake

Tool box & kit

Steady rest

Follow rest

Face palate 10” (250 mm)

Drill chuck 13 mm (1/2”) w/arbor

Rolling center MT3

3-jaw scroll chuck 6” (160 mm)

4-jaw independent chuck 8” (200 mm)

Taper turning attachment

Quick change tool post

Single saddle stop

4-position saddle stop

Chuck guard

5C collect closer

DRO equipment

Work light
