PU Automatic shoes foaming production line for man shoe sport shoe insole outsole
- Category: >>>
- Supplier: Foshan LUDE PU Machinery Technology Co. Ltd.
Share on (1890725380):
Product Overview
Description
Company Information

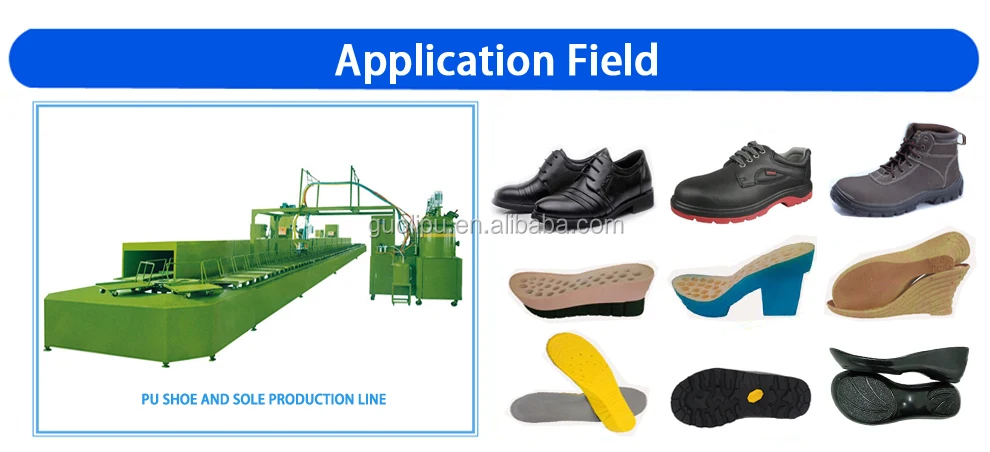

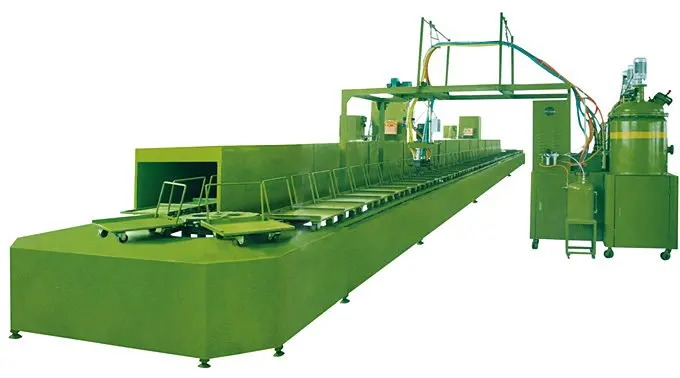

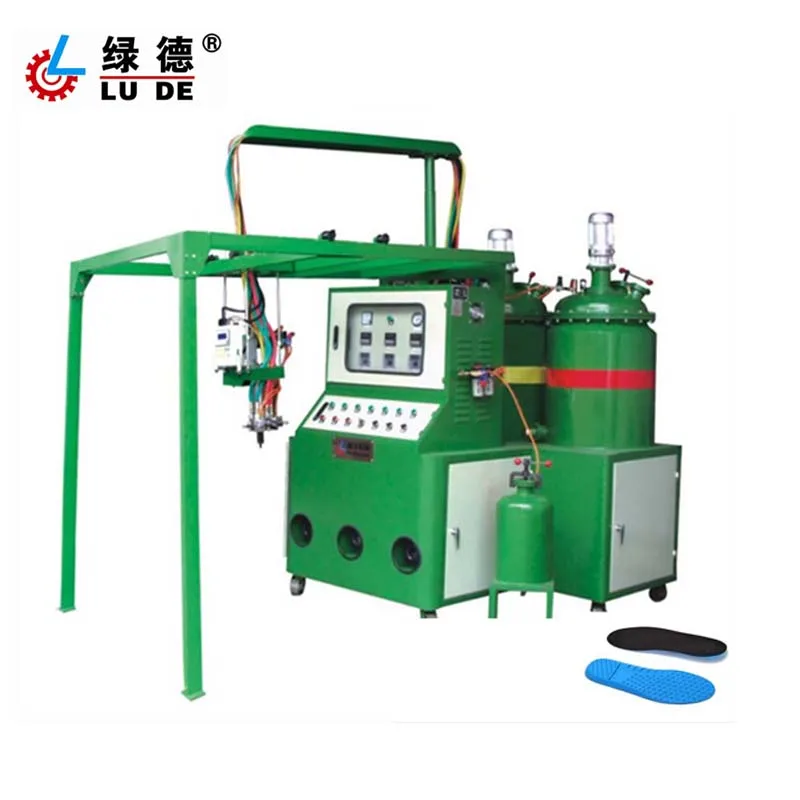

PU Automatic shoes foaming production line :
Product Description
This is our new developing system in 2012. It has automatic production line which is better than
manual system to save your workers.
| |

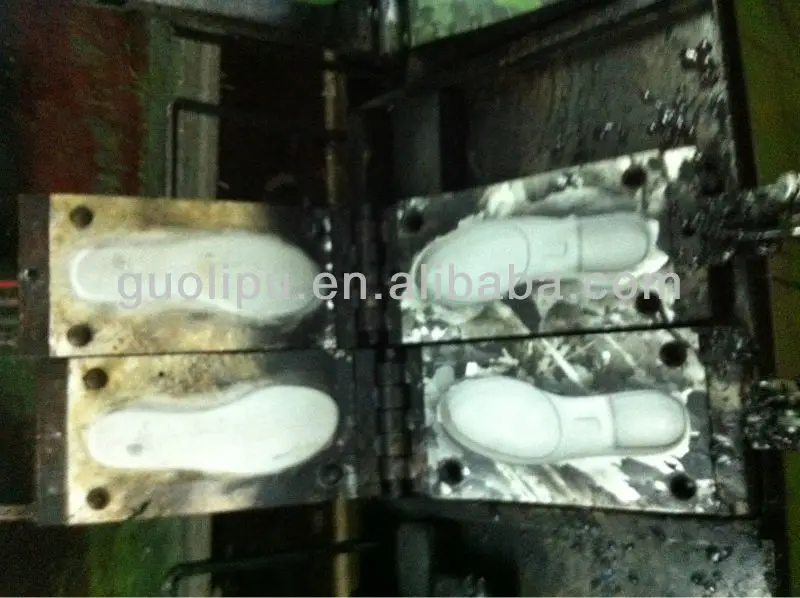

Pneumatic mold model | 60 sets |
driving motor | 32KW |
According to the sizes | 6M*6M |
Operation way | Automatic |

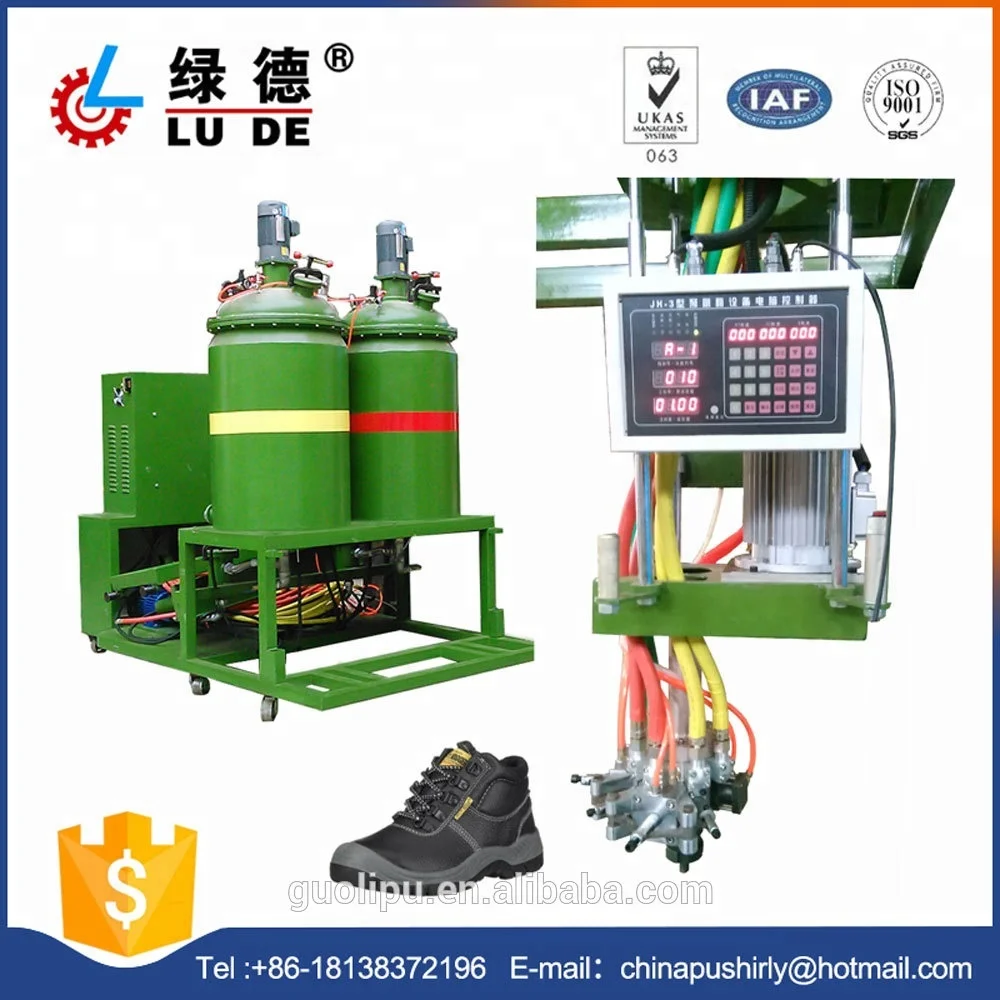

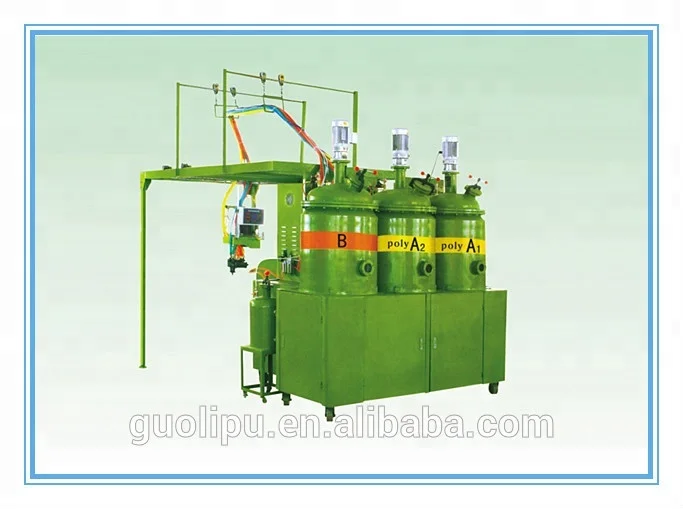

Main Parameter for GL905 foaming machine :
Equipment Model | GL-905 |
| Power supply | All power of the machine 12KW,4*380V/60HZ |
| The type of applicable foam | Sole,insole, walking shoe, ect. |
| Flux of inject | 50g-100g/S(Attention:the flux could be configured) |
| The press of infect | 0.1MPA-3.99MPA |
| The mix proportion | 100:60-120 |
| Viscosity(22°) | POLY( polyethylene )500-2000MPAS |
| Viscosity(22°) | ISO( Multi-isocyanate )500-2000MPAS |
| Time of injecting | 0.01-9.99/S( precision 0.01S) |
| Precision of injection | 0.1/100 |
| Process of injecting | Manual inject by PLC programmed |
| Pneumatic pressure | 0.6-0.8MPa |
| Area | Wide:1.8M; High:2.85M; Long:3.5M |
| Weight of the machine | 1.2ton |
| Pouring nozzle | With collision impact needle Never wear Never plug |
| PLC Programmed computer(English demonstration) | It could control 500 patterns’ capacity of injecting at the same time and could wash the Gas-injecting automatically |
| heat system | It can automatic control temperature |
| Raw material oven 4 drum | 1 set |
| trimmer | 1 set |
