WMNS electrical LT power distribution panel

Product Overview

Description

I Product Name:

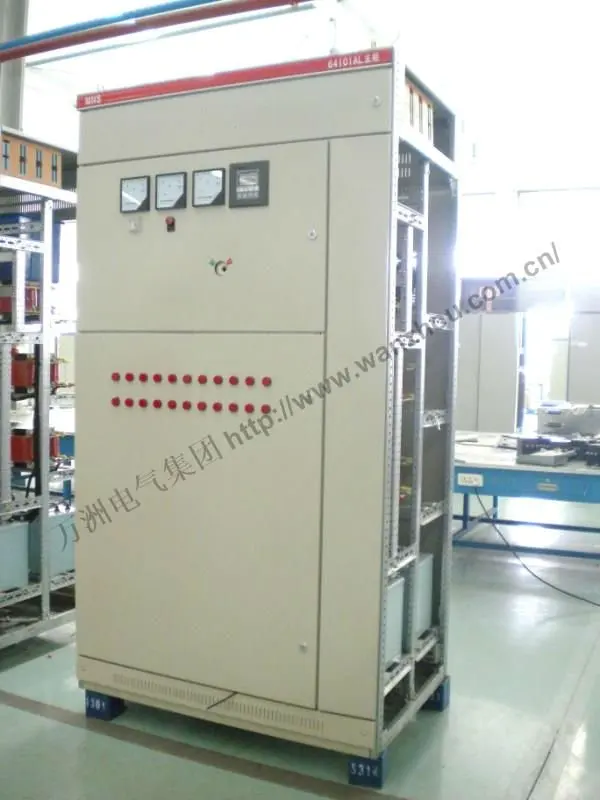

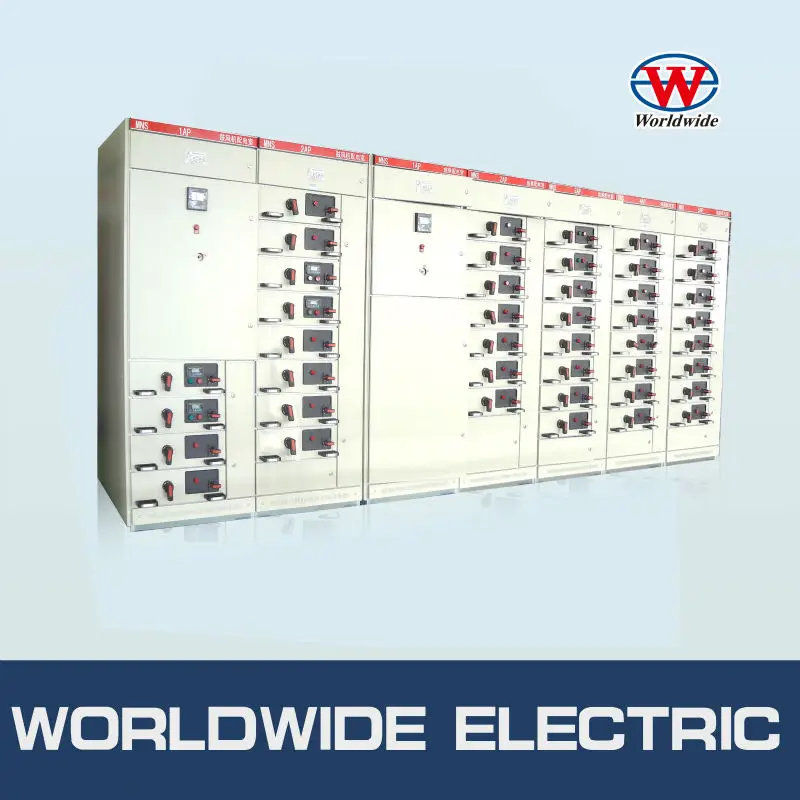

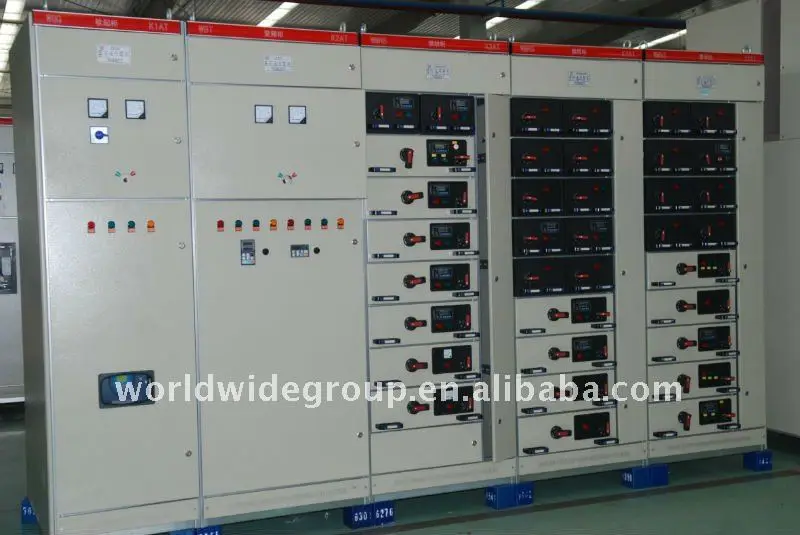

WMNS electrical LT power distribution panel



II Mode:

WMNS



III Application

     Our WMNS electrical LT power distribution panel is a kind of combined distribution cabinet which suitable for power plant, petrochemical industry, metallurgy, overhead buildings etc. it is used for power distribution, motor controlling etc.



IV Features

• The low voltage electrical distribution cabinet has compact structure, which save the volume of cabinet body
• The low voltage electrical distribution panel can be arranged back to back
• The distribution cabinet  body can meet the requirements of earthquake resistance, oscillation resistance and shock resistance
• The distribution cabinet  can be built up into different modes freely, such as fixed type and draw-out type
• Corresponding protection class of the distribution cabinet body could be designed according to the different requirements of the job and environment.
• Select and using standard component entirely, convenient for the design of project planner.

V. Parameters



Ambient temperature	-5 ~ 40 degree
Humidity	when it is 40 degree centigrage, the humudity is less than 50%, if it is 20 degree centigrade, it is 90%
Altitude	< 2000 m
Type of incoming and outcoming	cable/bus duct(bridge)
In and out of cable	top/bottom
wiring type	before and behined the cabinet
Protection Class	IP30
Insolation mode of functional unit	total isolation and partial isolation
Height of cabinet	2200mm
Width of cabinet	600 800 1000 mm
Depth of cabinet	800 1000 mm
Rated working voltage	to AC 660V
Rated isolation voltage	to AC 1000 V
Over voltage class	IV
Pollution class	3
Rated frequency	50/60Hz
Rated short time withstand current	50/80KA
Rated peak withstand current	105 KA
Color	grey
Grounding	TT IT TN-S TN-C-S
