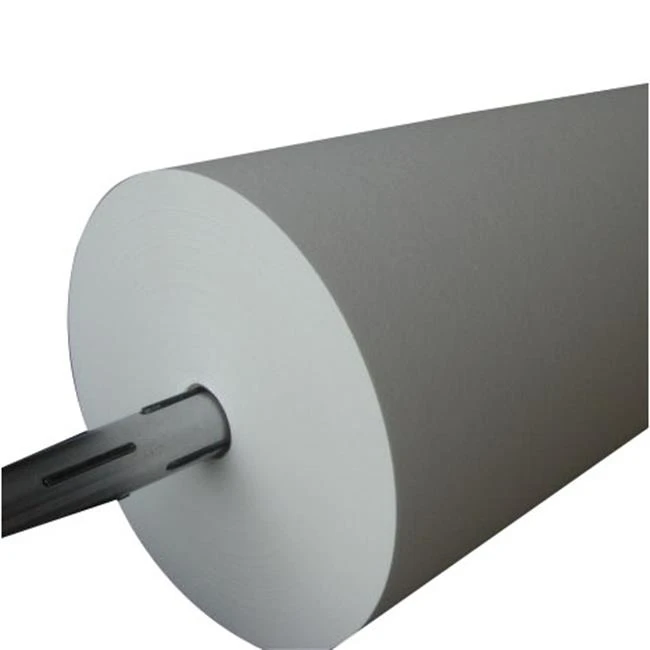

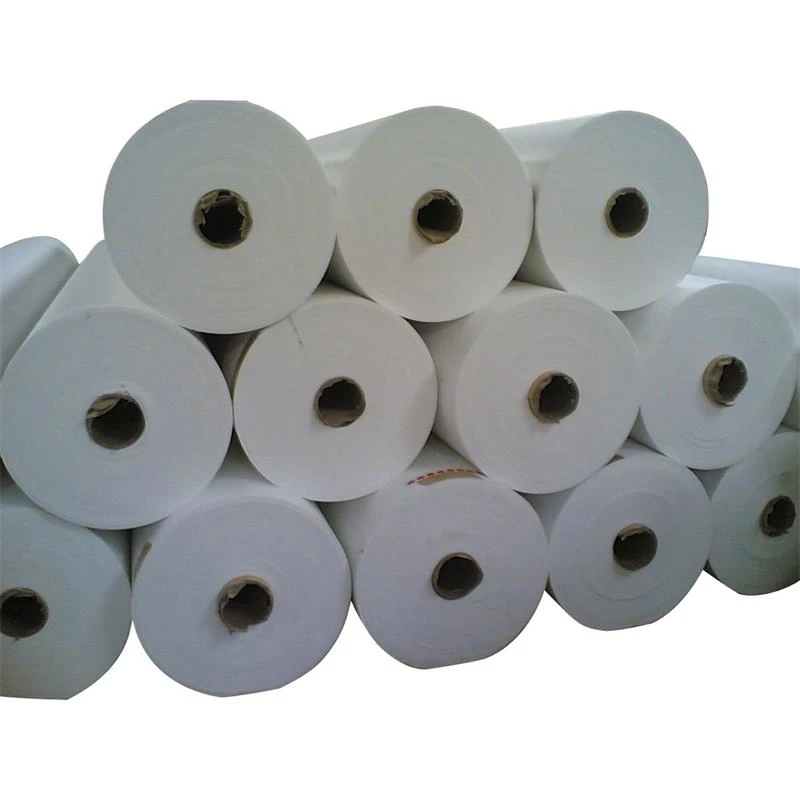

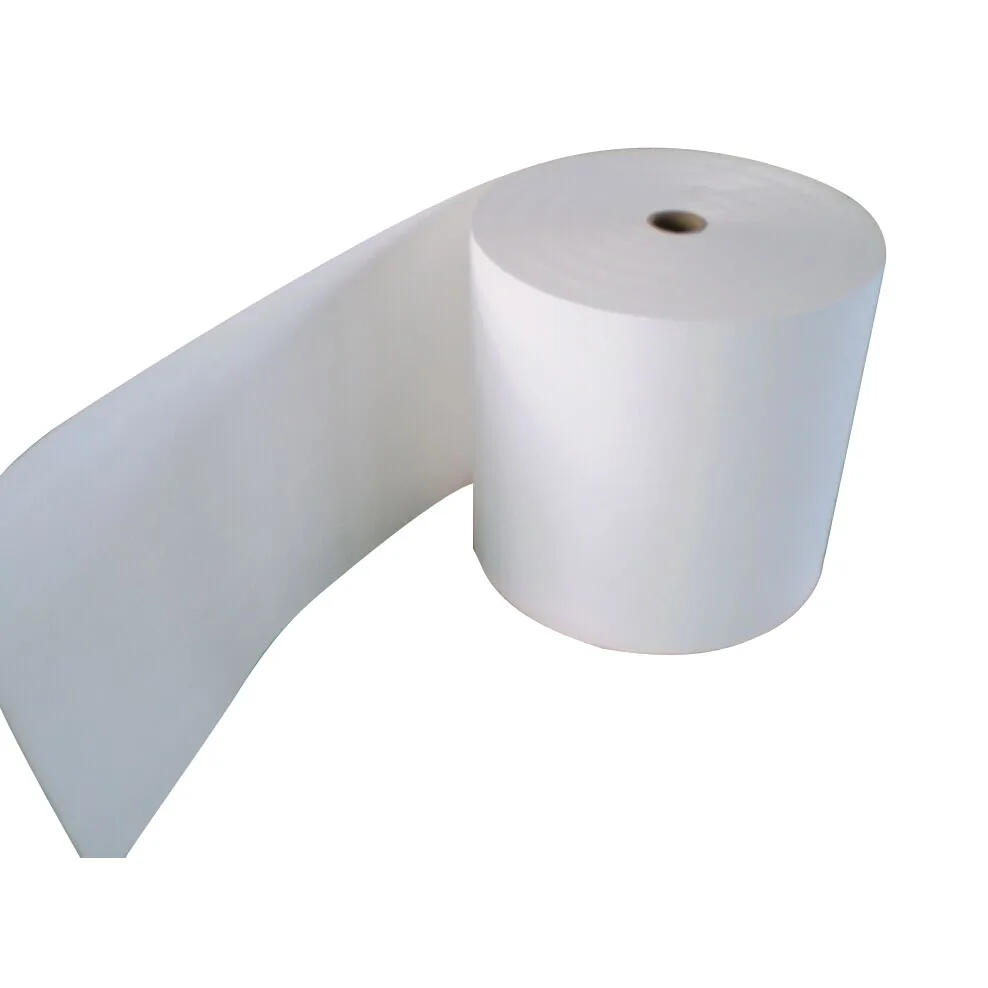

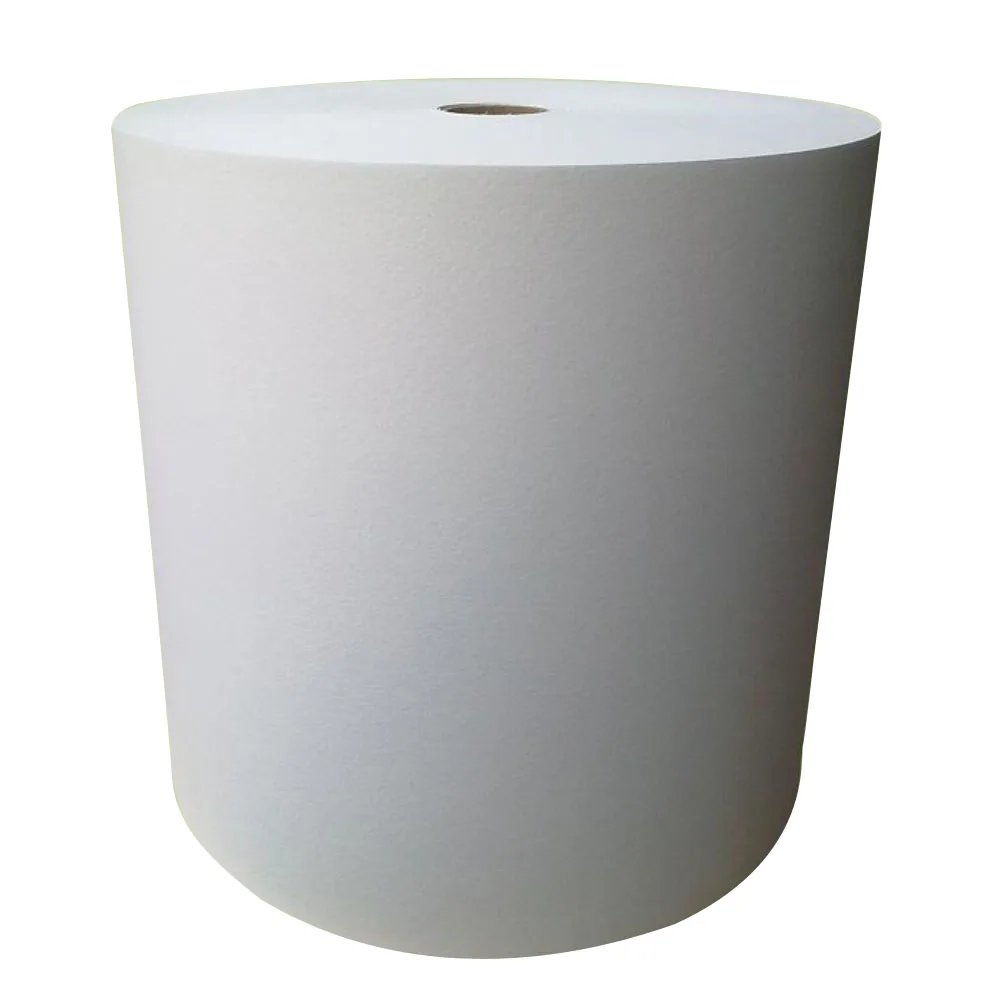

Microfiber glass liquid filter media for hydraulic filter

Product Overview

Description



Glass microfiber filter media, comprised primarily of glass microfibers, is produced with a wet laid process which is similar to that used in the production of paper. Our offerings range from various ASHRAE grades (F6-F9), HEPA grades (H10-H14) to ULPA grades (U15-U16) with exceptional dust holding performance and provide with the highest available efficiency at a minimal resistance to air flow. Our products are available in a laminated form to meet special air filtration requirements.



 Features/Advantages:

  • Highly consistent product

  • Good mechanical performance



 Applications:

  • Hydraulic filter







Specification:



TEST	UNITS	MIN	STANDARD	MAX	TEST METHODS
Basic Weight	g/m²	61	65	69	T.A.P.P.I.-T-410
Thickness	mm	0.38	0.40	0.42	T.A.P.P.I.-T-411
Tensile,MD	N/m	1200	1500		T.A.P.P.I.-T-494
Filter precision BETA200	μm		5		ISO16889
Resistance	Pa		80		TSI Model 8130
Efficiency	%		95		TSI Model 8130
Permeability	l/m2.sec		75
