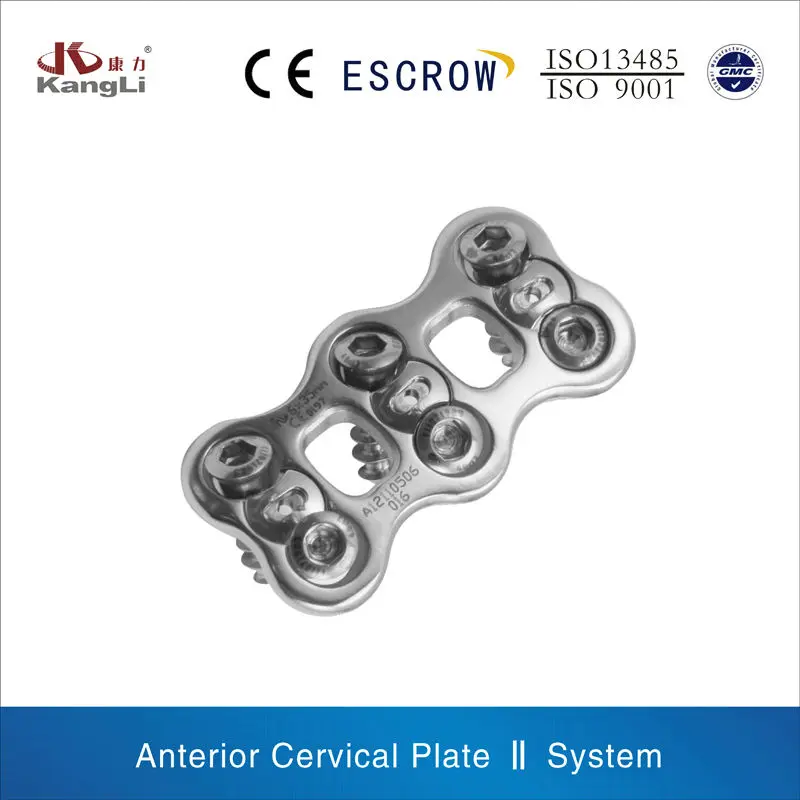

Spine Titanium Orthopedic Implants for Anterior Cervical Plate-II System
Product Pictures

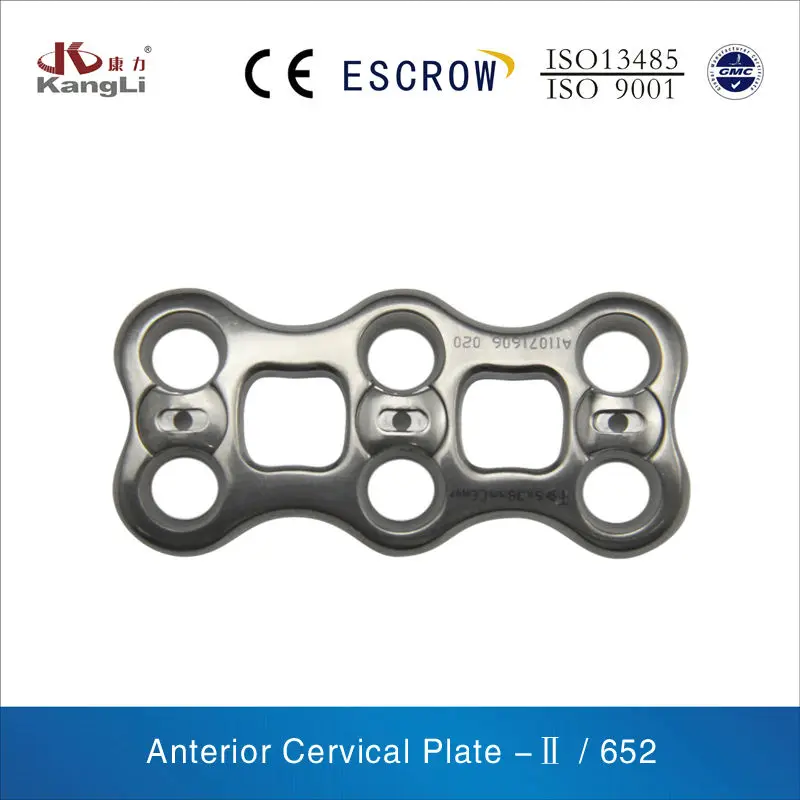

The plate
lower cutting design,the thickness of plate is 1.8mm.Special window design,to be observed easily
1)Provide the condition of 0-12° in the coronal plane between the screw and plate
2)Provide the condition of 0-12° in the vertical plane beween the screw and plate
Specification of Plates
Name
Material
Holes
Length
Product No.
Anterior Cervical Plate II
Pure Titanium
4
22
6520422
25
6520425
27
6520427
30
6520430
6
32
6520632
35
6520635
38
6520638
41
6520641
44
6520644
47
6520647
50
6520650
8
53
6520853
56
6520856
59
6520859
62
6520862
65
6520865
68
6520868
71
6520871
Specification of Screws
Product Name
Material
Diameter
Length
Product No.
Fixed Screw
Titanium Alloy
4.0
13
6544013
14
6544014
15
6544015
16
6544016
17
6544017
18
6544018
Rescure Screw
4.5
14
6554514
15
6554515
16
6554516
17
6554517
Company Information
Suzhou Kang-Li Orthopaedics Instrument Co.,Ltd
Our workshop
equiped with more than 150 sets of international advanced processing and detecting equipments,such as DMG from GER( for the production of implant plates),CNC HASS USA(for Interlocking Nails),Longitudinal Turning and Milling center from CITIZEN JPN,EDM wire cutting machine from Mitgubish JPN(for screws).
Ensure The Accuracy of Each Product
We supply mainly Orthopedic implants:
1.Spinal System
2.Locking Plates for both upper limb and lower limb
3.Mini Bone Plates(Phalangeal/Metalarpal Plates,Maxillofacial Plates)
1.we exported to many counties,such as RUS,South Africa,Turkey,Iran,Columbia and so on 2.we'll deliver goods in 3 days after receive the payment 3.we use DHL,FEDEX,EMS,UPS,TNT also accept shipment if necessary
Our Global Promotion
We are active in academic promotion all over the world,the Exhibition of Dubai,German MEDICA,Exhibition in South Africa,and also COA,CMEF in China.
OUR ADVANTAGES
1)International advanced processing and detecting equipments,perfecting assurance system
