Multi Channel Automatic Resistivity Tomography System Geophysical 2D Resistivity Imaging Equipment
- Category: >>>
- Supplier: Chongqing Gold Mechanical & Electrical Equipment Co. Ltd.
Share on (1892898546):
Product Overview
Description
Product
Multi Channel Automatic Resistivity Tomography System Geophysical 2D Resistivity Imaging Equipment
Usage:
It is used in Coal mining gobs, caves of Custer area,geological disasters survey,metal and non-metallic mineral resources exploration and geothermal exploration
Method:
Multi-Electrode Resistivity Survey System
Measure depth: 0-180 meter
Electrode: 60 electrode or 120 electrode
Feature: Multi-function including long lead IP instrument, 2D high density resistivity meter, 2D high-density IP instrument, and medium-power short lead transmitter.

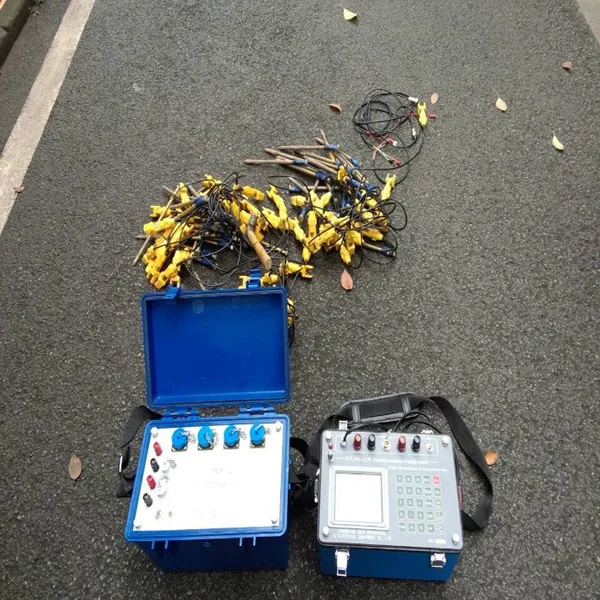

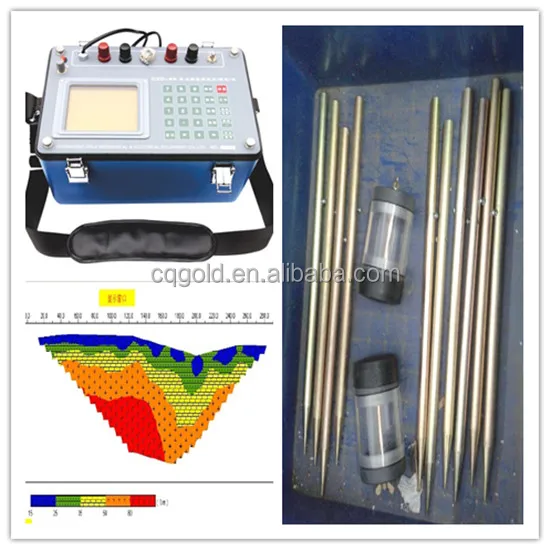

System Components

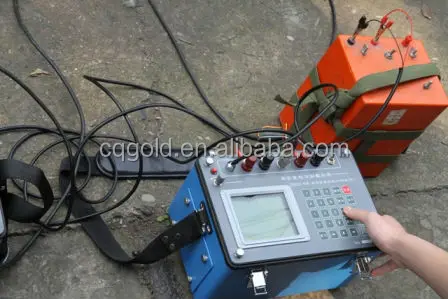

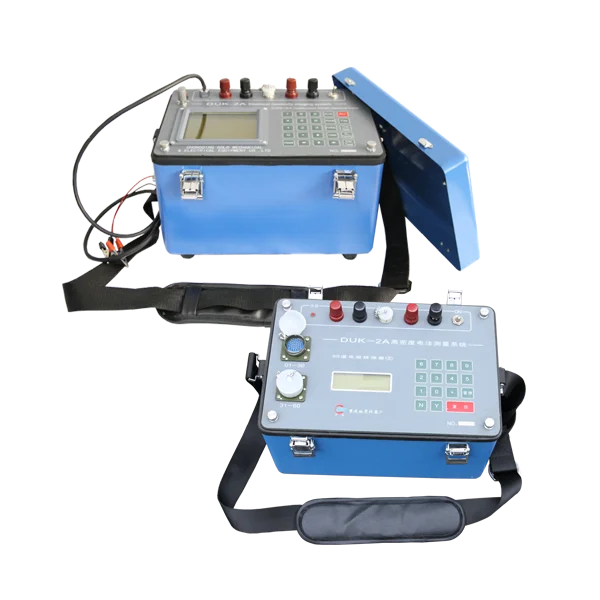

One DAZ-6A multi-functional DC resistivity instrument as the survey and control unit in the system
DUK-2A type 60-channel or 120-channel multiplex electrode switch manufactured by our factory
cables, electrodes and other related accessories
| Conversion Electrodes: 60 channels or 120 channels |
| Sopported manual configuration: Wenner, Schlumberger 1, Schlumberger 2, Dipole-Dipole, Combined Profiles, Differential, Pole-Pole, Triple-Pole Rolling, |
| Operating Mode: 16-key keypad with 90 character LCD display combines to form man-machine dialogue operation. |
| Maximum Allowable Current: 2A |
| Maximum Withstand Voltage: 500V DC |
| Insulating Property: 500MΩ |
| Electroshock Break-over Resistance: smaller than 0.1Ω |
| Power Consumption: 50 mA (Standby) |
| Power Supply: 1# Dry Cell (or rechargeable battery with the same specification) 8 pcs. |
| Working Temperature: -10°C~ +50°C, 95%Rh |
| Weight: 7 kg (60 channels), 7.5kg (120 channels) |
| Volume: 305×200×202mm (60 channels), 324×200×245mm (120 channels) |
