Tobee Effluent Handling
$12,600
Chemical Fluid Proportional Measuring Pump Multi stage pump
- Category: >>>
- Supplier: Shanghai Kaiyuan Pump Industrial Co. Ltd.
Share on (1893105422):
Product Overview
Description

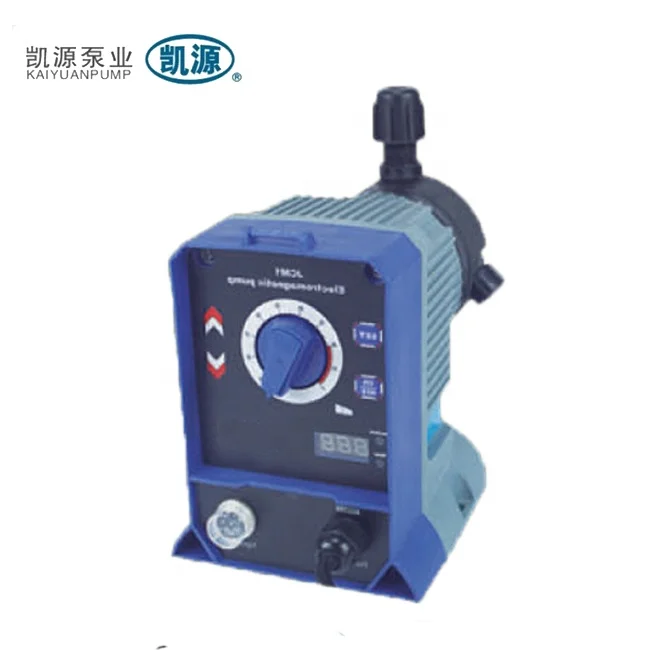

Chemical Fluid Proportional Measuring Pump
1. Double adjustment (capacity, stroke)
2. Flexible slope adjustable response to mA input signals
3. Low level shutoff with alarm output
4. Remote ON/OFF control
Technical Data:
| Model | Max Capacity Flow (L/h) | Max Pressre (Bar) | Pipe Dia Size | Voltage (v) | Max Current (A) | Power (W) | Frequency (Hz) | Pump Head Material |
| JCM1-1/20.7 | 1 | 20.7 | 1/4'' PE | 110/220 | 0.6/0.4 | 22 | 50/60 | PVC/PVDF/316 |
| JCM1-1.9/17.2 | 1.9 | 17.2 | 1/4'' PE | 110/220 | 0.6/0.4 | 22 | 50/60 | PVC/PVDF/316 |
| JCM1-3.8/7.6 | 3.8 | 7.6 | 3/8'' PE | 110/220 | 0.6/0.4 | 22 | 50/60 | PVC/PVDF/316 |
| JCM17.6/3.4 | 7.6 | 3.4 | 3/8'' PE | 110/220 | 0.6/0.4 | 22 | 50/60 | PVC/PVDF/316 |
| JCM1-12.1/1.5 | 12.1 | 1.5 | 3/8'' PE | 110/220 | 0.6/0.4 | 22 | 50/60 | PVC/PVDF/316 |
| JCM1-15/1 | 15 | 1 | 3/8'' PE | 110/220 | 0.6/0.4 | 22 | 50/60 | PVC/PVDF/316 |

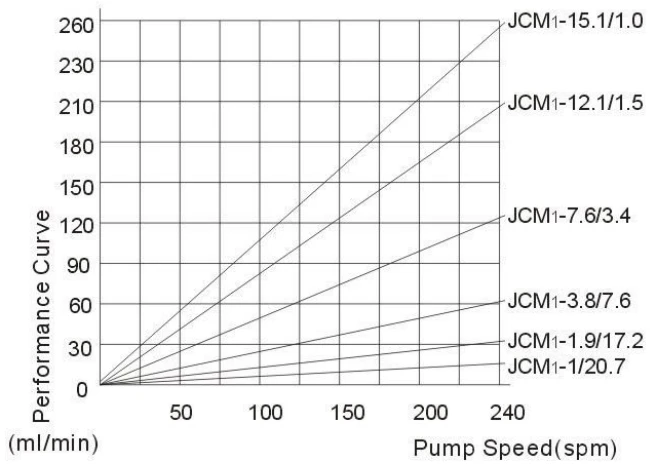

Performance Curve:

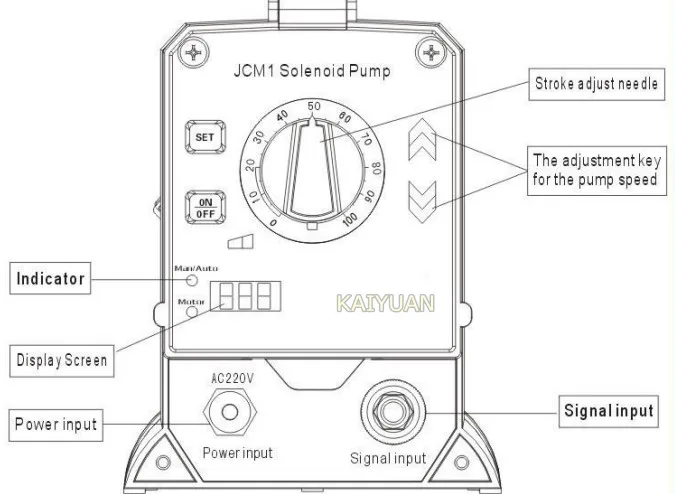

Structure:
8 Pithes Signal Connection:
| +1/2 pith | remote on/off |
| 3 pith | 4-20 mA signal input- |
| 4 pith | 4-20 mA signal input+ |
| 5/6 pith | low level alarm |
| 7/8 pitch | additional connection point |
Company Information
|
≡≡ Company View
Shanghai Kaiyuan provides submersible water pump, sewage pump, fire-fighting water pump, multi-stage vertical (horizontal) water pump, diesel engine water pump, water supply equipment and other pumps( electro bomba centrifuga ). Here we have modern production base of 20000 square meters, and 1500 square meters of office, professional R&D institution and technology team, which makes us a world-class company. Here all Kaiyuan machines are designed, produced, assembled and tested according to the ISO9001:2008.
≡≡ Production Flow
≡≡ Certifications
Supplier Assessment Reports provide you with the knowledge to source with confidence and with reduced risk. They contain an assessment made by one of our third party inspection companies and are available for download.
≡≡ Contact Us
IF You Need More Information About our metering pump And service. Please Kindly Email Us, We Will Reply As Soon As Possible!
