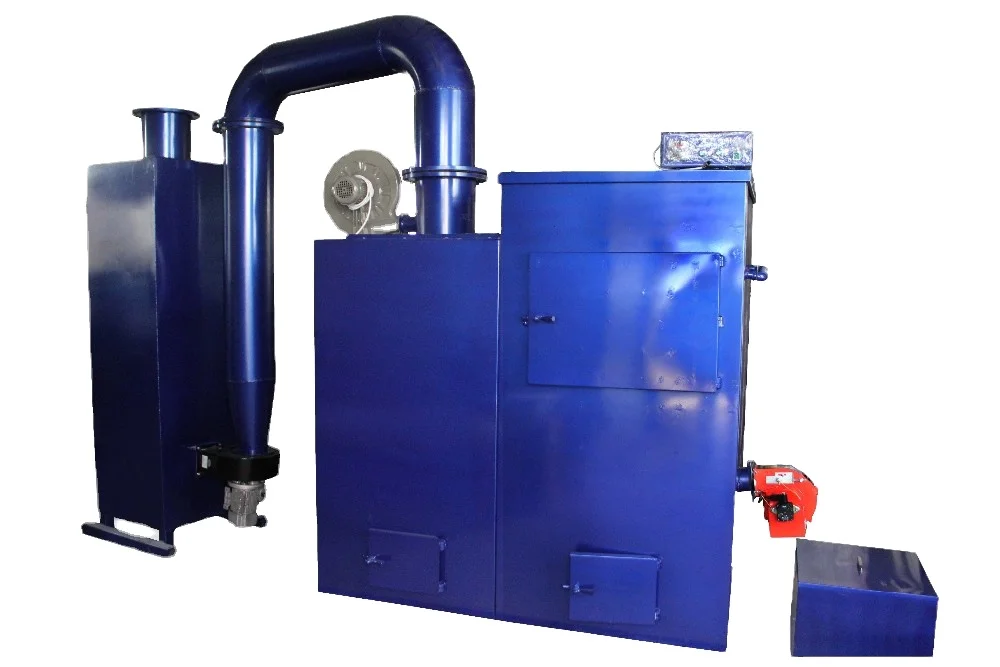

JK MI 10 Medical Incinerator

Product Overview

Description

Medical Incinerator



Product Description:

It is suitable for the health sector, farm, blood station, epidemic prevention station, surgical waste in hospital and viral material.

Types of medical waste incinerated: disposable syringe, infusion set, cotton yarn, some materials used in the operating room , stump, rubber gloves, dumped protective clothing and sickbed supplies which are infectious and hazardous

Main features:

It has been assessed and registered as meeting the requirements of ISO9001 and 14000. With Italian fuel injection system  Automatically control system, digital display  With the founction of time set, automatically incinerate and ignite,Negative pressure burning,Use the diesel for fuel. Can meet the requirements of the national environmental protection standard. Low failure rate, low maintenance and  operating cost

Safety device:

Burner safety device: fuel supplies can be automatically cuted off ,when the burner ignition device is unnormal

Technical parameter:

Model	Capacity	Fuel	Ignition Mode	Power	Power Supply
JK-MI-10	10Kg/H	Diesel fuel	Automatically	700W	220V/50HZ
JK-MI-20	20Kg/H	Diesel fuel	Automatically	900W	220V/50HZ
JK-MI-30	30Kg/H	Diesel fuel	Automatically	1100W	220V/50HZ
JK-MI-50	50Kg/H	Diesel fuel	Automatically	1800W	220V/50HZ
JK-MI-100	100Kg/H	Diesel fuel	Automatically	2500W	220V/50HZ
JK-MI-200	200Kg/H	Diesel fuel	Automatically	3500W	220V/50HZ

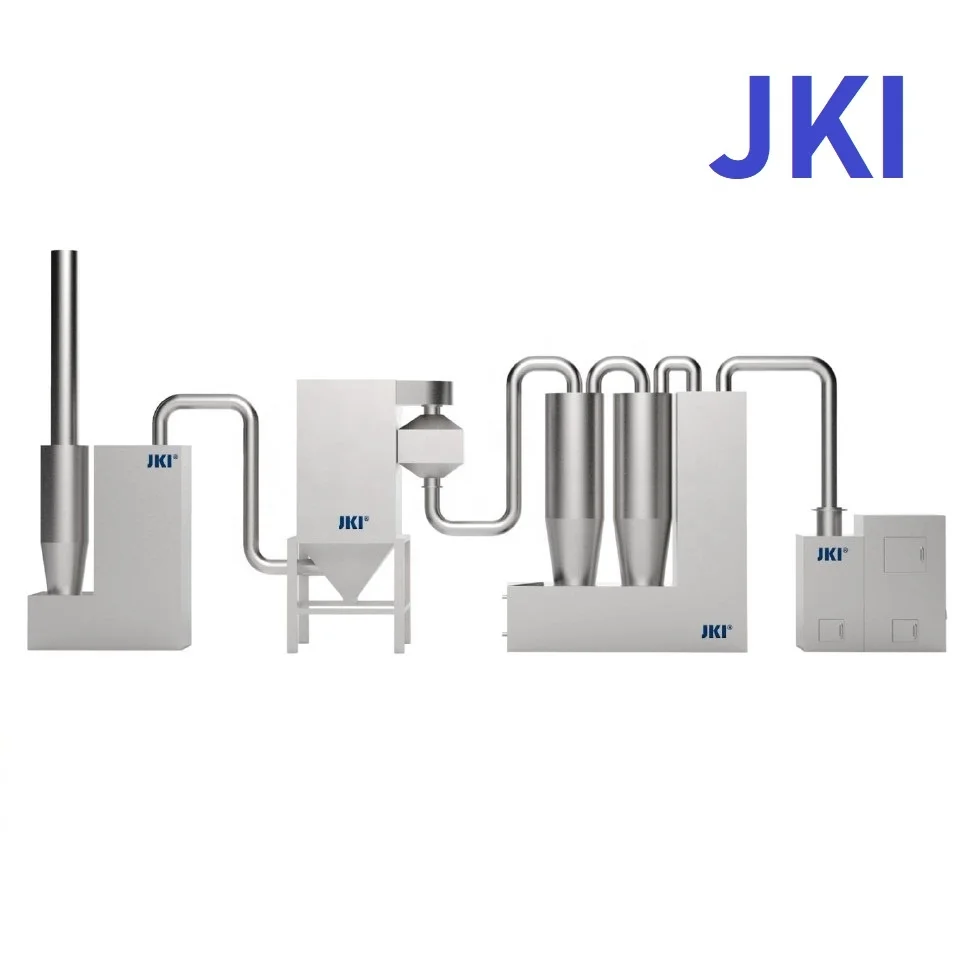

Basic Configuration:

Furnace: 1 set (steel furnace, refractories, insulation materials) Dust collector: 1 set Exhaust pipe: 1 set Oil Pump: 1 unit Fan: 1 set Italian importing fuel injection system: 1 set Carbon steel storage tank: 1 unit Carbon steel chimney: 1 set  Carbon steel flue: 1 set  Automatically control system: 1 set  Safety equipment: 1 set (including the burner safety devices, lightning protection safety devices, etc.)
