Yuandong Manufacturer Four block wire drawing machine

Product Overview

Description

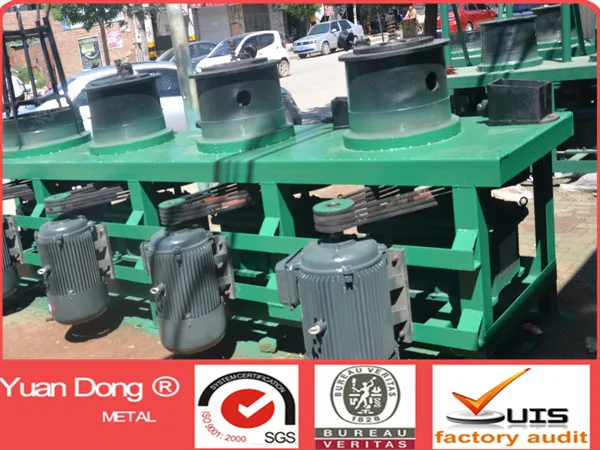

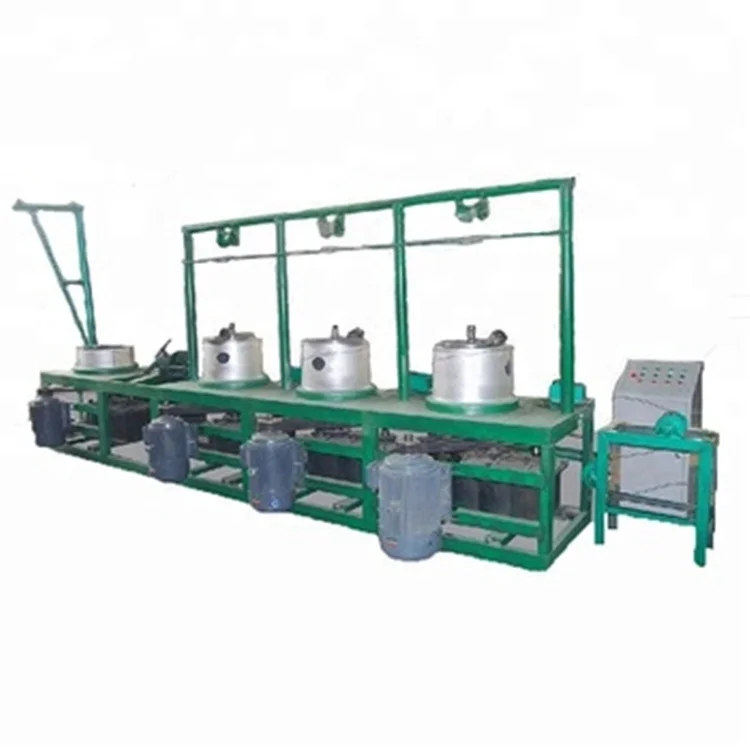

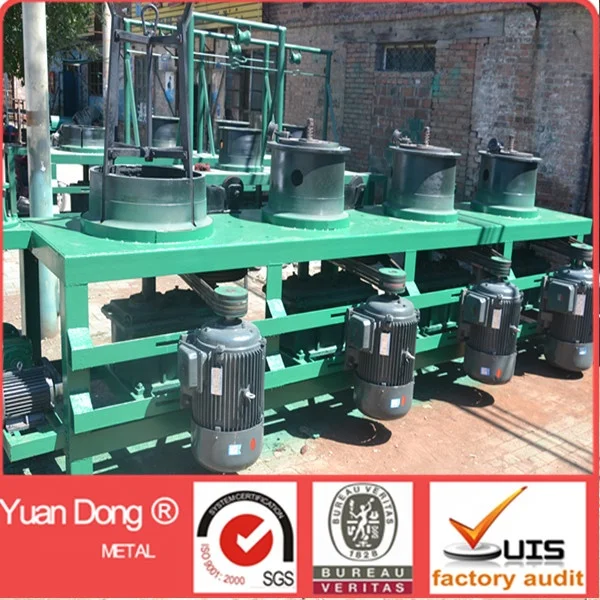

Four block wire drawing machine

 YDDW-52 four block wire drawing line can process minimum 3.8-4.0mm cold drawing wire from 6.5mm wire rod with following 4 steps according to users needs.



1.  Input wire diameter : Max. 6.5mm , out put wire diameter: Min. 5.7-5.8mm

2.  Input wire diameter : Max. 5.7-5.8mm , out put wire diameter: Min. 5.2-5.3mm

3.  Input wire diameter : Max. 5.2-5.3mm , out put wire diameter: Min. 4.5-4.6mm

4.  Input wire diameter : Max. 4.5-4.6mm , out put wire diameter: Min. 3.8-4.0mm



Wire drawing machine details:

Input power--- 380v  50hz

Drum diameter--- 550-600mm

Line speed--- 90m/min

Capacity--- 650kg/hour

Motor power---4*15w

Mould---4 pieces

Weight---3000kg/set

Over dimensions--- 4500*1300*1500mm









Five block wire drawing machine and water tank wire drawing machine is available!
