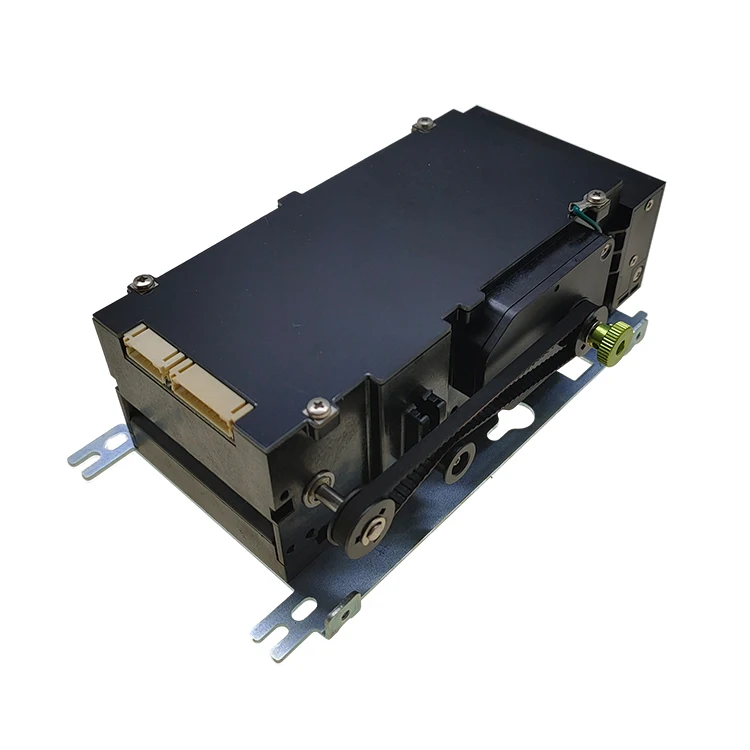

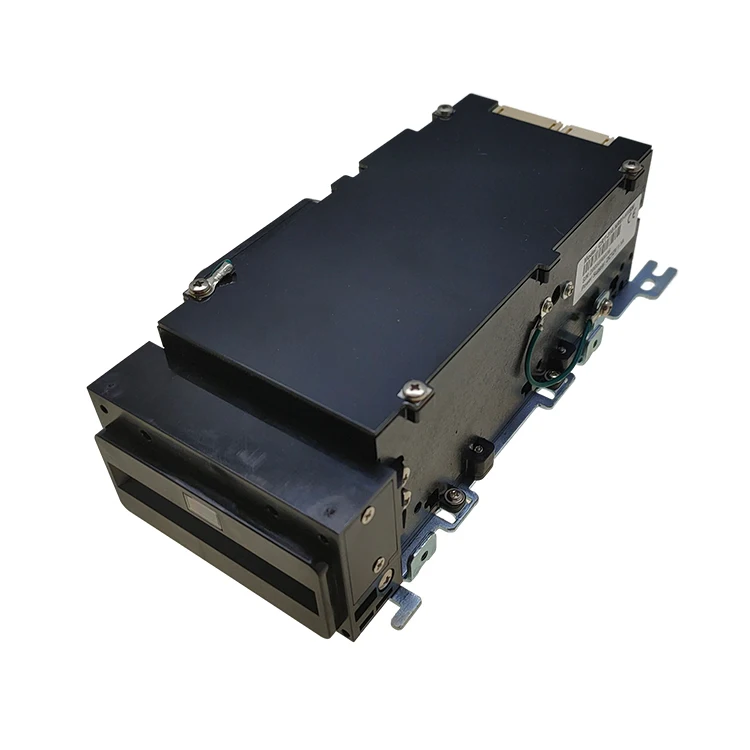

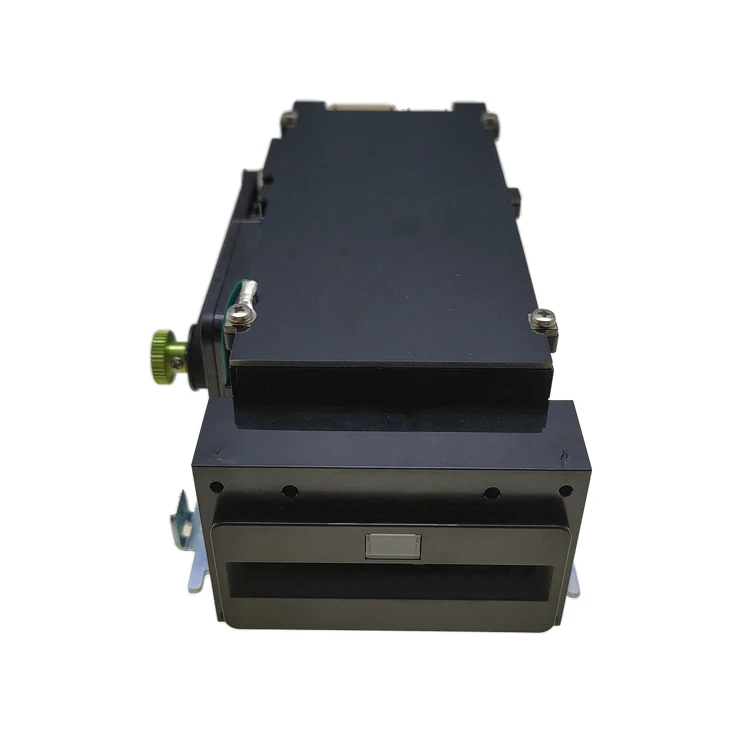

Motorized IC card reader writer magnetic card reader

Motorized IC card reader writer magnetic card reader

Category: Other Financial Equipment >>>
Supplier: Shenzhen Prova Tech Co. Ltd.

Price:

Quantity:

Product Overview

Description

Product Description

Product Overview:

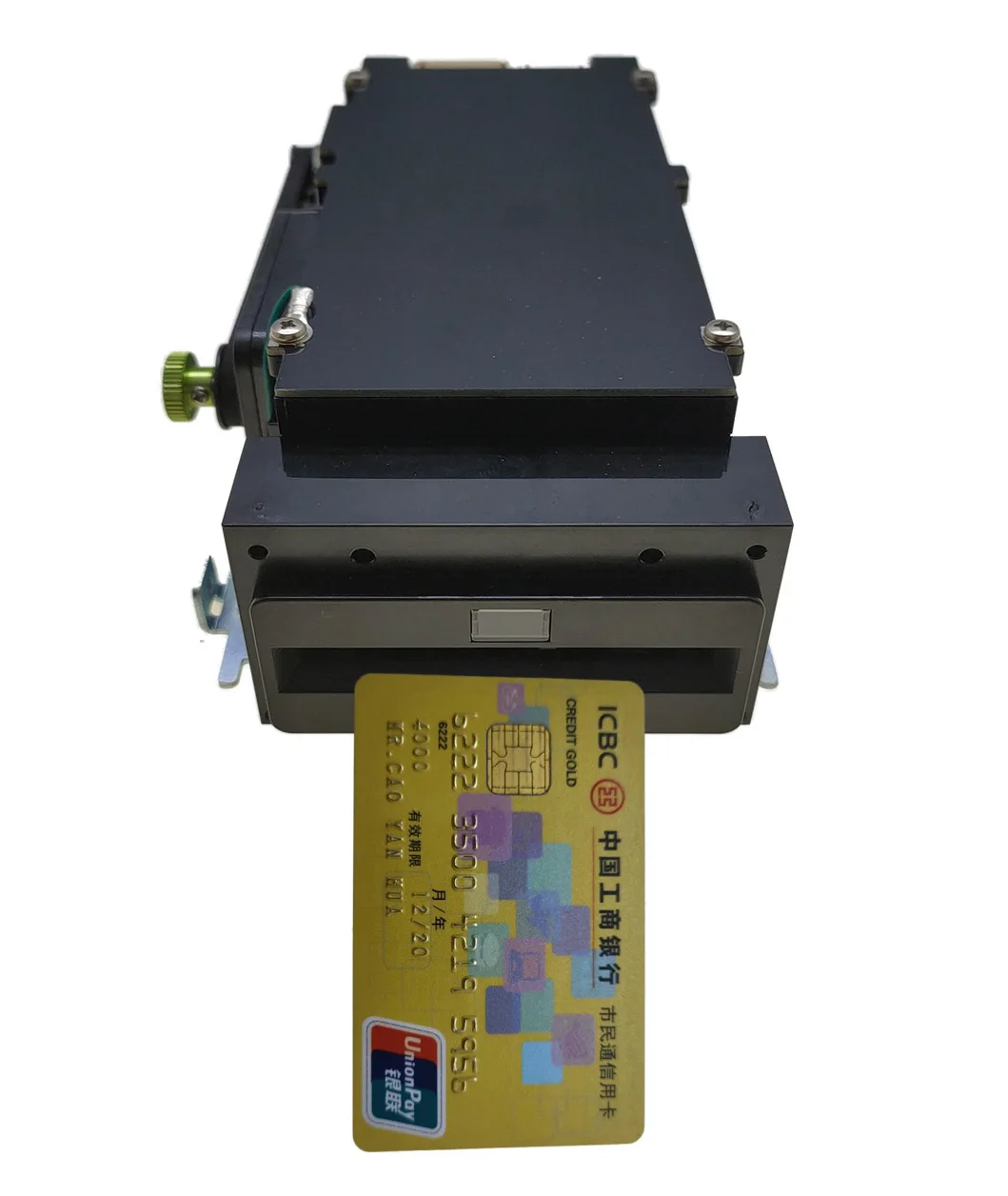

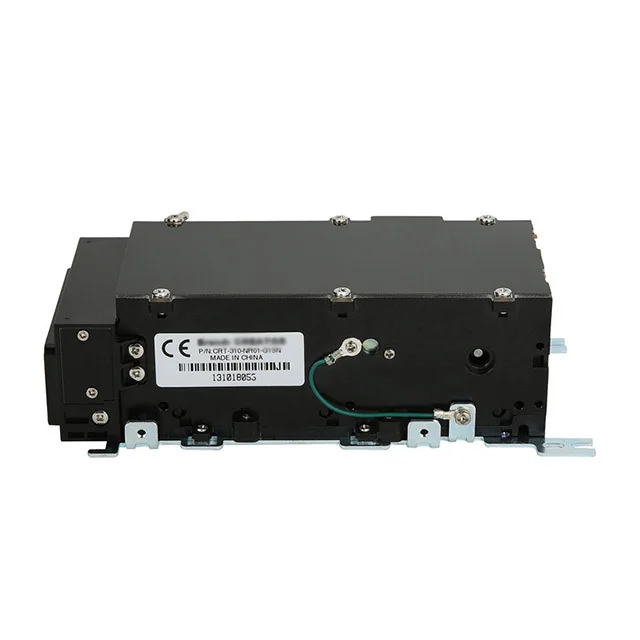

CRT-310-N is a smart 3 in 1card reader equipment which is motorized by the way of “Auto insert/eject card".

It supports magnetic card read, IC card and RFID card both read and write.

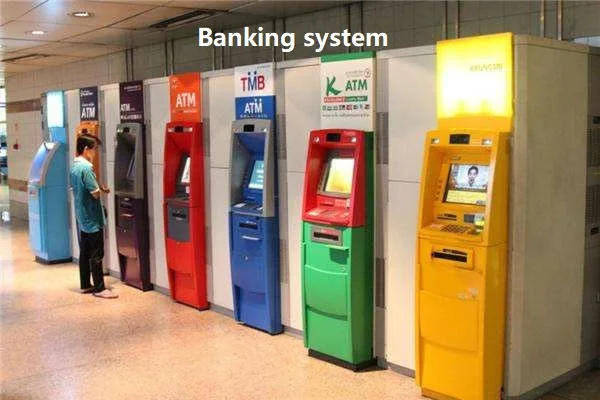

CRT-310-N can be wildly used in many applications such as kiosk terminals, traffic control systems, ATM and other payment systems etc.

Main Features:

1） 3 cards in 1：Mag-card read, IC card read & write, contactless IC card read & write.

2） Electromagnetic controlled shutter, the commands support Mag/switch controlled open.
3） Motorized card captured and ejected with the function of card retrieved at rear end.
4） Embedded dimension, communication protocol, and card processing are compatible with ICT-3K7.

5） High reliability and durability.

6） Power traced and power down protected.
7) With the functions of automatically card captured, controlling of in/out/retrieved.
8) Both front & rear insertion of card, move and clear broken card in reader.
9) With multi-function of fault tolerant and special maintenance including process of abnormal cards and power down etc.

Specifications:

Items	Specifications
Power supply	DC12V ±5%
Current consumption	Idle current： less than 150 mA Peak current： less than 1500 mA
Power down mode	voltage ≤10V，time≥50 ms
Card feeding speed	Around 300mm/s
Interface	RS232
Card Specifications	Width:53.92～54.18 mm， Length：85.47～85.90 mm, Thickness: 0.4mm～1.2mm（ex-work:0.8mm）
Life time	Magnetic head: ＞600,000 passes IC card contact: ＞300,000 contacts Motor transport: ＞1,000,000 passes
Failure rate	Mag-card：normal condition (15～25℃，35～60%RH)，less than 1 time per 1,000 times reading standard card； (Note: standard card except man made error. ) IC card：less than once error per 1 ,000 times, (Note：above IC cards are standard card , except Q card) Contactless IC card：reading & writing error less than once per 10,000 times , (Note: Standard contactless IC card)
Wraped card	Average abnormal height is less than 2mm
Chip card standard	ISO7816-1，2，3，4/EMV 4.1 L1/PBOC 3.0 L1 （AT24C01、24C02、……、24C256；SLE4442、SLE4428；CPU T=0/T=1）
Contactless card standard	ISO14443-3 (Mifare one： S50、S70、UL etc) ISO14443-4（TYPE A CPU： mifare plus， mifare desfire etc）（TYPE B CPU Card）
Magnetic card standard	Physical feather: ISO7810 and 7811 Card dimension: ISO7810ID-1-magnetic stripe card standard Embossed card：ISO7811-1 and ISO7811-3 Record format：ISO7811-2、ISO7811-4、ISO7811-5 and ISO7811-6 standard
Environment conditions	Operation:0~50℃/0 ~ 90% RH(Non condensing) Storage:-25~80℃/0 ~ 90% RH(Non condensing) Normal condition：15～25℃ / 35～60%RH

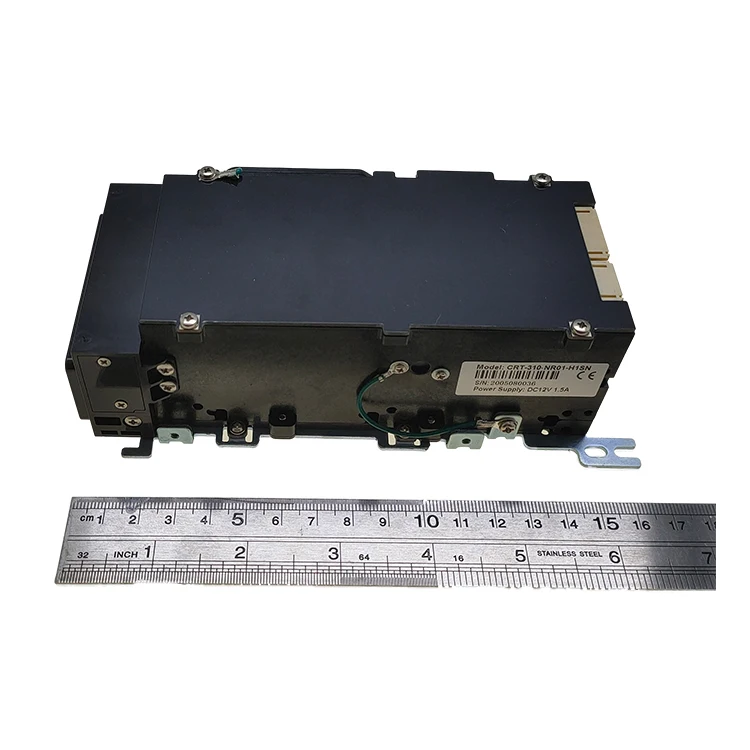

Dimension	96.5x167x51.5mm
Weight	Approx 530g
On-line download	support IAP on-line download
Optional part	P-SAM card module
