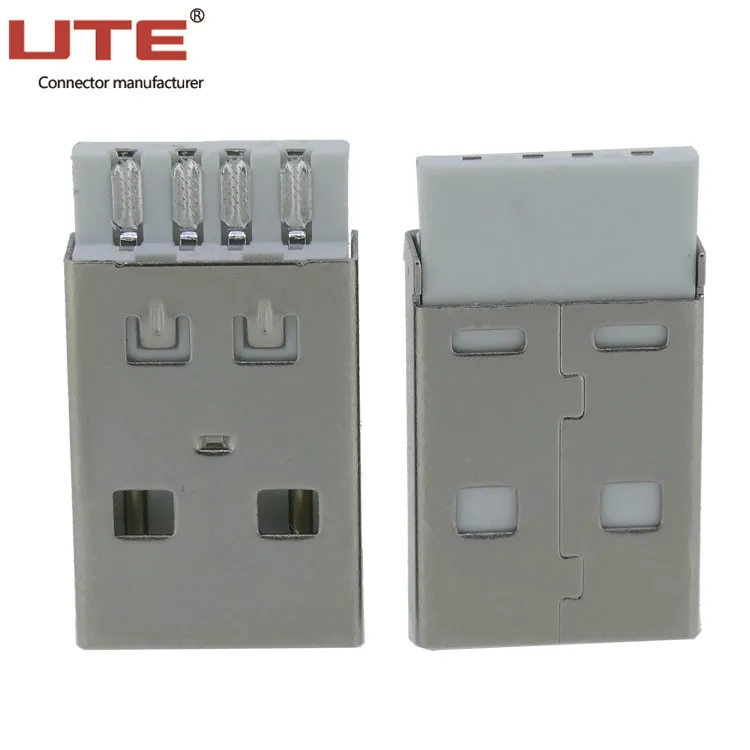

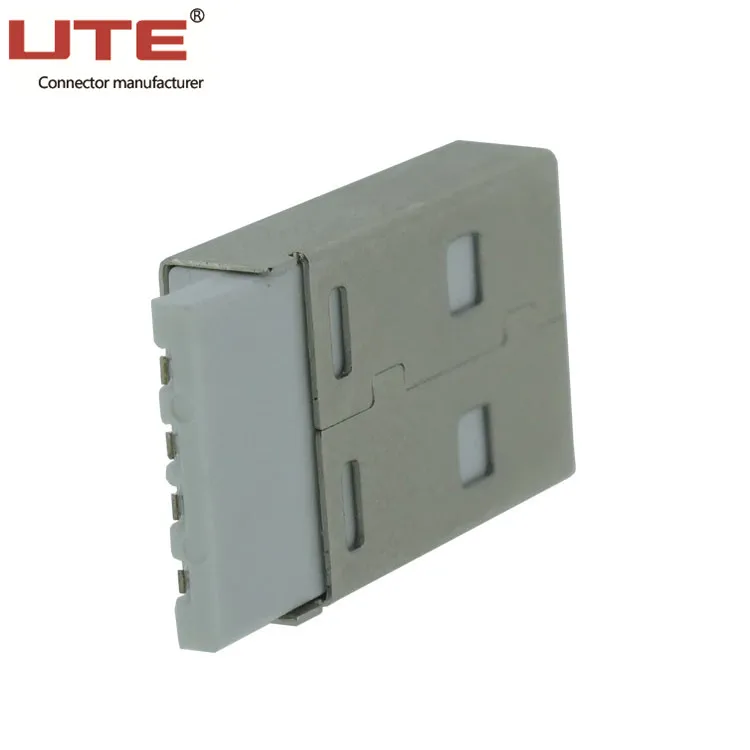

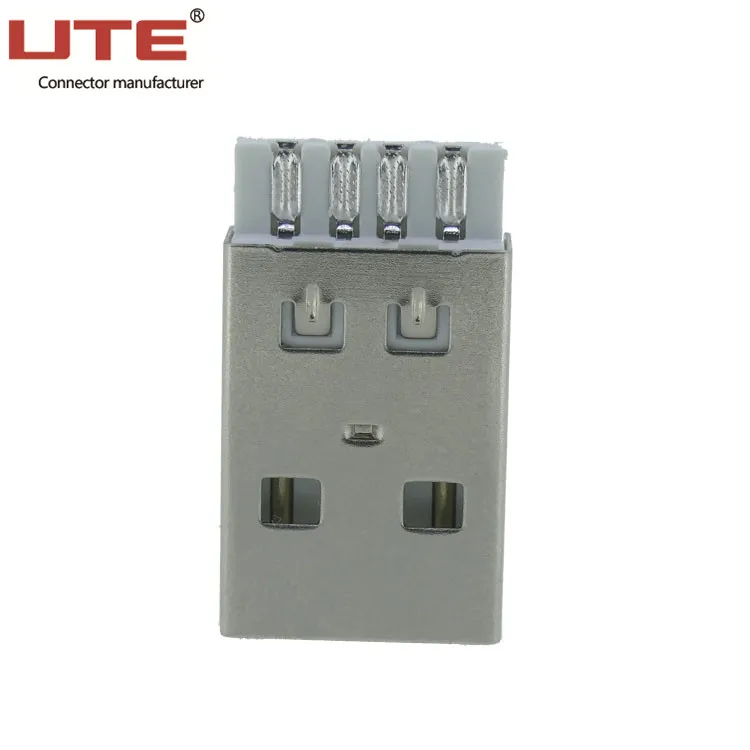

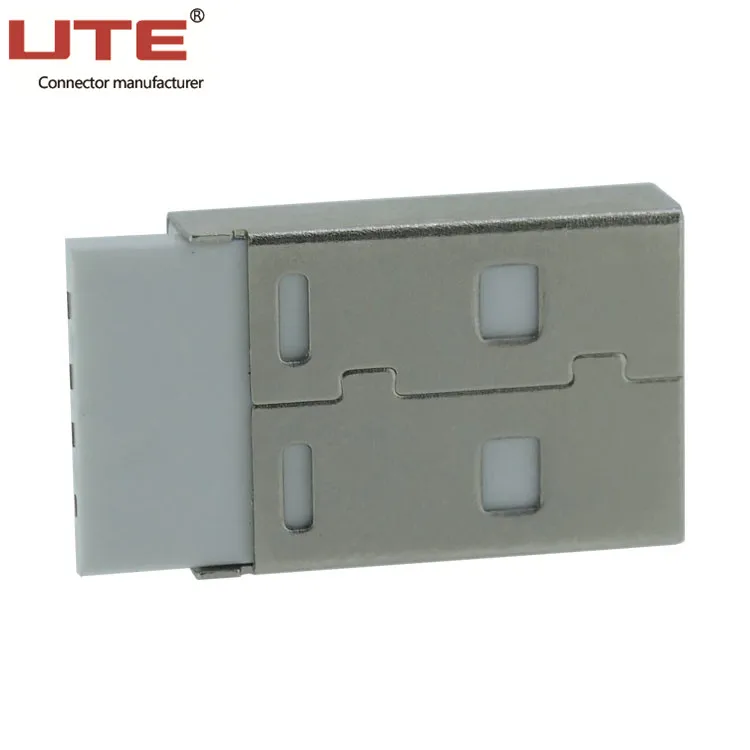

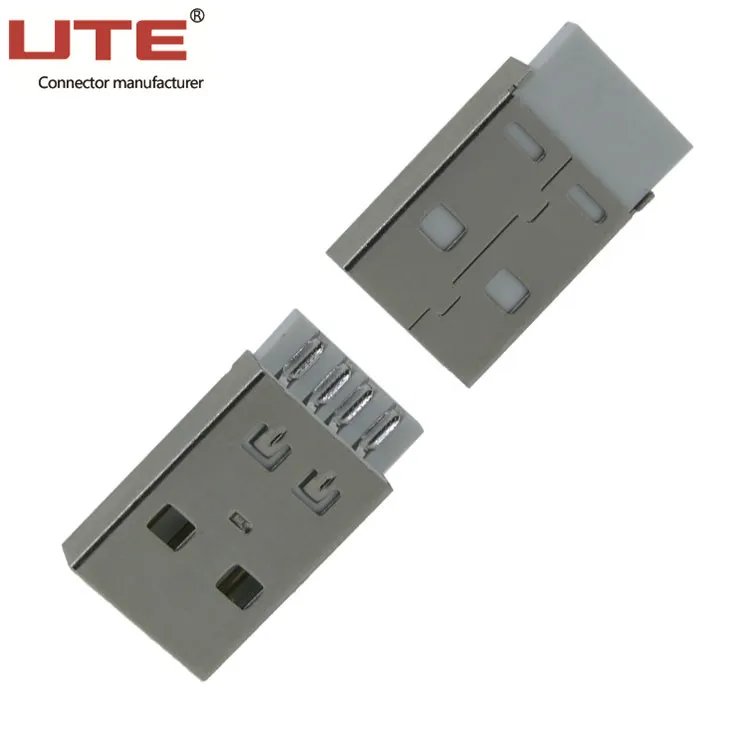

4 Pin mini A Type Male Plug Right Angle PCB Mount USB Header Connector

Specification Characteristic:

1, Dielectric Withstanding Voltage: AC 500V

2, Contact Current Rating: 1.5 Amperes

3, Contact Resistance: 30mΩ Max

4, Insulation Resistance: 1000 Megohms Mininum

5, Mating Force: 35 Newtoms.Maximum

6, Unmating Force: 10 Newtoms.Minimum

7, Voltage Rating: 30V DC

Material:

1, Housing: LCP.Nylon or PBT,color:White or Black

2, Contact :Copper alloy

3, Shielding: Copper alloy or SPCC

Plating:

1, Contact: Au Plated on contact area

                     Tin Plated on solder area

                     Nickel underplating over all

2, Shell:  Nickel Plated

Q: how long Delivery time ?

A: RJ45/RJ11 Series: 12~20 days

SFP Series: 25~30 Days USB Series: 7~15 days

Pin Header/Female Pin header

Connector: 7~15 days

SATA/HDMI Series: 7~15 days

Q: How can I get quotation?

A:It is helpful for us to recommend the right item if we know your detail requirements

(number of port, shielded or non-shielded, led or dual leds, with or without transformer etc).

Drawing and quotation will be sent accordingly. Of course, it is best if we have your drawing.

Q: Can I have samples?

A: Samples are available for evaluation.

Q: Is OEM & ODM available?

A: OEM&ODM are welcome.
