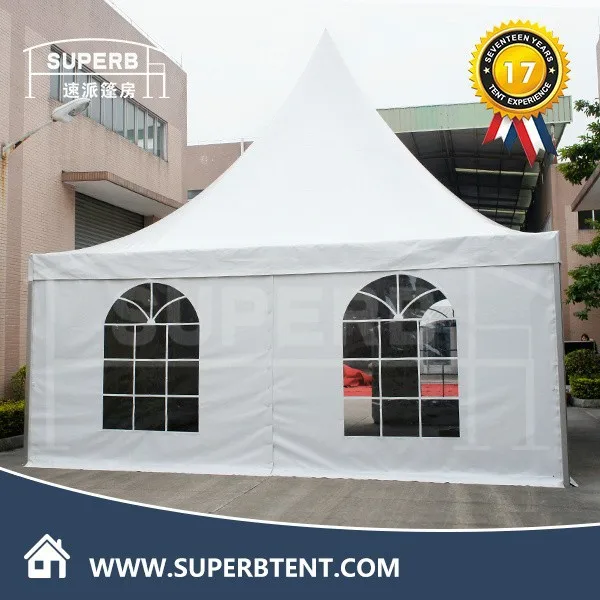

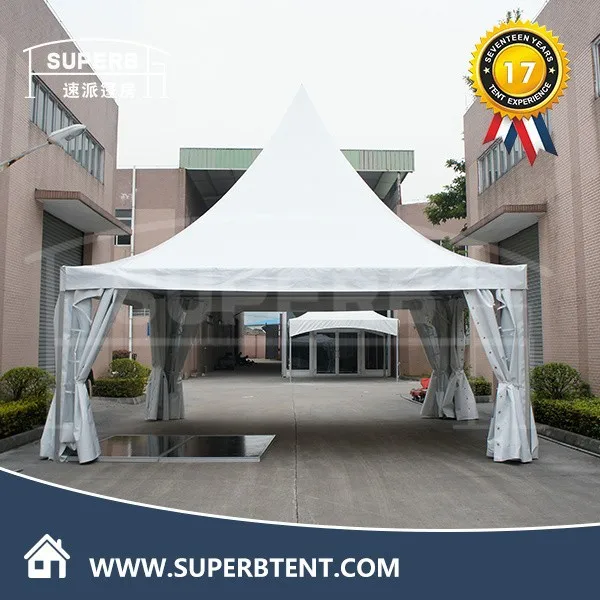

Big wedding gazebo,outdoor gazebo sale

Product Overview

Description

Big wedding gazebo,outdoor gazebo sale







Product Description



1)Application:

Big wedding gazebo,outdoor gazebo sale  (PA series ,PA frame) can be widely used as the wedding tent, party tent, exhibition tent, conference tent, different kinds of festivals tent, hajj tent, corporate events tent, sports tent, & temporary, semi-permanent or permanent building purpose etc.

2)Materials:
Fabric: Double PVC coated polyester fabric, 650-900g/sq. m, water proof, UV resistance, anti-mildew, self-cleaning, fire retardant according to standard NFPA701 & DIN4102 B1/M2

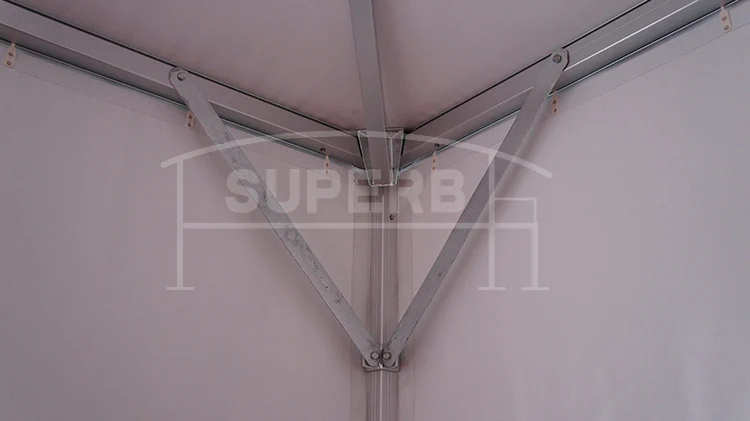

3)Frame:

Hard pressed extruded aluminum 6061/T6, anodized surface finishing.

Main frame profile size: 152*120*4mm ;



4)Connections:

Hot-dip galvanized steel;



5)Life span:

Life span of fabric(cover & sidewalls): 8-10years;

Life span of aluminum frame: 20-30years



6)Structure safety parameters:

Wind load: 100km/h (0.5kn/M2)

Snow load: 25kg/sq.m



7)Color available:

White, red, yellow, blue, green, black, grey, transparent etc



8)Optional Accessories:
Ground anchor, anchor puller, weight plate, glass door, fire door, glass wall, ABS hard wall, Sandwich walls, auto-rolling door, decoration lining, flooring system, clear PVC windows sidewalls, transport rack for the glass door & walls, ramp etc; chairs , tables, & other furniture for the parties are also provided for your option.





Specification for Big wedding gazebo,outdoor gazebo sale    (PA series, A frame), pls refer to chart:





Type	Span (m)	Side height (m)	peak height (m)	adjacent columns distance (m)	Longest Component (m)	Wind Load (km/h)
PA3X3/2.5	3	2.5	4.3	3	3	≤80
PA4X4/2.5	4	2.5	4.8	4	4	≤80
PA5X5/2.5	5	2.5	5.5	5	5	≤80
PA6X6/2.5	6	2.5	5.9	6	6	≤80
Main frame Profile		65x65x2.5mm(3-channel)
Eave Connection		Hot-dip Galvanized Twin Steel Plate
Roof Fixing		Bar Tension
Frame Material		Hard Pressed Extruded Aluminum 6061/T6
Cover Material		Double PVC coated Polyester textile, flame retardant to DIN4102 B1,M2,750-900g/sq.m



The Technical Date for Big wedding gazebo,outdoor gazebo sale  :





*Specialized in Producing different sizes of tents  base on unique requirements









                WHY CHÖOSE ÜS

• Guaranteeing quality but reducing cost by 16 years' experience

•Focusing on global PVC tents market and requirements.

• Innovating hardware design for more trendy and convenient

•  In order to improve efficiency,suppliers of ram material are neighbour.

• 100% inspection before exporting and 100% after sales service following.

•  Ongoing creation and innovation can go beyond.
