20inch 1 Micro PP Filter Cartridge for Water Treatment
- Category: Water Filter >>>
- Supplier: Shantou Yalida Filtration Equipment Co. Ltd.
Share on (1894562740):
Product Overview
Description
Details Images

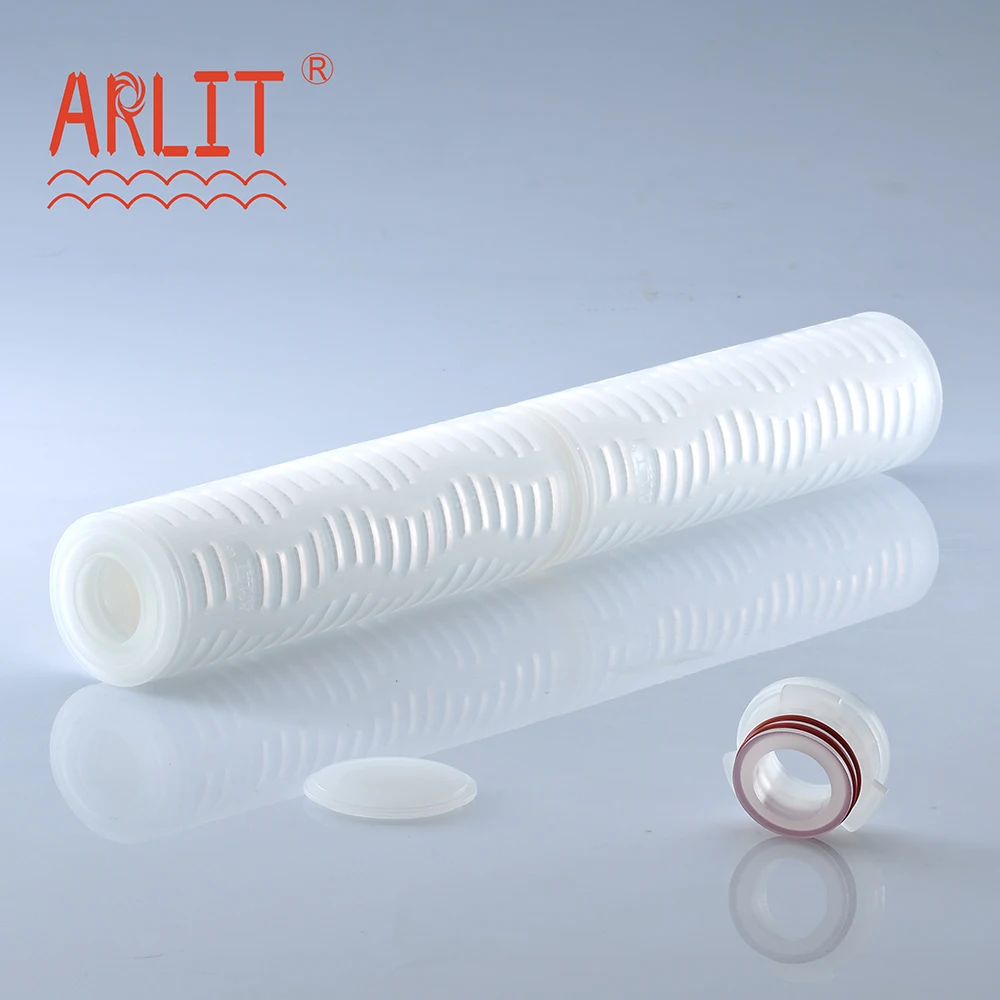

20" PP Micropore Membrane Liquid Filter Cartridge
Production Introduction
It is constructed by high purity pleated PP micropore membrane filter media, provide excellent filtration efficiency and chemical compatibility across a wide range of liquid filtration process applications.
It is constructed by high purity pleated PP micropore membrane filter media, provide excellent filtration efficiency and chemical compatibility across a wide range of liquid filtration process applications.
Feature
1. Manufacture in clean room and high cleaning environment
2. Multi-layers structure , absolute efficiency filter and long service life while steady filtration performance
3. End caps ,seals and components are assembled in fully sealed condition by thermal bond, free of binder ,additives and
lubricants
4. Low pressure drop and high capacity of impurities
5. Strict election materials which according to FDA standard
1. Manufacture in clean room and high cleaning environment
2. Multi-layers structure , absolute efficiency filter and long service life while steady filtration performance
3. End caps ,seals and components are assembled in fully sealed condition by thermal bond, free of binder ,additives and
lubricants
4. Low pressure drop and high capacity of impurities
5. Strict election materials which according to FDA standard
Specification
Filter medium | Polypropylene (PP) |
Support layer | Polypropylene (PP) |
Filter cage | Polypropylene (PP) |
Pore size | 0.1,0.2,0.45,0.65,1,3,5,10,20,30,60µm |
Length | 20 inches |
OD/ID | 69 mm |
Gasket / O - rings | Silicone, NBR, EPDM, Viton |
Interface | DOE,215,222,226flat/fins |
End caps | DOE,0050,0050A,0050B |
Sealing method | thermal bonding technique |
Effective filtration area | 0.4 - 0.7 sqm/10" |
8Max. operating temperature | 140℃, 0.28 Mpa |
Max. forwarder differential pressure | 0.42 Mpa (25℃) |
Max. reverse differential pressure | 0.28 Mpa (25℃) |
Sterilizing temperature | 121℃ 30min |
Others | special requirement of diameter and end caps can be customized. |
Typical Applications
1. Prefiltration for RO/DI 2. Etchants
3. Oil industry filtration 4. Chemicals filtering
5. Cosmetics filtration 6. Medicine Filtering
7. Semiconductor 8. Food & Beverage
9. Plating solution 10. Paints and Coatings
Pure water flow rate reference table: the initial value of 10" cartridge L/min (△P=0.01MPa, 1cP, 25℃)
Micro rating (μm) | 0.1 | 0.2 | 0.45 | 0.65 | 1 | 3 | 5 | 10 |
55Flow rate (L/min) | 5 | 15 | 40 | 55 | 60 | 65 | 67 | 70 |
Our services
1.We are a manufacture,can offer competitive prices.
2.ARLIT branded series of filter cartridge and filter bag been widely applied in industries of medicine,bacterin,electronics,chemistry,electroplate,petroleum,foods,brewage,drinking water,environmental protection and water treatment.
3.We have monthly production volum,with large output capacity,we can promise short delivery time.
4.We have entire seal asepsis production workshop,manual production and automatic production can promise all products are inspected 100% inspected before shipment.
5.We have large inventories for common items which also contribute to shorten delivery time.
2.ARLIT branded series of filter cartridge and filter bag been widely applied in industries of medicine,bacterin,electronics,chemistry,electroplate,petroleum,foods,brewage,drinking water,environmental protection and water treatment.
3.We have monthly production volum,with large output capacity,we can promise short delivery time.
4.We have entire seal asepsis production workshop,manual production and automatic production can promise all products are inspected 100% inspected before shipment.
5.We have large inventories for common items which also contribute to shorten delivery time.
Company Profile
Shantou Yalida Filtration Equipment Co.,Ltd. was established in 2005, which specialized in liquid and air filtration equipment manufacturer.Our company has introduced the advanced production equipments, quality control instruments and manufacture technology for micropore filter cartridge since it was found.
