ultra high definition led video wall for indoor and outdoor digital led wall of bar decoration led pixel panel of night club led

Product Overview

Description

1---Product Name:

       Outdoor&Indoor Led Video Pixel Light



2---Features of  Led Pixel Light:

       1): A new type of energy-saving and environmental protective lights.

       2): Using imported ultra-high brightness chip as light soure

       3): Builtin microcomputer chip, cansynchronize full-color gradual,transiting,scaning,runing wate.

       4): It is a supplement for linear light soure and the floodlighting, the beautuful shape of which could meet the physical design requirements for point, line, and plane



3---Application of  Led Pixel Light:

       Outdoor led video wall light is Applicable for building, amusement parks, large billboard, walls, squares, streets, bars and so on.



4---Parameter of  Led Pixel

1.LED pixel light
Pixel led	P125
Pixel composition	6R,3G,3B
Wave length(nm)	R 626-628,G 518-520,B 466-468,
Outline dimention(mm)	50 * 50 * 50
Outline material	pc
Weight	100g/pc
Protection grades	IP65
Working temperature(ºC)	-10~+50
Humidity(RH)	Up to 95
Stored temperature (ºC)	-30~+70
Power consumption (pcs)	1.2W
Pixel wall
Pixels Pitch(mm)	125
quantities in  1S.Q.M	8(L)* 8 (H)
2.Packaging
Packing Way	200pc/carton
Packing box material	Carton
Packing box size (mm)	1000 * 500 * 300
Weight of 1carton with 200pcs	20kg
3.electricity parameter
Pixel density(dots/M2)	64
White Balance Brightness(cd/m2)	Max 600 Average  ≥400
Color temperature(K)	5000—8000 (choice by user)
Brightness Adjusted	100 grade by software, or by Auto-optic induced.
View Angel	Horizontal 160° Vertical160°
Best viewing distance(m)	30-1000
Communication distance(m)	Internet Wire 120 Fiber Cable 1000
LED driving method	Constant driving current
Gray Grades	256 levels for each color
Display Color	127777216
Refresh Frequency (Hz)	≥400
Picture display method	Dots to dots display synchronized with CRT
Signal interface	DVI
Screen Lifetime(hours)	≥100,000
Maintance way	Back-maintained, modules displaced
Switch power supply	Single Phase AC 110V/60Hz or 220V/50Hz
Power Consumption (W/m2 )	Max 80, Average  ≥55

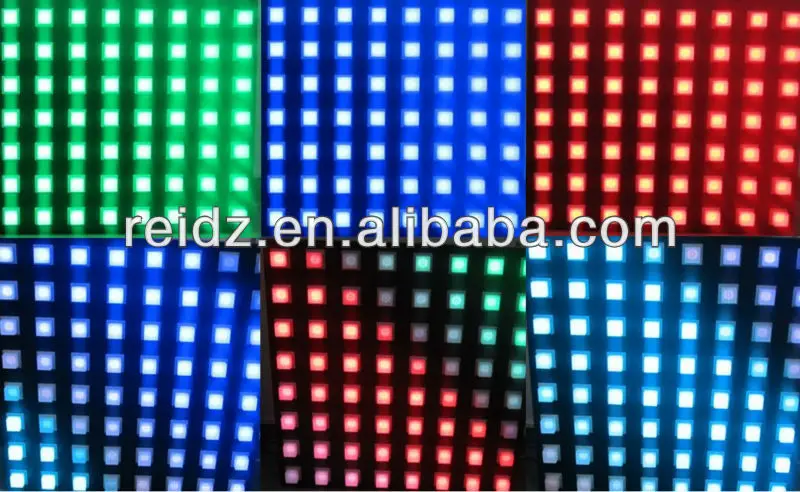

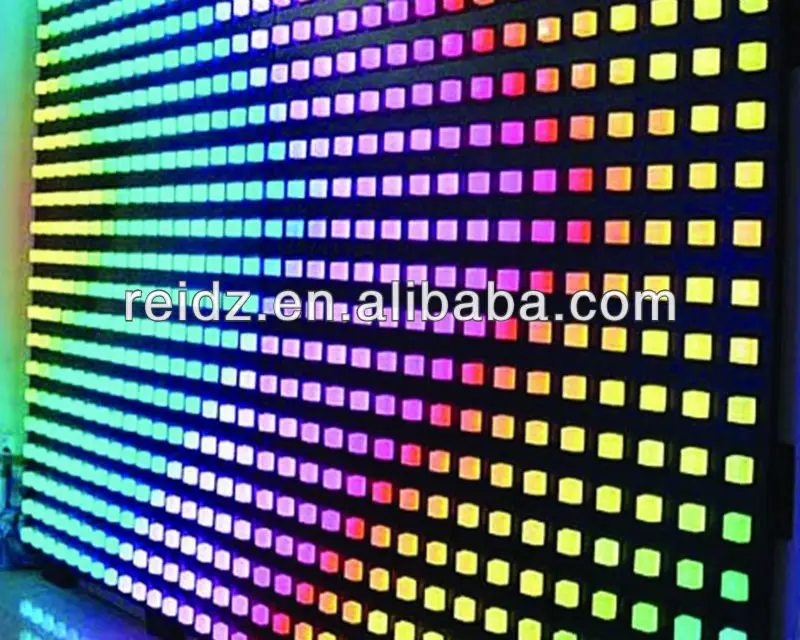

 Real Segment Pic for the Outdoor Led Pixel Video:

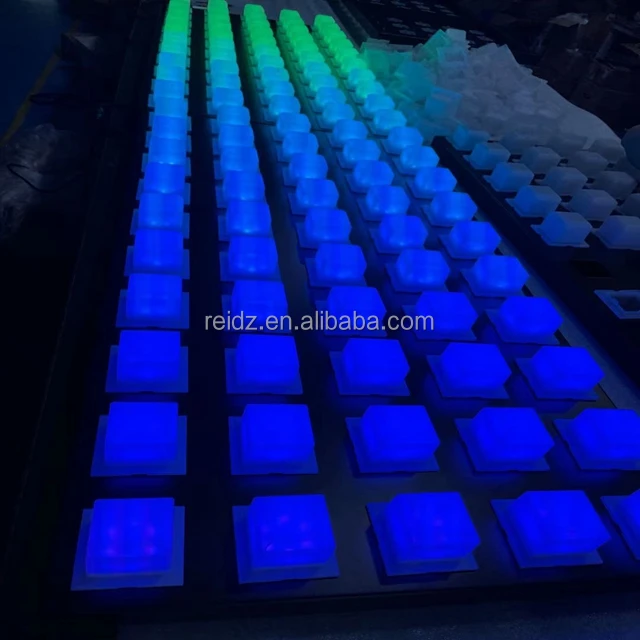

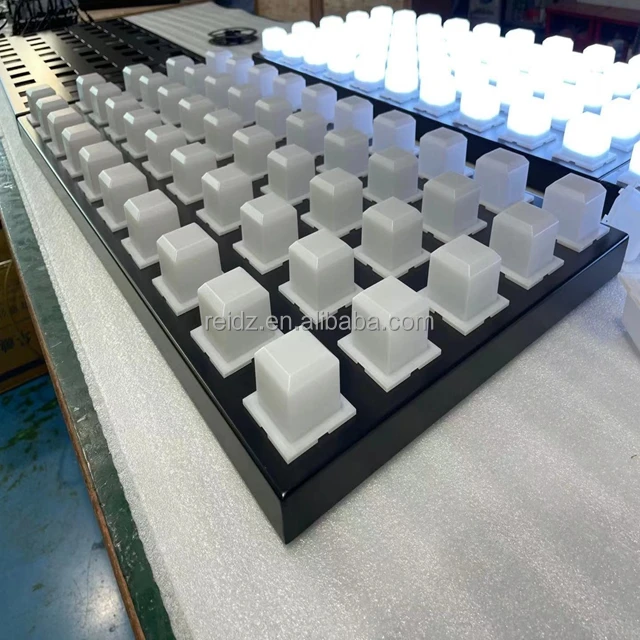

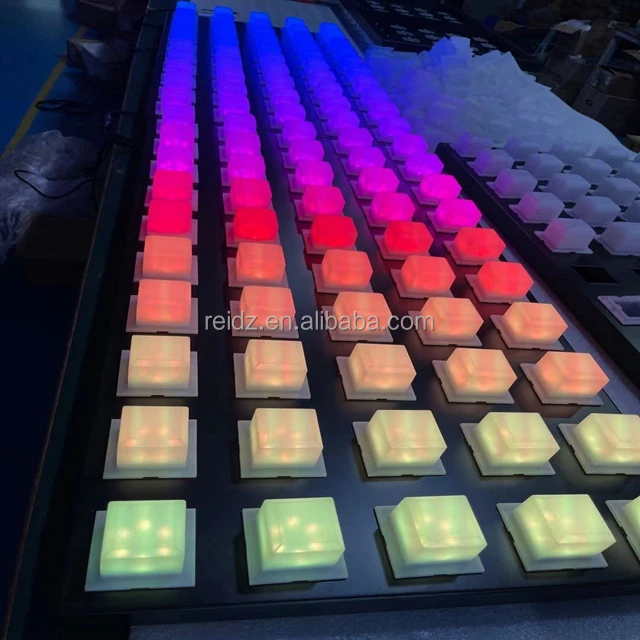

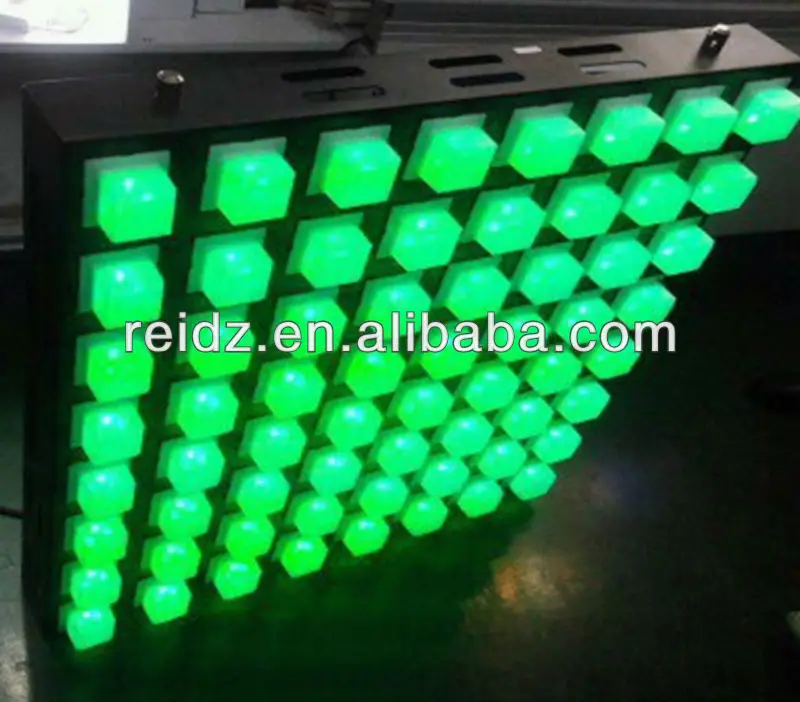

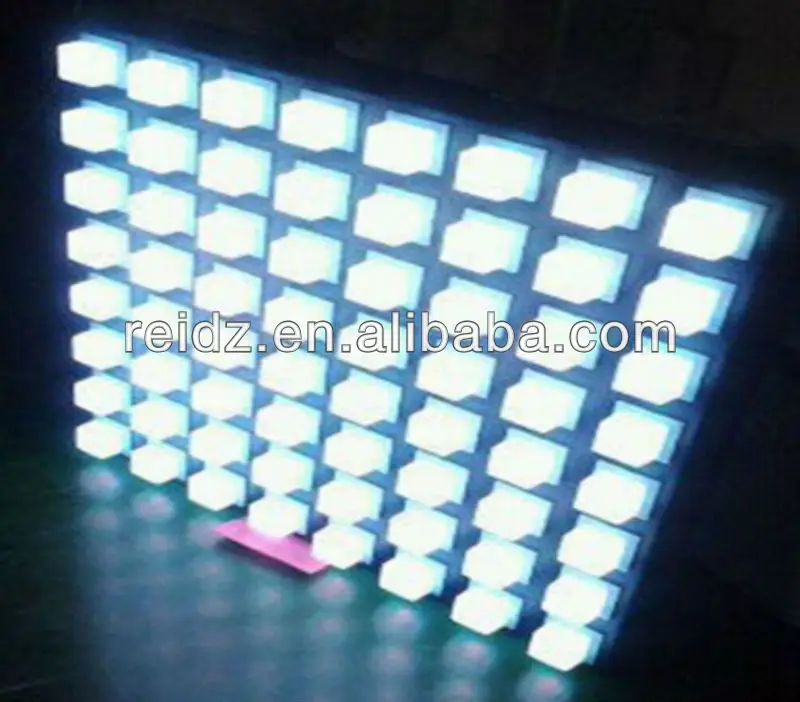

Led Pixel Module:

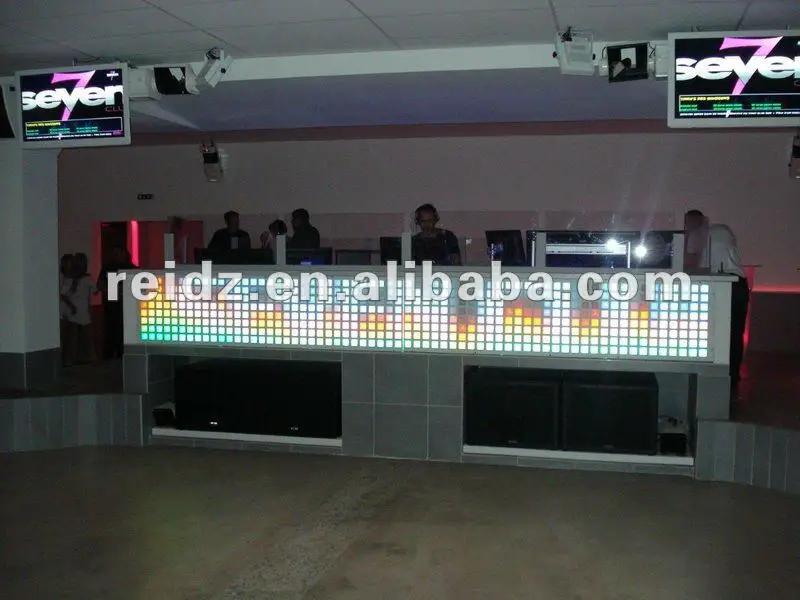

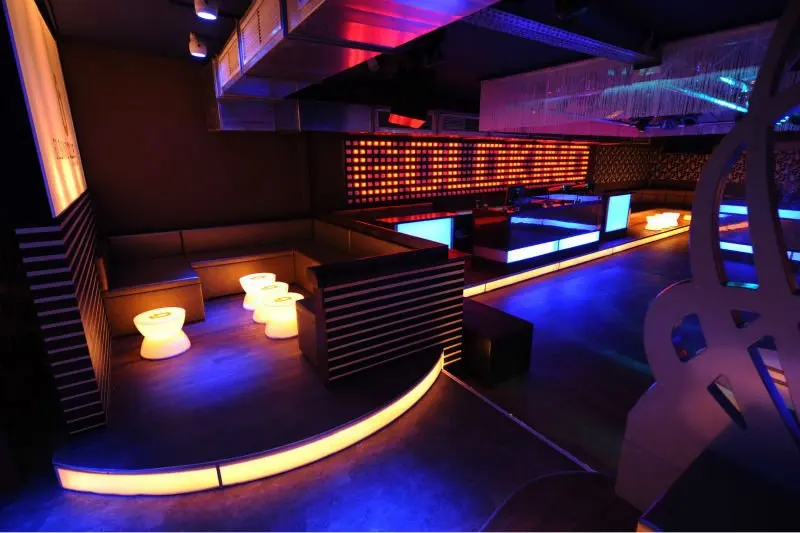

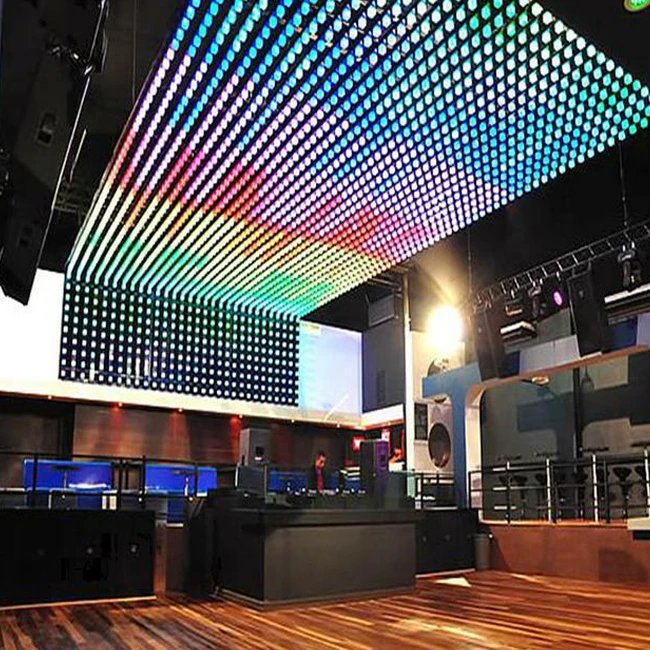

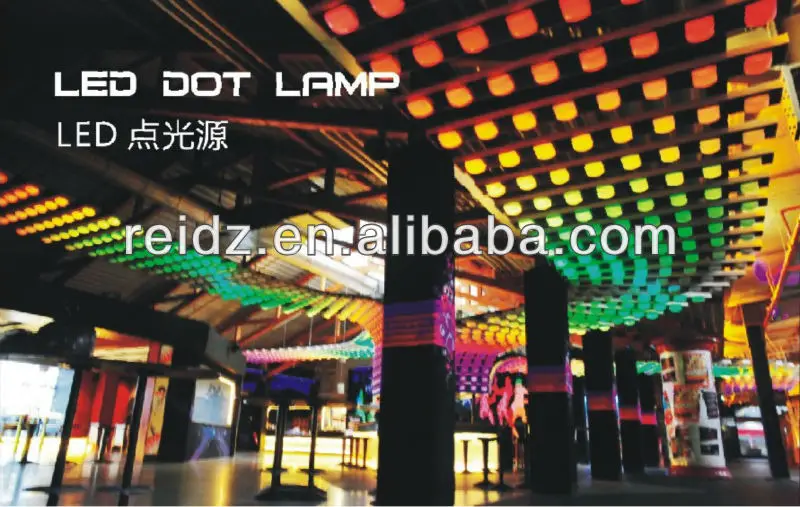

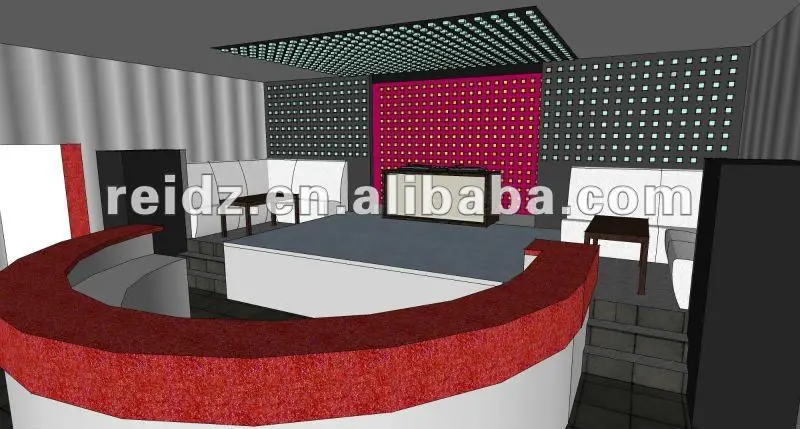

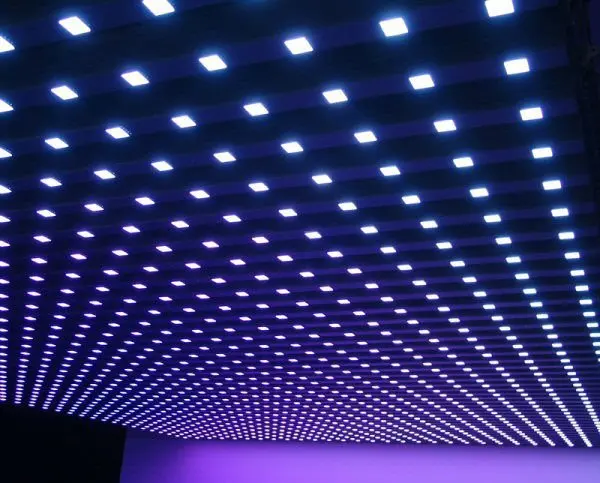

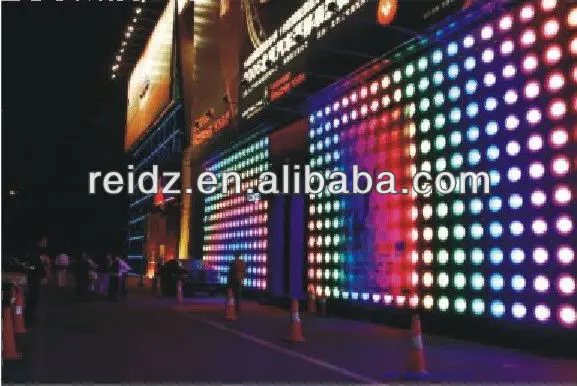

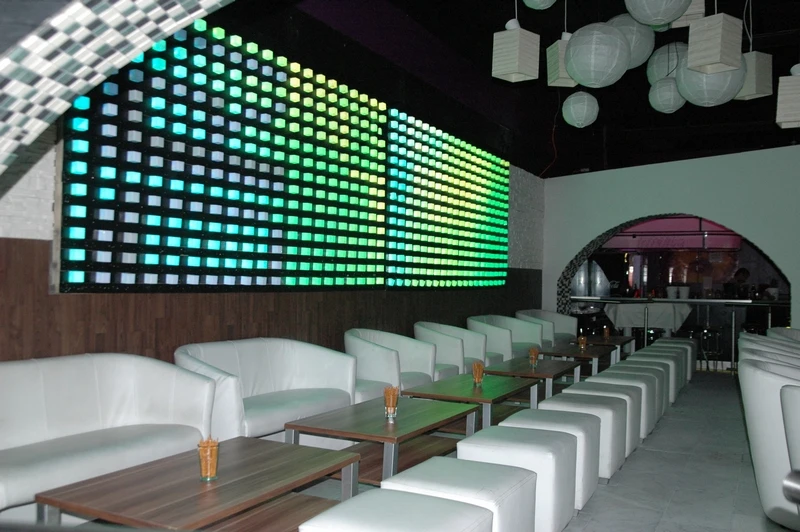

Led Pixel Vedio Applications:
