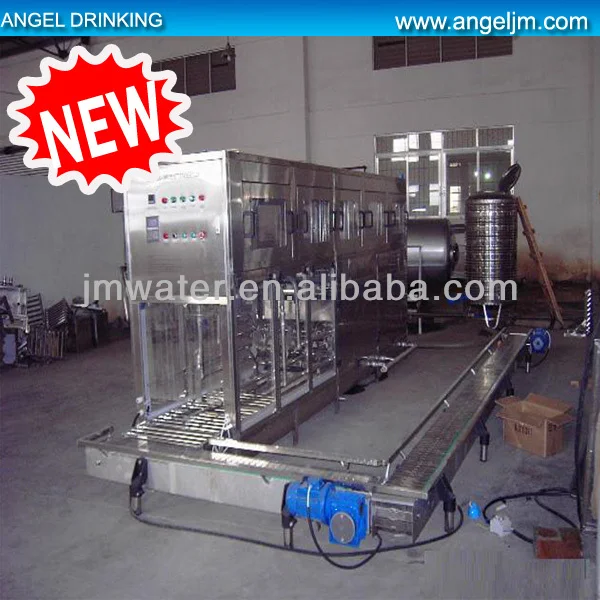

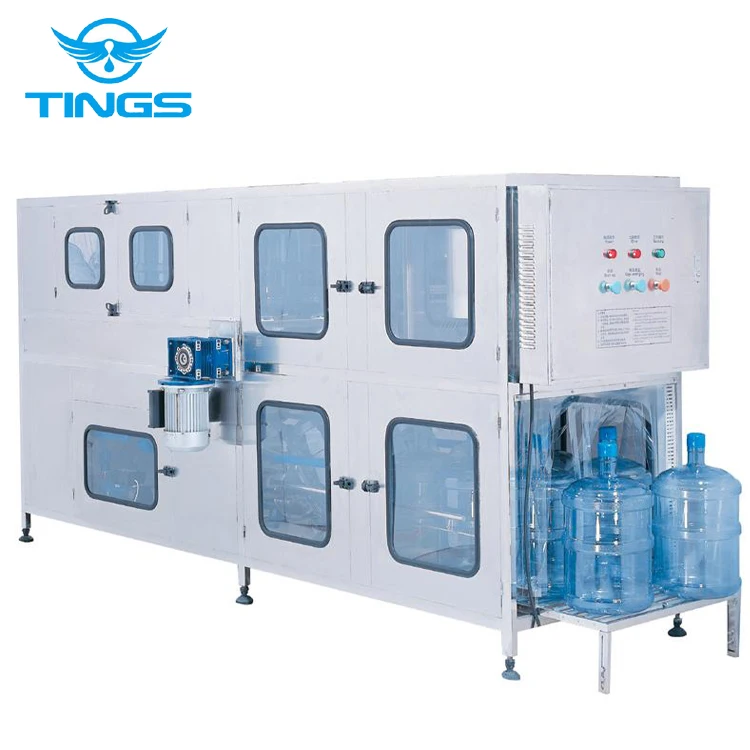

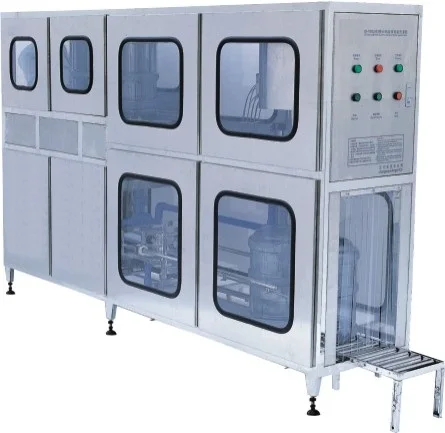

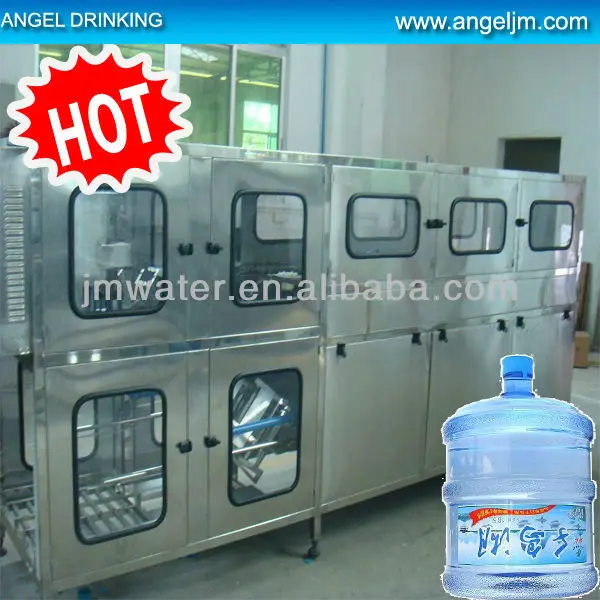

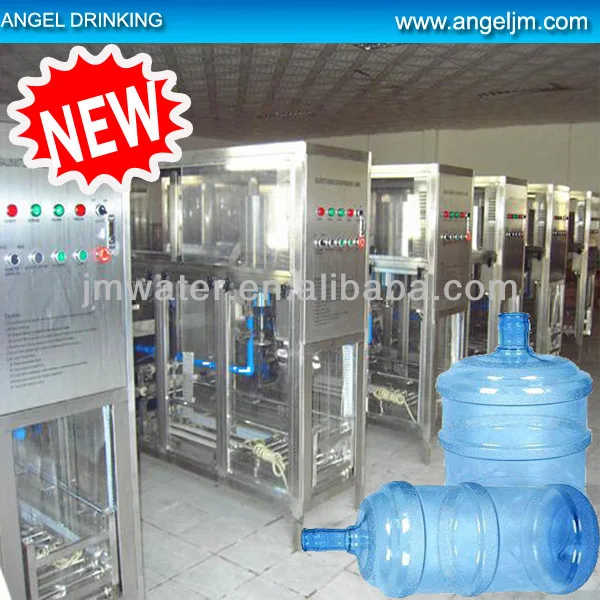

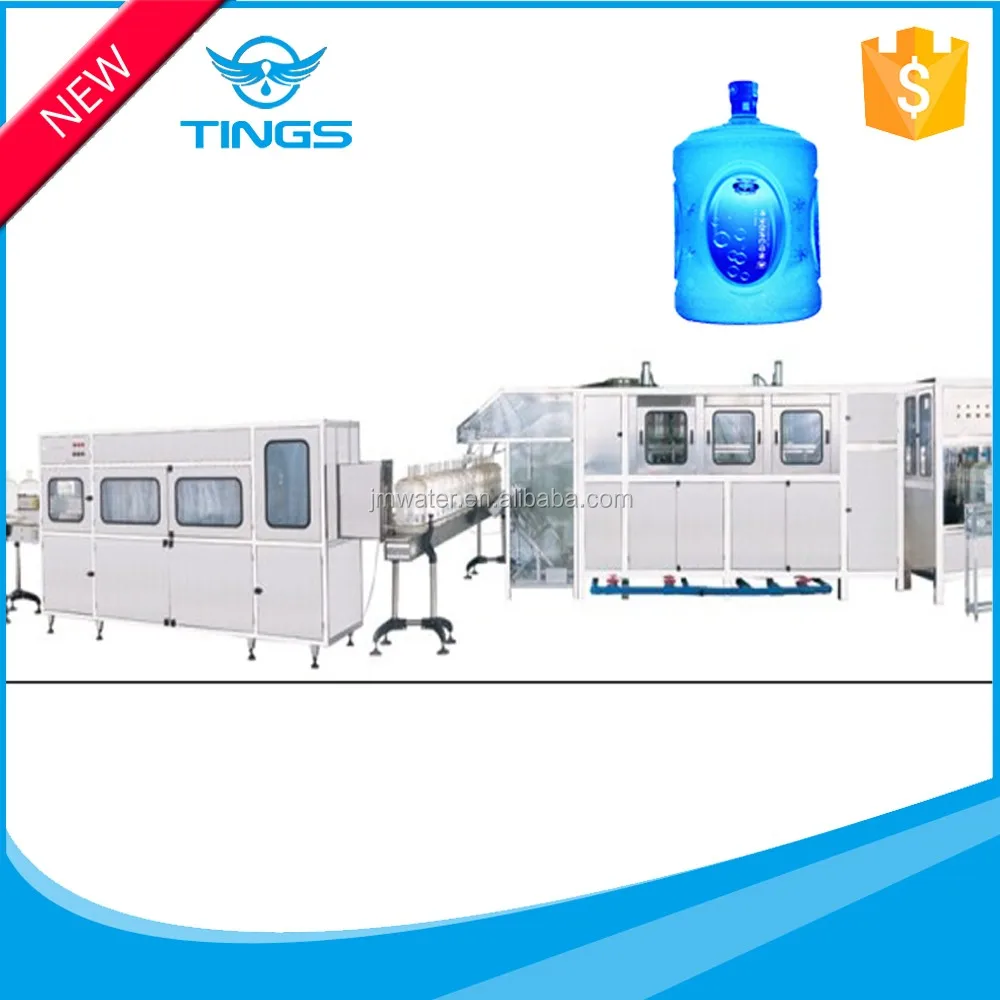

Big bottle 5 gallon water bottle plant /water filling equipment
XG-100/J series auto barrel washing filling capping equipment: capacity range is from 60-1200bucket per hour.After a detailed market research, our factory gave birth to the XG-100/J, a brand new type of micro-computer automatic bottle washing and filling machine, which embodies the new technology and craft. Every function is took order by the micro-computer, so that each programmer is ensured to be automatic.
1.Working principle: When bottles are sent to the machine by conveyor continuously, they firstly are delivered to the receiving wheel by air-slide conveyor and then to washing part. The bottle clamps hold the bottles and turn over 180* to wash, then return back to their original position after enough washing and drying. Then, the bottles are sent to the middle thumb wheel. 1) and to the filling part to be filled, then moved by middle thumb wheel. 2) and reach to capping part to be capped, at the same time, cap trimmer sends caps to the top of the bottles and capper screws caps. At last, bottles are sent to the conveyor chain by the out stirring wheel to next working position.
2.Main characteristic:
Big bottle 5 gallon water bottle plant /water filling equipment
1).Adaptability is wide: Because all parts have a height adjust device. 2).Production capacity can be adjusted continuously: using a frequency inv erter to control the speed. So it works more reliable. 3) This machine has a complete set of reliable protection system to protect the machine itself and the operator. 4)Compare with similar type of machine, it has following performances: More compact in structure, more beautiful in appearance. The structure of bottle rinsing clamp is more delicate. Screw head uses magnetic parts.
3. Parameter:
Model:
XG-100
XG-200
XG-300
XG-400
XG-600
XG-900
XG-1200
Volume
10/20
10/20
10/20
10/20
10/20
10/20
10/20
Barrel size:mm
270*490
270*490
270*490
270*490
270*490
270*490
270*490
Capacty:b/h
100
200
300
400
600
900
1200
Weight:kg
680
800
1500
2100
3000
3500
4500
Model
XG-100/J
Capacity
100 Bucket per hour
Power
1.5KW
Washing system
Disinfection solution medicine clean Tap water clean Pure water clean
Working system
Floating rotary filling system
Bottle feeding method
Rotary style sealer
PLC control system
LG, Korea
Filling mold
floating rotary filling, rising and feeding bottle to start filling,dropping and moving out bottle to finish filling
Cap head
1 head, with cap arranger system
Filling head
1 head, Italian type filling water nozzle
Frame body
SUS304
The direction of bottle output
Bottle output with linear direction
Machine size
2600*740*1670mm

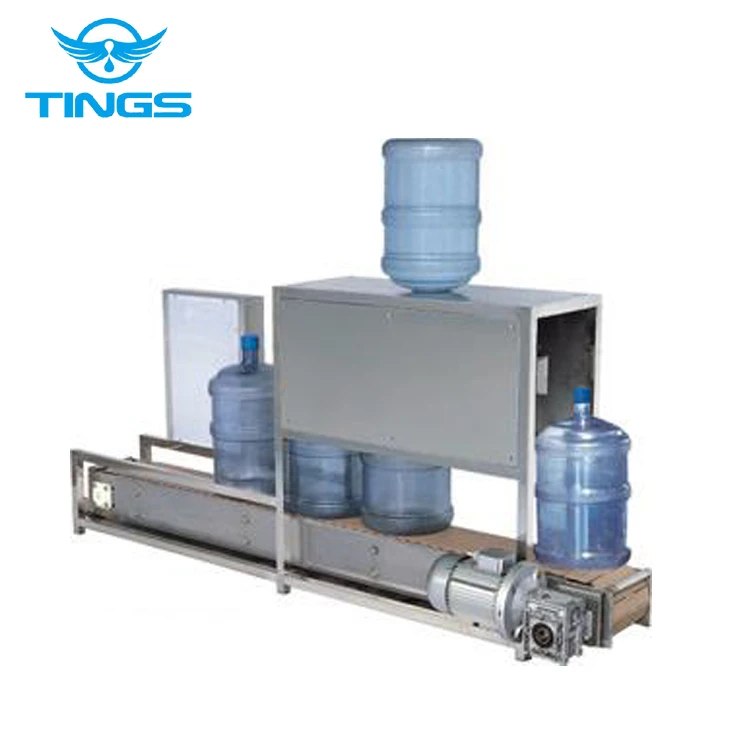

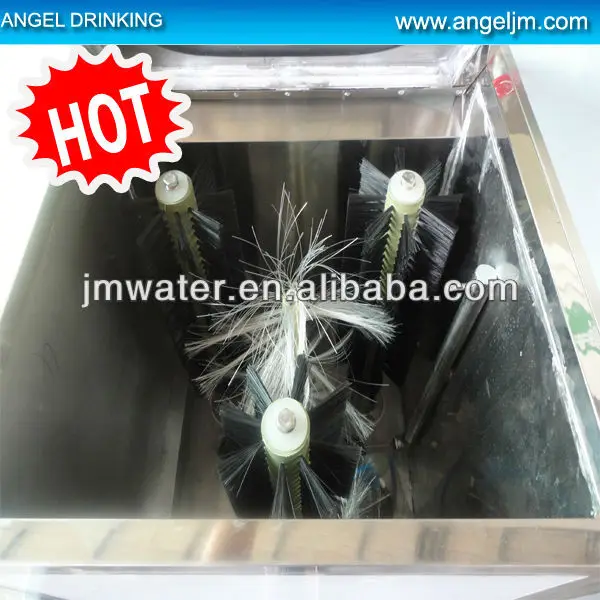

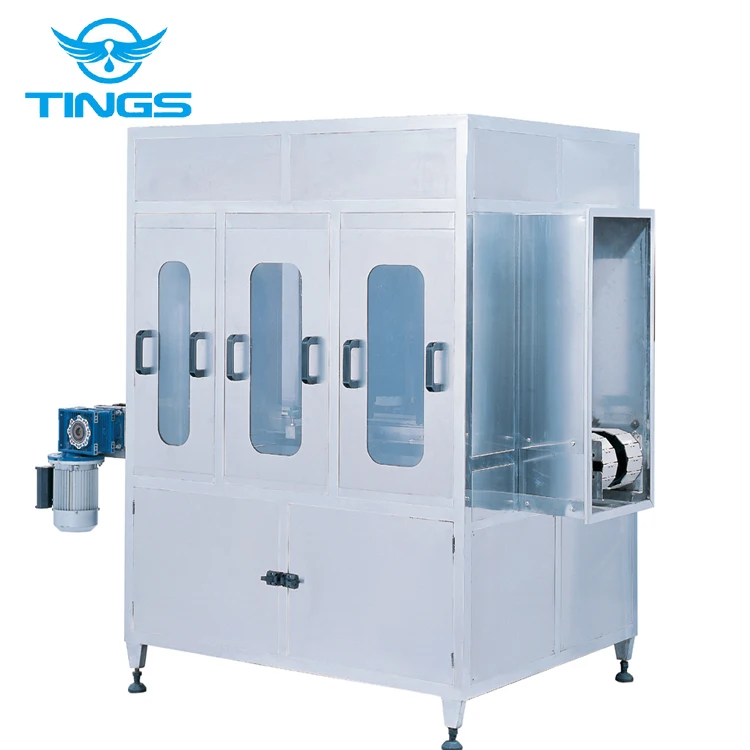

4.Assistant device for Micro-computer bottle production line
