8. Highway, railway, automobile, watercraft, mining petroleum, electrical industry, food industry etc.

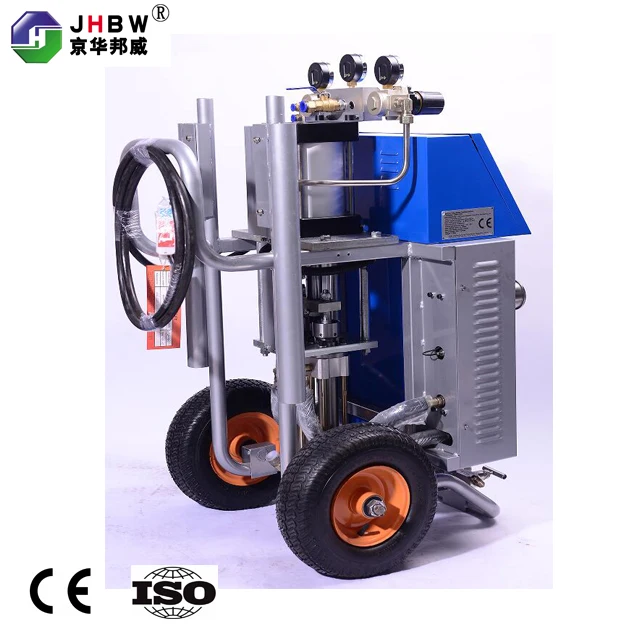

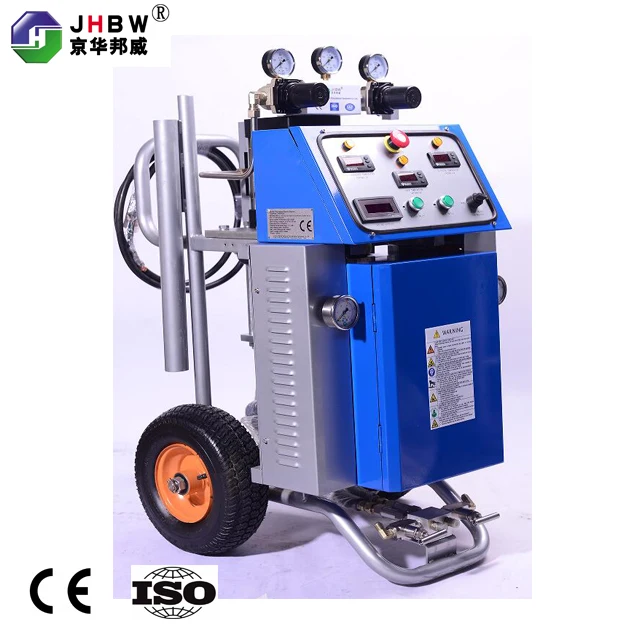

Machine Pictures
Specifications
Specifications: JHBW-A200
The ratio of raw material
1:1
Viscosity range of raw material
200-1000CPS(under working temperature)
Max working pressure
15MPa
Max fluid temperature
80°C
Max output
8kg/min (17.6 lb/min)
Heater power
2600W×2
Drive model
Full pneumatic
Spray gun clean
Self-clean by air
Voltage (Optional)
Customized
Pneumatic source
0.5-0.8Mpa 1m³/min

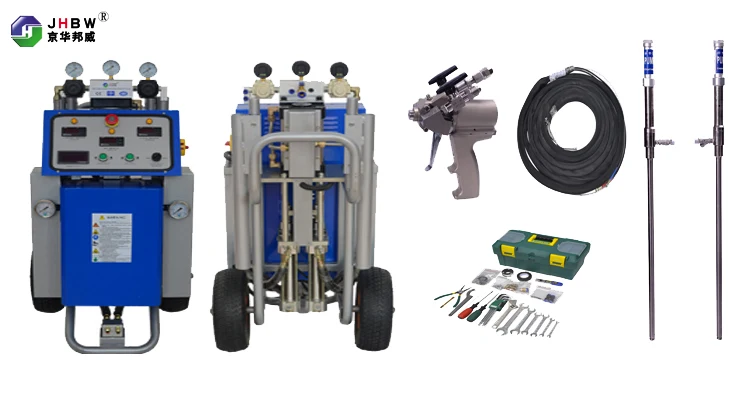

Standard Configuration:
JHBW-A100 mainframe
1 set
JHBW-P2 spray gun
1 pc
Transfer pump
2 pcs
Heated hose (Standard)
15m
Max hose length (Optional)
45m
Transfer pump hose
2 pcs
Air pipe
1 set
Spare parts and tools
1 set
Transport Parameter:
Package size (L×W×H)
90×75×143cm
Net weight/Gross weight
165kg/200kg

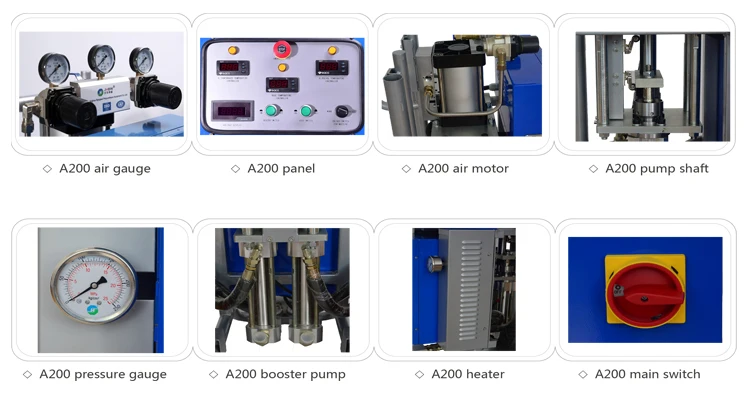

Details
Advantages
1. JHBW-A200 has passed CE, ISO9001 Quality Management system certification, completely independent intellectual property design and production, has declared a number of national invention patents.
2. This equipment small size, light weight, low failure rate, easy to move, easy to operate.
3. The pneumatic reversing control assembly, the structure is simple, the performance is stable, breakthrough the traditional electromagnetic induction commutation way, truly realizes can work in the electricity-free environment, the extension electrical element 50% service life.
4. The heater uses a special frequency control device, the temperature sensor real-time acquisition of temperature signals, so that the heater is in good control.
5. The new type booster pump uses the high quality stainless steel manufacture, has the corrosion resistance, and abrasion resistance characteristic, lengthens 50% service life.
6. This equipment has the overheating protection device, simultaneously uses the famous import component, causes the equipment performance to be more stable and reliable.
7. Equipped with emergency switching system, can be the quickest response to emergency situations.
8. Stop reset function can effectively protect the booster pump shaft.
9. Installation of front filter, can effectively filter impurities in raw materials, reduce the occurrence of gun blocking.
10. The equipment operation panel humanized design, makes the machine very easy to operate.
Founded in 2011, Jinan JingHuabangwei Polyurethane Equipment Co., Ltd. is a manufacturer of polyurethane and polyurea equipment integrating R&D, production, sales and after-sales maintenance services. The company has strong R&D and production experience. The machine has passed the national CE certification and ISO 9001 certification, and the quality of the products is guaranteed. At present, the company has developed into a professional manufacturer of polyurethane and polyurea equipment with global competitiveness and core competitiveness in more than 80 countries and regions around the world. The company specializes in the research and development and production of polyurethane spraying, filling equipment, polyurea spraying equipment. On this basis, the products are divided into pneumatic vertical, horizontal equipment, hydraulic equipment and other professional products suitable for different industries. Products are suitable for: construction, building materials, automotive, environmental protection, waterproof, anti-corrosion, light industry, chemical, electronic information, transportation, equipment, textile, medical, sports, defense, aerospace, thermal, biotechnology, warehousing, transportation, Packaging, handicrafts and many other industries. Over the years, we have gathered a group of outstanding R&D and mechanical design talents. Based on our accumulated experience, we have created polyurethane and polyurea equipment suitable for modern production and construction processes. All employees of Jinghua Bangwei adhere to the corporate philosophy of “Quality First, Customer First”, regard product quality as the life of the company, and strive to build a world famous brand!
