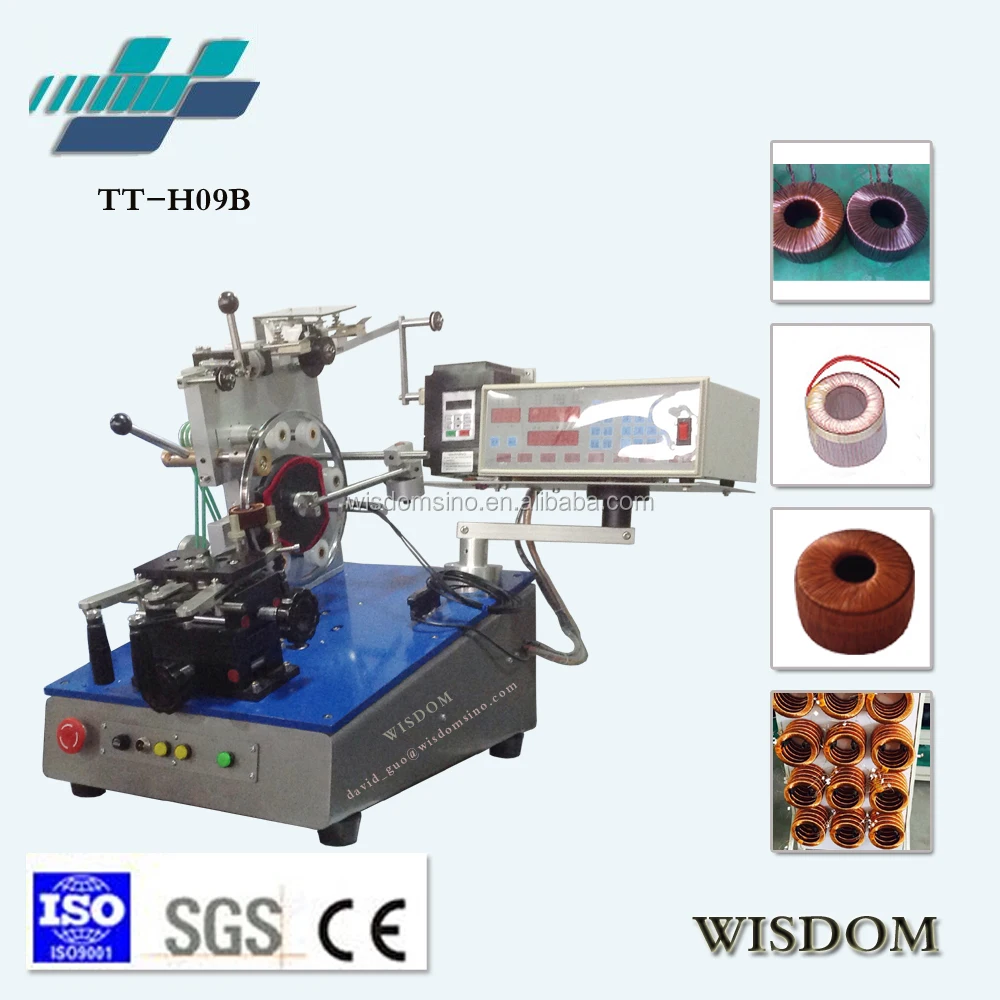

• TT-H09B automatic Toroid coil winder adopts CNC toroid controller, TT-H09B automatic Toroid coil winder is slider type winding shuttle. TT-H09B automatic Toroid coil winder is an accurately and reliability digital Toroid coil winder , TT-H09B automatic Toroid coil winder is used for toroid inductor, toroid transformer, toroid current transformer, toroid current sensor, toroid coil, toroid chock coil, power inductors, power magnetics, UPS inductor, converter inductors, watter metter sensors, toroid current transformer of electronic watter-hour meter etc
• SPEED: 1500rpm • WINDING MOTOR: 370W AC motor, variable frequency drive • SPREAD MOTOR: Stepping Motor • MEMORY CAPACITY: 999 STEPS • POWER SOURCE: AC220V +10%, 50/60 Hz

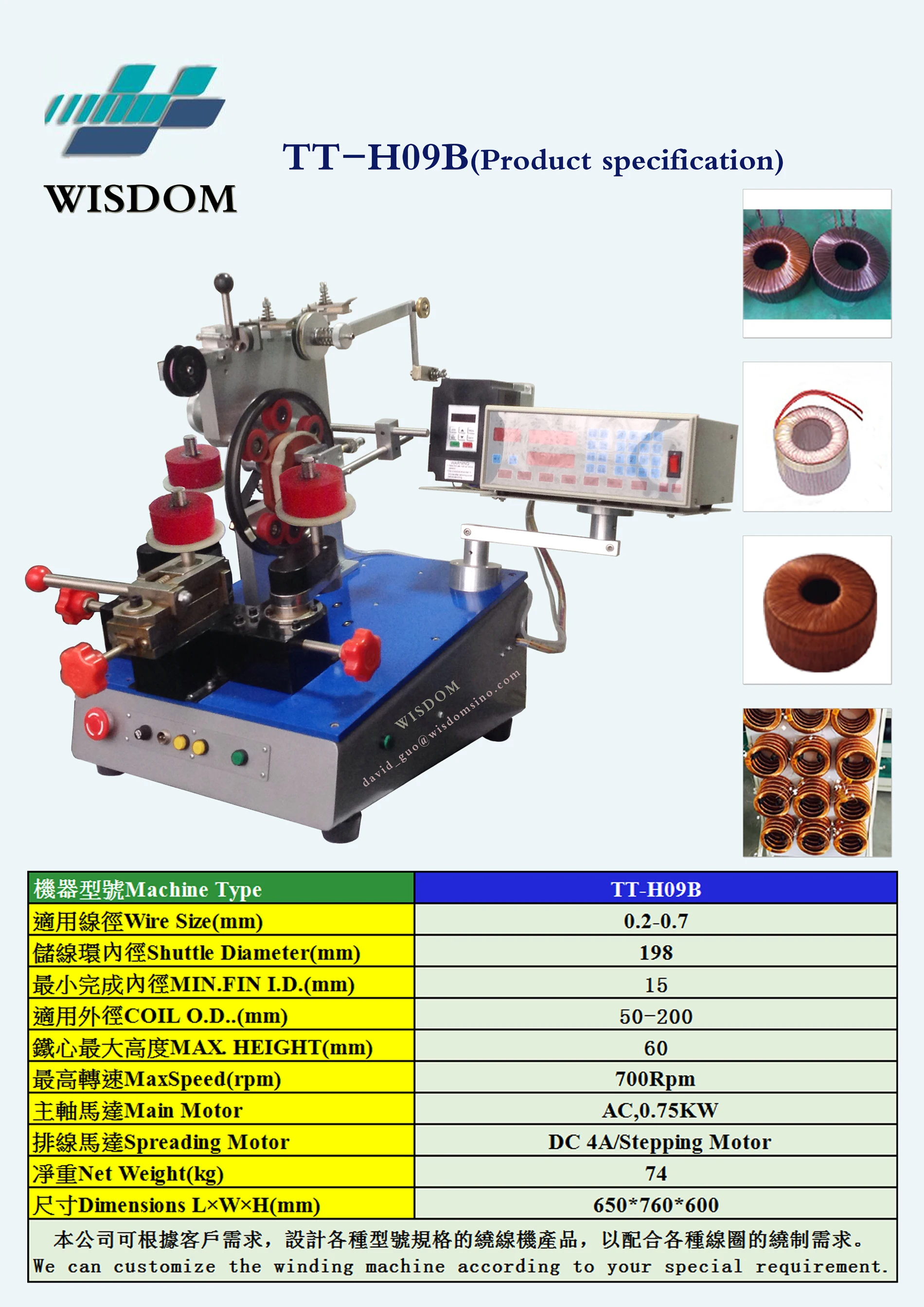

Machine Type
TT-H09B toroid coil winder
TT-H09P toroid coil winder
COIL O.D.
40-200mm
40-200mm
MIN.FIN. I.D.
MIN 15mm
MIN 12mm
MAX. HEIGHT
MAX 80mm
MAX 60mm
SPEED
700RPM
SPREAD MOTOR
Stepping Motor
WIRE SIZE
0.15-0.7mm
0.4-1.2mm
SHUTTLEDIAMETER
195mm
WINDING MOTOR
0.75HP AC motor, variable frequency drive
SHUTTLE WIDTH
8mm,10mm,12mm,15mm,17mm,20mm
POWER SOURCE
220V ± 10%; 50 / 60 Hz
Net weight
60 KG
Dimensions
650mm X600 mm X550 mm
The above parameters can be customized according to customer requirements,
for more detailed specifications, please contact the Business Department
• Collocate the Belt type winding head or Slider type winding head to reduce the cost • Hi-tech shuttle for highest efficiency. • Separate speed controls for loading and winding. • Accurately count length of loading by Photoelectric sensor switch. • Accurately count turns of winding by OMRON sensor • Programmable winding direction, winding returns range (Turns or Angle) and segment winding angle • Accurately wire spacing by programmable controller • Memory capacity accommodates 999 sequences of parameters with off-power memory retention for more than ten years.
Packaging & Shipping
We always pack the machine in plywood boxes. and we also can provide the package according to our customer's requirement.
FAQ
How to select the best suited automatic toroid coil winding machine for your toroid coil
Tell us your toroidal coil data as below please:
1, toroid core outside diameter before winding?
2, toroid core inside diameter before winding?
3, toroid core height before winding?
4, how many windings on this core?
5, how many turns of each winding?
6, how about the copper wire diameter of each winding?
7, provide pictures of product which is better.
