Fluidized Bed Jet Mill Classifier/Powder Grinding Machine/Pulverizer

Product Overview

Description

 Best seller Fluidized Bed Jet Mill Classifier/Powder Grinding Machine/Pulverizer

Features:



Narrow Particle size distribution without oversized particles.

Material collision each other lead to breaking, what reduce the wear and the product won't be polluted.

The air flow’s Sharp expansion in grinding leads to temperature’s reduction, which is also fit for processing heat-sensitive materials and low melting point material.

Several kinds of materials can be ground at a time.

Alterable and compact combined structure can be used in many aspects.

Over-all sealing and vacuum operation will not pollute environment.

Easily operation and low-noise(≤85dBA)

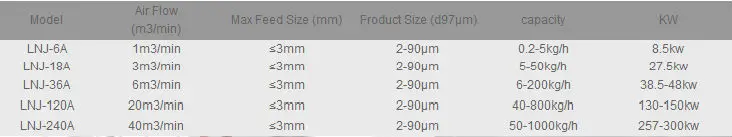

Main Technical Parameter:



Applications:

 [high purity and super-hard material]
Typical materials:fluorescent powder, titanium dioxide, silicon, copper and other high purity pigment, etc.
[fine chemicals ,ceramics, abrasive and refractories]
Typical materials:garnet, silicon carbide, corundum, ceria, aluminium oxide, boric oxide, tungsten carbide and emery, etc
[food, pharmaceutical and health products]
Typical material:pollen, hawthorn, pearl powder, Nimodipine, antibiotic, contrast agent, glossy ganoderma, Chinese galls, polygonum multiflorum thunb,etc.
[magnetic powder, mobile phone electromagnetic powder, photocopy toner and electronic material]
Typical material: lead acid battery, Ni-Cd battery, Ni-Mn battery, ferrite, Trimanganese tetroxide, manganese dioxide, LiCoO2, lithium manganese oxide, carbon, etc.
[non-metallic mineral and powder metallurgy]
Typical material: quaraz, barite, kaolinite, triple superphosphate, talc, mica, graphite, wollastonite, etc.
[reflectoriy material, pigments and powder paint]
Typical material:iron oxide, titanium dioxide,glass bead, etc.
[pesticide, feedstuff and biomaterials]
