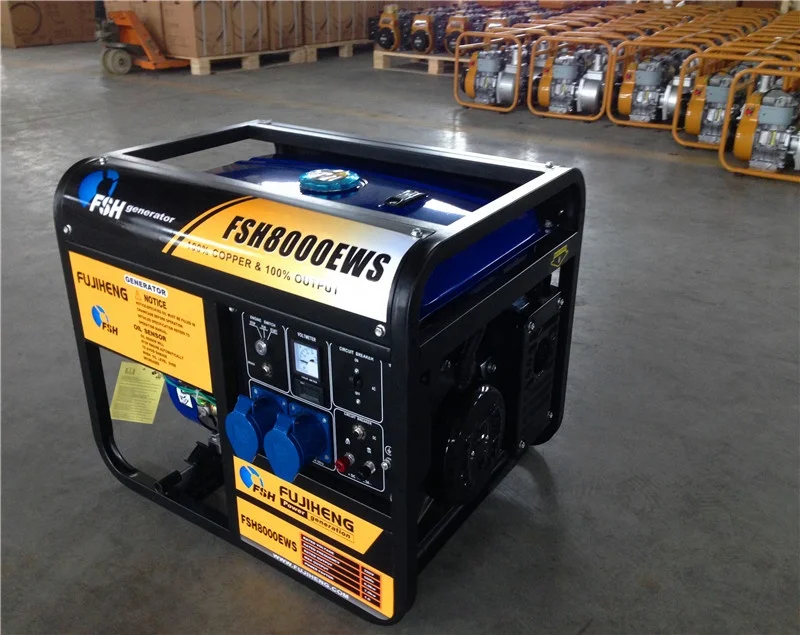

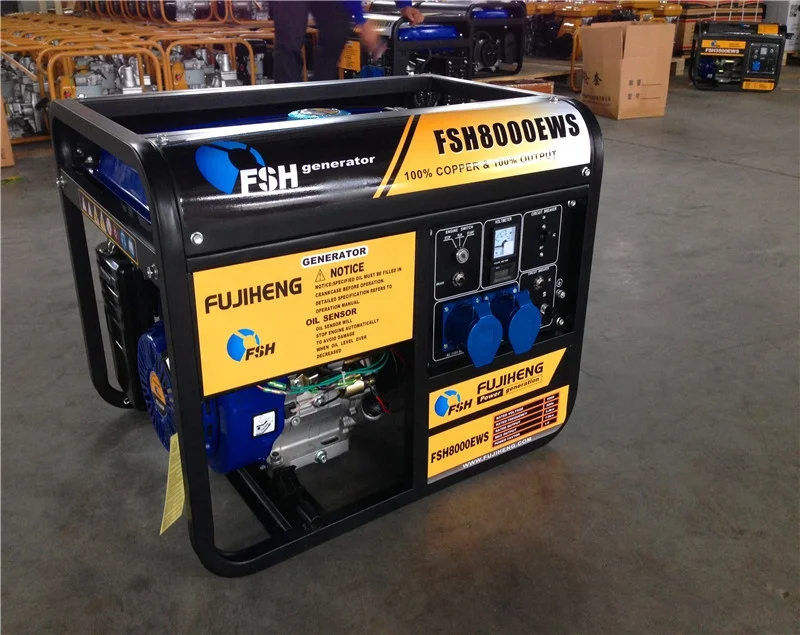

FSH(GENERATOR FSH6500E)5.5KW Gasoline generator

Product Overview

Description

Gasoline generator set
model	SH1500WS	SH2500WS	SH3500WS	SH5000WS	SH6500WS	SH7500WS
type	brush,single-phase	brush,single-phase	brush,single-phase	brush,single-phase	brush,single-phase	brush,single-phase
voltage regulate	AVR	AVR	AVR	AVR	AVR	AVR
frequency(Hz)	50/60	50/60	50/60	50/60	50/60	50/60
rated AC voltage(V)	110/120/220/230/240	110/120/220/230/240	110/120/220/230/240	110/120/220/230/240	110/120/220/230/240	110/120/220/230/240
rated AC output KVA	1.5/1.8	2.0/2.2	2.5/3.0	4.0/4.5	5.0/5.5	6.0/6.5
MAX AC output KVA	1.7/2.0	2.2/2.5	2.8/3.5	4.5/5.0	5.5/6.5	7.0/8.0
power factor	1	1	1	1	1	1
engine model	JF168	JF200	JF200	JF390	JF390	JF420
engine type	OHV 4--STROKE,FORCED AIR-COOLED			OHV 4--STROKE,FORCED AIR-COOLED
fule tank capacity ( L)	15	15	15	25	25	25
continuous operating hours(h)	11	11	11	11	11	11
ignition system	T.C.L	T.C.L	T.C.L	T.C.L	T.C.L	T.C.L
starting system	recoil/electric start	recoil/electric start	recoil/electric start	recoil/electric start	recoil/electric start	recoil/electric start
packing size(L*W*H)mm	610*535*470	610*535*470	610*535*470	700*605*600	700*605*600	700*605*600
Net weight (KG)	40	42	51	80	85	96
20/40FT UNIT	225/475	225/475	225/475	128/272	128/272	128/272
