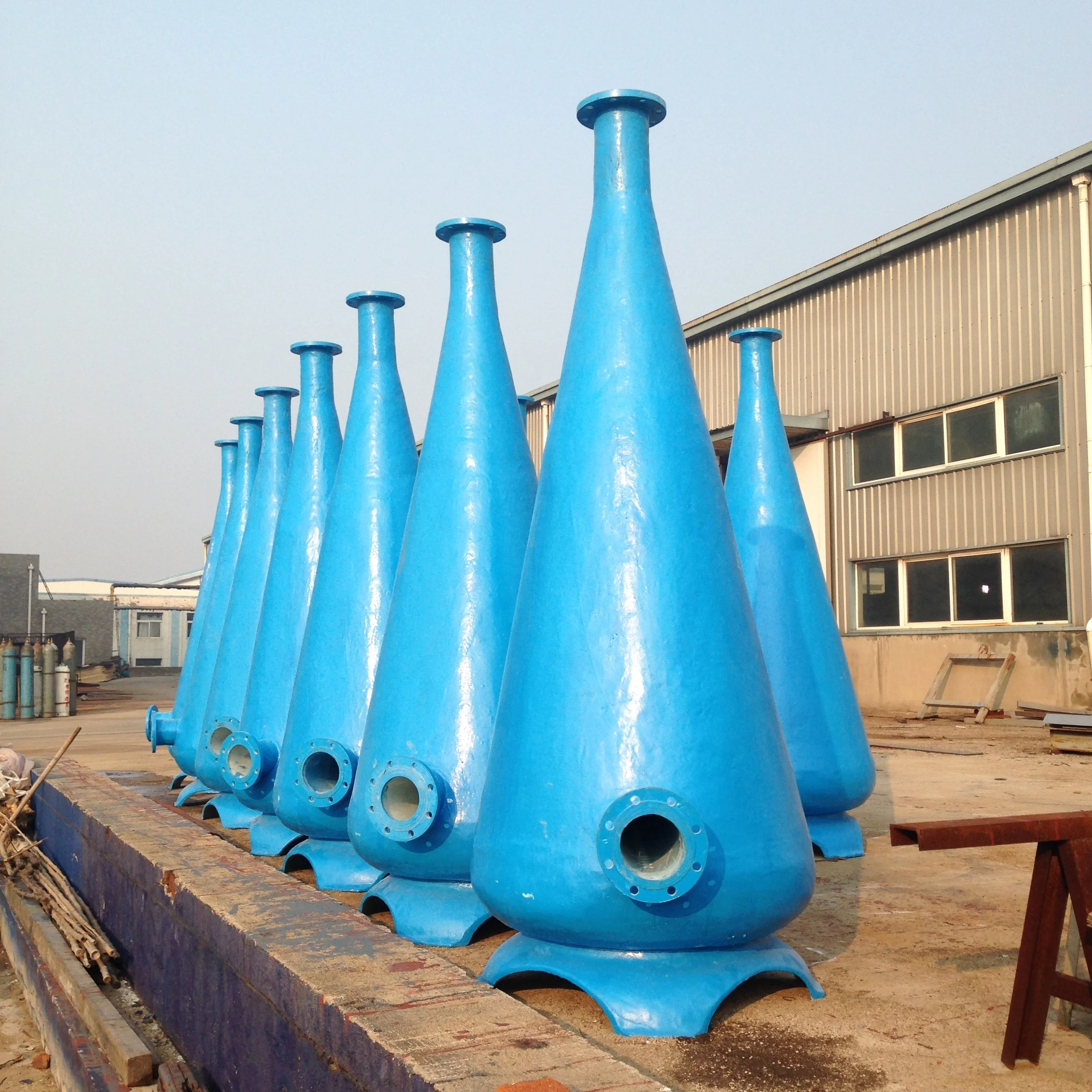

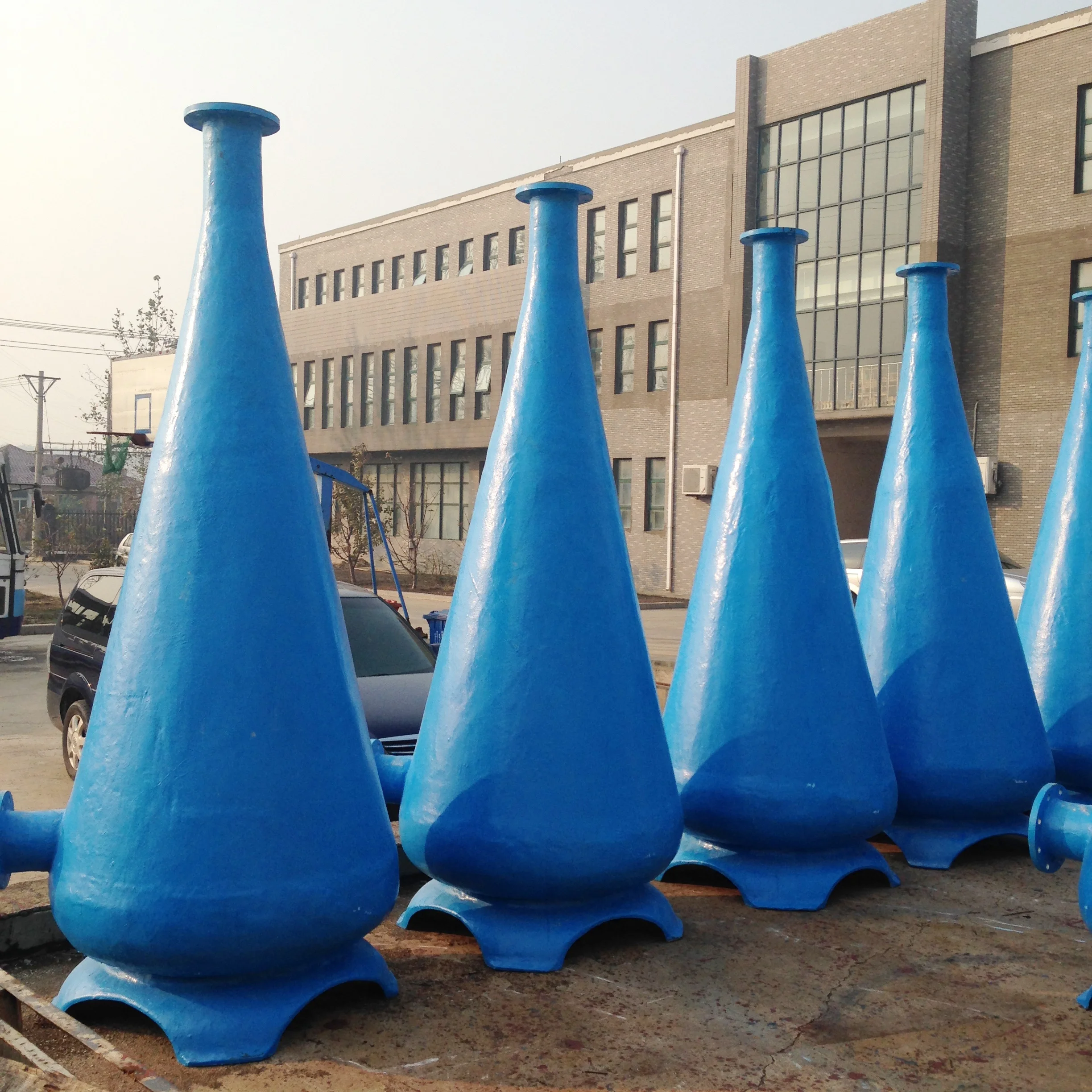

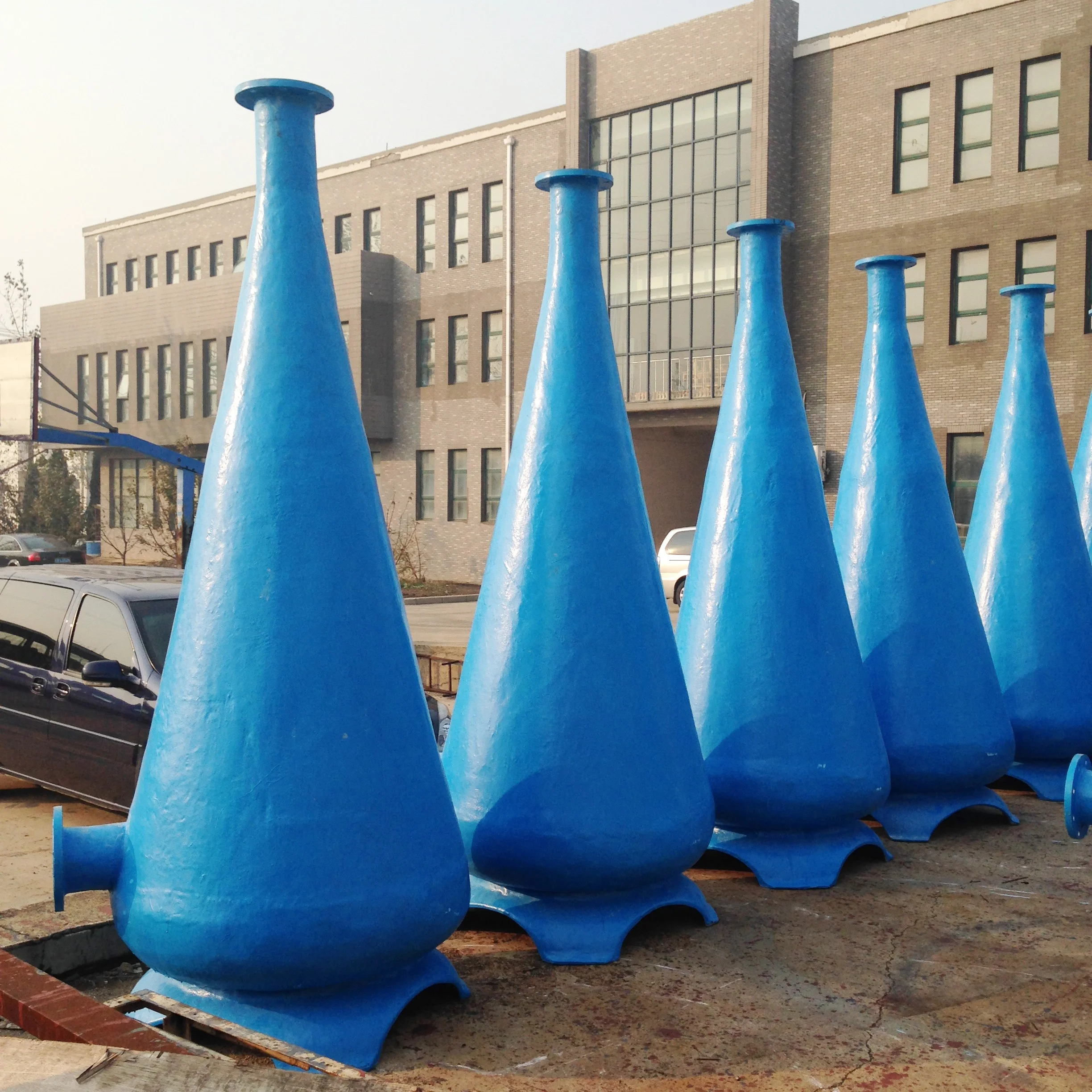

Our oxygen cones are used for mixing oxygen in the water.Their shape makes the saturation efficiency very high , up to 95%. Water and oxygen enter at the top of the cone at relatively high speed. The stream of water pushes the oxygen bubbles down until they completely dissolve.
Features:
1).High saturation efficiency 95% 2).Robust construction 3).Easy installation 4).Endurance
Detailed Images
Product Parameters
Name
Specification
Brand
Material
HXYZ-30
30 tons per hour
HUIXIN
FRP
HXYZ-60
60 tons per hour
HUIXIN
FRP
HXYZ-110
110 tons per hour
HUIXIN
FRP
Oxygen Capacity at Maximum Flow rates, Various Temperatures and pressures, Salinity 0, Sea Level, Inflow Sat.100%, Contactors Sat.60%.
Model No.
Gauge pressure
Temp 20°C
D.O.mg/l
HXYZ-30
10psi/0.7bars
15psi /1bars
20psi /1.4bars
1.2kg/hr
1.4kg/hr
1.6kg/hr
49
56
64
HXYZ-60
10psi/0.7bars
15psi /1bars
20psi /1.4bars
2.4kg/hr
2.8kg/hr
3.2kg/hr
50
57
65
HXYZ-110
10psi/0.7bars
15psi /1bars
20psi /1.4bars
4.5kg/hr
5.3kg/hr
6.1kg/hr
50
58
65
Note: Weights are based on 20psi design thickness.Weights will change at other design pressure.All weights and loadings are estimated.Actual may vary slightly.
