Read Tajima/Barudan/ZSK/SWF Formats in the same industry
FEATURES
* Saddle frame and roller are driven by servo system
* Quilting and embroidery simultaneously at high speed
* Multi-Head : 33 heads for various selection
* Endurable Bearing introduced from japan
* Sliding guide ensures smooth running,finer patterns and lower chance of breaking thread.
* Auto-stop when broken thread is tested by infrared senser.
* Auto-return for patching embroidery function. * Automatic lubrication system.
* Needle bar will stay at the highest position after stop
* Micro-ajustment of pattern design by computer for better quilting appearance.
* Modifying easily an existing pattern instead of drawing a new one.
SPECIFICATIONS(Unit:mm)
Model
YXH-1-1-50.8
Size
5400*1400*200
Weight
3000KG
Quilting and embrodery width
3352
Needle space
50.8
X-axes movement
260
Head quantity
33 pieces
Rotating shuttle
Big Rotating shuttle
Quilting thickness
20-600G
Stitch length
Binary system:0.15-12.7mm
Pattern instored
960 pieces
Needle instored
120,000 stitches
Rolling speed
300-850rpm
Needle type
14#,16#
Principal drive
Parasonic Servo moter
Rated voltage
380V/50HZ 220V/60HZ
Power
5KW

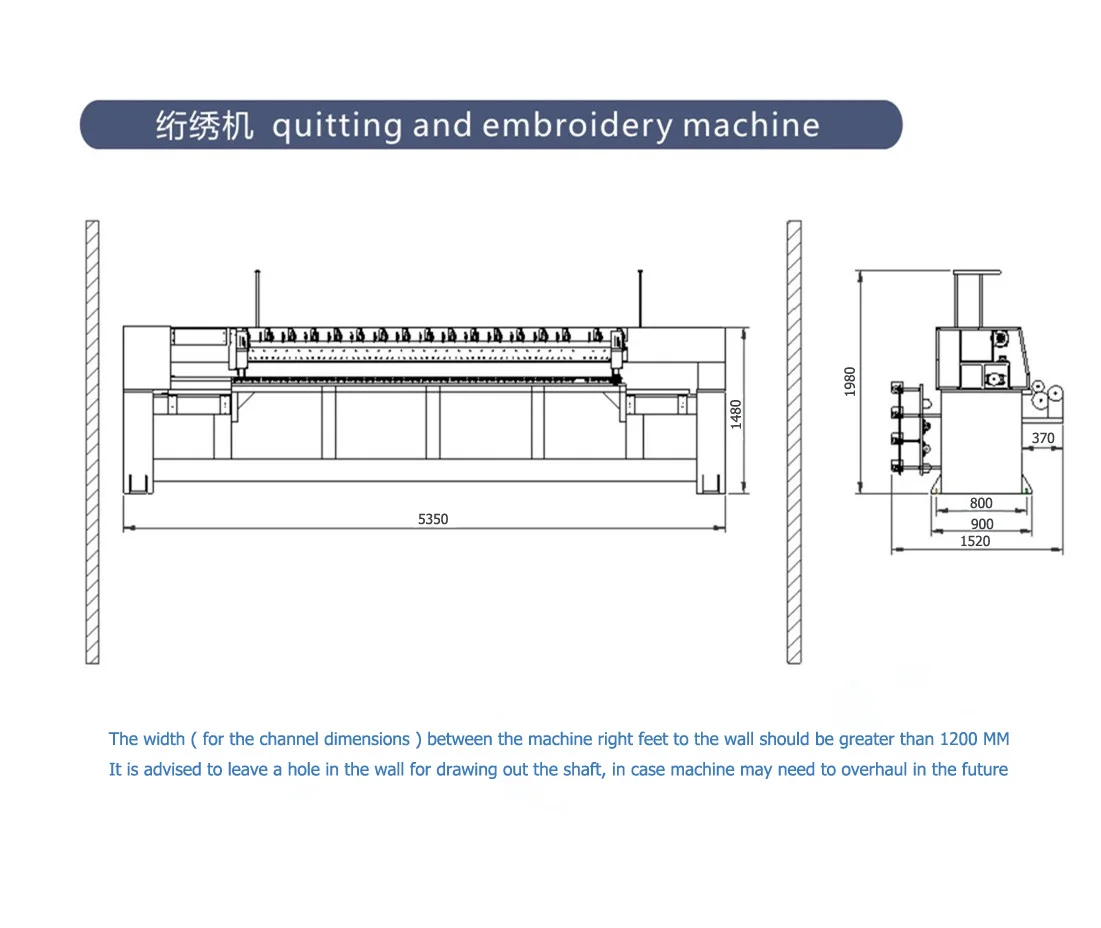

INSTALLATION
Packaging & Shipping
STANDARD PLASTIC WRAPPING OR WOODEN CASE WITH SURCHAGE
Our Services
To reassure our customer, we provide ONE year guarantee to meet concerns
Technician is always available via online assistance, we'll engage in solving every problem comes to us in quick fashion. In our concept, customer is entitled to have a robust machine accomplishing its task smoothly free from any worries, high quality and good service is our best repay for customer's trust and confidence.
A. If machine parts are broken, we can send the needed parts to our customer for free.
B.We can provide the installation, commissioning and training service in customer's factory, while customer needs to pay for VISA application, flight ticket, accommodation, USD50/day/person as labor fee
2) After one year
A. If machine parts are broken, there will be a charge for the required parts.
B. If need to send our technician to customer's factory for maintenance, Customer should pay USD50/day/person as service charge, include the fee of VISA application, flight ticket, accommodation
A CHIEF COMPANY IN DONGGUAN CHINA Specialized in manufacturing Computerized multi-needle Shuttle / non-shuttle quilting machine, Computerized quilting & embroidery machine, Cutting panel and Bobbin winder , Fabric Roller etc more than 10 kinds of products
The machine quilting mattress, bedding, sleeping bag, garments, bedspread, duvet, cushion, carpet, pillow ( cover & protector ) and other home textile fashion goods.
It passed the ISO9001 Quality Management System, and was honored as "Private Scientific and Technological Enterprises" by Dongguan city Science & Technology Bureau and Dongguan City Intellectual Property Bureau. Yuxing machines get a high credit standing at the correlative industry.
We always insist the tenet of "Honest Business, Credit First". In the condition of fierce competitive market, we make progress and get innovation constantly. We firmly believe high quality and good service are the best support for users' trust.
Yuxing Machinery Equipment Technology Co.,Ltd
