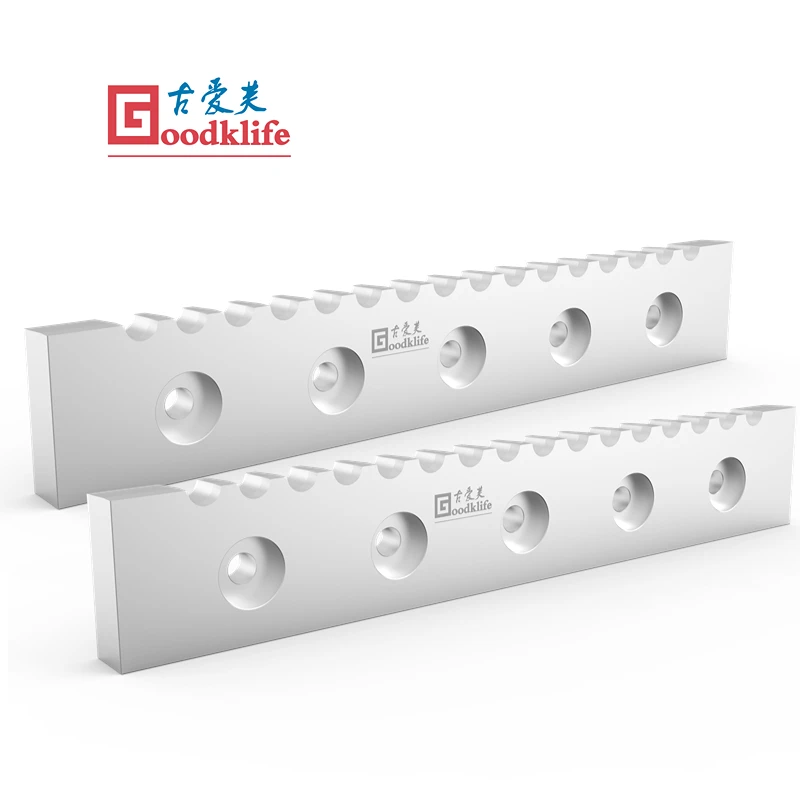

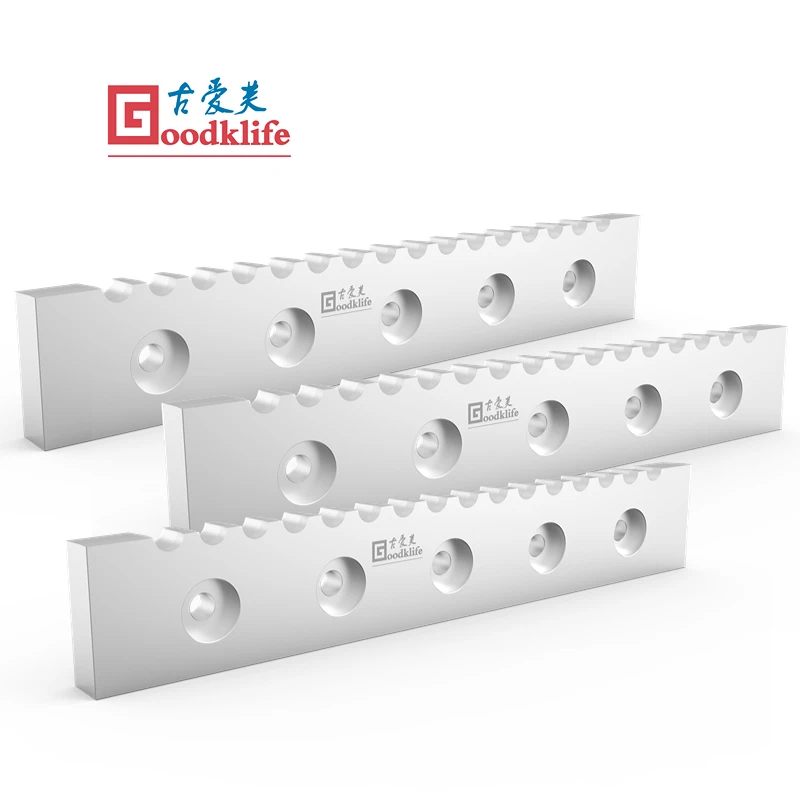

Rod guillotine cutting blades for cutting steel wire rods
- Category: >>>
- Supplier: Goodklife Machinery Technology Co. Ltd. Maanshan
Share on (1898281373):
Product Overview
Description
PRODUCTS DESCRIPTION
Logo
Goodklife Logo, Quality Assurance
Customized Logo

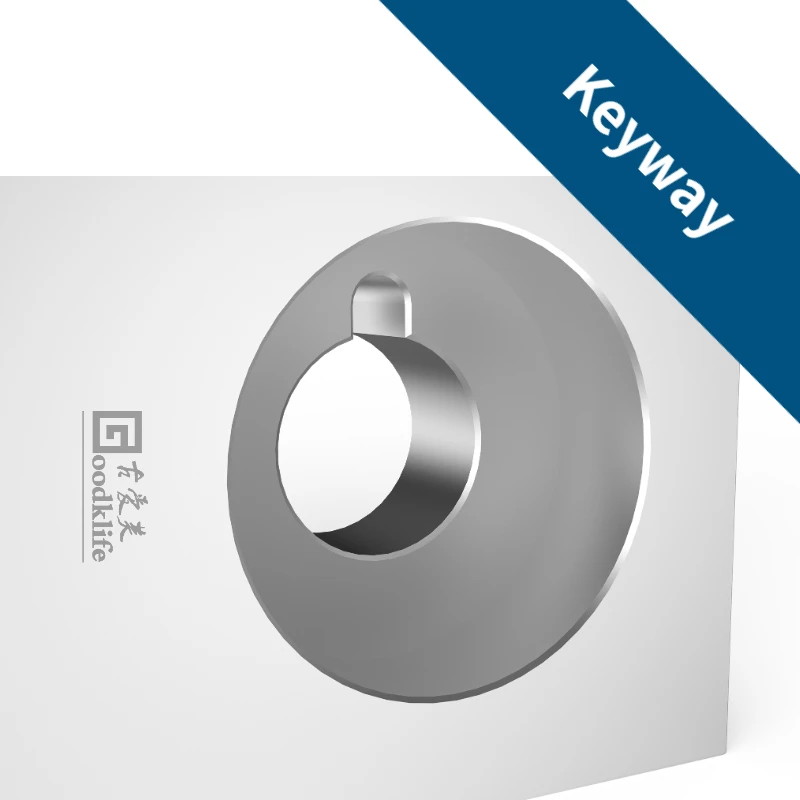

Keyway Chamfered
Easier Installation
Operator Protection

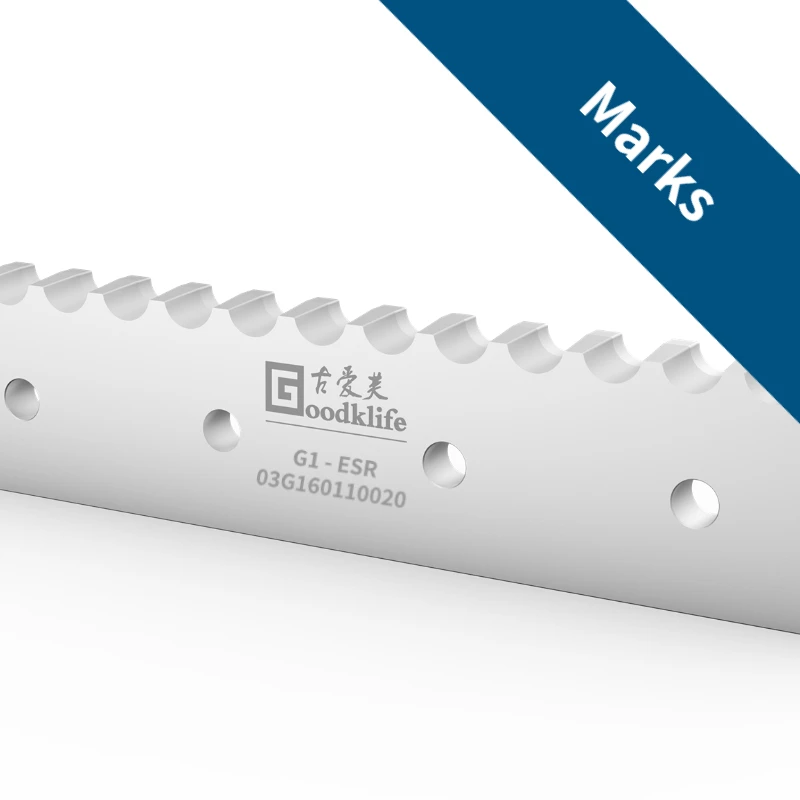

Marks
Material Code
Production Tracking Code
PRODUCT PARAMETER | ||
Brand | Goodklife | |
Products name | Rod Guillotine Cutting Blades | |
Material | Tool Alloy Steel, Goodklife Patented Material G1 - ESR | |
Cutting temperature | Hot and cold | |
Size | Customized | |
Groove | as request | |
Keyway | as request | |
Heat treatment | thorough-hardening | |
Surface Quality | Precision Ground | |
MATERIAL SELECTION
The first challenge for cutting rods is avoiding knife crack which means the knife should be good enough for its toughness and ductility. Good toughness and ductility are not enough. The knife should also be good for wear resistance. Thus the knife has long work life. In addition, the blade must also have good high temperature resistance. The knife edge cannot be annealed due to high temperature, otherwise the life will be drastically reduced.
H13 (equivalent to DIN 1.2344, W302 Böhler Martin Miller, JIS SKD61) is widely used for shearing Rebars all over the world, like Danieli, SMS, etc.

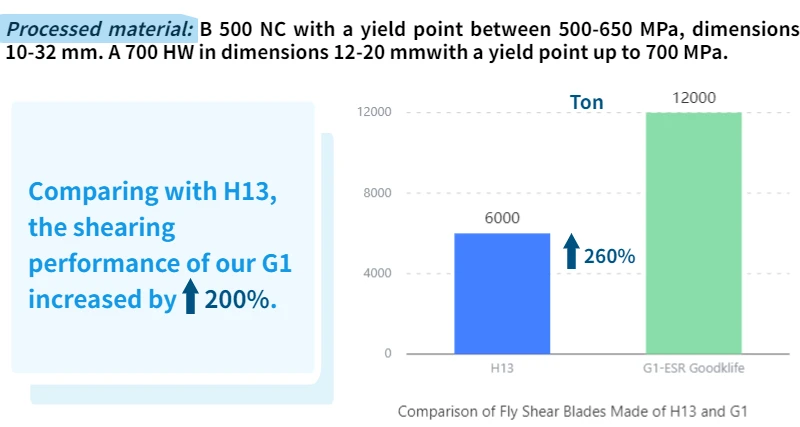

However, with the rapid development of the industry, the wear resistance of H13 has long been unable to meet the requirements. In addition, H13 can not meet the shearing conditions under high temperature conditions, and the knives and blades are often unable to continue to be used because of the dropping hardness. For this reason, Goodklife and several university professors developed G1 high-alloy tool steel and obtained a national patent. This material solves the problem of insufficient wear resistance and high temperature resistance of H13. G1 is a ESR remelt high alloy tool steel. The value of P and S is extremely low in G1 material, below 0.0025, while G1 has more W and Ni, which can increase wear resistance and toughness.
TOLERANCE SELECTION
Qualified size tolerance are necessary conditions to ensure that the shear clearance between the upper and lower shearing blades of the machine is always consistent during dynamic operation. Accurate clearance plays a very important role in shear quality and extended blade life.
OUTSTANDING PERFORMANCES
Depending on your budget and requirements, our team of experts will develop a customized solution for you, including but not limited to the selection of blades materials, accuracy, etc. If necessary, our field team will come to your company to study the current cutting problems and improve your cutting quality.
INCREASED LIFESPAN & COST SAVINGS
By selecting the right raw material for the blade and combining it with proven heat treatment processes, we can produce blades that will last significantly longer and thus reduce your tool purchase costs.
SHEARING QUALITY CONTROL
Goodklife rod guillotine cutting blades help you achieve perfect cutting quality control. Ensure that the gap between each pair of cutting blades is correct and stable. Patented material G1 greatly increases the service life of rod guillotine cutting blades.
QUALITY ASSURANCE

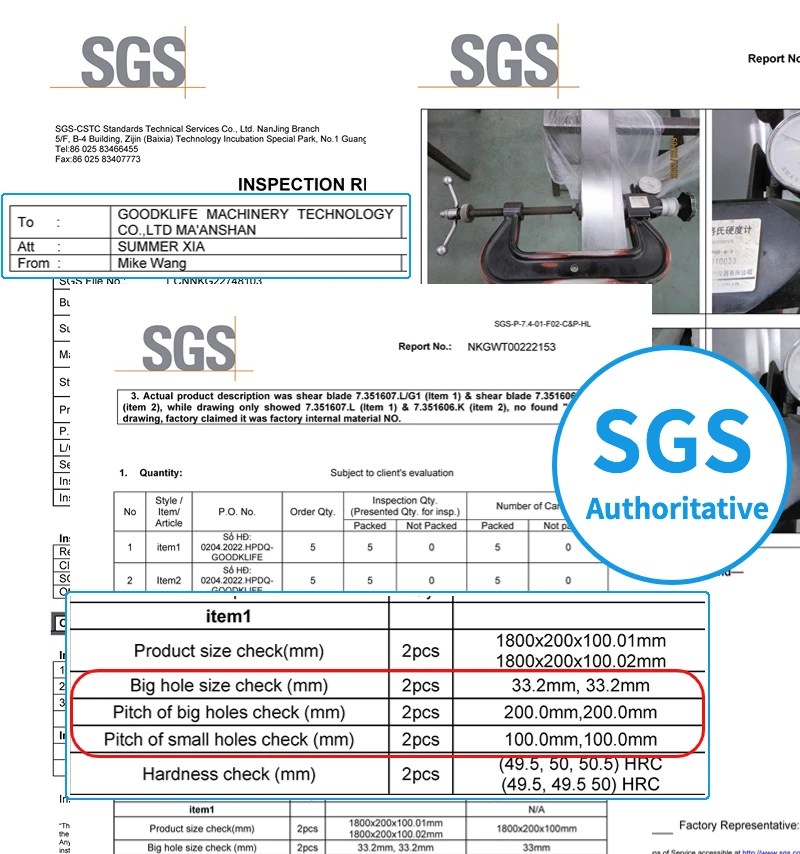

SGS AUTHORITATIVE TESTING
Goodklife has always been committed to providing high-quality, ultra-high-precision cutting tools to customers around the world. In order to enhance mutual trust, for the first cooperation, we now provide free SGS testing services to invited customers to dispel all your doubts.
MATERIAL QUALITY ASSURANCE
Raw material is the foundation of knife quality. Goodklife has the most complete range of blade raw materials in the world. We will recommend the most suitable blade material according to the customer's detailed cutting conditions to ensure that the blade is lastingly sharp without chipping. In order to meet the growing demand for high-strength steel shearing, Goodklife has also developed the national patented material G1, which greatly improves the shearing effect.
At present, the vast majority of knives on the market are made of raw materials smelted by conventional techniques. In order to further improve the quality of the raw materials for the knives, Goodklife only selects raw materials produced by the ESR process. The ESR process is a further purification of raw materials after the conventional steelmaking process.
Compared with raw materials smelted by conventional methods, ESR raw materials can largely avoid the phenomenon of chipping, and can also significantly improve the service life of the blade.
HEAT TREATMENT ASSURANCE
Goodklife's heat treatment workshop is fully equipped with various heating, annealing, quenching and tempering equipment, and is equipped with a number of experienced professional senior engineers. After years of experience summarization, the company's unique heat treatment process has been formed. Blades with a thickness of less than 100 mm can be fully hardened into the core, which can ensure that the performance of the blade is the same until it is ground to the minimum size. Not only the safety factor of the blade is high, but also the production efficiency can be significantly improved and the cutting cost can be reduced.
PRECISION TOLERANCE ASSURANCE
Goodklife rod guillotine cutting blades are more like works of art. The company currently has a number of ultra fine grinding machines and automatic R-type grinding machine. Every employee in the finishing workshop is deeply rooted in the pursuit of high precision, and strictly abides by the operating system to ensure that every shearing blade is qualified.
GOODKLIFE BRAND STORY
COMPANY PROFILE
GOODKLIFE HISTORY
1988 As one of the first companies producing metal shear processing tools in China, we have been continuously exploring high quality products.
2006 Successfully developed a new tool high-strength steel G1, which greatly improved the service life of metalworking tools. The material was awarded the national new invention patent in 2008.
2011 We started to enter the international market, and now our products are selling well in many countries.
HIGH PRECISION TOLERANCE
1998 Started production of slitting tools with a thickness accuracy of +/-0.005 mm.
2000 Started mass production of slitting tools with a thickness accuracy of +/-0.005 mm.
2003 Started mass production of slitting tools with a thickness of +/-0.003 mm.
2016 We started mass production of slitting tools with thickness +/-0.001 mm and parallelism and flatness 0.002 mm accuracy.
