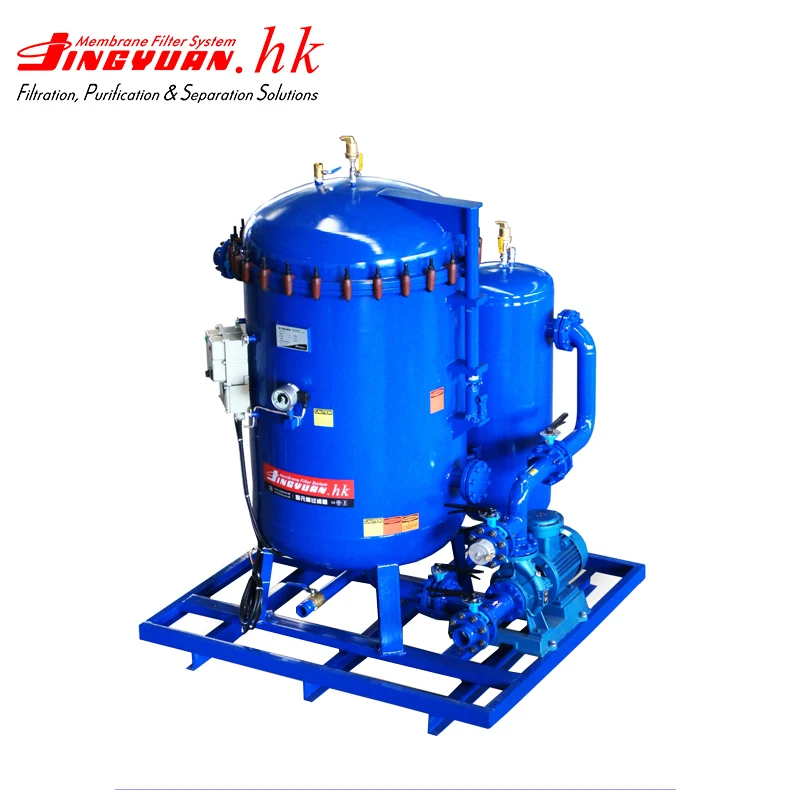

Diesel fuel filter manufacturers diesel filtration plant diesel fuel particulate filter

Product Overview

Description



Excellent performance:

•New polymer membrane filtration technology

•Selectivity characteristics of polymer membrane is core technology.

•Oil-water separating is easy.

•High precision and deep filtration

•Guarantee the cleanness index of diesel oil

•Improve the efficiency of the engine

•Prolong engine service life

•The cost of filtration is low

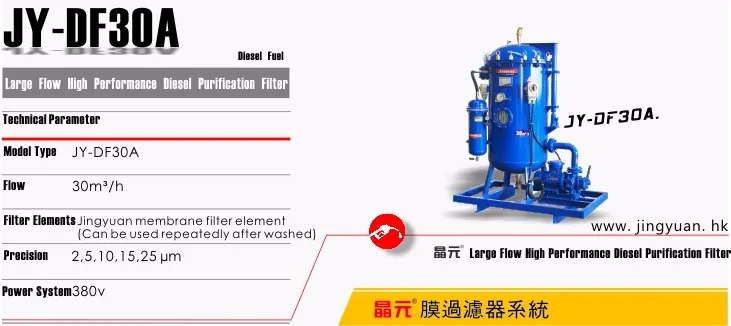

Technical Parameters	1	Model Number	JY-DF30A
	2	Working Pressure	0.2~0.35Mpa
	3	Flow Rate	30m3/h
	4	Filtration Precision	2,5,10,15,20,25μm
	5	Filtration Material	HDPE,PA
	6	Applicative Oil	Light Diesel Oil
	7	Chemical Resistance	Widely Chemical Compatibility

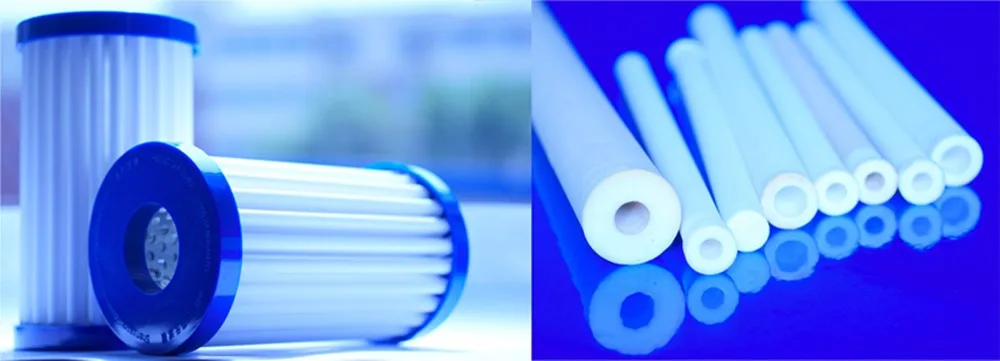

	8	Type of Filter element	J30-970S
	9	End Flanges	DN80~DN125
	10	Dimension	1000×860×2200mm
	11	Weight	35KG
	12	Service Life of Filter Element	2~3 Year
	13	Warranty for Main Engine	1 Year
Functional Characteristics	1	High flow diesel purification filter
	2	Minimum mechanical flow resistance

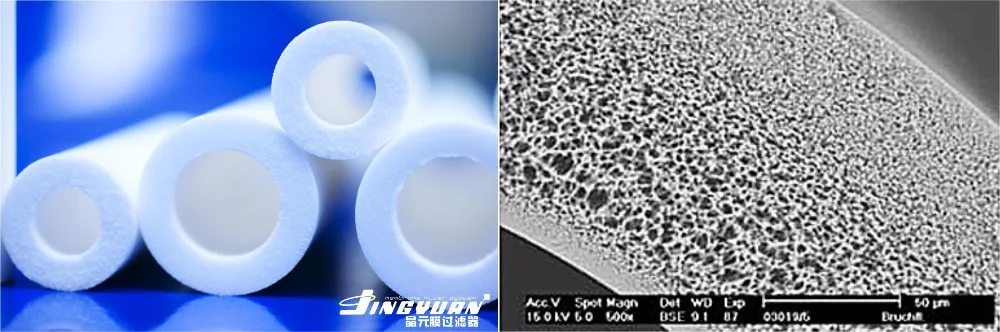

	3	Polymer membrane filter
	4	Deep filtration
	5	High interception rate
	6	Oil-water separation
	7	Quick opening lid, safely and quickly, easy to maintain
	8	Made of high quality thick steel plate, anti-corrosion treatment
	9	Stainless steel tanks can be customized
	10	Tank passes pressure test
	11	Filter can be back flushed and maintained
	12	Convenient operation of the drain valve
	13	Convenient repair and maintenance
	14	Low operating cost
	15	Design life is more than 20 years (except for filter element)
Principle	Selectivity characteristic is to say, the oil molecules will pass and water molecules or impurities will be intercepted, so that the oil and water can be separated.
Application	Mining, construction, large generating units, engineering machinery, oil refinery, oil depot, dock, railway locomotive gas stations, military industry, electric power, oil production and other industries in Asia, South America, Africa and Middle East.
Why do we filter diesel?	90% of the failure problem of diesel engine is due to dirt and moisture in the diesel. After multiple storage and transportation, the purity of the product will decline. So filtering out the pollutants and water is necessary to restore the purity of the product. Clean diesel makes fuel consumption reduces 5-10%, oil-saving effect is obvious, the service life of diesel engines extend 2 ~3 times.

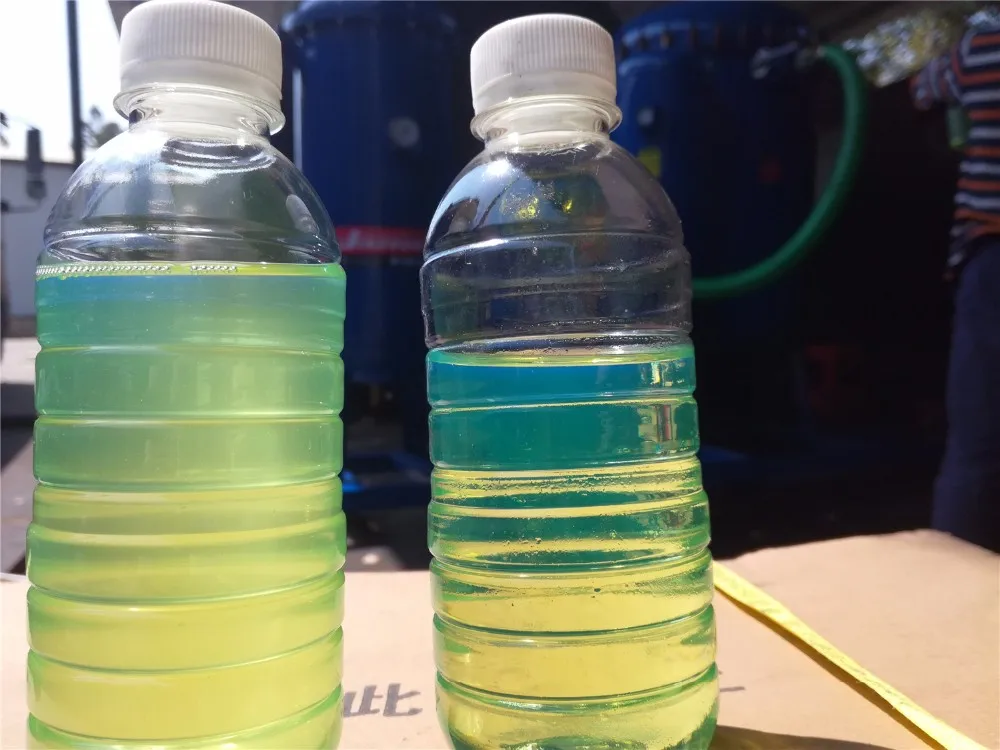

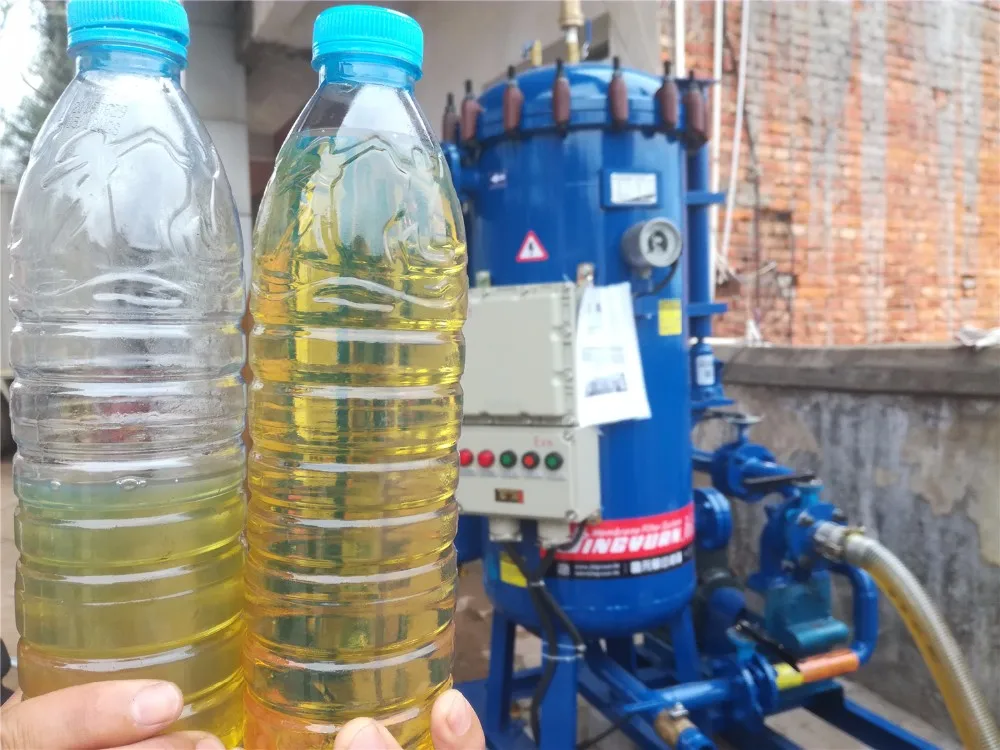

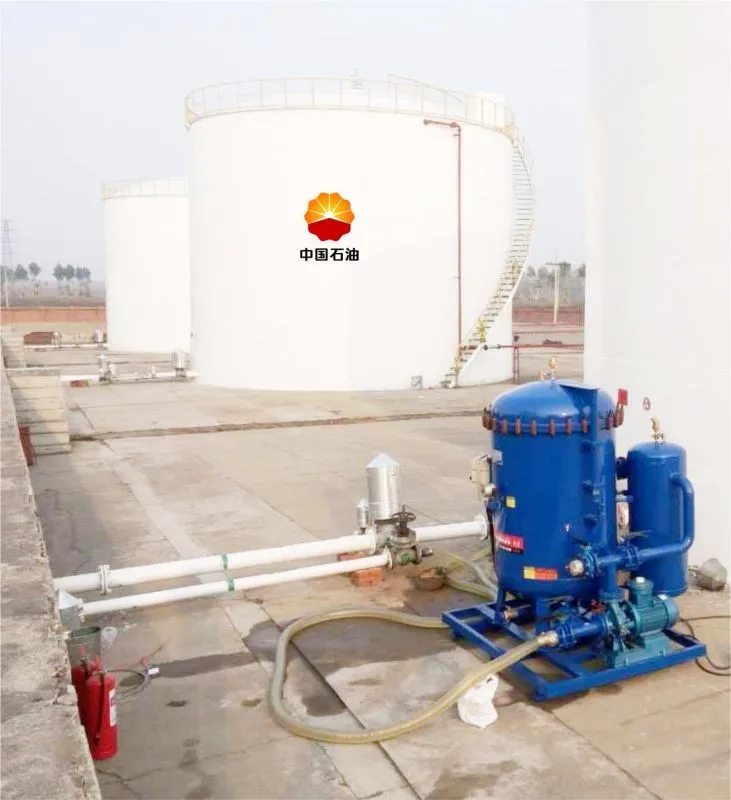

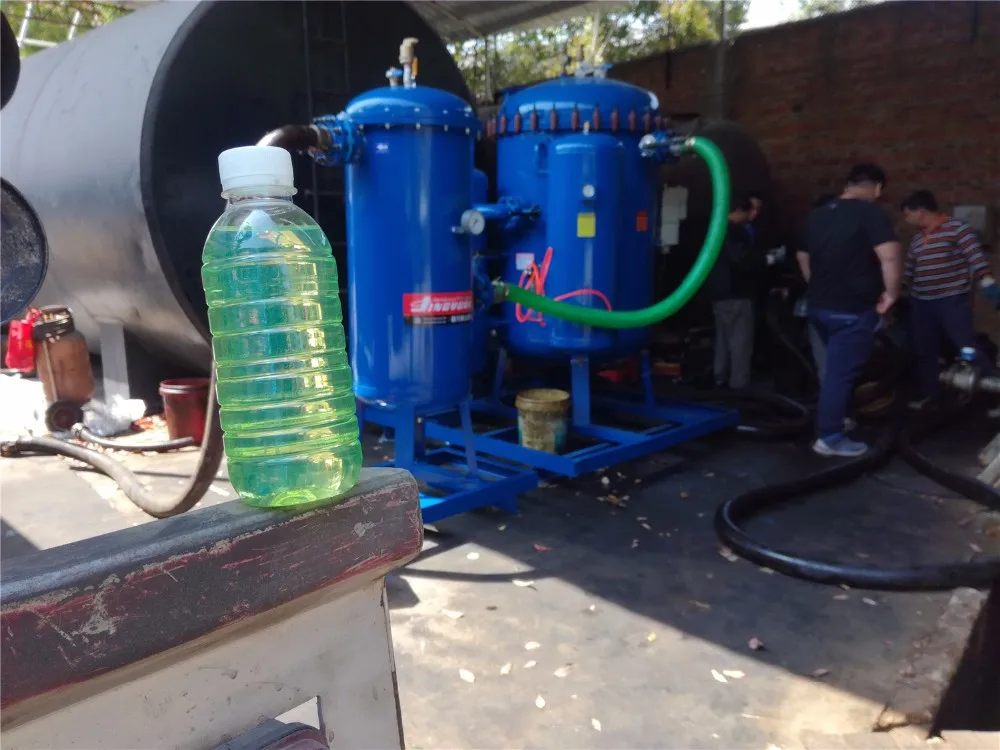

Application Case:

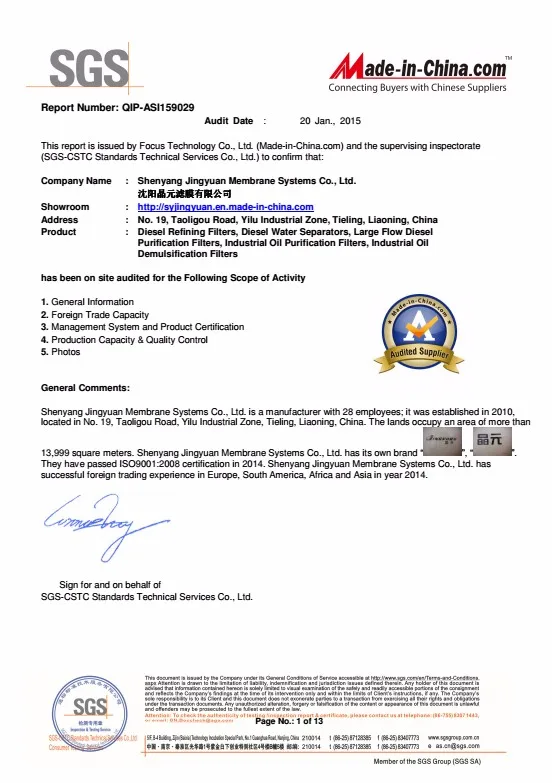

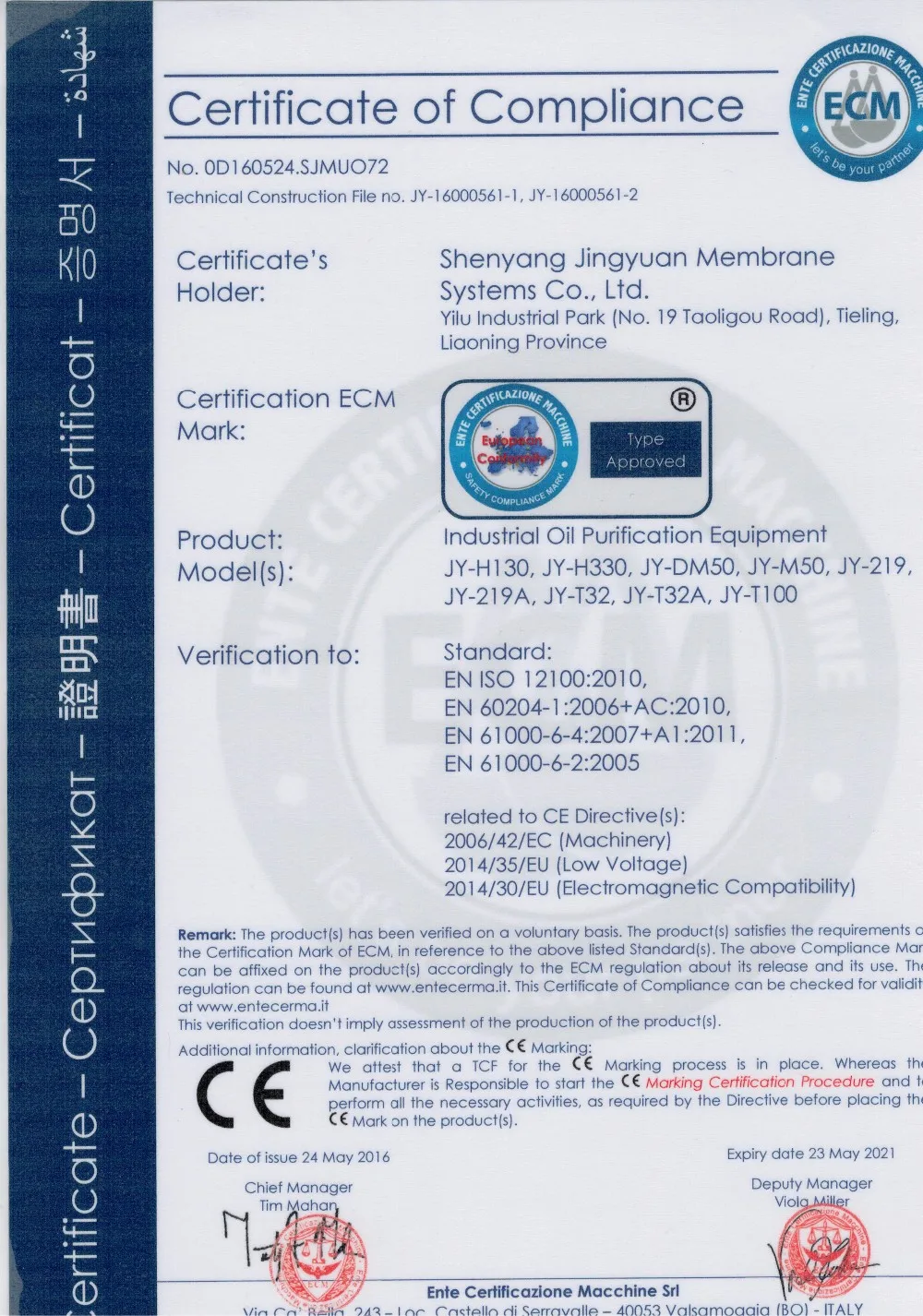

Certification in CE ISO and SGS

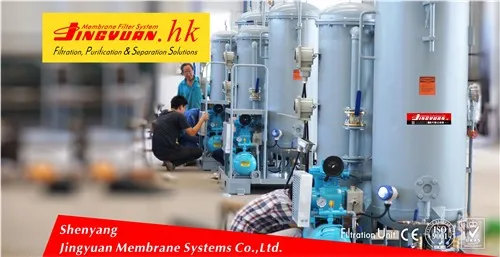

Working Store in Industy:

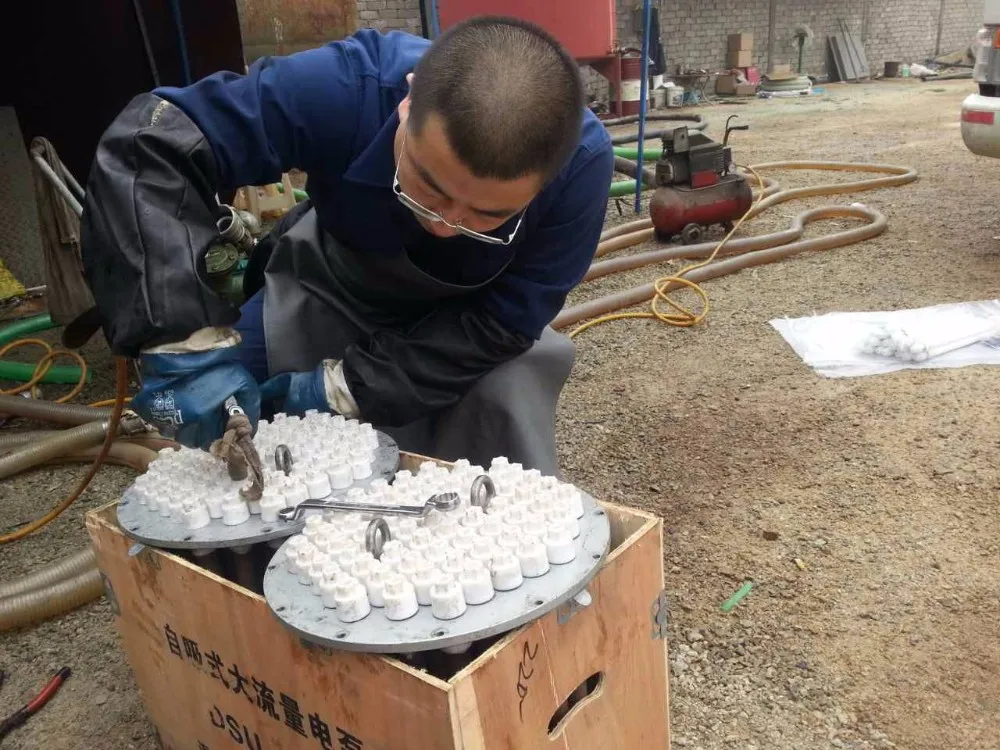

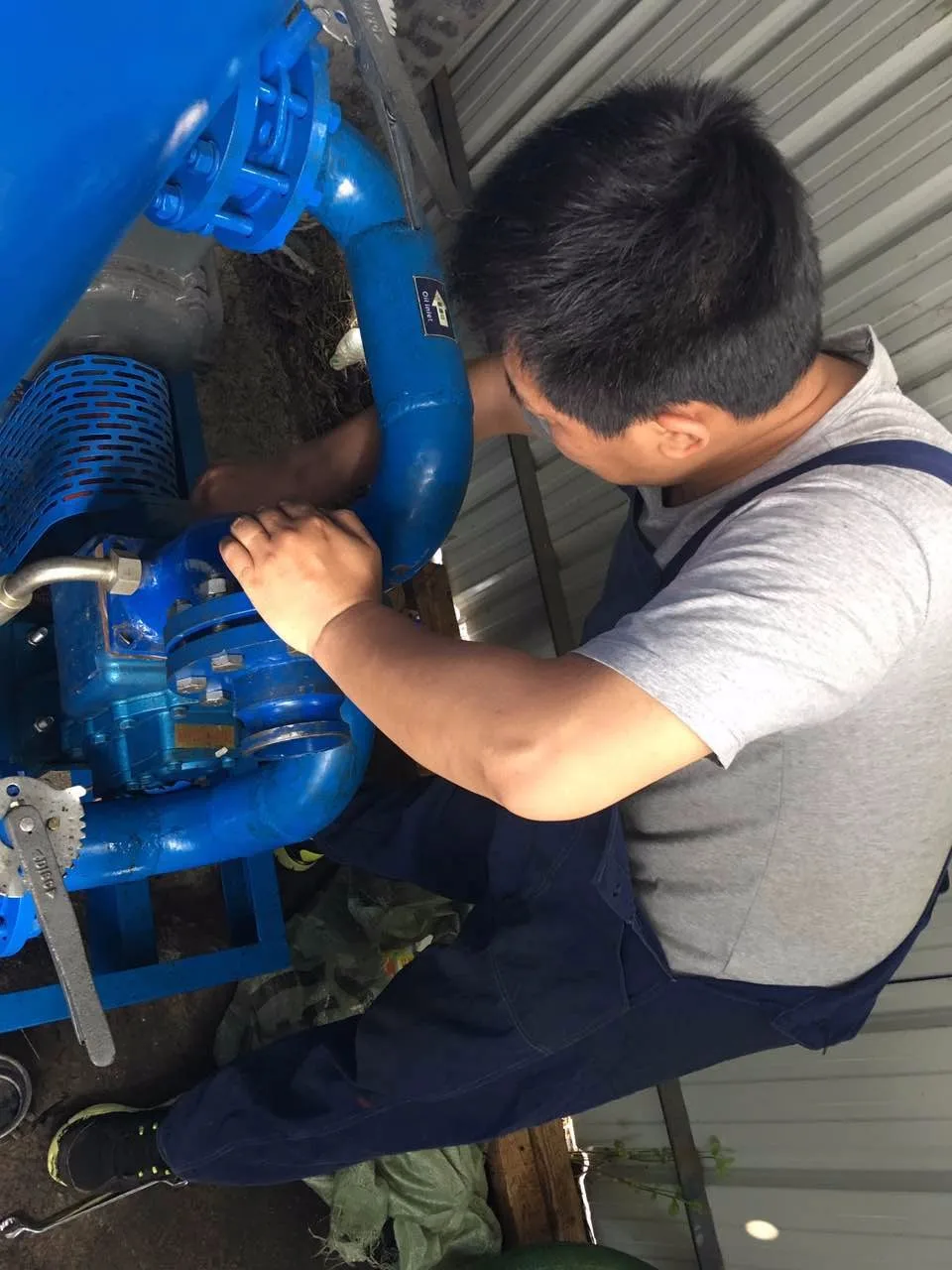

Professional Service after Sale:
